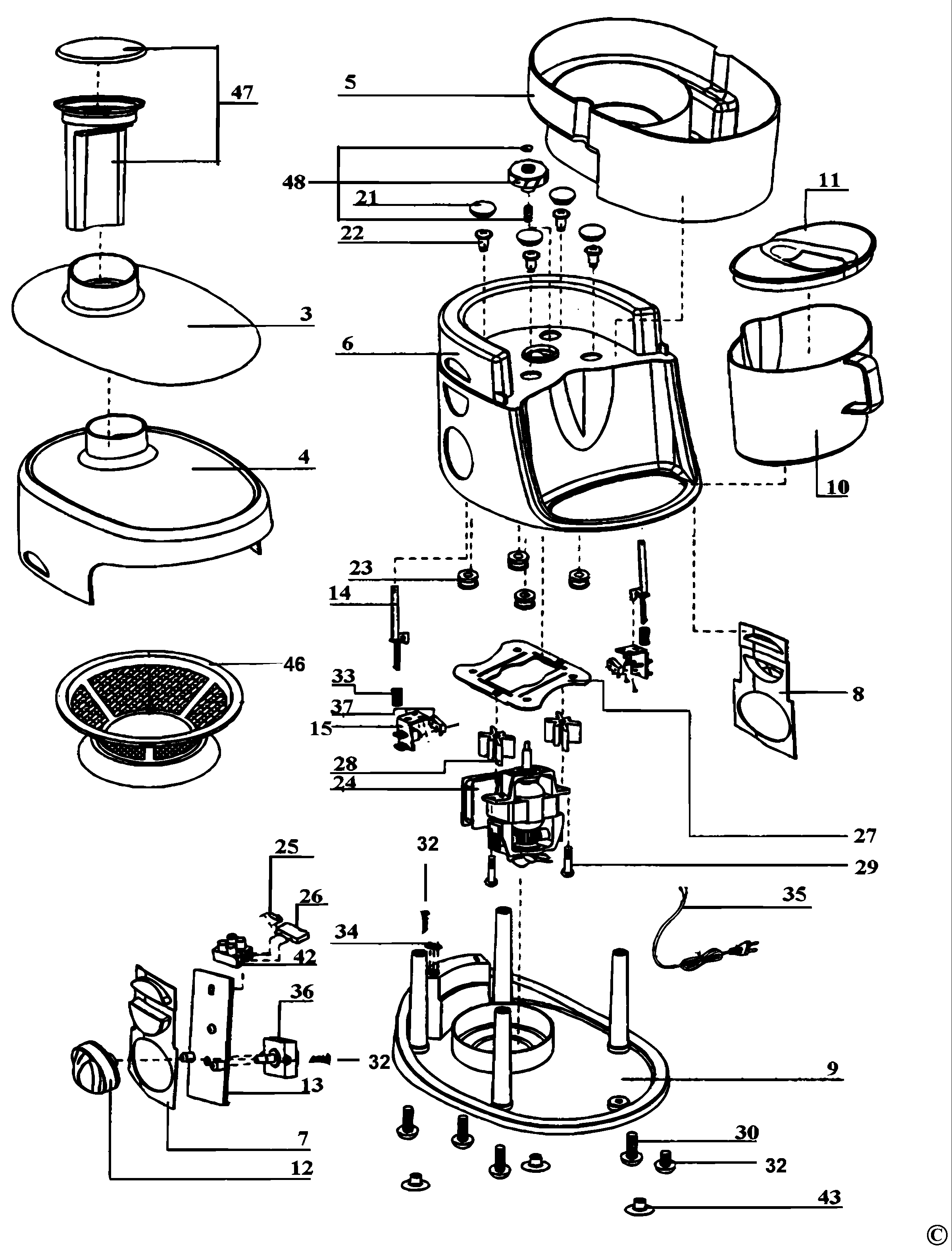

JE60 JUICER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
3	6010036-03	1	TRAY	FOOD TRAY	AP-118103	XJ
4	6010036-04	1	HOUSING TOP		AP-118104	XJ
5	6010036-05	1	BOWL	PULP CONTAINER	AP-118105	XJ
6	6010036-06	1	HOUSING	MAIN HOUSING	AP-118106	XJ
7	6010036-07	1	PLATE LH	LOCKING PLATE - LEFT	AP-118107	XJ
8	6010036-08	1	PLATE RH	LOCKING PLATE - RIGH	AP-118108	XJ
9	6010036-09	1	HOUSING LOWER		AP-118109	XJ
10	6010036-10	1	CUP	JUICE CUP	AP-118110	XJ
11	6010036-11	1	COVER	JUICE CUP COVER	AP-118111	XJ
12	6010036-12	1	SWITCH	ON/OFF SWITCH KNOB	AP-118112	XJ
13	6010036-13	1	MOUNT	SWITCH MOUNTING PLAT	AP-118113	XJ
14	6010036-14	1	LOCK	ACTUATING LOCK	AP-118114	XJ
15	6010036-15	1	MOUNT	ACTUATING LOCK MOUNT	AP-118115	XJ
21	6010002-03	1	COVER	SCREW COVER	AP-089803	XJ
22	6010036-22	1	SCREW		CD-M40L13	XJ
23	6010002-04	1	SHOCK ABSORBER		AN-039815	XJ
24	6010036-24	1	MOTOR 115V		JE60-24	XJ
24	6010036-46	1	MOTOR 230V		ER-0688V1	XJ
25	6010002-30	1	RESISTOR		EB-475G02	XJ
26	6010036-26	1	CAPACITOR	METTALISED CAPACITOR	EC-M104274	XJ
27	6010036-27	1	BRACKET	MOTOR	AM-039817	XJ
28	6010036-28	1	SPACER		AP-039818	XJ
29	6010036-29	1	SCREW		CD-M40C25	XJ
31	6010033-61	1	SCREW		CD-S30B08	XJ
32	6010036-32	1	SCREW		CD-S30J08	XJ
33	6010036-33	1	SPRING	SAFETY SPRING	AM-089312	XJ
34	6010002-15	1	CORD CLAMP		AP-089308	XJ
35	6010002-29	1	CORDSET		EG-J65CD1	XJ
35	6010036-47	1	CORDSET	115V	JE60-35	XJ
36	6010006-34	1	SWITCH	ROTARY SWITCH	EE-01330V	XJ
37	6010002-36	1	MICRO SWITCH		EE-M1230U	XJ
42	6010002-35	1	TERMINAL BLOCK		EM-F02202	XJ
43	6010002-14	1	FOOT	RUBBER	AP-083830	XJ
46	6010036-49	1	FILTER SA		JE60-46	XJ
47	6010036-50	1	FOOD PUSHER		JE60-47	XJ
48	6010036-48	1	DRIVER SA		JE60-48	XJ
