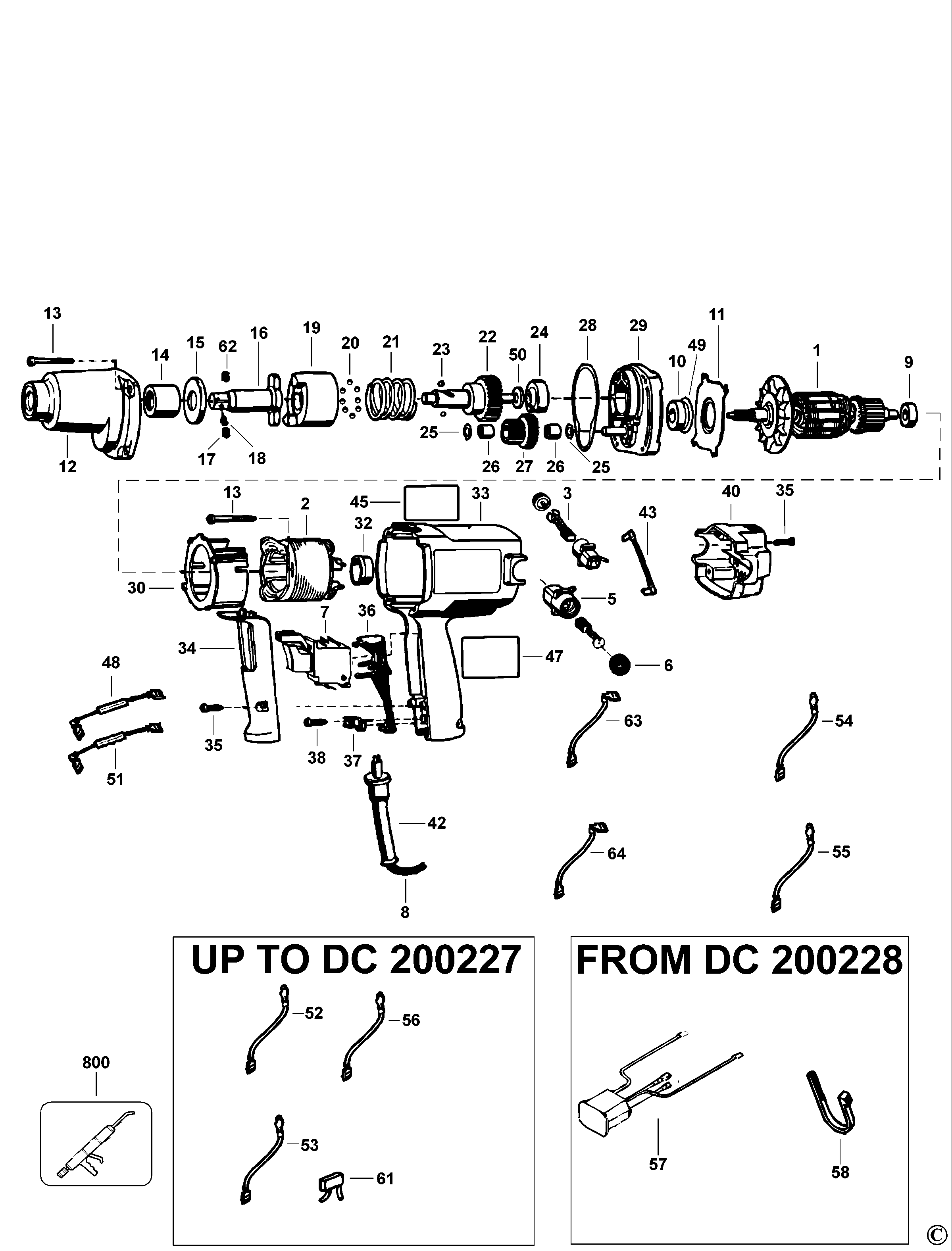

DW290 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 450807-00SV | 1 | ARMATURE & FAN | LX |  |
||
| 2 | 449458-71 | 1 | FIELD 115V | LX | |
||
| 3 | 450374-12 | 2 | BRUSH & SPRING | UpTo D Code 200227 | LX |  |
|
| 5 | 448083-01 | 2 | BRUSHBOX SA | LX | |
||
| 6 | 448084-01 | 2 | BRUSH CAP | LX | |
||
| 7 | 88324-05 | 1 | SWITCH | Black | LX | |
|
| 8 | 330061-20 | 1 | CORDSET | LX | |
||
| 9 | 605040-06 | 1 | BEARING,BALL | LX | |
||
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | LX | |
|
| 11 | 448079-00 | 1 | PLATE | LX | |
||
| 12 | 449448-00 | 1 | GEARCASE | LX | |
||
| 13 | 330019-50 | 6 | SCREW | M4.55x50 PLASTIC THD FMG | LX | |
|
| 14 | 450544-00 | 1 | BEARING & SEAL | LX | |
||
| 15 | 616859-00 | 1 | WASHER THRUST | LX | |
||
| 16 | 627238-00SV | 1 | ANVIL ASSEMBLY | LX | |
||
| 16 | 627238-00SV | 1 | ANVIL ASSEMBLY | LX | |
||
| 17 | N020802 | 1 | DETENT | LX | |
||
| 18 | 038769-00 | 1 | SPRING | LX | |
||
| 19 | 448298-00 | 1 | IMPACTOR | LX | |
||
| 20 | 000475-00 | 25 | BALL STEEL | LX | |
||
| 21 | 135065-00 | 1 | SPRING | LX | |
||
| 22 | 449759-01 | 1 | GEAR SA | LX | |
||
| 23 | 005190-00 | 2 | BALL STEEL | 9/32 inch | LX | |
|
| 24 | 450736-00 | 1 | BEARING | LX | |
||
| 25 | 135089-00 | 2 | WASHER | LX | |
||
| 26 | 330004-02 | 2 | BEARING NEEDLE | LX | |
||
| 27 | 135093-01SV | 1 | GEAR & PINION | LX | |
||
| 28 | 135082-00 | 1 | GASKET | LX | |
||
| 29 | 449452-00 | 1 | COVER GEARCASE | LX | |
||
| 30 | 447786-00 | 1 | BAFFLE FAN | LX | |
||
| 32 | 445217-02 | 1 | SLEEVE | LX | |
||
| 33 | 429939-00 | 1 | FIELDCASE SA-KIT | LX | |
||
| 34 | 5140004-80 | 1 | HANDLE & COVER | DC 0023 & EARLIER | LX | |
|
| 34 | 392273-00 | 1 | HANDLE COVER | DC 0024 & LATER | LX | |
|
| 35 | 330019-13 | 6 | SCREW | M4X19 T20 | LX | |
|
| 36 | 449915-00 | 1 | SWITCH SUPPORT | LX | |
||
| 37 | 380414-00 | 1 | CORD CLAMP | LX | |
||
| 38 | 330019-03 | 2 | SCREW | LX | |
||
| 40 | 449460-01 | 1 | END CAP | LX | |
||
| 42 | N542553 | 1 | CORD PROTECTOR | LX | |||
| 42 | N542553 | 1 | CORD PROTECTOR | LX | |||
| 43 | 158491-00 | 1 | LEAD | 6-3/4 INCH BLACK | DC 200227 & EARLIER | LX | |
| 45 | 390973-00 | 1 | NAMEPLATE | LX | |
||
| 45 | 388024-00 | 1 | NAMEPLATE | LX | |
||
| 45 | 390972-00 | 1 | NAMEPLATE | LX | |
||
| 47 | 149477-00 | 1 | IDENTITY LABEL | LX | |
||
| 49 | 99180-24 | 1 | SEAL | LX | |
||
| 50 | 450667-00 | 1 | WASHER | LX | |
||
| 52 | 146976-00 | 1 | LEAD BLUE | DC 200227 & EARLIER | LX | |
|
| 53 | 146956-00 | 1 | LEAD WHITE | DC 200227 & EARLIER | LX | |
|
| 54 | 146957-00 | 1 | LEAD RED | LX | |
||
| 55 | 146957-01 | 1 | LEAD BLACK | LX | |
||
| 56 | 146958-00 | 1 | LEAD | DC 200227 & EARLIER | LX | |
|
| 62 | 099205-07 | 1 | ROLL PIN | LX | |
||
| 63 | 390449-01 | 1 | LEAD | LX | |
||
| 64 | 390449-00 | 1 | LEAD | LX | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | LX | |
