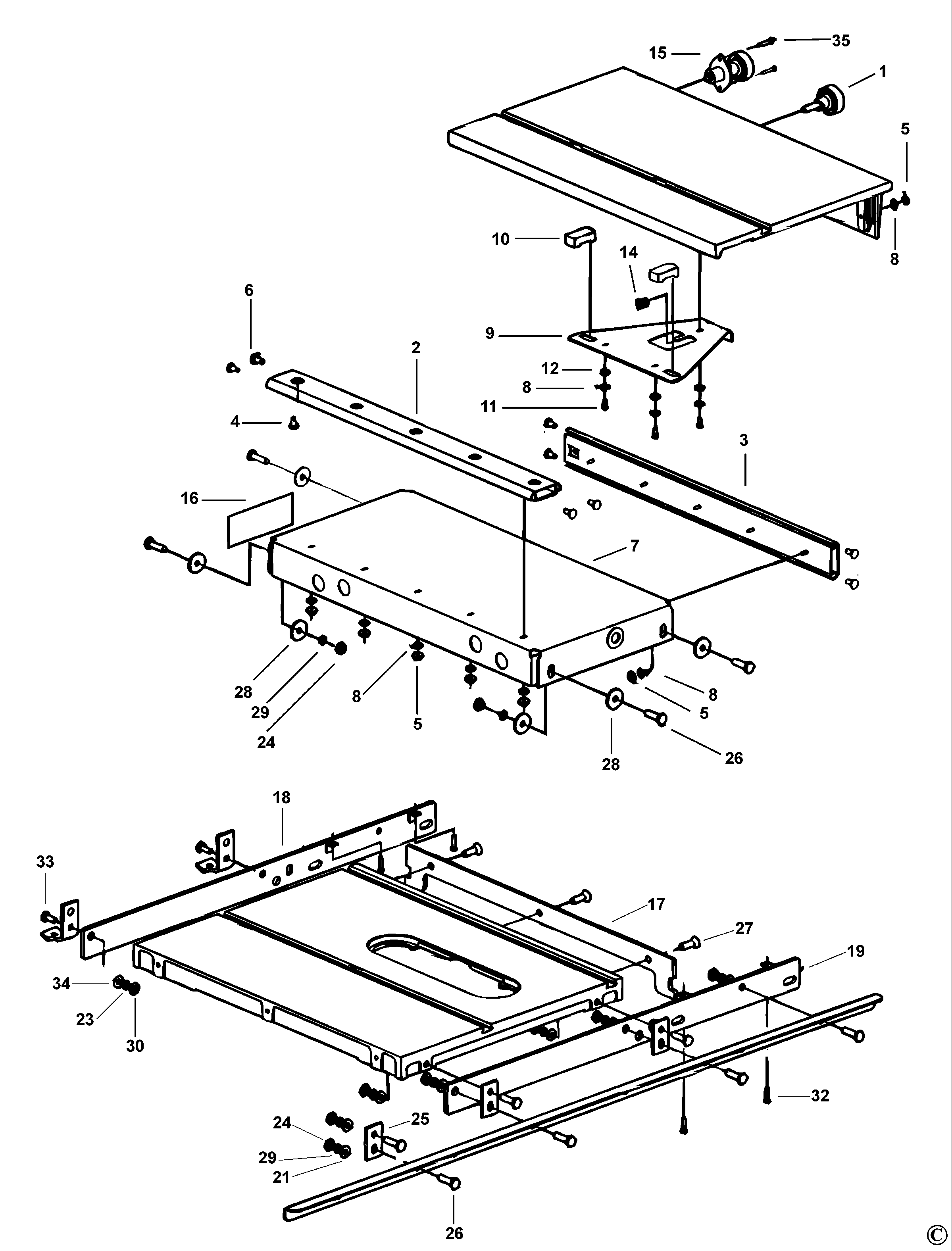

DE7461 TABLE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 389903-00 | 1 | KNOB SA | XJ |  |
||
| 2 | 389907-00 | 1 | SLIDE | XJ | |
||
| 3 | 391400-00 | 1 | SLIDE | XJ | |
||
| 4 | 153637-03 | 5 | SCREW | XJ | |
||
| 5 | 148641-00 | 15 | LOCK-NUT | XJ |  |
||
| 6 | 390616-00 | 8 | PLUG | XJ | |
||
| 7 | 389913-00 | 1 | SUPPORT TABLE | XJ | |
||
| 8 | 330016-02 | 18 | WASHER | XJ | |
||
| 9 | 389905-00 | 1 | PLATE | XJ | |
||
| 10 | 389906-00 | 2 | BLOCK | XJ | |
||
| 11 | 144949-00 | 3 | SCREW.SPECIAL | XJ | |
||
| 12 | 449668-00 | 3 | WASHER | XJ | |
||
| 14 | 390621-00 | 1 | SPRING | XJ | |
||
| 15 | 389910-00 | 1 | LOCK BUTTON | XJ | |
||
| 16 | 394178-00 | 1 | NAMEPLATE | XJ | |
||
| 17 | 389916-00 | 1 | BRACKET | XJ | |
||
| 18 | 389915-00 | 1 | TABLE SUPPORT | XJ | |
||
| 19 | 389915-01 | 1 | TABLE SUPPORT | XJ | |
||
| 20 | 98025-55 | 4 | SCREW | XJ | |
||
| 21 | 330016-04 | 7 | WASHER | XJ | |
||
| 22 | 391044-00 | 4 | CLAMP | XJ | |
||
| 23 | 098197-09 | 10 | WASHER | XJ | |
||
| 24 | 330015-05 | 11 | NUT | XJ | |
||
| 25 | 389918-00 | 3 | BRACKET | XJ | |
||
| 26 | 98026-35 | 11 | SCREW | XJ | |
||
| 27 | 98204-30 | 3 | SCREW | XJ | |
||
| 28 | 330016-11 | 8 | WASHER | XJ | |
||
| 29 | 98197-07 | 11 | WASHER LOCK | XJ | |
||
| 30 | 330015-03 | 10 | NUT | M8x1.25 | XJ | |
|
| 31 | 390917-00 | 2 | STABILISER LEG | XJ | |
||
| 32 | 330045-24 | 4 | SCREW | XJ | |
||
| 33 | 98130-25 | 2 | CARRIAGE BOLT | XJ | |
||
| 34 | 330016-03 | 2 | WASHER | XJ | |
||
| 35 | 330045-14 | 2 | SCREW | XJ | |
||
| 36 | 429916-00 | 1 | MITRE GUIDE | XJ | |
||
| 37 | 429916-01 | 1 | WASHER LOCK | XJ | |
||
| 38 | 429916-02 | 1 | FENCE | XJ | |
||
| 39 | 429916-03 | 1 | CLAMPING BAR | XJ | |
||
| 40 | 429916-04 | 1 | FENCE | XJ | |
||
| 41 | 429916-05 | 1 | CLAMP | XJ | |
||
| 42 | 429916-06 | 1 | BRACE | XJ | |
||
| 43 | 429916-07 | 1 | BRACE | XJ | |
||
| 44 | 429916-08 | 1 | STOP | XJ | |
||
| 45 | 429916-09 | 1 | MOUNT | XJ | |
||
| 46 | 429916-10 | 1 | BOLT | XJ | |
||
| 47 | 286303-00 | 1 | KNOB SA | XJ | |
||
| 49 | 429916-12 | 1 | SCREW | XJ | |
||
| 50 | 429711-00 | 2 | SCREW | XJ | |
||
| 51 | 153650-04 | 1 | CLAMP SA | XJ | |
||
| 52 | 429916-14 | 1 | SCREW | XJ | |
||
| 53 | 147107-00 | 3 | KNOB | XJ | |
||
| 54 | 153414-00 | 1 | SCREW | XJ | |
||
| 55 | 153417-00 | 1 | KNOB | XJ | |
||
| 56 | 429916-15 | 2 | WASHER | XJ | |
||
| 57 | 429916-16 | 3 | WASHER THRUST | XJ | |
||
| 58 | 429916-17 | 1 | BOLT | XJ | |
||
| 59 | 429916-18 | 1 | NUT | XJ | |
||
| 60 | 429916-19 | 1 | BOLT | XJ | |
||
| 61 | 429916-20 | 1 | BOLT | XJ | |
||
| 62 | 429916-21 | 1 | WASHER | XJ | |
||
| 63 | 429916-22 | 1 | ADJUSTER BLOCK | XJ | |
||
| 64 | 429916-23 | 1 | BOLT | XJ | |
||
| 65 | 429916-24 | 1 | NUT | XJ | |
||
| 66 | 429916-25 | 2 | WASHER NYLON | XJ | |
||
| 67 | 429916-26 | 1 | NUT | XJ | |
||
| 70 | 152693-02 | 1 | DRIVER | T40 TORX DRIVER | XJ | |
|
| 70 | 152693-01 | 1 | TORX 50 WRENCH | T50 TORX DRIVER | XJ | |
|
| 846 | 389926-00 | 1 | ACCESSORY KIT | XJ | |
