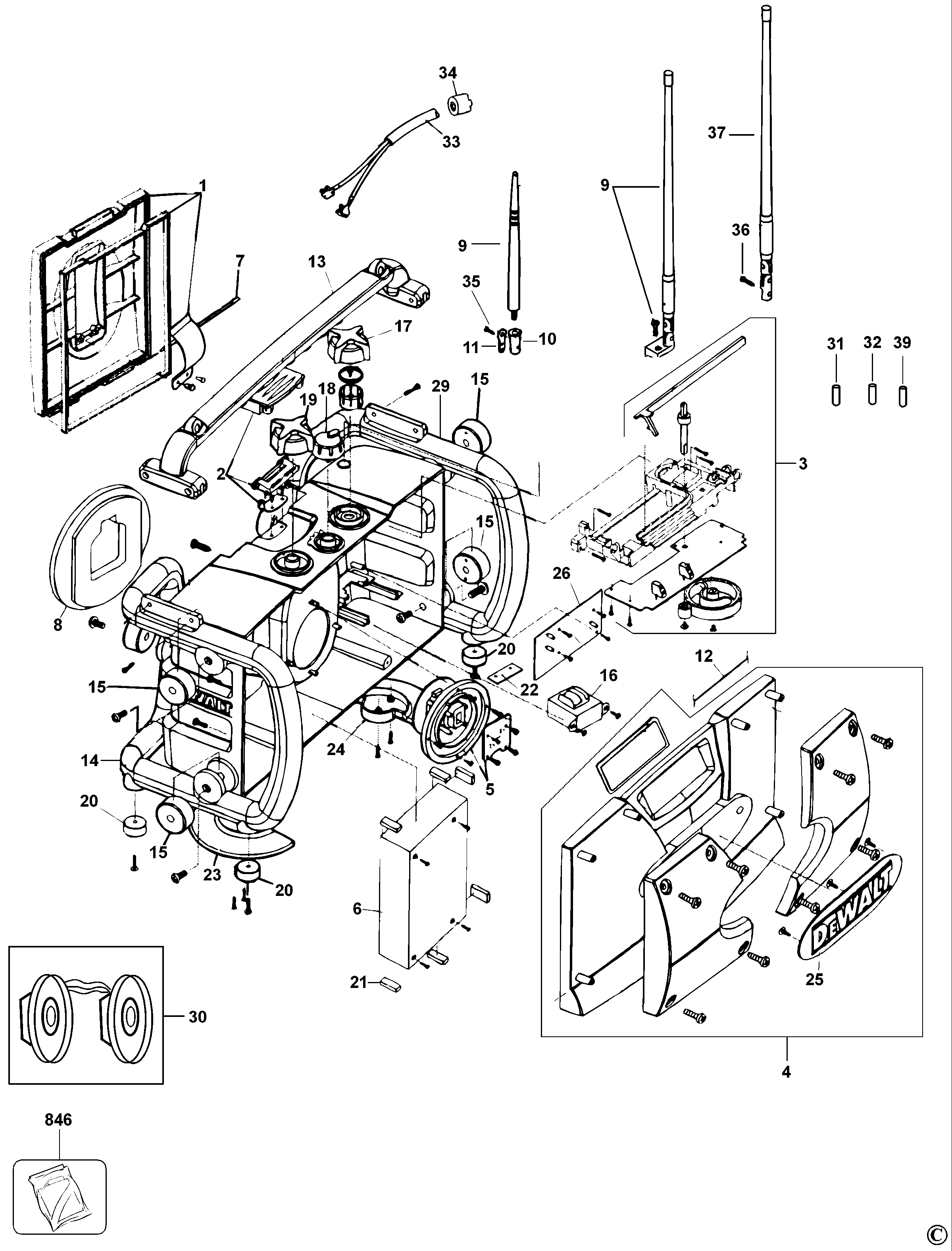

DW911 SITE RADIO Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 568609-00 | 1 | DOOR | GB |  |
||
| 2 | 429790-42 | 1 | LATCH | GB | |
||
| 3 | 568611-00 | 1 | PCB SA | GB | |
||
| 4 | 568612-00 | 1 | HOUSING FRONT | GB | |
||
| 5 | 568614-00 | 1 | HOLDER SA | GB | |
||
| 6 | 568615-00 | 1 | CHARGER SA | GB | |
||
| 7 | 429790-19 | 1 | ROD | GB | |
||
| 8 | 429790-18 | 1 | GASKET | GB | |
||
| 9 | 429790-56 | 1 | ANTENNA | GB | |
||
| 10 | 429790-21 | 1 | HOLDER | GB | |
||
| 11 | 429790-47 | 1 | CONTACT | GB | |
||
| 12 | 429790-23 | 1 | GASKET | GB | |
||
| 13 | 429790-17 | 1 | HANDLE | GB | |
||
| 14 | 429790-38 | 1 | PROTECTOR | GB | |
||
| 15 | 429790-20 | 1 | SHOCK ABSORBER | GB | |
||
| 16 | 568616-00 | 1 | TRANSFORMER | GB | |
||
| 17 | 429790-09 | 1 | KNOB | GB | |
||
| 18 | 429790-12 | 1 | KNOB | GB | |
||
| 19 | 429790-10 | 1 | KNOB | GB | |
||
| 20 | 429790-49 | 1 | FOOT | GB | |
||
| 21 | 429790-25 | 1 | PAD | GB | |
||
| 22 | 429790-50 | 1 | PLATE | GB | |
||
| 23 | 429790-13 | 1 | SPOOL | GB | |
||
| 24 | 429790-14 | 1 | SPOOL | GB | |
||
| 25 | 429790-51 | 1 | PLATE | GB | |
||
| 26 | 568621-01 | 1 | PCB SA | GB | |
||
| 29 | 429790-37 | 1 | PROTECTOR | GB | |
||
| 30 | 429790-54 | 1 | SPEAKER | GB | |
||
| 31 | 568624-00 | 1 | FUSE 3.15A | GB | |
||
| 32 | 568622-00 | 1 | FUSE | 1A | GB | |
|
| 33 | 568626-00 | 1 | CORDSET | GB | |
||
| 34 | 429790-34 | 1 | CORD PROTECTOR | GB | |
||
| 35 | 98091-10 | 1 | SCREW | GB |  |
||
| 36 | 429790-59 | 1 | SCREW | ANTENNA MOUNTING | ANTENNA MOUNTING | GB | |
| 37 | 429790-57 | 1 | ANTENNA | GB | |
||
| 39 | 568623-00 | 1 | FUSE | 2.5A | GB | |
|
| 846 | 568627-00 | 1 | PARTS PACK | GB | |
