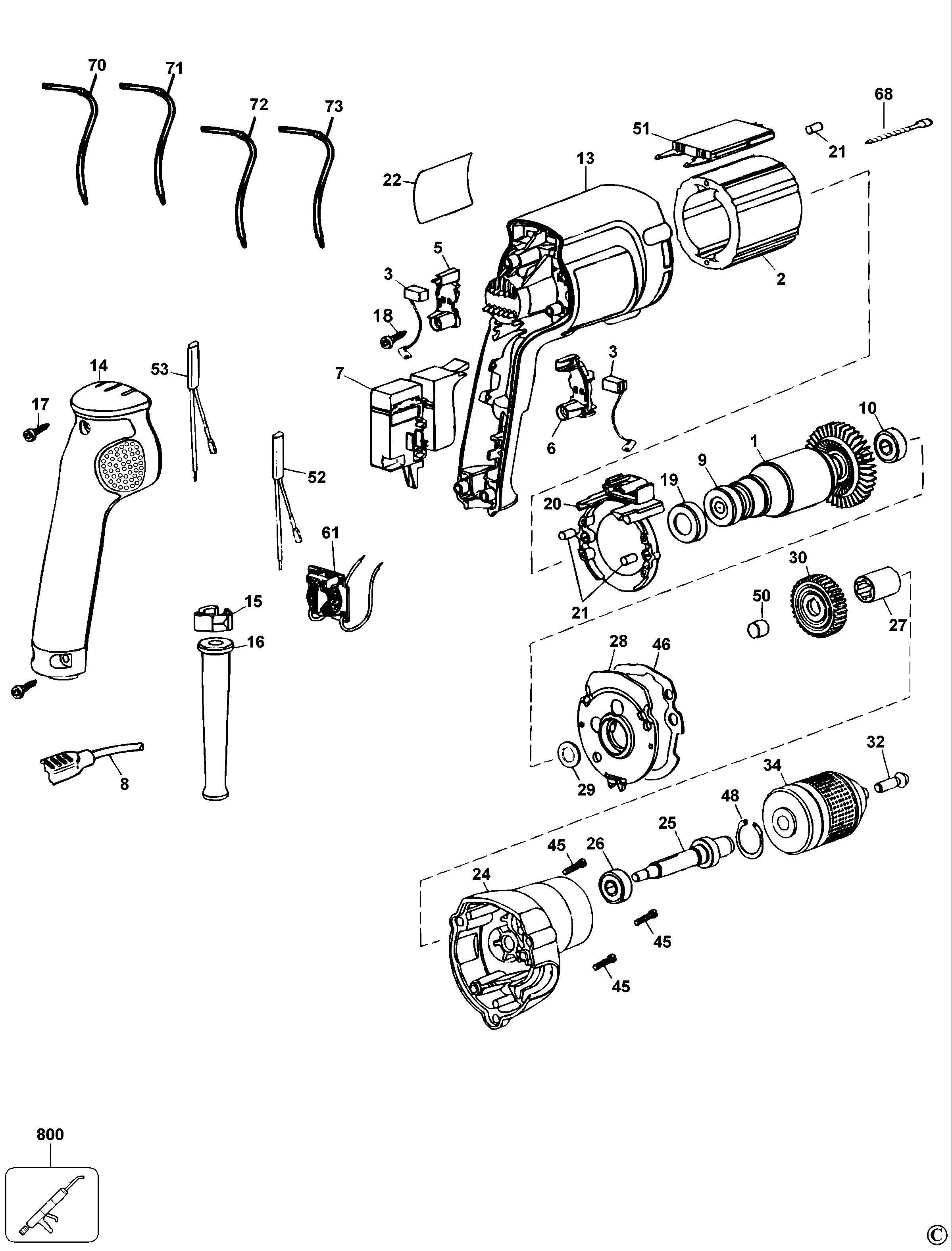

DW217 DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 579598-13 | 1 | ARMATURE 230V | GB |  |
||
| 2 | N447605 | 1 | FIELD 230V | GB | |
||
| 3 | 176949-00 | 2 | BRUSH 230V | GB | |
||
| 5 | 176801-03 | 1 | BRUSH HOLDER | LEFT | GB | |
|
| 6 | 176800-03 | 1 | BRUSH HOLDER | RIGHT | GB | |
|
| 7 | 176830-15 | 1 | SWITCH | Tyco | GB |  |
|
| 8 | 330060-07 | 1 | CORDSET | GB | |
||
| 9 | 605040-06 | 1 | BEARING,BALL | GB | |
||
| 10 | 605040-06 | 1 | BEARING,BALL | GB | |
||
| 13 | 396969-04 | 1 | FIELD CASE | GB | |
||
| 14 | 176816-03 | 1 | HANDLE COVER | GB | |
||
| 15 | 402648-00 | 1 | CORD CLAMP | GB | |
||
| 16 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 16 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 17 | 330019-13 | 3 | SCREW | M4X19 T20 | GB | |
|
| 18 | 330065-06 | 2 | SCREW | GB | |
||
| 19 | 389824-00 | 1 | BOOT | GB | |
||
| 20 | 176811-00 | 1 | BAFFLE | GB | |
||
| 21 | 949638-02 | 3 | DAMPER | GB | |
||
| 22 | 395047-00 | 1 | BRAND LABEL | GB | |
||
| 24 | 176693-00SV | 1 | GEARCASE | GB | |
||
| 25 | 176680-01 | 1 | SPINDLE | GB | |
||
| 26 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | GB | |
|
| 27 | 176691-01 | 1 | SPACER | GB | |
||
| 28 | 386622-00 | 1 | GEARCASE COVER | GB | |
||
| 29 | 23813-00 | 1 | WASHER | GB | |
||
| 30 | 176629-00 | 1 | GEAR | GB | |
||
| 32 | 149518-01 | 1 | SCREW | GB | |
||
| 34 | 330075-85 | 1 | CHUCK KEYLESS | GB | |
||
| 45 | 330019-14 | 3 | SCREW | GB | |
||
| 46 | 176655-00 | 1 | GASKET | GB | |
||
| 48 | 087692-00 | 1 | RETAINER | GB | |
||
| 50 | 093128-00 | 1 | BEARING NEEDLE | GB | |
||
| 51 | 176917-00 | 1 | MODULE | GB | |
||
| 52 | 176890-00 | 1 | LEAD WHITE | GB | |
||
| 53 | 176890-01 | 1 | LEAD RED | GB | |
||
| 61 | 383714-00 | 1 | ELECTRONIC | GB | |
||
| 68 | 390198-00 | 2 | SCREW | GB | |
||
| 70 | 176893-00 | 1 | LEAD BLACK | GB | |||
| 71 | 176834-00 | 1 | LEAD BLUE | GB | |||
| 72 | 176892-00 | 1 | LEAD PURPLE | GB | |
||
| 73 | 176894-00 | 1 | LEAD ORANGE | GB | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
