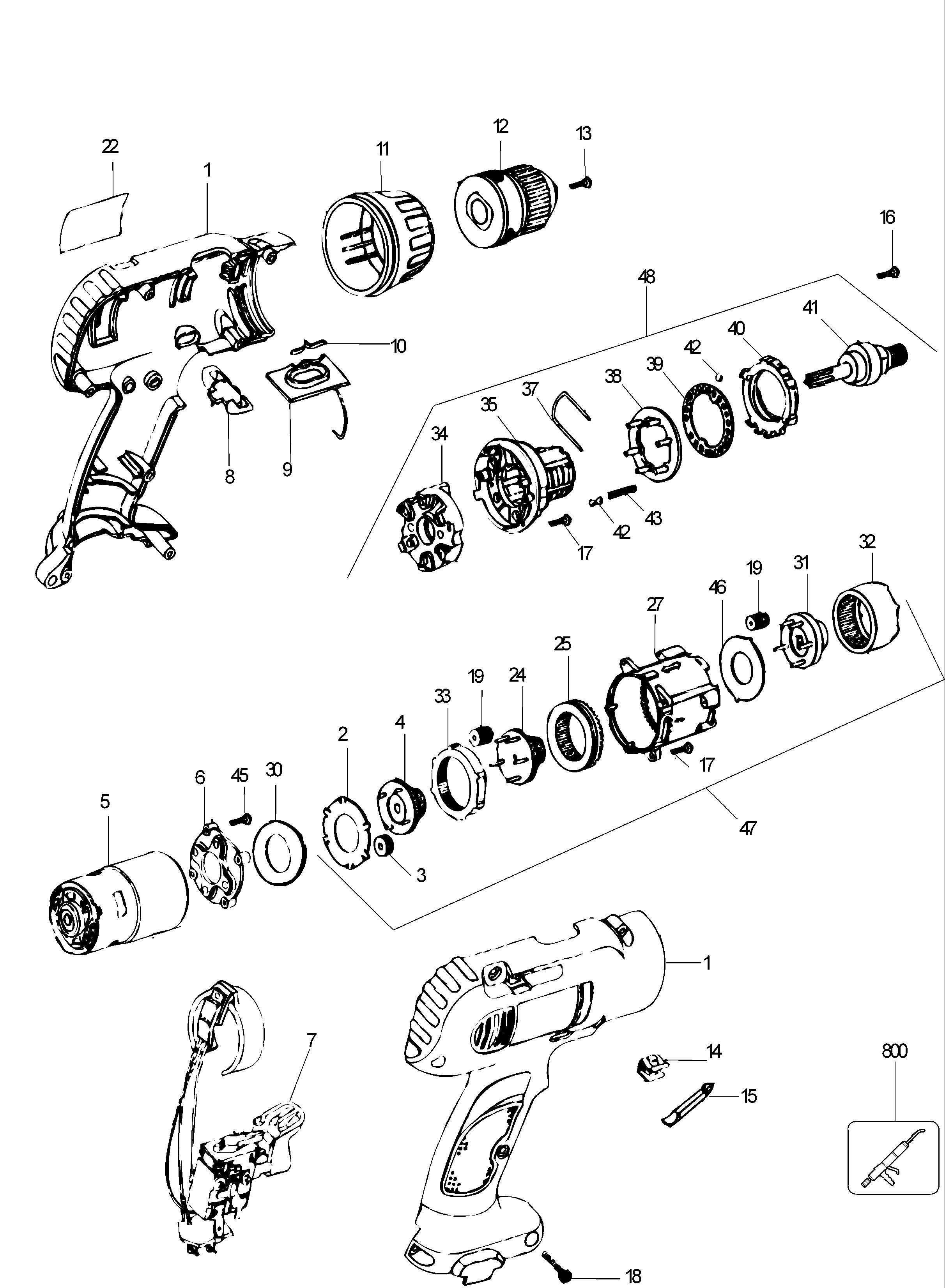

DW952K CORDLESS DRILL Type 2 - US | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 151755-00 | 1 | CLAMSHELL SA | XJ |  |
||
| 2 | 798954-00 | 1 | WASHER | XJ | |
||
| 3 | 805062-03 | 4 | GEAR | XJ | |
||
| 4 | 381153-03 | 1 | CARRIER | XJ | |
||
| 5 | 391886-00 | 1 | MOTOR & PINION | XJ | |
||
| 6 | 151336-00 | 1 | ADAPTOR | XJ | |
||
| 7 | 384736-00 | 1 | SWITCH | XJ | |
||
| 8 | 382374-00 | 1 | BUTTON | XJ | |
||
| 9 | 153281-03 | 1 | SLIDER SA | XJ | |
||
| 10 | 144658-00 | 1 | SPRING | XJ | |
||
| 11 | 387068-00 | 1 | COLLAR | XJ | |
||
| 12 | 330075-85 | 1 | CHUCK KEYLESS | XJ |  |
||
| 13 | 149518-01 | 1 | SCREW | XJ | |
||
| 14 | 148354-03 | 2 | HOLDER | XJ | |
||
| 15 | 297757-02 | 1 | BIT PHILLIPS | XJ | |
||
| 16 | 330019-00 | 4 | SCREW | M3x16 T10 PLASTITE | XJ | |
|
| 17 | 98091-10 | 6 | SCREW | XJ | |
||
| 18 | 90611830 | 7 | SCREW | XJ | |
||
| 19 | 372274-00 | 10 | GEAR | XJ | |
||
| 22 | 149490-00 | 1 | BRAND LABEL | XJ | |
||
| 24 | 372272-02 | 1 | CARRIER | XJ | |
||
| 25 | 805068-01 | 1 | GEAR | XJ | |
||
| 27 | 798701-00 | 1 | GEARCASE | XJ | |
||
| 30 | 152482-00 | 1 | SEAL | XJ | |
||
| 31 | 805070-02 | 1 | CARRIER | XJ | |
||
| 32 | 392755-00 | 1 | GEAR | XJ | |
||
| 33 | 805063-03 | 1 | GEAR | XJ | |
||
| 34 | 380976-00 | 1 | END CAP | XJ | |
||
| 35 | 798966-00 | 1 | HOUSING SA | XJ | |
||
| 37 | 798959-00 | 1 | CLIP | XJ | |
||
| 37 | 798959-00 | 1 | CLIP | XJ | |
||
| 38 | 798963-01 | 1 | SUPPORT | XJ | |
||
| 39 | 798708-00 | 1 | DETENT | XJ | |
||
| 40 | 798709-00 | 1 | NUT | XJ | |
||
| 41 | 381521-00 | 1 | SPINDLE | XJ | |
||
| 42 | 386690-00 | 13 | BALL | STEEL, 5MM | XJ | |
|
| 43 | 152347-00 | 6 | SPRING | XJ | |
||
| 45 | 156179-00 | 2 | SCREW | XJ | |
||
| 46 | 798689-00 | 1 | WASHER | XJ | |
||
| 47 | 380264-07 | 1 | TRANSMISSION SA | XJ | |
||
| 48 | 380265-00 | 1 | CLUTCH SA | XJ | |
||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | XJ |
