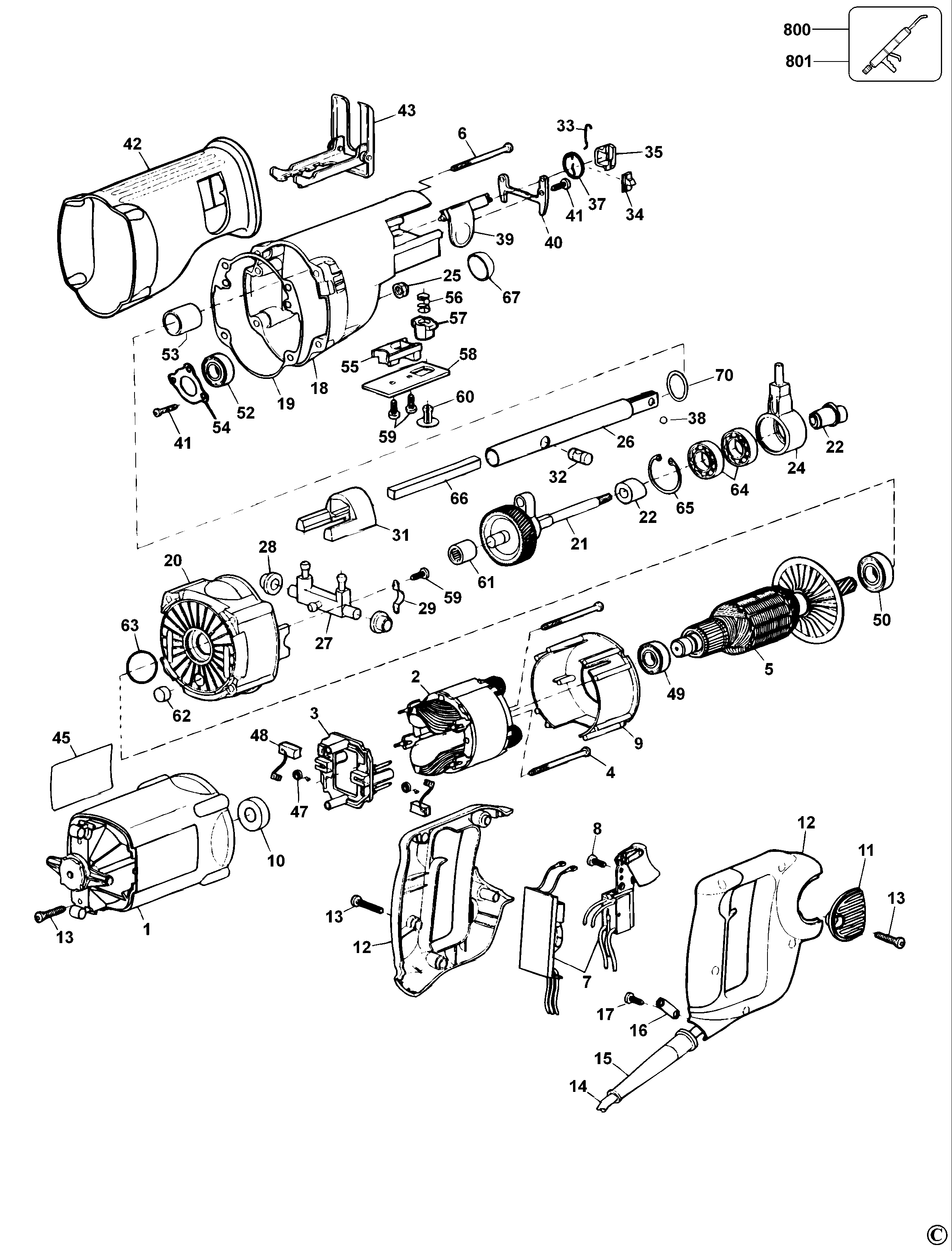

DW309 CUTSAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 382748-02 | 1 | FIELDCASE | LX |  |
||
| 2 | 381711-00 | 1 | FIELD | LX | |
||
| 3 | N408690 | 1 | BRUSHPLATE | PKG'D N399782 | LX | |
|
| 4 | 330019-19 | 2 | SCREW | LX |  |
||
| 5 | 383392-00 | 1 | ARMATURE | LX | |
||
| 6 | 330019-34 | 4 | SCREW | LX | |
||
| 7 | 382642-02 | 1 | SWITCH SA | Tyco - Black - 115v | LX | |
|
| 8 | 330019-01 | 1 | SCREW.TEMP | M3.63 x 9.5mm T15 | LX | |
|
| 9 | 382750-01 | 1 | BAFFLE FAN | LX | |
||
| 10 | 137382-02 | 1 | SLEEVE | LX | |
||
| 11 | 382751-00 | 2 | COVER BRUSH | LX | |
||
| 12 | 384177-00 | 1 | CLAMSHELL | LX | |
||
| 13 | 330019-13 | 9 | SCREW | M4X19 T20 | LX | |
|
| 14 | 330061-14 | 1 | CORDSET | LX | |
||
| 15 | N542553 | 1 | CORD PROTECTOR | LX | |||
| 15 | N542553 | 1 | CORD PROTECTOR | LX | |||
| 16 | 380414-00 | 1 | CORD CLAMP | LX | |
||
| 17 | 330019-02 | 2 | SCREW | LX | |
||
| 18 | 385721-00 | 1 | GEARCASE | LX | |
||
| 19 | 383752-00 | 1 | GASKET | LX | |
||
| 20 | 385720-00 | 1 | GEARCASE COVER | LX | |
||
| 21 | 429952-00 | 1 | SHAFT SA | New Type | LX | |
|
| 22 | 397097-00 | 1 | DRIVER SA | LX | |
||
| 24 | 385872-00 | 1 | COVER BEARING | LX | |
||
| 25 | 395918-00 | 1 | NUT | 5/16-18, 13MM | New Type | 5/16 INCH | LX | |
| 25 | 397893-00 | 1 | NUT | Old Type | M6 | LX | ||
| 26 | 623504-00 | 1 | SHAFT | LX | |
||
| 27 | 383195-01 | 1 | ARM | LX | |
||
| 28 | 383280-00 | 2 | SLEEVE BEARING | LX | |
||
| 29 | 383219-00 | 2 | STRAP | LX | |
||
| 31 | 625752-00 | 1 | COUNTERWEIGHT | LX | |
||
| 32 | 382187-00 | 1 | AXLE | LX | |
||
| 33 | 620663-00 | 1 | LOCK PIN | LX | |
||
| 34 | 383749-01 | 1 | SLIDE | LX | |
||
| 35 | 604731-00 | 1 | BLADE CLAMP | LX | |
||
| 37 | 429914-00 | 1 | SHAFT SA | D/C 200340 to 200408 | LX | |
|
| 37 | 623343-00 | 1 | SPRING | LX | |
||
| 38 | 000903-00 | 1 | BALL | LX | |
||
| 39 | 391452-00 | 1 | LEVER | LX | |
||
| 40 | 383745-00 | 1 | RETAINING PLATE | LX | |
||
| 41 | 330045-05 | 5 | SCREW | LX | |
||
| 42 | 384023-00 | 1 | BOOT | LX | |
||
| 43 | 383435-00 | 1 | SHOE | LX | |
||
| 45 | 149477-00 | 1 | IDENTITY LABEL | LX | |
||
| 47 | 383387-00 | 2 | BRUSH SPRING | LX | |
||
| 48 | 384719-01 | 2 | BRUSH 115V | LX | |
||
| 49 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | LX | |
|
| 50 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | LX | |
|
| 52 | 605040-06 | 1 | BEARING,BALL | LX | |
||
| 53 | 383241-00 | 1 | BEARING | LX | |
||
| 54 | 384466-00 | 1 | RETAINING PLATE | LX | |
||
| 55 | 389999-00 | 1 | SPACER | LX | |
||
| 56 | 45550-00 | 1 | SPRING | LX | |
||
| 57 | 613056-00 | 1 | PIN | DETENT | LX | |
|
| 58 | 389999-00 | 1 | SPACER | LX | |
||
| 59 | 330045-06 | 6 | SCREW | LX | |
||
| 60 | 384405-00 | 1 | BUTTON | LX | |
||
| 61 | 330004-02 | 1 | BEARING NEEDLE | LX | |
||
| 62 | 384401-00 | 1 | PLUG | LX | |
||
| 63 | 99180-24 | 1 | SEAL | LX | |
||
| 64 | 605040-25 | 2 | BEARING,BALL | LX | |
||
| 65 | 99022-02 | 1 | CIRCLIP | LX | |
||
| 66 | 387262-00 | 1 | OILER | LX | |
||
| 67 | 383227-00 | 1 | CAP | LX | |
||
| 70 | 623496-00 | 1 | RING | D/C 200340 to 200408 | LX | |
|
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | LX | |
|
| 801 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | LX | |
