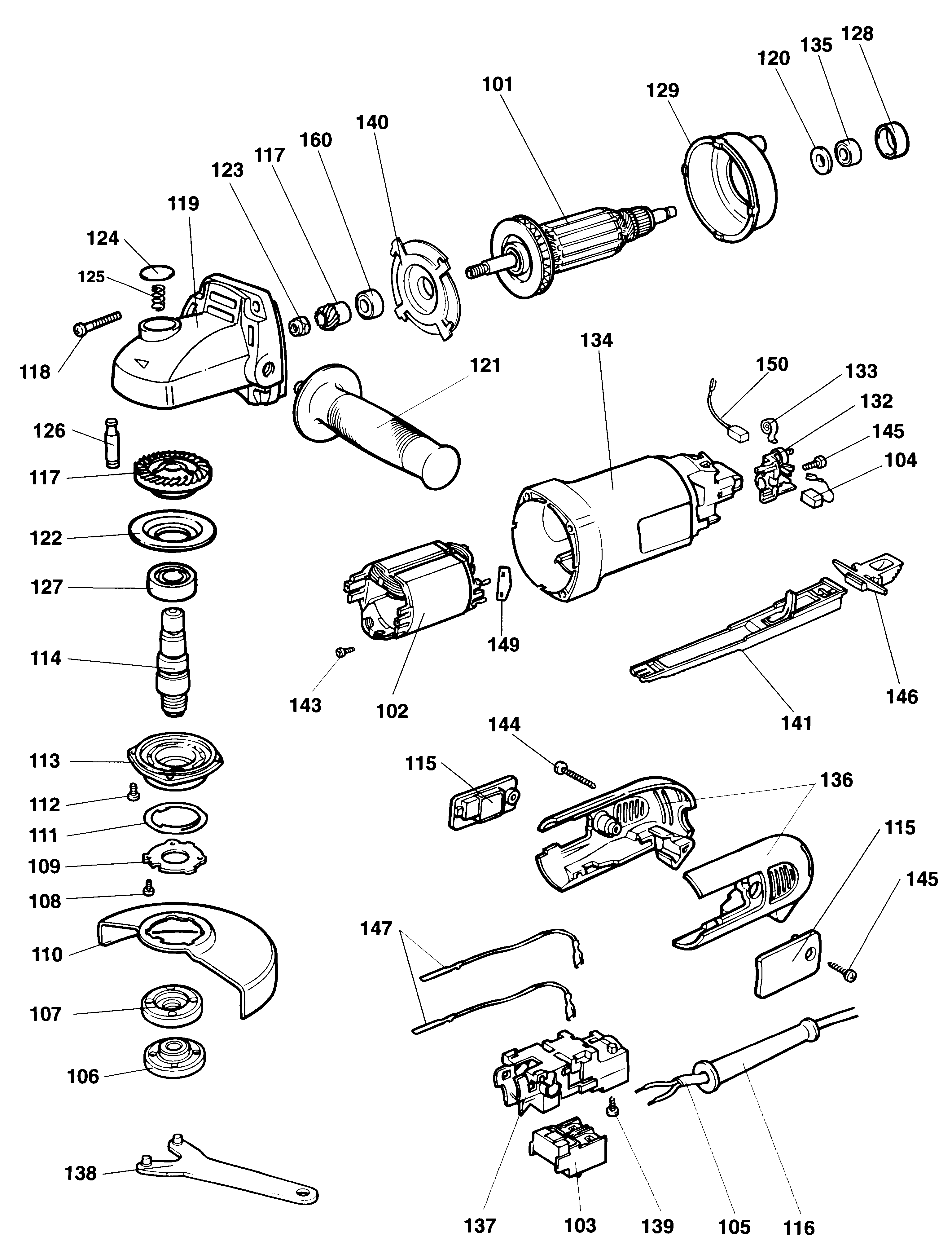

DW806 SMALL ANGLE GRINDER Type 2 - GB | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 401702-07 | 1 | ARMATURE 115V | LX |  |
||
| 102 | 569577-07 | 1 | FIELD 115V | GB115V | LX | |
|
| 103 | 945614-00 | 1 | SWITCH | LX |  |
||
| 104 | 939539-00 | 1 | BRUSH CUT OFF | LX | |
||
| 105 | 949770-39 | 1 | CABLE | LX | |
||
| 106 | 947214-00 | 1 | OUTER FLANGE | LX | |
||
| 107 | 391968-00 | 1 | INNER FLANGE | LX | |
||
| 108 | 562160-00 | 3 | SCREW | LX | |
||
| 109 | 605415-00 | 1 | RETAINING PLATE | LX | |
||
| 110 | 944675-00 | 1 | GUARD | LX | |
||
| 111 | 393576-00 | 1 | RING | LX | |
||
| 112 | 930224-01 | 4 | SCREW | LX | |
||
| 113 | 945298-00 | 1 | GEARCASE COVER | LX | |
||
| 114 | 945296-01 | 1 | SPINDLE | LX | |
||
| 115 | 401963-01 | 2 | COVER BRUSH | LX | |
||
| 116 | 401088-00 | 1 | PROTECTOR | LX | |
||
| 117 | 661243-00 | 1 | GEAR & PINION | LX | |
||
| 118 | 562097-01 | 4 | SCREW | LX | |
||
| 119 | 562304-01SV | 1 | GEARCASE SA | Inc # 124, 125, 126 | LX | |
|
| 120 | 945287-00 | 1 | SPACER | LX | |
||
| 121 | 573115-00 | 1 | SIDE HANDLE | LX | |
||
| 122 | 945299-00 | 1 | FLANGE | LX | |
||
| 123 | 945292-00 | 1 | NUT | LX | |
||
| 124 | 944575-00 | 1 | BUTTON | LX | |
||
| 125 | 562210-00 | 1 | SPRING | LX | |
||
| 126 | 944571-00 | 1 | SPINDLE LOCK | LX | |
||
| 127 | 605040-22 | 1 | BEARING | LX | |
||
| 128 | 949721-02 | 1 | SLEEVE | LX | |
||
| 129 | 401623-00 | 1 | BAFFLE | LX | |
||
| 132 | 949880-05 | 2 | BRUSH HOLDER SA | INCL. SPRING | LX | |
|
| 133 | 930090-00 | 2 | BRUSH SPRING | LX | |
||
| 134 | 396373-00 | 1 | FIELDCASE | LX | |
||
| 135 | 949625-01 | 1 | BEARING | 8 x 19 x 9 | LX | |
|
| 136 | 401973-00 | 1 | HANDLE SA | LX | |
||
| 137 | 401595-00 | 1 | SWITCH SUPPORT | LX | |
||
| 138 | 401253-00 | 1 | WRENCH ROUND-PINS | LX | |
||
| 139 | 562097-04 | 1 | SCREW | LX | |
||
| 140 | 401622-01 | 1 | FLANGE | LX | |
||
| 141 | 947815-01 | 1 | LEVER SA | LX | |
||
| 143 | 390198-00 | 2 | SCREW | LX | |
||
| 144 | 562097-06 | 2 | SCREW | LX | |
||
| 145 | 562097-00 | 4 | SCREW | LX | |
||
| 146 | 401259-01 | 1 | BUTTON LOCK-ON | LX | |
||
| 147 | 949801-99 | 2 | LEAD | LX | |
||
| 149 | 402489-00 | 2 | PAD | LX | |
||
| 150 | 930897-00 | 1 | BRUSH 115-120V | LX | |
||
| 160 | N110358 | 1 | BEARING | LX | |
