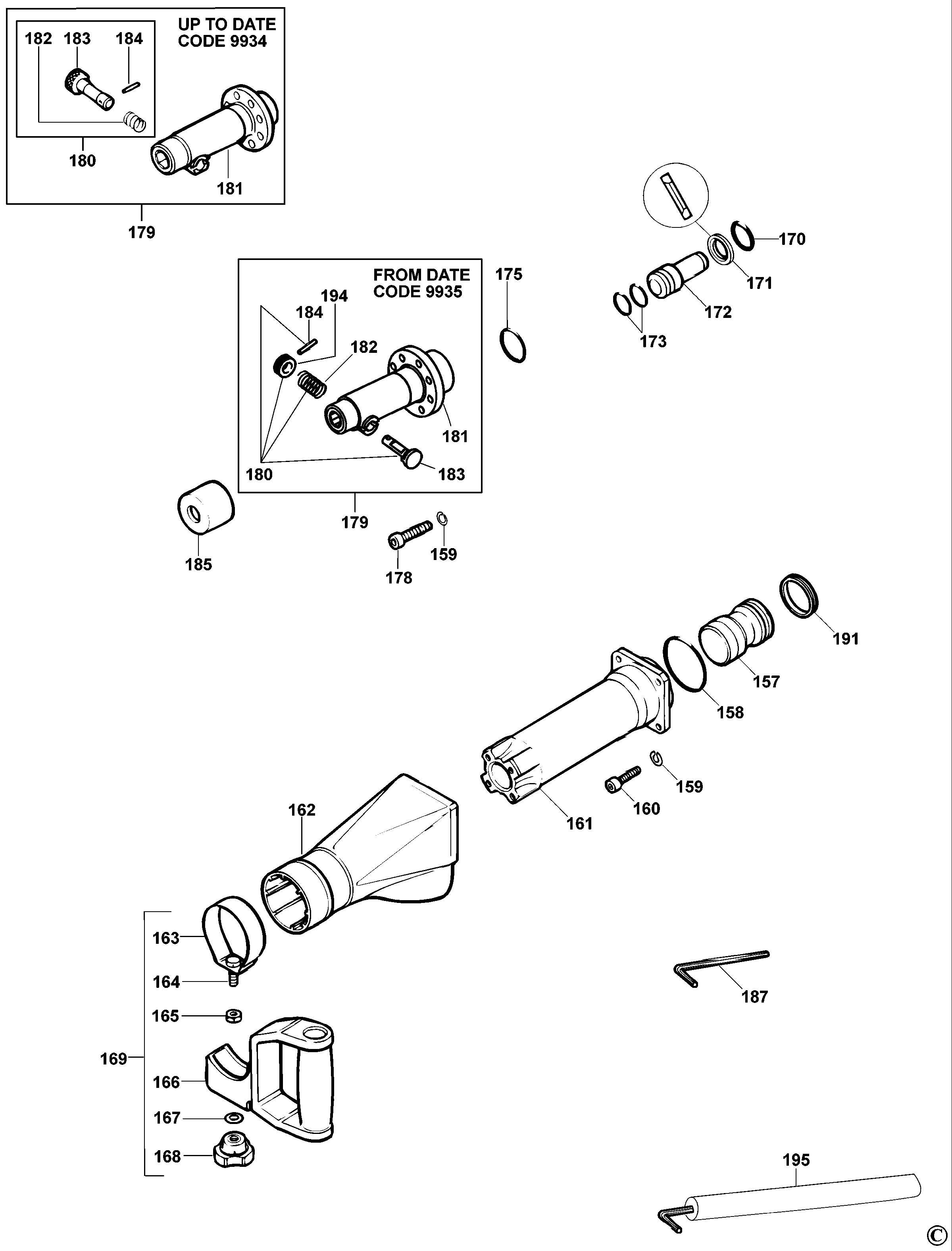

DW558 HAMMER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 560373-00 | 1 | ARMATURE 120V | XW |  |
||
| 102 | 560374-00 | 1 | FIELD 120V | XW | |
||
| 103 | 279891-00 | 1 | SWITCH | Blue | XW | |
|
| 104 | 568108-00 | 2 | BRUSH 115V | XW | |
||
| 105 | 330061-20 | 1 | CORDSET | XW | |
||
| 106 | 279894-00 | 1 | PROTECTOR | XW | |
||
| 107 | 279895-00 | 1 | CAPACITOR 220/240 | XW | |
||
| 108 | 279896-00 | 1 | SLEEVE INSULATING | XW | |
||
| 109 | 279897-00 | 1 | SLEEVE INSULATING | XW | |
||
| 110 | 279898-00 | 1 | CABLE CLAMP | XW | |
||
| 111 | 279899-00 | 5 | SCREW | XW | |
||
| 112 | 567808-00 | 1 | BODY | XW | |
||
| 113 | 559976-00 | 1 | HANDLE SA | XW | |
||
| 114 | 279902-00 | 2 | BUFFER | XW | |
||
| 115 | 279903-00 | 2 | BUFFER | XW | |
||
| 116 | 279904-00 | 1 | SCREW | XW | |
||
| 117 | 279905-00 | 1 | SCREW | XW | |
||
| 118 | 279906-00 | 4 | SCREW | XW | |
||
| 119 | 279907-00 | 1 | SCREW | XW | |
||
| 120 | 279965-00 | 2 | NUT M6 | XW | |
||
| 121 | 560378-00 | 2 | COVER BRUSH | XW | |
||
| 122 | 279909-00 | 2 | SCREW | XW | |
||
| 123 | 279910-00 | 2 | WASHER | XW | |
||
| 124 | 279911-00 | 2 | WASHER | XW | |
||
| 126 | 559974-00 | 1 | MOTOR COVER | XW | |
||
| 127 | 279916-00 | 4 | SCREW | XW | |
||
| 128 | 279918-00 | 2 | CIRCLIP | XW | |
||
| 129 | 279920-00 | 1 | BEARING | XW | |
||
| 130 | 279921-00 | 1 | SPACER | XW | |
||
| 131 | 279923-00 | 1 | WASHER FELT | XW | |
||
| 132 | 279941-00 | 6 | SCREW | XW | |
||
| 133 | 279925-00 | 1 | BEARING | XW | |
||
| 134 | 560020-00 | 1 | GASKET | XW | |
||
| 135 | 559972-00 | 1 | COVER SA | XW | |
||
| 136 | 560192-00 | 1 | GEAR SA | XW | |
||
| 137 | 279929-00 | 1 | PIN | XW | |
||
| 138 | 279931-00 | 1 | PLATE | XW | |
||
| 139 | 279935-00 | 2 | BEARING | XW | |
||
| 140 | 279937-00 | 1 | NUT | XW | |
||
| 142 | 560193-00 | 1 | SPACER | XW | |
||
| 143 | 279915-00 | 1 | SPACER | XW | |
||
| 145 | 279914-00 | 1 | NUT | XW | |
||
| 146 | 560549-00 | 1 | CON ROD SA | XW | |
||
| 148 | 279924-00 | 1 | PIN | XW | |
||
| 149 | 279926-00 | 2 | CIRCLIP | XW | |||
| 150 | 279968-00 | 1 | PISTON SA | XW | |
||
| 151 | 560385-00 | 1 | O RING | XW | |
||
| 152 | 279961-00 | 1 | GUIDE | XW | |
||
| 153 | 279962-00 | 3 | WASHER M5 | XW | |
||
| 154 | 279963-00 | 3 | WASHER LOCK | XW | |
||
| 155 | 279964-00 | 3 | SCREW | XW | |||
| 156 | 279933-00 | 3 | SCREW | XW | |
||
| 157 | 560542-00 | 1 | RAM | XW | |
||
| 158 | 279932-00 | 1 | O RING | XW | |
||
| 159 | 279938-00 | 8 | WASHER | XW | |
||
| 160 | 279936-00 | 4 | SCREW | XW | |
||
| 161 | 560543-00 | 1 | CYLINDER | XW | |
||
| 162 | 560379-00 | 1 | COVER | XW | |
||
| 163 | 279942-00 | 1 | CLAMP | XW | |
||
| 164 | 279956-00 | 1 | SCREW | XW | |
||
| 165 | 279943-00 | 1 | NUT | XW | |
||
| 166 | 279945-00 | 1 | HANDLE | XW | |
||
| 167 | 279946-00 | 1 | WASHER M8 | XW | |
||
| 168 | 279947-00 | 1 | KNOB | XW | |
||
| 169 | 279969-00 | 1 | HANDLE SA | XW | |
||
| 170 | 279951-00 | 1 | O RING 34X6MM | XW | |
||
| 171 | 279950-00 | 1 | WASHER | XW | |
||
| 172 | 560544-00 | 1 | BEAT PIECE | XW | |
||
| 173 | 279948-00 | 2 | O RING 27X1,8 MM | XW | |
||
| 175 | 279953-00 | 1 | O RING | XW | |
||
| 178 | 279955-00 | 4 | SCREW | XW | |
||
| 179 | 568641-00 | 1 | HOLDER SA | XW | |
||
| 180 | 568640-00 | 1 | RETAINER SA | XW | |
||
| 181 | 568641-00 | 1 | HOLDER SA | XW | |
||
| 182 | 279959-00 | 1 | SPRING | XW | |
||
| 183 | 568642-00 | 1 | RETAINER | DATE CODE FROM 9935 | XW | |
|
| 183 | 568640-00 | 1 | RETAINER SA | DATE CODE UPTO 9934 | XW | |
|
| 184 | 279958-00 | 1 | PIN | XW | |
||
| 185 | 279960-00 | 1 | DUST DEFLECTOR | XW | |
||
| 186 | 559975-00 | 1 | GUIDE | XW | |
||
| 187 | 860098-04 | 1 | WRENCH 6 MM | XW |  |
||
| 189 | 560247-00 | 2 | RIVET | XW | |
||
| 190 | 560246-00 | 1 | SIDE HANDLE | XW | |
||
| 191 | 560541-00 | 1 | SEAL | XW | |
||
| 194 | 568639-00 | 1 | WASHER | DATE CODE FROM 9935 | XW | |
|
| 195 | 559612-99 | 1 | SERVICE TOOL | XW | |
||
| 800 | 560376-00 | 1 | GREASE 5KG | Molyguard Aero 300 | XW | |
|
| 816 | 567810-00 | 1 | BRAND LABEL | XW | |
||
| 836 | 559512-99 | 1 | S.T.MANDREL | XW | |
||
| 837 | 559513-99 | 1 | S.T.BEARING INSERTOR | XW | |
||
| 838 | 559514-99 | 1 | S.T.MANDREL | XW | |
||
| 839 | 559515-99 | 1 | S.T.LOCKING TOOL | XW | |
||
| 840 | 559516-99 | 1 | S.T.MANDREL | XW | |
||
| 841 | 559517-99 | 1 | S.T.BEARING INSERTOR | XW | |
||
| 846 | 560545-00 | 1 | SERVICE KIT 120V | XW | |
