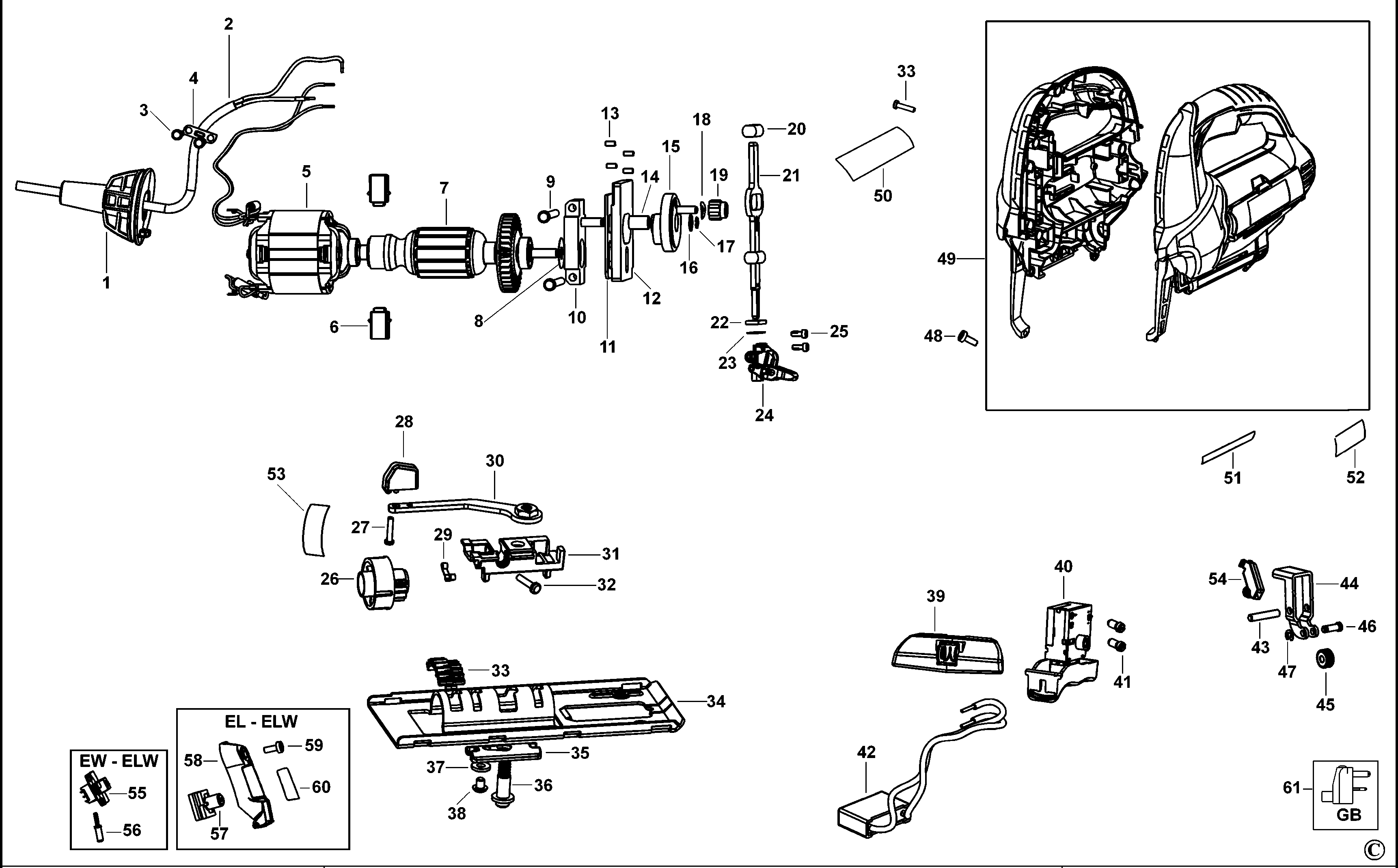

KS800EW JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90514628 | 1 | CORD PROTECTOR | GB |  |
||
| 2 | 90523264 | 1 | CORDSET | GB | |
||
| 3 | 370748 | 2 | SCREW | GB |  |
||
| 4 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 5 | 90529307 | 1 | FIELD 230V | GB | |
||
| 6 | 90510508 | 2 | BRUSHBOX SA | GB | |
||
| 7 | 90513113 | 1 | ARMATURE SA | GB | |
||
| 8 | 90525755 | 1 | WASHER | GB | |
||
| 9 | 330019-16 | 2 | SCREW | GB | |
||
| 10 | 90525756 | 1 | BEARING PLATE | GB | |
||
| 11 | 90525758 | 1 | FORK | GB | |
||
| 12 | 90525759 | 1 | COUNTERWEIGHT | GB | |
||
| 13 | 90517281 | 4 | PIN | GB | |
||
| 14 | 90526098 | 1 | BEARING | GB | |
||
| 15 | 90526099 | 1 | GEAR | GB | |
||
| 16 | 90526100 | 1 | WASHER | GB | |
||
| 17 | 90526101 | 1 | CLIP | GB | |
||
| 18 | 823954 | 1 | WASHER | GB | |
||
| 19 | 795688-00 | 1 | ROLLER | GB | |
||
| 20 | 810893 | 2 | BEARING | GB | |
||
| 21 | 90514115 | 1 | RECIPROCATOR | GB | |
||
| 22 | 582949-00 | 1 | FELT SEAL | GB | |
||
| 23 | 582948-00 | 1 | PLATE | GB | |
||
| 24 | 582593-00 | 1 | BLADE CLAMP | GB | |
||
| 25 | 583173-00 | 2 | SCREW | GB | |
||
| 26 | 90514273 | 1 | INDICATOR | GB | |
||
| 27 | 330019-31 | 2 | SCREW | GB | |
||
| 28 | 90514276 | 1 | HANDLE | GB | |
||
| 29 | 620271-00 | 1 | SPRING | GB | |
||
| 30 | 90517427 | 1 | LEVER SA | GB | |
||
| 31 | 90601184 | 1 | BLOCK | GB | |
||
| 32 | 330019-13 | 9 | SCREW | M4X19 T20 | GB | |
|
| 33 | 90514228 | 1 | INSERT | GB | |
||
| 34 | 90521037 | 1 | SHOE | GB | |
||
| 35 | 90513772 | 1 | PLATE LOCK | GB | |
||
| 36 | 90514219 | 1 | BOLT | GB | |
||
| 37 | 90514216 | 1 | WASHER | GB | |
||
| 38 | 582827-00 | 1 | BOLT | GB | |
||
| 39 | 90517413 | 1 | ACTUATOR | LOCK ON | GB | |
|
| 40 | 90522183 | 1 | SWITCH | GB | |
||
| 41 | 90512961 | 1 | SCREW | GB | |
||
| 42 | 90526689 | 1 | CAPACITOR | GB | |
||
| 43 | 90521041 | 1 | PIN | GB | |
||
| 44 | 90521039 | 1 | BRACKET | GB | |
||
| 45 | 90514422 | 1 | ROLLER | GB | |
||
| 46 | 90570680 | 1 | SUPPORT SA | GB | |
||
| 47 | 587375-00 | 1 | LOCKING RING | GB | |
||
| 48 | 330019-00 | 1 | SCREW | M3x16 T10 PLASTITE | GB | |
|
| 51 | 90520273 | 1 | LABEL PIVOT | GB | |
||
| 52 | 90521533 | 1 | BRAND LABEL | GB | |
||
| 53 | 90520107 | 1 | LABEL | GB | |
||
| 54 | 90514324 | 1 | DUST PORT | GB | |
||
| 61 | 588384-00 | 1 | ADAPTOR SA | GB | |
