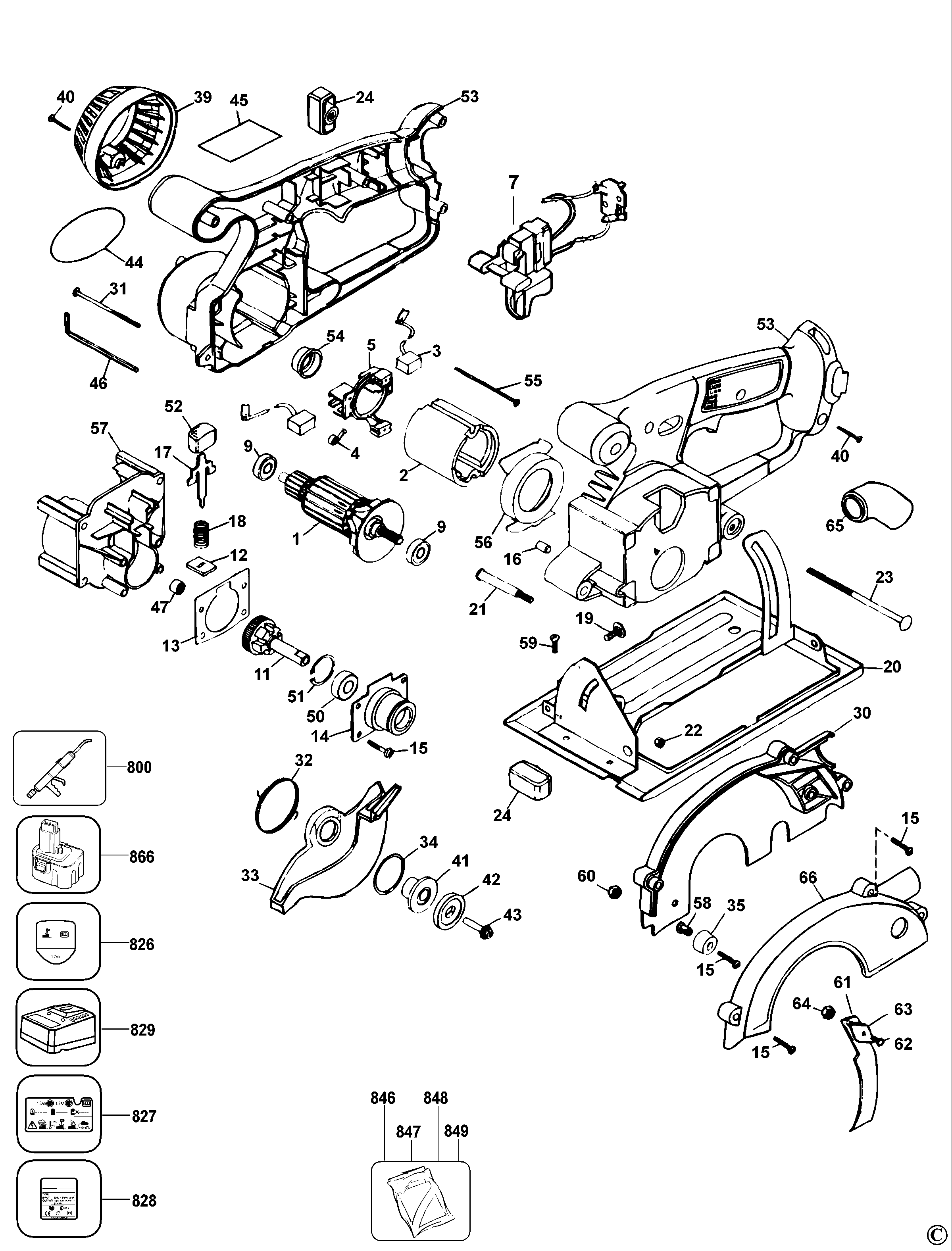

DW936K TRIM SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 429906-01 | 1 | MOTOR SA | GB |  |
||
| 1 | N520728 | 1 | BLADE | GB |  |
||
| 2 | 429906-01 | 1 | MOTOR SA | GB | |
||
| 2 | 429906-01 | 1 | MOTOR SA | GB | |
||
| 2 | 90563339 | 1 | GEAR | Ø 40.81mm | GB | |
|
| 3 | 387558-01 | 2 | BRUSH & LEAD | GB | |||
| 3 | N522950 | 1 | ARMATURE | w/ bearings | GB | |
|
| 4 | 445860-00 | 2 | BRUSH SPRING | GB | |
||
| 4 | 445860-00 | 2 | BRUSH SPRING | GB | |
||
| 4 | 90559833 | 1 | BEARING | GB | |
||
| 5 | 382178-01 | 1 | BRUSH FRAME | GB | |
||
| 5 | 1004768-60 | 1 | WASHER | GB | |
||
| 6 | 1004691-72 | 1 | WASHER 5 MM | GB | |
||
| 7 | 153207-01 | 1 | SWITCH | GB | |
||
| 7 | 1004573-16 | 1 | SCREW | GB | |
||
| 8 | 6010080-15 | 1 | SOLE PLATE | 115V | GB | ||
| 9 | 605040-06 | 2 | BEARING,BALL | GB | |
||
| 9 | 1004768-54 | 1 | WASHER | GB | |
||
| 10 | N529722 | 1 | BEARING | BALL | GB | |
|
| 11 | 384936-00SV | 1 | GEARSHAFT SA | GB | |
||
| 11 | 384936-00SV | 1 | GEARSHAFT SA | GB | |
||
| 12 | 393004-00 | 1 | WIPER | GB | |
||
| 12 | 90573930 | 1 | TUBE | GB | |
||
| 13 | 150181-00 | 1 | GASKET | GB | |
||
| 13 | 90585865-01 | 1 | CLIP | GB | |
||
| 14 | 150392-01 | 1 | GEARCASE COVER | GB | |
||
| 14 | 1004722-27 | 1 | FIELD SA | GB | |
||
| 15 | 330045-06 | 5 | SCREW | GB | |
||
| 15 | 621400-00 | 1 | CHUCK KEY 13MM | GB | |
||
| 16 | 32731-00 | 1 | PLUG | GB | |
||
| 16 | N760652 | 1 | PLASTIC SCREW | GB | |
||
| 17 | 150389-00 | 1 | SPINDLE LOCK | GB | |
||
| 17 | 330024-41 | 1 | SCREW | M5x45 | GB | |
|
| 18 | 58698-00 | 1 | SPRING | GB | |
||
| 18 | N660547 | 1 | SCREW | M3.63x13 | GB | |
|
| 19 | 98128-15 | 1 | CARRIAGE BOLT | GB | |
||
| 19 | 90599494 | 1 | OUTER FLANGE | GB | |||
| 20 | 380646-01 | 1 | SHOE SA | GB | |
||
| 20 | 1004573-15 | 1 | SCREW | GB | |
||
| 21 | 396631-00 | 1 | SCREW | GB | |
||
| 21 | 663248-00 | 1 | LABEL | GB | |||
| 22 | 148641-00 | 1 | LOCK-NUT | GB | |
||
| 22 | 90576540 | 2 | BRUSH | GB | |||
| 23 | 098128-97 | 1 | BOLT | GB | |
||
| 23 | N044098 | 3 | CLAMP | GB | |
||
| 24 | 395889-00 | 2 | KNOB | GB | |
||
| 24 | 1004572-14 | 1 | SWITCH SAFETY | GB | |||
| 25 | N530134 | 2 | BRUSH | GB | |
||
| 26 | 6010209-03 | 1 | CARAFE | GB | |||
| 27 | 90585665 | 1 | WHEEL SUPPORT | GB | |
||
| 28 | N529722 | 1 | BEARING | BALL | GB | |
|
| 29 | N520520 | 1 | ARMATURE & FAN | GB | |
||
| 30 | 380047-00 | 1 | GUARD UPPER | GB | |
||
| 30 | 1004572-10 | 1 | SWITCH | GB | |||
| 31 | 398987-00 | 4 | SCREW | GB | |
||
| 31 | 90580088 | 4 | BOLT | GB | |
||
| 32 | 150067-00 | 1 | SPRING | GB | |
||
| 32 | 330024-38 | 4 | SCREW | M5x30 | GB | |
|
| 33 | 381130-00 | 1 | GUARD LOWER | GB | |
||
| 33 | 90616851 | 1 | TANK | GB | |||
| 34 | 150383-00 | 1 | RETAINER | GB | |
||
| 34 | 90636591 | 1 | WASHER | GB | |
||
| 35 | 445625-01 | 1 | BUMPER | GB | |
||
| 35 | 90606115 | 1 | BOLT | GB | |
||
| 36 | N744765 | 1 | POLE PIECE SA | GB | |
||
| 37 | N738711 | 1 | HANDLE | GB | |
||
| 38 | N616757 | 1 | SPRING | GB | |
||
| 39 | 150386-00 | 1 | END CAP | GB | |
||
| 39 | 6010357-85 | 1 | CORDSET | GB | |
||
| 40 | 90611830 | 7 | SCREW | GB | |
||
| 40 | 90542162-07 | 1 | TOOL CREVICE | GB | |
||
| 41 | 150369-02 | 1 | WASHER INNER CLAMP | GB | |
||
| 41 | N704542 | 1 | LOWER GUARD SA | GB | |||
| 42 | 150376-00 | 1 | WASHER OUTER CLAMP | GB | |
||
| 43 | 150384-00 | 1 | BLADE BOLT | GB | |
||
| 43 | 389515-00 | 2 | SCREW | GB | |
||
| 44 | 150385-01 | 1 | NAMEPLATE | GB | |
||
| 44 | 6010216-03 | 1 | SHAFT SA | GB | |
||
| 45 | 381100-01 | 1 | RATING PLATE | GB | |
||
| 46 | 497570-02 | 1 | KEY | 4mm | GB | |
|
| 46 | 90611579 | 1 | RATING LABEL | GB | |
||
| 47 | 093128-00 | 1 | BEARING NEEDLE | GB | |
||
| 50 | 605040-15 | 1 | BEARING,BALL | NPP | GB | |
|
| 51 | 37464-00 | 1 | RETAINER | GB | |
||
| 52 | 145350-00 | 1 | BUTTON | GB | |
||
| 53 | 380968-10 | 1 | CLAMSHELL | GB | |
||
| 54 | 445217-02 | 1 | SLEEVE | GB | |
||
| 55 | 448269-00 | 2 | SCREW | GB | |
||
| 56 | 150370-00 | 1 | FAN | GB | |
||
| 57 | 150374-00 | 1 | GEARCASE | GB | |
||
| 58 | 91963-13 | 1 | EYELET | GB | |
||
| 59 | 98003-11 | 1 | SCREW | GB | |
||
| 60 | 330021-00 | 1 | STOP NUT | GB | |||
| 61 | 380041-00 | 1 | RIVING KNIFE | GB | |
||
| 62 | 98023-17 | 1 | SCREW | M6x1.0x16 HEX HD | GB | |
|
| 63 | 380042-00 | 1 | PLATE | GB | |
||
| 64 | 330021-01 | 1 | NUT | GB | |
||
| 65 | 380043-00 | 1 | NOZZLE | GB | |
||
| 66 | 380048-00 | 1 | GUARD COVER | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 826 | 578763-00 | 1 | IDENTITY LABEL | GB | |
||
| 827 | 643500-00 | 1 | WARNING LABEL | GB | |
||
| 828 | 583471-05 | 1 | NAMEPLATE | GB | |
||
| 829 | 572576-00 | 1 | CHARGER 7.2V - 18V | GB | |
||
| 846 | 84317-00 | 1 | WING NUT | GB | |
||
| 847 | 609301-00 | 1 | THUMBSCREW | GB | |
||
| 848 | 381091-01 | 1 | GUIDE FENCE | metric | GB | |
|
| 849 | 381905-00 | 1 | SPRING | GB | |
||
| 866 | 582627-00 | 1 | BATTERY 18V - 2.4AH | GB | |
