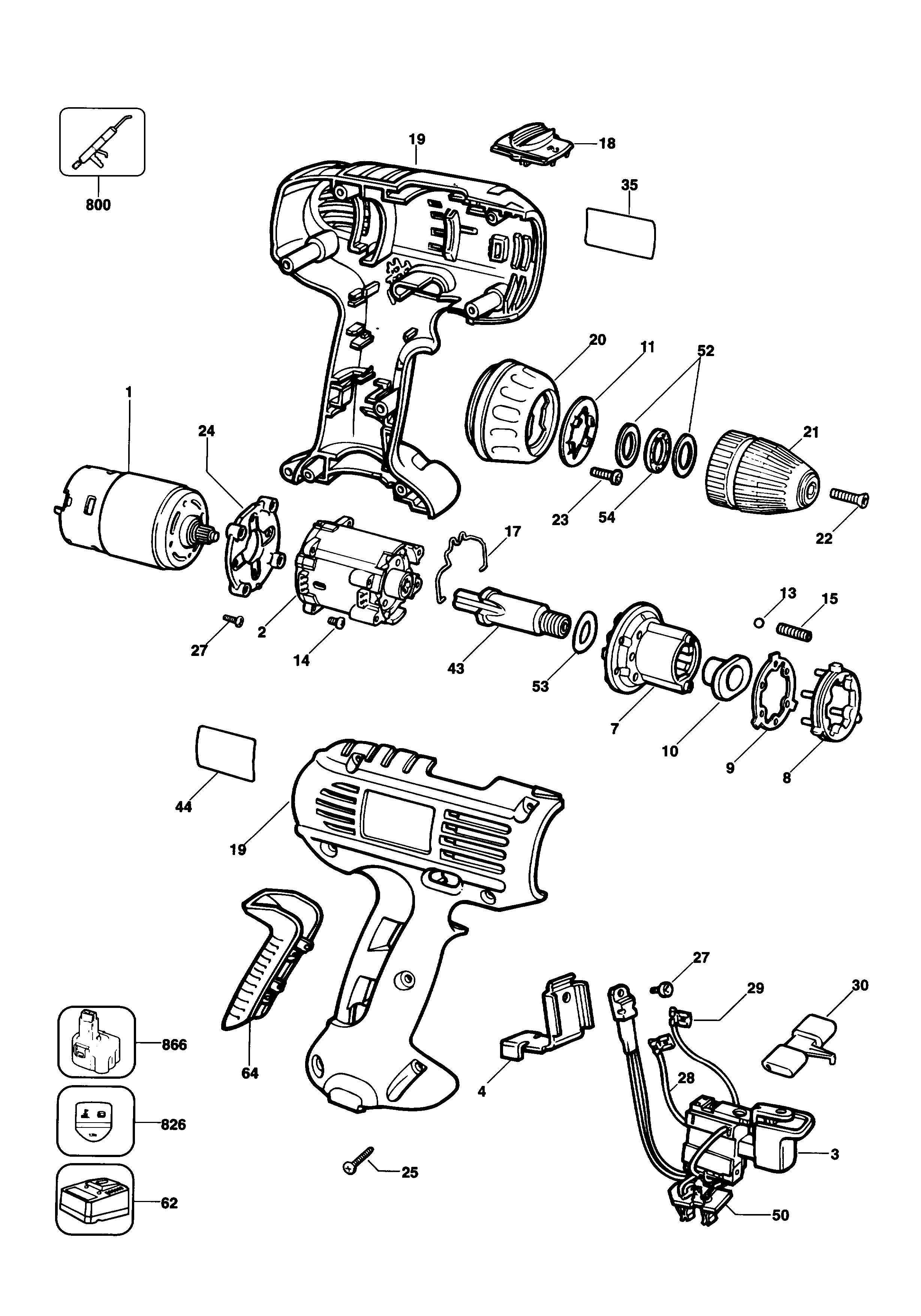

DW922K CORDLESS DRILL Type 1-2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 590617-00 | 1 | MOTOR & PINION | GB |  |
||
| 2 | 807700-49 | 1 | GEARBOX SA | GB | |
||
| 3 | 371189-00 | 1 | SWITCH SA | GB | |
||
| 4 | 371098 | 1 | HEATSINK | GB | |
||
| 7 | 807481 | 1 | HOUSING | GB | |
||
| 8 | 807476-01 | 1 | SUPPORT | GB | |
||
| 9 | 807477 | 1 | PLATE | GB | |
||
| 10 | 812973 | 1 | BEARING | GB | |
||
| 11 | 807483 | 1 | PLATE | GB | |
||
| 13 | 386690-00 | 6 | BALL | STEEL, 5MM | GB |  |
|
| 14 | 798486 | 4 | SCREW | GB | |
||
| 15 | 798707 | 6 | SPRING | GB | |
||
| 17 | 799024 | 1 | SPRING | GB | |
||
| 18 | 799025-04 | 1 | SLIDER | GB | |
||
| 19 | 371079-03 | 1 | CLAMSHELL | Type 1 | GB | |
|
| 19 | 371079-12 | 1 | CLAMSHELL | Type2 | GB | |
|
| 20 | 807478 | 1 | RING | GB | |
||
| 21 | 798723-18 | 1 | CHUCK KEYLESS | GB | |
||
| 22 | 805434 | 1 | SCREW.SPECIAL | GB | |
||
| 23 | 733886 | 6 | SCREW | GB | |
||
| 24 | 371192-01 | 1 | ADAPTOR SA | GB | |
||
| 25 | 747329 | 7 | SCREW | GB | |
||
| 27 | 798783 | 3 | SCREW | UPTO DC 9648 | GB | |
|
| 27 | 808821 | 3 | SCREW | FROM DC 9649 | GB | |
|
| 28 | 372193 | 1 | LEAD BLACK | GB | |
||
| 29 | 372192 | 1 | LEAD RED | GB | |
||
| 30 | 807706 | 1 | SLIDER | GB | |
||
| 35 | 371076-01 | 1 | BRAND LABEL | GB | |
||
| 43 | 807482 | 1 | SPINDLE SA | GB | |
||
| 44 | 371077-08 | 1 | RATING PLATE | GB | |
||
| 50 | 372210 | 1 | CONNECTOR | GB | |
||
| 52 | 807479 | 2 | WASHER THRUST | GB | |
||
| 53 | 807496 | 1 | WASHER SPRING | GB | |
||
| 54 | 859441 | 1 | BEARING | GB | |
||
| 62 | 371075-03 | 1 | CHARGER | GB | |
||
| 64 | 371086 | 1 | GRIP | TY2 | GB | |
|
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | GB | ||
| 826 | 805308-13 | 1 | LABEL | GB | |
||
| 866 | 582808-00 | 1 | BATTERY 12V - 1.3AH - 15.6WH | GB | |
