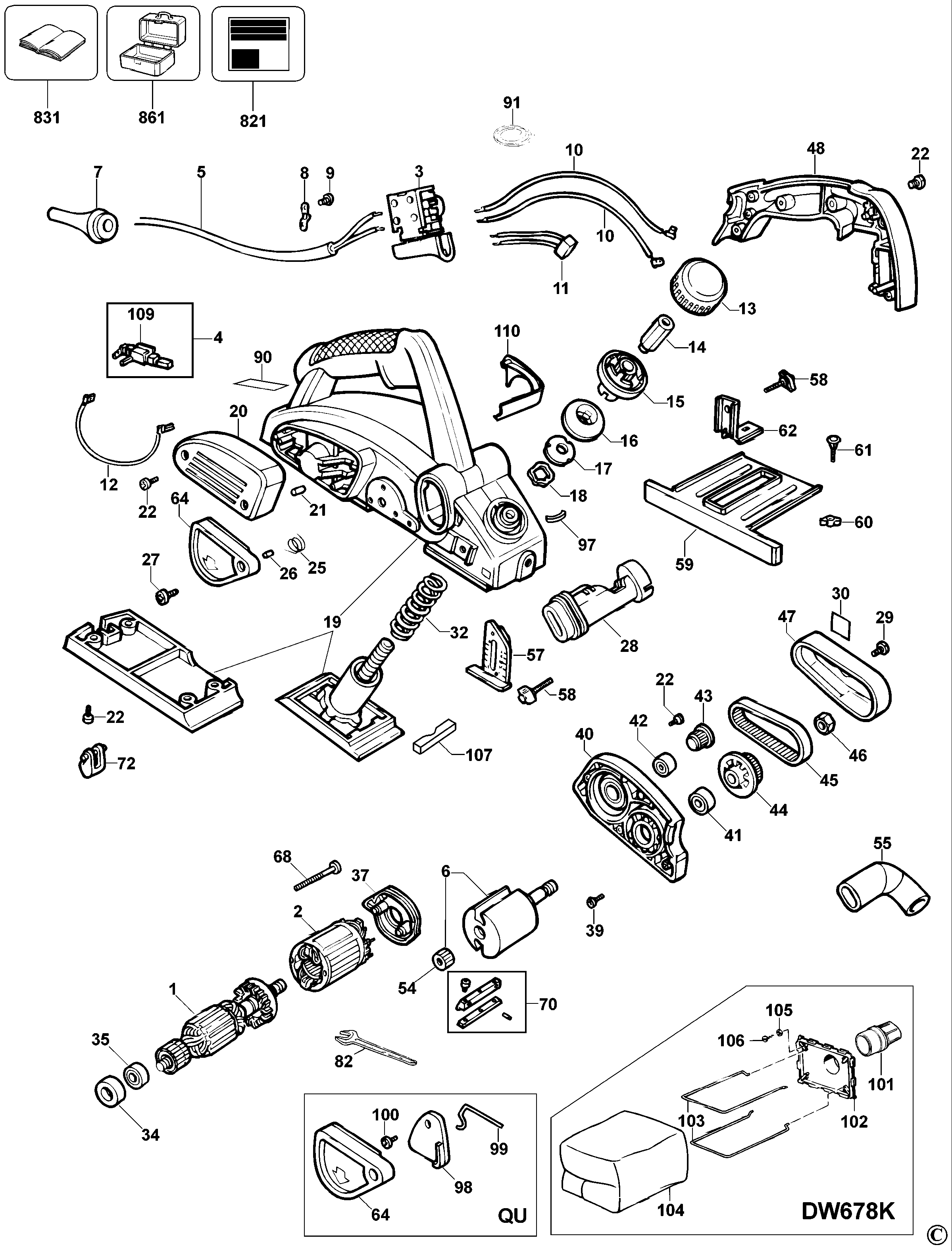

DW678 PLANER Type 2 & 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 578603-00 | 1 | ARMATURE 230V | TYPE 2 | GB |  |
|
| 1 | 578603-01 | 1 | ARMATURE 230V | TYPE 3 | GB | |
|
| 2 | 327429-15 | 1 | FIELD 230V | TYPE 3 | GB | |
|
| 2 | 327429-10 | 1 | FIELD 230V | TYPE 2 | GB | |
|
| 3 | 327383-03 | 1 | SWITCH SA | GB |  |
||
| 4 | 575963-00 | 2 | BRUSH PAIR 230V | 230V | GB | |
|
| 4 | 575963-04 | 2 | BRUSH PAIR 115V | 115V | GB | |
|
| 5 | 330060-78 | 1 | CORD | GB | |||
| 6 | 574232-01 | 1 | BLADEDRUM SA | GB | |
||
| 7 | 320785 | 1 | CORD PROTECTOR | GB | |
||
| 8 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 9 | 330065-06 | 2 | SCREW | GB | |
||
| 10 | 323768-14 | 1 | LEAD SA | GB | |
||
| 11 | 321384 | 1 | CAPACITOR | GB | |
||
| 12 | 323768-15 | 1 | LEAD SA | GB | |
||
| 13 | 326592-00 | 1 | CAP | GB | |
||
| 14 | 328772-00 | 1 | NUT | GB | |
||
| 15 | 326590-01 | 1 | BASE | GB | |
||
| 16 | 326589-02 | 1 | SCALE | GB | |
||
| 17 | 326381-00 | 1 | RATCHET | GB | |
||
| 18 | 327341-00 | 1 | WASHER SPRING | GB | |
||
| 19 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 19 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 20 | 326629-00 | 1 | COVER BRUSH | GB | |
||
| 21 | 326636-00 | 2 | POST | GB | |
||
| 22 | 330065-08 | 16 | SCREW | M4x18 T20 | GB | |
|
| 25 | 323722-00 | 1 | SPRING | GB | |
||
| 26 | 326823-01 | 1 | BUSH | GB | |
||
| 27 | 324006-00 | 1 | SCREW | GB | |
||
| 28 | 327387-00 | 1 | EJECTOR | GB | |
||
| 29 | 324006-11 | 1 | SCREW | GB | |
||
| 30 | 578758-00 | 1 | BRAND LABEL | GB | |
||
| 32 | 572255-00 | 1 | SPRING | GB | |
||
| 34 | 323481-00 | 1 | CAP | GB | |
||
| 35 | 605040-63 | 1 | BEARING | GB | |
||
| 37 | 326596-00 | 1 | BAFFLE | GB | |
||
| 39 | 324006-06 | 3 | SCREW | GB | |
||
| 40 | 327381-00 | 1 | HOUSING BEARING | GB | |
||
| 41 | 330003-11 | 1 | BEARING | GB | |
||
| 42 | N542566 | 1 | BEARING | GB | |
||
| 42 | N542566 | 1 | BEARING | GB | |
||
| 43 | 324105-00 | 1 | PULLEY | GB | |
||
| 44 | 327065-00 | 1 | PINION | GB | |
||
| 45 | 325106-00 | 1 | BELT TOOTHED | GB | |
||
| 46 | 761225-02 | 1 | NUT | GB | |
||
| 47 | 329269-00 | 1 | COVER | GB | |
||
| 48 | 326594-01 | 1 | COVER | GB | |
||
| 54 | 330004-07 | 1 | BEARING NEEDLE | GB | |||
| 55 | 327392-00 | 1 | ADAPTOR | GB | |
||
| 57 | 327393-00 | 1 | GUIDE | GB | |
||
| 58 | 326573-01 | 2 | SCREW WING | GB | |
||
| 59 | 327391-00 | 1 | GUIDE FENCE | GB | |
||
| 60 | 328834-00 | 1 | NUT WING | GB | |
||
| 61 | 911111 | 1 | BOLT | GB | |
||
| 62 | 328175-00 | 1 | BRACKET | GB | |
||
| 64 | 326637-00 | 1 | GUARD | GB | |
||
| 68 | 330065-10 | 2 | SCREW | GB | |
||
| 70 | N542564 | 2 | CLAMP SA | GB | |
||
| 70 | N542564 | 2 | CLAMP SA | GB | |
||
| 72 | N381124 | 1 | STAND | GB | |
||
| 82 | 868148-00 | 1 | SPANNER | GB | |
||
| 91 | 941486-00 | 1 | CABLE TIE | GB | |
||
| 97 | 329145-00 | 1 | CLIP | GB | |
||
| 101 | 327390-00 | 1 | ADAPTOR | DW678K | GB | |
|
| 102 | 248630-00 | 1 | HOLDER | DW678K | GB | |
|
| 103 | 80271901 | 1 | FRAME | DW678K | GB | ||
| 104 | 329452-00 | 1 | DUSTBAG | DW678K | GB | |
|
| 105 | 249233-00 | 1 | WASHER | DW678K | GB | |
|
| 106 | 249416-06 | 1 | SCREW | DW678K | GB | |
|
| 107 | 329829-00 | 1 | SEAL | GB | |
||
| 109 | 329780-49 | 1 | BRUSH HOLDER PAIR | GB | |
||
| 110 | 571213-00 | 1 | BAFFLE | GB | |
