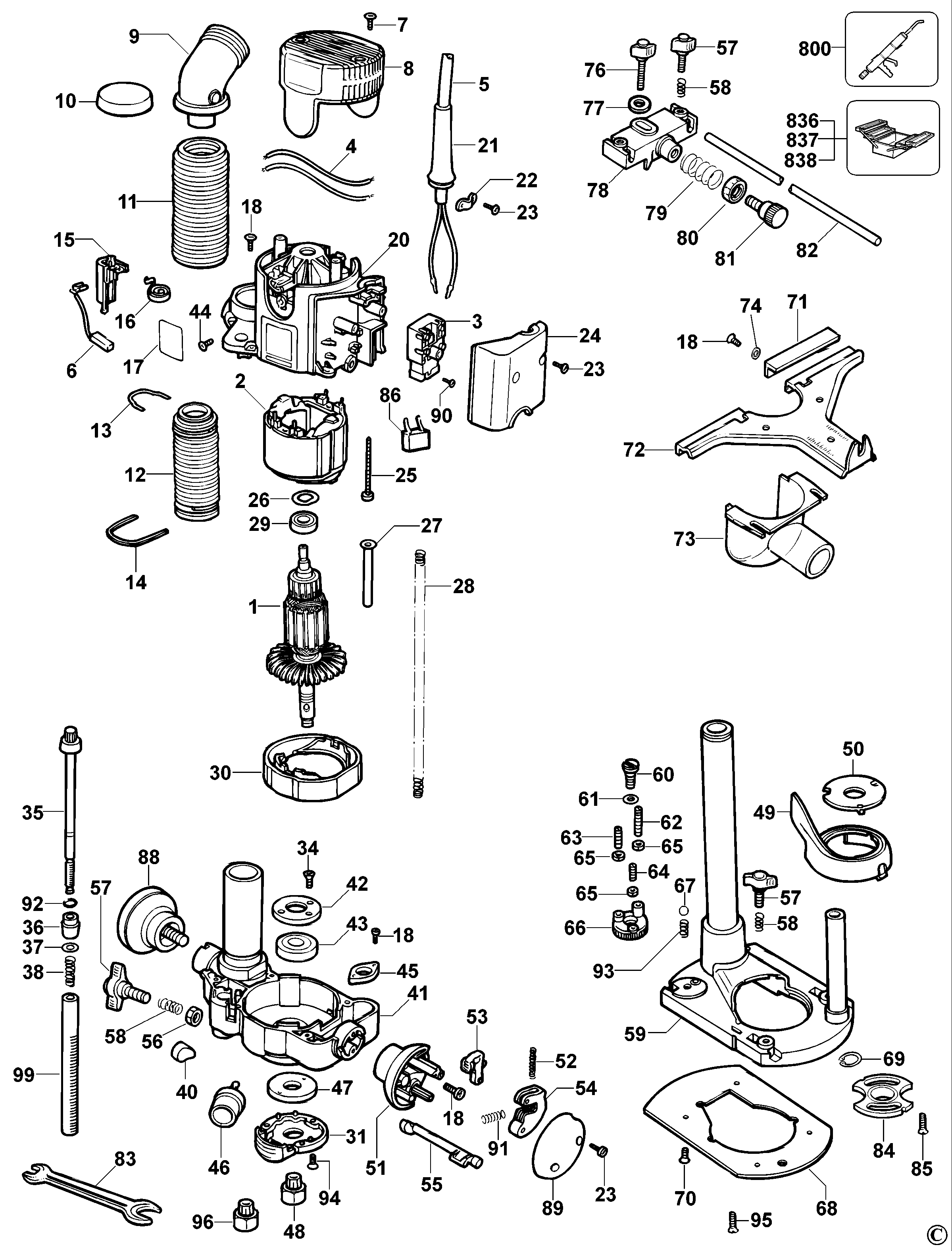

DW620 ROUTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 328255-00 | 1 | ARMATURE 230V | GB |  |
||
| 2 | 327429-09 | 1 | FIELD 230V | GB | |
||
| 3 | 323132-00 | 1 | SWITCH | GB |  |
||
| 4 | 323635-03 | 2 | LEAD 180MM | GB | |
||
| 5 | 330060-44 | 1 | CORDSET (M/PLUG) | GB | |
||
| 6 | 580017-00 | 2 | BRUSH 230V | GB | |
||
| 7 | 330065-09 | 2 | SCREW | GB | |
||
| 8 | 326603-01 | 1 | END CAP | GB | |
||
| 9 | N434647 | 1 | VACUUM ADAPTOR | GB | |
||
| 10 | 326287-00 | 1 | CAP | GB | |
||
| 11 | 326268-00 | 1 | BELLOWS | GB | |
||
| 12 | 326283-00 | 1 | SPRING SA | GB | |
||
| 13 | 326279-00 | 1 | CLIP | GB | |
||
| 14 | 326607-00 | 1 | CLIP | GB | |
||
| 15 | 326933-01 | 2 | HOLDER | GB | |
||
| 16 | 326667-00 | 2 | BRUSH SPRING | GB | |
||
| 17 | 861315-00 | 1 | BRAND LABEL | GB | |
||
| 18 | 324006-00 | 13 | SCREW | GB | |
||
| 20 | 328252-02 | 1 | HOUSING MOTOR | GB | |
||
| 21 | 320785 | 1 | CORD PROTECTOR | GB | |
||
| 22 | 821070 | 1 | CORD CLAMP | GB | |
||
| 23 | 330065-06 | 6 | SCREW | GB | |
||
| 24 | 326258-01 | 1 | SWITCH COVER | GB | |||
| 25 | 330065-10 | 2 | SCREW | GB | |
||
| 26 | 326845-00 | 1 | WASHER SPRING | GB | |
||
| 27 | 329016-00 | 1 | GUIDE | GB | |
||
| 28 | 323395-13 | 1 | SPRING | GB | |
||
| 29 | 605040-63 | 1 | BEARING | GB | |
||
| 30 | 496154-00 | 1 | BAFFLE FAN | GB | |
||
| 31 | 326616-04 | 1 | SPINDLE LOCK | GB | |
||
| 34 | 945121-00 | 3 | SCREW.TEMP | GB | |
||
| 35 | 326600-00 | 1 | ADJUSTER | GB | |
||
| 36 | 326265-00 | 1 | SCALE | GB | |
||
| 37 | 321118 | 1 | WASHER | GB | |
||
| 38 | 323395-14 | 1 | SPRING | GB | |
||
| 40 | 326602-00 | 1 | INSERT | GB | |
||
| 41 | 328254-00 | 1 | HOUSING LOWER | GB | |
||
| 42 | 326285-00 | 1 | CLAMP | GB | |
||
| 43 | 570936-00 | 1 | BEARING | GB | |
||
| 44 | 330065-04 | 2 | SCREW | GB | |
||
| 45 | 326606-00 | 1 | GUIDE | GB | |
||
| 46 | 326294-02 | 1 | PINION | GB | |
||
| 47 | 326673-00 | 1 | LOCKING RING | GB | |
||
| 48 | 326286-01 | 1 | COLLET & NUT SA | 6.35mm 1/4 inch | GB | |
|
| 49 | 326273-00 | 1 | DUST GUARD | GB | |
||
| 50 | 326599-00 | 1 | CAP 21 MM | GB | |
||
| 51 | 326598-01 | 1 | HANDLE RH | GB | |
||
| 52 | 328202-01 | 1 | SWITCH SA | Inc. 54 + 53 + 52 | GB | |
|
| 53 | 326601-00 | 1 | LOCKING KNOB | GB | |||
| 54 | 328202-01 | 1 | SWITCH SA | Inc. 54 + 53 + 52 | GB | |
|
| 55 | 326256-00 | 1 | LEVER | GB | |
||
| 56 | 949726-05 | 1 | NUT | GB | |
||
| 57 | 326573-01 | 6 | SCREW WING | GB | |
||
| 58 | 868082-00 | 6 | SPRING | GB | |
||
| 59 | 328253-00 | 1 | BASEPLATE SA | GB | |
||
| 60 | 326610-00 | 1 | SCREW | GB | |
||
| 61 | 327012-00 | 1 | WASHER SPRING | GB | |
||
| 62 | 868109-00 | 1 | SCREW | GB | |
||
| 63 | 942931-01 | 1 | SCREW | GB | |
||
| 64 | 942931-02 | 1 | SCREW.TEMP | GB | |
||
| 65 | 860083-02 | 3 | NUT | GB | |
||
| 66 | N547463 | 1 | TURRET | GB | |
||
| 67 | 720664-00 | 1 | BALL | GB | |
||
| 68 | 326270-00 | 1 | BASEPLATE | GB | |
||
| 69 | 324821-00 | 1 | CIRCLIP | GB | |
||
| 70 | 324006-00 | 8 | SCREW | GB | |
||
| 71 | 328788-00 | 2 | GUIDE | GB | |
||
| 72 | 328784-00 | 1 | FENCE | GB | |
||
| 73 | 328786-00 | 1 | EXHAUST | GB | |
||
| 74 | 330016-01 | 2 | WASHER | GB | |
||
| 76 | 326573-02 | 1 | SCREW | GB | |
||
| 77 | 330016-02 | 1 | WASHER | GB | |
||
| 78 | 328785-00 | 1 | BRACKET | GB | |
||
| 79 | 323395-21 | 1 | SPRING | GB | |
||
| 80 | 942918-00 | 1 | INDEX | GB | |
||
| 81 | 326239-00 | 1 | ADJUSTER | GB | |
||
| 82 | 868080-00 | 2 | ROD | GB | |
||
| 83 | 31351301 | 1 | SPANNER | GB | |
||
| 84 | 326276-03 | 1 | GUIDE BUSH | GB | |
||
| 85 | 911141 | 2 | SCREW | GB | |
||
| 86 | 949877-01 | 1 | CAPACITOR | GB | |
||
| 88 | 326300-00 | 1 | KNOB SA | GB | |
||
| 89 | 326313-01 | 1 | COVER | GB | |
||
| 90 | 911026 | 4 | SCREW | GB | |
||
| 91 | 323395-22 | 1 | SPRING | GB | |
||
| 92 | 323711-26 | 1 | O RING | GB | |
||
| 93 | 868082-00 | 1 | SPRING | GB | |
||
| 94 | 945121-00 | 3 | SCREW.TEMP | GB | |
||
| 95 | 911058 | 2 | SCREW | GB | |
||
| 99 | 326309-01 | 1 | RACK | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 836 | 559582-99 | 1 | S.T.WRENCH | GB | |
||
| 837 | 559585-98 | 1 | S.T.ASSEMBLY JIG | GB | |
||
| 838 | 559585-99 | 1 | PIN | GB | |
