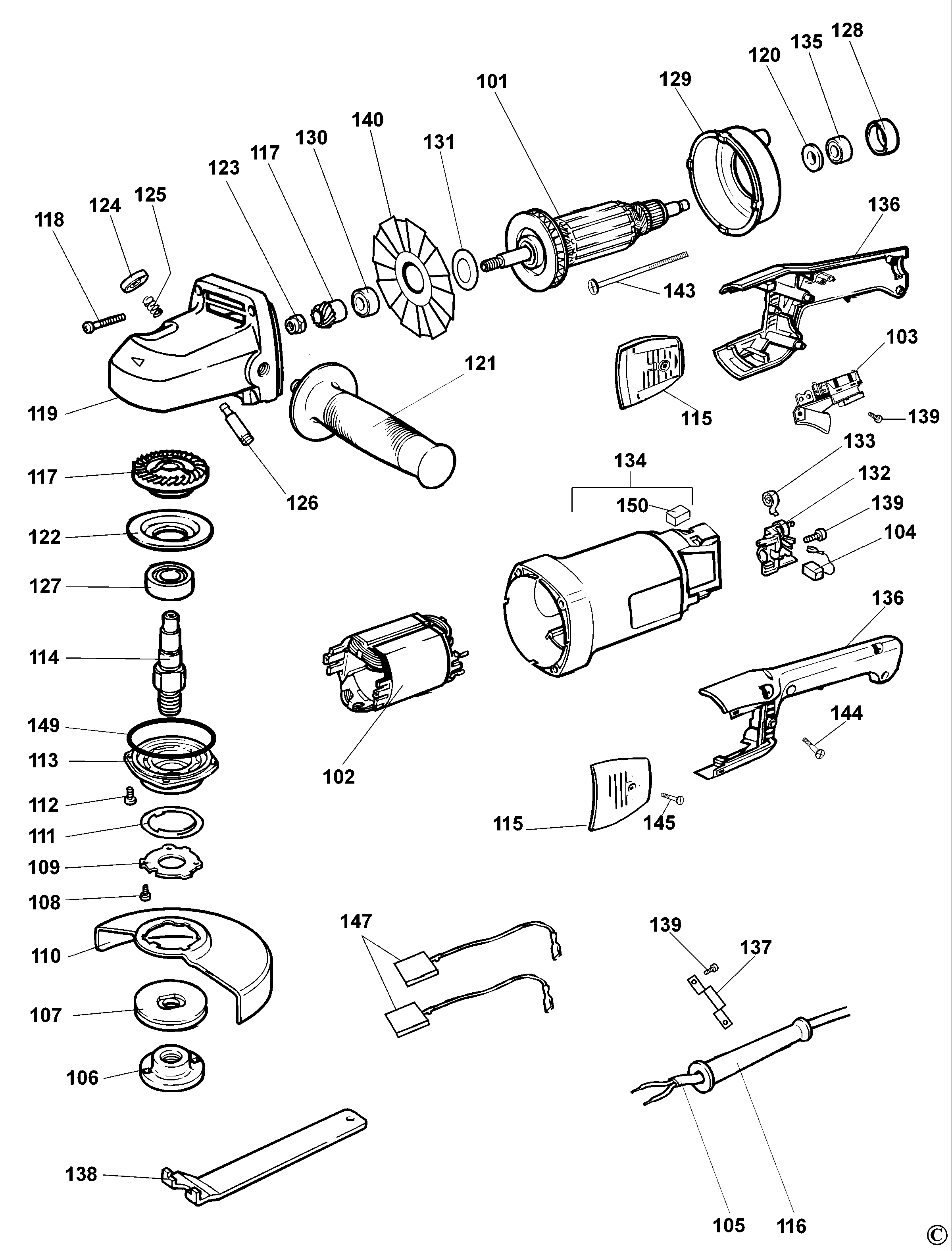

DW830 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 397337-05 | 1 | ARMATURE SA | 115 / 120V | GB 115V | LX |  |
| 102 | 569588-02 | 1 | FIELD 115V | GB 115V | LX | |
|
| 103 | 402868-03 | 1 | SWITCH LOCK-ON | GB 115V | LX | |
|
| 104 | 402874-03 | 2 | BRUSH CUT OFF | LX | |
||
| 105 | 330061-13 | 1 | CABLE 115V | GB 115V | LX | |
|
| 106 | 622613-02 | 1 | OUTER FLANGE | M14 | LX |  |
|
| 107 | 930771-00 | 1 | INNER FLANGE | LX | |
||
| 108 | 562160-00 | 3 | SCREW | LX | |
||
| 109 | 605415-00 | 1 | RETAINING PLATE | LX | |
||
| 110 | 944586-00 | 1 | GUARD | LX | |
||
| 111 | 393576-00 | 1 | RING | LX | |
||
| 112 | 562160-05 | 4 | SCREW | LX | |
||
| 113 | 390521-00 | 1 | GEARCASE COVER | LX | |
||
| 114 | 402853-00 | 1 | SPINDLE | LX | |
||
| 115 | 402849-00 | 2 | COVER BRUSH | LX | |
||
| 116 | 401088-00 | 1 | PROTECTOR | GB 115V | LX | |
|
| 117 | 429960-00 | 1 | REPAIR KIT | LX | |
||
| 118 | 562097-10 | 4 | SCREW | LX | |
||
| 119 | 610704-03 | 1 | GEARCASE SA | LX | |
||
| 120 | 402861-00 | 1 | SPACER | LX | |
||
| 121 | 573115-00 | 1 | SIDE HANDLE | LX | |
||
| 122 | 403156-00 | 1 | FLANGE | LX | |
||
| 123 | 393568-00 | 1 | NUT | LX | |
||
| 124 | 944575-00 | 1 | BUTTON | LX | |
||
| 125 | 562210-00 | 1 | SPRING | LX | |
||
| 126 | 944571-00 | 1 | SPINDLE LOCK | LX | |
||
| 127 | 605040-22 | 1 | BEARING | LX | |
||
| 128 | 949721-02 | 1 | SLEEVE | LX | |
||
| 129 | 402856-00 | 1 | BAFFLE | LX | |
||
| 130 | 605040-60 | 1 | BEARING 6200 | LX | |
||
| 131 | 930753-00 | 1 | WASHER | LX | |
||
| 132 | 569613-01 | 2 | BRUSH HOLDER SA | LX | |
||
| 133 | 402873-00 | 2 | SPRING | LX | |
||
| 134 | 402871-08 | 1 | FIELDCASE | LX | |
||
| 135 | 949625-01 | 1 | BEARING | 8 x 19 x 9 | LX | |
|
| 136 | 402844-11 | 1 | HANDLE SA | LX | |
||
| 137 | 930103-00 | 1 | CORD CLAMP | LX | |
||
| 138 | 401680-00 | 1 | WRENCH | LX | |
||
| 139 | 562097-00 | 5 | SCREW | LX | |
||
| 140 | 403121-00 | 1 | FLANGE | LX | |
||
| 143 | 562097-11 | 2 | SCREW | LX | |
||
| 144 | 562097-03 | 4 | SCREW | LX | |
||
| 145 | 945280-00 | 2 | SCREW | LX | |
||
| 147 | 402878-01 | 2 | LEAD | GB 115V | LX | |
|
| 149 | 403123-00 | 1 | O RING | LX | |
||
| 150 | 402847-00 | 4 | SHOCK ABSORBER | LX | |
