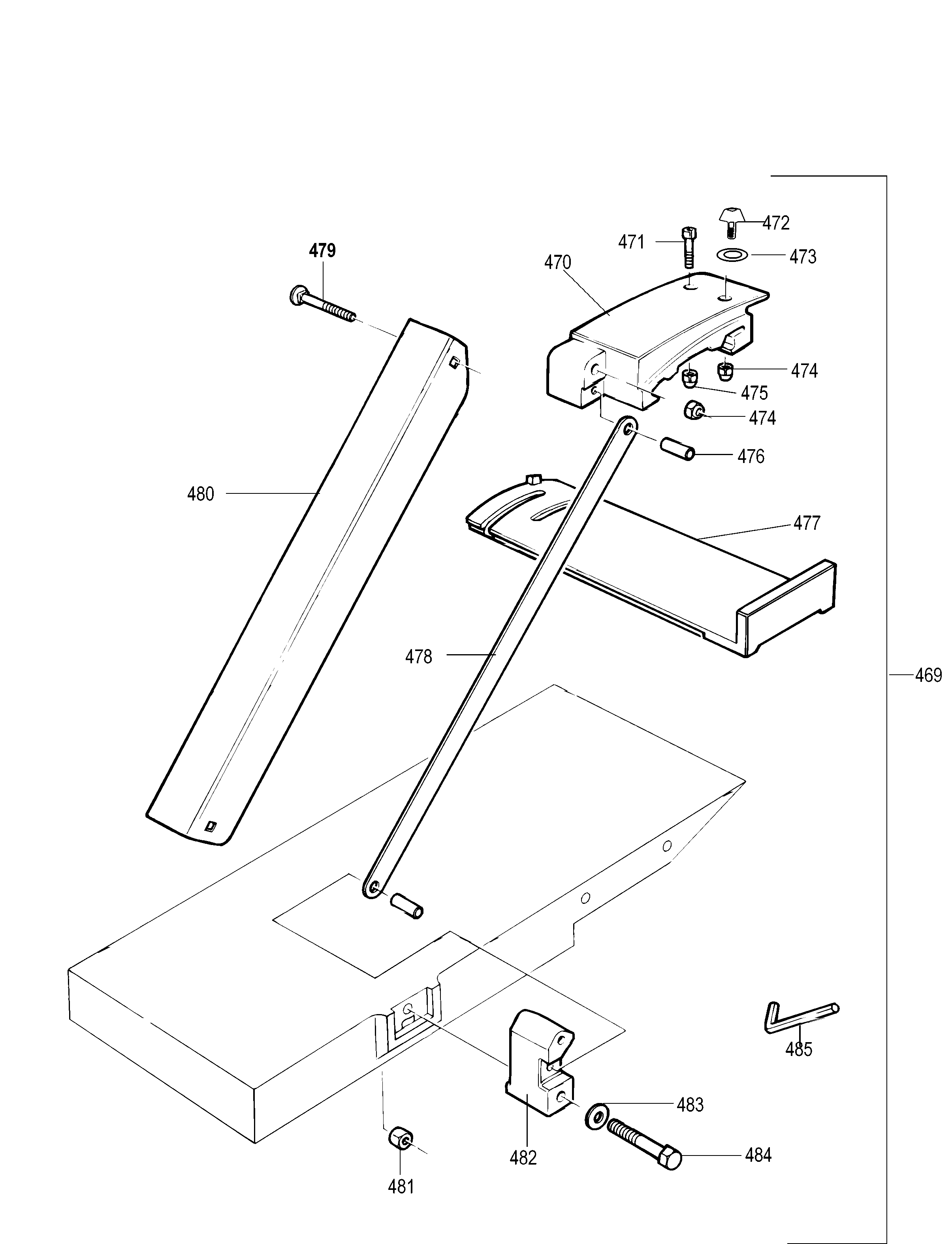

DW733S PLANER THICKNESSER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 860226-03 | 10 | SPACER | GB |  |
||
| 1 | 378891 | 1 | STATOR | B3 | GB |  |
|
| 1 | 378881 | 1 | ROTOR | GB | |
||
| 2 | 860077-01 | 2 | WASHER | GB | |
||
| 3 | 123288-00 | 4 | SPINDLE | GB | |
||
| 3 | 935840 | 2 | GEAR SA | GB | |
||
| 3 | 248338-00 | 2 | CAPACITOR | B3 | GB | |
|
| 4 | 123317-02 | 1 | TABLE | GB | |
||
| 4 | 279805-00 | 2 | SPINDLE | GB | |
||
| 5 | 123293-03 | 1 | POINTER | GB | |
||
| 5 | 575506-01 | 1 | MOTOR SA | GB | |
||
| 6 | 860238-04 | 2 | SCREW | GB | |
||
| 6 | 371050 | 1 | WARNING LABEL | GB | |
||
| 6 | 371053-01 | 1 | WARNING LABEL | B3 | GB | |
|
| 7 | 123211-00 | 1 | BAR | GB | |
||
| 7 | 373007-07 | 1 | FIELD 115V | GB | |||
| 8 | 860093-06 | 2 | SCREW | GB | |
||
| 8 | 809030-01 | 1 | CHARGER SA | GB | |
||
| 9 | 867439-02 | 1 | CASTING LH | GB | |
||
| 9 | 027351200 | 1 | SPANNER | GB | |
||
| 10 | 329866-02 | 1 | RATING PLATE | GB | |
||
| 12 | 860085-04 | 14 | SCREW | GB | |
||
| 13 | 860073-03 | 15 | WASHER M8 | GB | |
||
| 13 | 177162701 | 1 | CABLE CLAMP | GB | |
||
| 14 | 6010028-10 | 1 | FRAME | GB | |
||
| 15 | 644490-00 | 1 | KITBOX | KD455RE | GB | |
|
| 15 | 1005755-00 | 1 | CORDSET | RE TYPE 1-3 | GB | ||
| 15 | 586589-00L | 1 | CHUCK KEYLESS | CRE | GB | |
|
| 16 | N044664 | 1 | RATING PLATE | GB | |
||
| 17 | 860083-04 | 16 | NUT | GB | |
||
| 17 | 494040-01 | 1 | BRUSH PAIR 115V | RE TYPE 1-3 | GB | |
|
| 18 | 866962-01 | 1 | KNOB | GB | |
||
| 18 | 1002441-00 | 1 | SUPPORT PLATE | GB | |||
| 19 | 946474-00 | 1 | HANDLE SA | GB | |
||
| 19 | 90531369 | 11 | CHUCK KEYLESS | GB | |||
| 20 | 866089-01 | 1 | SPINDLE | GB | |
||
| 20 | 373007-50 | 1 | FIELD 230V | GB | |
||
| 21 | 590966-00 | 1 | SUPPORT SA | Wurth | GB | |
|
| 22 | 123283-01 | 1 | SUPPORT | GB | |
||
| 22 | 743855 | 1 | GUIDE | B3 | GB | |
|
| 22 | 055914605 | 1 | SCREW | GB | |
||
| 23 | 866089-01 | 1 | SPINDLE | GB | |
||
| 23 | 743923 | 1 | FENCE | B3 | GB | |
|
| 24 | 760233-00 | 1 | PIN | GB | |
||
| 24 | 6010113-03 | 1 | ELEMENT SA | GB | |||
| 24 | 743636 | 1 | FOOT | KD350RE-KD351CRE TY2 | GB | |
|
| 25 | 123225-00 | 1 | PIN | GB | |
||
| 26 | 860585-00 | 1 | GEAR | GB | |
||
| 26 | 373006-07 | 1 | FIELD | KD355RE | GB | |
|
| 26 | 373008-00 | 1 | FIELD 230V | KD350RE | GB | ||
| 26 | 373091-00 | 1 | BRUSH KIT | 374450 | GB | ||
| 26 | 373083 | 1 | CLIP | KD351CRE | GB | |
|
| 27 | 860094-02 | 2 | SCREW | GB | |
||
| 27 | 488213-00 | 1 | CLAMSHELL SET | GB | |
||
| 28 | 860073-00 | 2 | WASHER | GB | |
||
| 28 | 90626849 | 1 | SPRING | GB | |
||
| 29 | 863662-00 | 1 | SCALE | GB | |
||
| 29 | 1003297-00 | 1 | SWITCH | GB | |||
| 30 | 867438-02 | 1 | SIDE RH | GB | |
||
| 31 | 949876-05 | 3 | WASHER | GB | |
||
| 32 | 123237-00 | 1 | CHAIN | GB | |
||
| 32 | 559868-00 | 1 | MOTOR SA | GB | |
||
| 33 | 860092-01 | 4 | NUT | GB | |
||
| 33 | 371073-03 | 1 | CHARGER | TYPE 1 | GB | |
|
| 34 | 123222-00 | 4 | PINION | GB | |
||
| 34 | 879741-01 | 1 | GUARD | TYPE 1 | GB | |
|
| 35 | 6010029-19 | 1 | CABLE | INTERNAL | GB | ||
| 36 | 123215-00 | 1 | CASING | GB | |
||
| 37 | 760998-00 | 2 | SCREW | GB | |
||
| 38 | 123216-00 | 1 | CASING | GB | |
||
| 40 | 123282-04 | 1 | BASE | GB | |
||
| 41 | 123265-01 | 1 | HOOK RIGHT | GB | |
||
| 42 | 860083-01 | 2 | NUT | GB | |
||
| 43 | 123203-00 | 2 | SPRING | GB | |
||
| 44 | 123263-01 | 1 | HOOK LEFT | GB | |
||
| 45 | 860089-25 | 2 | SCREW | GB | |
||
| 46 | 123269-02 | 1 | GUARD | GB | |
||
| 47 | 860263-00 | 1 | HANDLE | GB | |
||
| 48 | 863664-01 | 1 | ADAPTOR | GB | |
||
| 49 | 946469-01 | 2 | KNOB | GB | |
||
| 50 | 865410-00 | 1 | FASTENER | GB | |
||
| 51 | 860084-21 | 1 | SCREW | GB | |
||
| 52 | 860301-00 | 2 | SCREW | GB | |
||
| 53 | 860610-01 | 1 | PUSHROD | GB | |
||
| 101 | 860094-02 | 2 | SCREW | GB | |
||
| 102 | 123230-00 | 1 | INDEX | GB | |
||
| 103 | 32357 | 1 | SCALE | GB | |
||
| 104 | 860085-19 | 4 | SCREW | GB | |
||
| 105 | 860073-03 | 13 | WASHER M8 | GB | |
||
| 106 | 869068-00 | 1 | TABLE PLANER | GB | |
||
| 107 | 860083-18 | 4 | NUT M5 | GB | |
||
| 108 | 860083-02 | 4 | NUT | GB | |
||
| 109 | 860085-06 | 4 | SCREW | GB | |
||
| 110 | 860083-04 | 26 | NUT | GB | |
||
| 111 | 860074-03 | 4 | WASHER | GB | |
||
| 112 | 860079-04 | 4 | RETAINER | GB | |
||
| 113 | 863647-00 | 2 | PIN | GB | |
||
| 114 | 860093-11 | 2 | SCREW | GB | |
||
| 115 | 123255-00 | 2 | SPRING | GB | |
||
| 116 | 863414-00 | 2 | LOCK | GB | |
||
| 117 | 863971-00 | 3 | WASHER | GB | |
||
| 118 | 860093-07 | 2 | SCREW | GB | |
||
| 119 | 860093-02 | 8 | SCREW | GB | |
||
| 120 | 123308-04 | 1 | TABLE SUPPORT | GB | |
||
| 121 | 860074-02 | 4 | WASHER | GB | |
||
| 122 | 860093-06 | 4 | SCREW | GB | |
||
| 123 | 865405-01 | 2 | KNOB | GB | |
||
| 124 | 123291-00 | 2 | BOLT | GB | |
||
| 125 | 123290-01 | 2 | SCREW | GB | |
||
| 126 | 720959-00 | 5 | WASHER | GB | |
||
| 127 | 860093-15 | 4 | SCREW | GB | |
||
| 128 | 123296-01 | 2 | BRACKET | GB | |
||
| 129 | 123312-03 | 1 | TABLE SUPPORT | GB | |
||
| 130 | 949853-08 | 4 | SCREW | GB | |
||
| 131 | 949853-07 | 4 | SCREW | GB | |
||
| 132 | 949886-11 | 5 | SCREW | GB | |
||
| 133 | 863289-00 | 2 | PIN | GB | |
||
| 134 | 123275-01 | 1 | BAR | GB | |
||
| 135 | 942049-00 | 1 | WASHER SPRING | GB | |
||
| 136 | 863656-00 | 1 | YOKE | GB | |
||
| 137 | 860092-00 | 1 | NUT | GB | |
||
| 138 | 123295-00 | 1 | PIN | GB | |
||
| 139 | 949886-16 | 1 | SCREW | GB | |
||
| 140 | 866688-01 | 1 | HANDLE | GB | |
||
| 141 | 863660-00 | 1 | KNOB | GB | |
||
| 142 | 123227-00 | 1 | LOCK-NUT | GB | |
||
| 143 | 869069-00 | 1 | TABLE PLANER | GB | |
||
| 144 | 863653-00 | 5 | CONNECTOR | GB | |
||
| 145 | 123274-01 | 2 | SUPPORT | GB | |
||
| 146 | 863218-00 | 4 | PIN | GB | |
||
| 147 | 863702-00 | 4 | SPACER | GB | |
||
| 148 | 860060-01 | 2 | RIVET | GB | |
||
| 149 | 860098-04 | 1 | WRENCH 6 MM | GB | |
||
| 151 | 860093-00 | 4 | SCREW | GB | |
||
| 152 | 860393-03 | 2 | BRACKET LH | GB | |
||
| 153 | 860393-02 | 2 | BRACKET RH | GB | |
||
| 154 | 863852-01 | 4 | FOOT | GB | |
||
| 155 | 860387-00 | 4 | LEG | GB | |
||
| 156 | 860392-00 | 4 | FOOT | GB | |
||
| 201 | 123286-00 | 2 | PINION | GB | |
||
| 202 | 123236-00 | 1 | CHAIN | GB | |
||
| 203 | 860226-02 | 4 | WASHER | GB | |
||
| 204 | 123281-02 | 2 | ROLLER | GB | |
||
| 205 | 860318-00 | 1 | KEY | GB | |
||
| 206 | 865513-00 | 1 | CUTTER BLOCK SA | GB | |
||
| 207 | 942043-00 | 4 | SCREW | GB | |
||
| 208 | 863658-00 | 4 | BLOCK | GB | |
||
| 209 | 868768-10 | 2 | BEARING | GB | |
||
| 210 | 863644-00 | 4 | SCREW | GB | |
||
| 211 | 949703-04 | 8 | SCREW | GB | |
||
| 212 | 123266-00 | 2 | BLOCKING WEDGE | GB | |
||
| 214 | 860093-06 | 4 | SCREW | GB | |
||
| 215 | 860074-03 | 4 | WASHER | GB | |
||
| 216 | 941563-00 | 4 | NUT | GB | |
||
| 217 | 123232-00 | 2 | SPRING | GB | |
||
| 218 | 123233-00 | 2 | SPRING | GB | |
||
| 219 | 123210-00 | 49 | ANTI KICK BACK | GB | |
||
| 220 | 860073-04 | 25 | WASHER | GB | |
||
| 221 | 123212-00 | 1 | BAR FENCE | GB | |
||
| 222 | 123264-00 | 2 | BUSH | GB | |
||
| 223 | 860083-05 | 1 | NUT RH | GB | |
||
| 224 | 860074-04 | 1 | WASHER | GB | |
||
| 225 | 860074-05 | 1 | WASHER | GB | |
||
| 226 | 860083-03 | 6 | NUT | GB | |
||
| 227 | 123298-00 | 3 | LOCKING PIN | GB | |
||
| 228 | 123287-00 | 1 | PIN | GB | |
||
| 229 | 123318-00 | 1 | LEVER | GB | |
||
| 230 | 860367-00 | 1 | HANDLE | GB | |
||
| 231 | 123228-00 | 1 | LEVER | GB | |
||
| 232 | 863807-00 | 1 | PLATE | GB | |
||
| 233 | 860331-00 | 1 | SPRING | GB | |
||
| 234 | 860073-10 | 1 | WASHER | GB | |
||
| 235 | 123218-00 | 1 | WHEEL TOOTHED | GB | |
||
| 236 | 860079-02 | 2 | CIRCLIP | GB | |
||
| 237 | 123246-00 | 1 | BELT TOOTHED | GB | |
||
| 238 | 123219-00 | 2 | BUSH | GB | |
||
| 239 | 123316-00 | 1 | PULLEY | GB | |
||
| 240 | 860079-04 | 1 | RETAINER | GB | |
||
| 241 | 123240-00 | 1 | PINION | GB | |
||
| 242 | 863702-00 | 1 | SPACER | GB | |
||
| 243 | 123220-00 | 1 | PIN | GB | |
||
| 244 | 860073-14 | 1 | WASHER | GB | |
||
| 245 | 949754-15 | 1 | BELT | GB | |
||
| 246 | 123234-00 | 1 | SPRING | GB | |
||
| 247 | 123300-00 | 1 | PULLEY | GB | |
||
| 248 | 941880-00 | 1 | SCREW | GB | |
||
| 249 | 123211-00 | 1 | BAR | GB | |
||
| 250 | 943271-00 | 1 | HEX KEY 2.5 MM | GB | |
||
| 251 | 949751-07 | 1 | SPANNER 10-13MM | GB | |
||
| 252 | 863648-00 | 1 | GAUGE | GB | |
||
| 253 | 867450-00 | 1 | FLANGE | GB | |
||
| 254 | 863665-00 | 1 | CAP | GB | |
||
| 255 | 860085-10 | 2 | SCREW | GB | |
||
| 256 | 860074-02 | 2 | WASHER | GB | |
||
| 314 | 868541-08 | 1 | STATOR SA 230V | GB | |
||
| 315 | 860088-25 | 1 | SCREW | GB | |
||
| 316 | 860687-04 | 1 | END CAP | GB | |
||
| 317 | 860094-01 | 2 | SCREW | GB | |
||
| 318 | 945841-00 | 1 | FAN | GB | |
||
| 320 | 863112-00 | 1 | CAP | GB | |
||
| 321 | 860701-03 | 1 | COVER | GB | |
||
| 322 | 860718-00 | 2 | SEAL | GB | |
||
| 323 | 860080-02 | 1 | RING | GB | |
||
| 324 | 861721-01 | 1 | BEARING | GB | |
||
| 325 | 860446-01 | 4 | BOLT | GB | |
||
| 326 | 868425-00 | 1 | ROTOR | GB | |
||
| 327 | 860539-01 | 1 | KEY | GB | |
||
| 329 | 860073-14 | 1 | WASHER | GB | |
||
| 330 | 860093-15 | 1 | SCREW | GB | |
||
| 331 | 123294-00 | 1 | SPACER | GB | |
||
| 332 | 942043-00 | 1 | SCREW | GB | |
||
| 333 | 949702-19 | 2 | SCREW | GB | |
||
| 334 | 123292-00 | 2 | SPACER | GB | |
||
| 335 | 867441-00 | 1 | PULLEY | GB | |
||
| 337 | 860699-02 | 1 | ARBOR | GB | |
||
| 338 | 860073-03 | 3 | WASHER M8 | GB | |
||
| 339 | 860083-04 | 3 | NUT | GB | |
||
| 341 | 868768-10 | 1 | BEARING | GB | |
||
| 374 | 868387-22 | 1 | MOTOR & SWITCHBOX SA | GB | |
||
| 375 | 868387-00 | 1 | MOTOR | GB | |
||
| 376 | 865914-01 | 1 | SWITCHBOX SA | GB | |
||
| 377 | 946260-02 | 1 | BUTTON OFF | GB | |
||
| 378 | 946260-01 | 1 | BUTTON ON | GB | |
||
| 379 | 869070-00 | 1 | CASING UPPER | GB | |
||
| 380 | 865903-00 | 1 | PLATE | GB | |
||
| 381 | 860090-02 | 1 | SCREW | GB | |
||
| 382 | 941633-00 | 1 | WASHER | GB | |
||
| 383 | 865901-00 | 1 | GROMMET | GB | |
||
| 384 | 942421-00 | 1 | PLATE | GB | |
||
| 385 | 865897-00 | 1 | KLIXON | GB | |
||
| 386 | 933652-00 | 1 | WASHER | GB | |
||
| 387 | 861149-00 | 1 | CORD PROTECTOR | GB | |
||
| 388 | 949738-19 | 1 | CABLE & PLUG | GB | |
||
| 389 | 865905-01 | 1 | CAPACITOR | 30uF 71mm | GB | |
|
| 390 | 860094-05 | 1 | SCREW | GB | |
||
| 391 | 865900-00 | 1 | CONTACT | GB | |
||
| 394 | 943022-01 | 1 | SCREW | GB | |
||
| 395 | 942416-00 | 1 | TERMINAL BLOCK | GB | |
||
| 418 | 860311-00 | 1 | CAP | GB | |
||
| 419 | 860305-00 | 1 | SPACER | GB | |
||
| 420 | 860085-07 | 2 | SCREW | GB | |
||
| 421 | 860074-02 | 2 | WASHER | GB | |
||
| 422 | 860306-00 | 1 | BRACKET | GB | |
||
| 424 | 860311-01 | 1 | CAP | GB | |
||
| 425 | 860373-00 | 2 | PLATE | GB | |
||
| 426 | 860074-03 | 5 | WASHER | GB | |
||
| 428 | 860310-00 | 2 | NUT | GB | |
||
| 429 | 943209-00 | 2 | SCREW | GB | |
||
| 430 | 860093-00 | 4 | SCREW | GB | |
||
| 431 | 860083-02 | 2 | NUT | GB | |
||
| 432 | 862169-00 | 1 | BRACKET | GB | |
||
| 433 | 860073-01 | 2 | WASHER | GB | |
||
| 434 | 860089-18 | 2 | SCREW | GB | |
||
| 435 | 860083-04 | 4 | NUT | GB | |
||
| 436 | 862484-00 | 1 | GUIDE | GB | |
||
| 436 | 862484-00 | 1 | GUIDE | GB | |
||
| 437 | 860309-00 | 1 | INSERT | GB | |
||
| 438 | 860085-06 | 1 | SCREW | GB | |
||
| 439 | 862482-02 | 1 | FENCE | GB | |
||
| 440 | 860308-00 | 1 | PIN | GB | |
||
| 441 | 860083-03 | 2 | NUT | GB | |
||
| 442 | 861841-00 | 1 | LEVER | GB | |
||
| 443 | 860312-00 | 1 | CAP | GB | |
||
| 444 | 860674-00 | 2 | LEVER | GB | |
||
| 445 | 860394-00 | 2 | SPRING | GB | |
||
| 446 | 860365-00 | 4 | CAP | GB | |
||
| 447 | 930574-00 | 1 | HEX KEY 5 MM | GB | |
||
| 448 | 938539-00 | 1 | KEY | GB | |
||
| 469 | 865911-00 | 1 | GUARD SA | GB | |
||
| 470 | 865910-00 | 1 | SUPPORT | GB | |
||
| 471 | 860093-08 | 1 | SCREW | GB | |
||
| 472 | 863310-00 | 1 | KNOB | GB | |
||
| 473 | 720959-00 | 1 | WASHER | GB | |
||
| 474 | 860092-00 | 3 | NUT | GB | |
||
| 475 | 860092-03 | 1 | NUT M5 | GB | |
||
| 476 | 949867-10 | 2 | PIN | GB | |
||
| 477 | 865909-00 | 1 | GUARD | GB | |
||
| 478 | 944881-00 | 1 | BAR | GB | |
||
| 479 | 860301-14 | 2 | BOLT | GB | |
||
| 480 | 944880-00 | 1 | ARM | GB | |
||
| 481 | 860092-05 | 1 | NUT | GB | |
||
| 482 | 944877-01 | 1 | BRACKET | GB | |
||
| 483 | 860073-03 | 1 | WASHER M8 | GB | |
||
| 484 | 860086-06 | 1 | SCREW | GB | |
||
| 485 | 949882-01 | 1 | WRENCH 4 MM | GB | |
||
| 800 | 6010023-08 | 1 | BASE | CAST IRON | GB | |
|
| 846 | 864521-06 | 1 | PARTS PACK SA | GB | |
