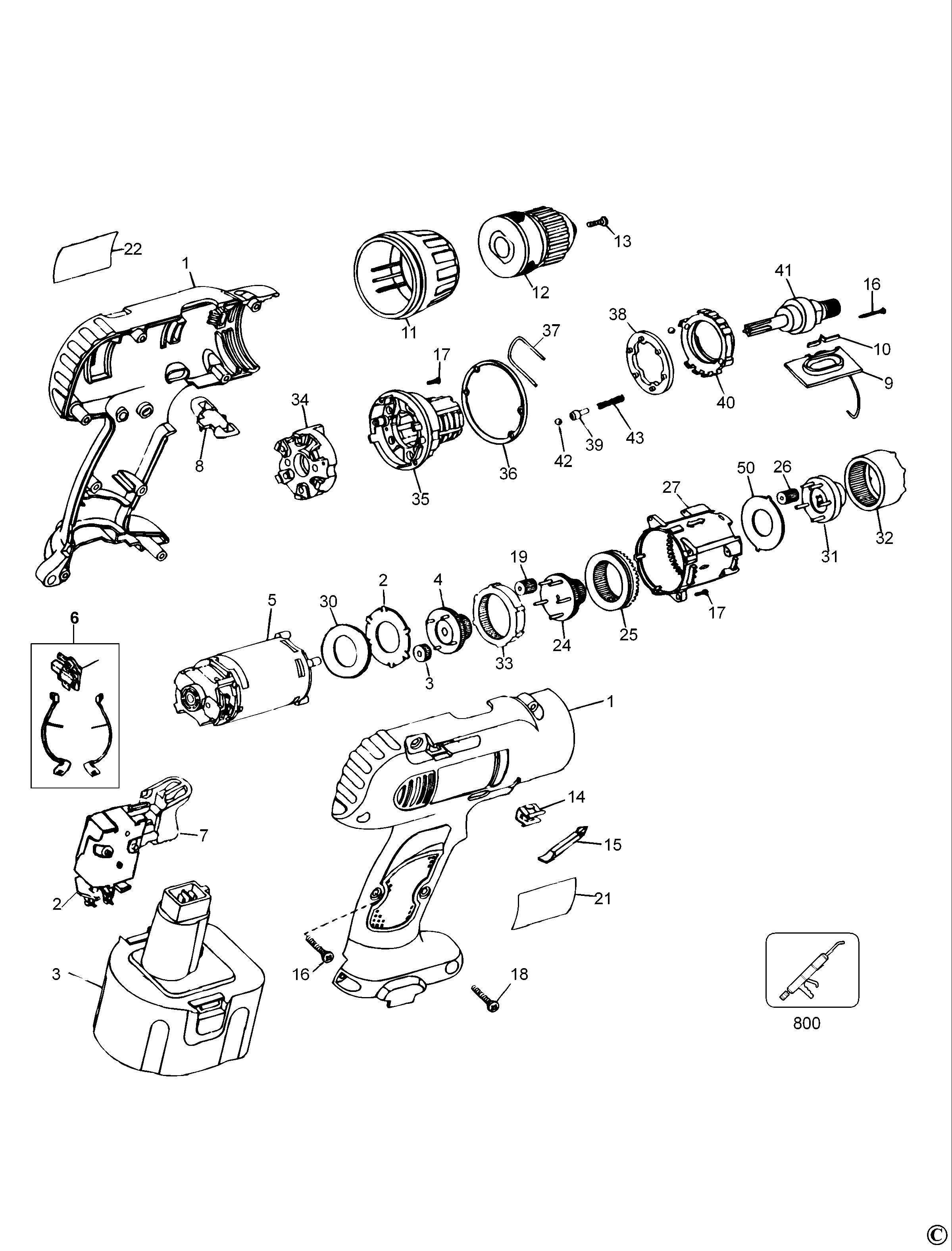

DW995 CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 392654-06 | 1 | CLAMSHELL PAIR | GB |  |
||
| 2 | 798954-00 | 1 | WASHER | GB | |
||
| 3 | 151936-02 | 5 | GEAR | GB | |
||
| 4 | 805060-02 | 1 | HOLDER | GB | |
||
| 5 | 393111-01 | 1 | MOTOR & PINION | GB | |
||
| 6 | 389025-00 | 2 | BRUSH PAIR | GB | |||
| 7 | 152274-19SV | 1 | SWITCH | GB | |
||
| 8 | 151296-00 | 1 | SLIDER | GB | |
||
| 9 | 153281-03 | 1 | SLIDER SA | GB | |
||
| 10 | 144658-00 | 1 | SPRING | GB | |
||
| 11 | 387068-00 | 1 | COLLAR | GB | |
||
| 12 | N242399 | 1 | CHUCK KEYLESS | GB |  |
||
| 13 | 605256-02 | 1 | SCREW | GB | |
||
| 14 | 148354-03 | 2 | HOLDER | GB | |
||
| 15 | 297757-02 | 2 | BIT PHILLIPS | GB | |
||
| 16 | 330019-00 | 5 | SCREW | M3x16 T10 PLASTITE | GB | |
|
| 17 | 98091-10 | 6 | SCREW | GB | |
||
| 18 | 90611830 | 7 | SCREW | GB | |
||
| 19 | 372274-00 | 5 | GEAR | GB | |
||
| 21 | 383023-00 | 1 | NAMEPLATE | GB | |||
| 22 | 149490-00 | 1 | BRAND LABEL | GB | |
||
| 24 | 372272-03 | 1 | HOLDER | GB | |
||
| 25 | 805068-01 | 1 | GEAR | GB | |
||
| 26 | 372274-01 | 5 | GEAR | GB | |
||
| 27 | 798701-00 | 1 | GEARCASE | GB | |
||
| 28 | 389025-00 | 1 | BRUSH PAIR | GB | |||
| 29 | 389025-00 | 1 | BRUSH PAIR | GB | |||
| 30 | 152482-00 | 1 | SEAL | GB | |
||
| 31 | 805070-03 | 1 | HOLDER | GB | |
||
| 32 | 392755-00 | 1 | GEAR | GB | |
||
| 33 | 805063-02 | 1 | GEAR | GB | |
||
| 34 | 380976-00 | 1 | END CAP | GB | |
||
| 35 | 798966-01 | 1 | HOUSING SA | GB | |
||
| 36 | 805004-00 | 1 | WASHER | GB | |
||
| 37 | 798959-00 | 1 | CLIP | GB | |
||
| 38 | 380792-00 | 1 | PLATE | GB | |
||
| 39 | 380793-00 | 6 | PIN | GB | |
||
| 40 | 798709-00 | 1 | NUT | GB | |
||
| 41 | 381529-00 | 1 | SPINDLE | GB | |
||
| 42 | 386690-00 | 6 | BALL | STEEL, 5MM | GB | |
|
| 43 | 152347-00 | 6 | SPRING | GB | |
||
| 50 | 798689-00 | 1 | WASHER | GB | |
||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | GB |
