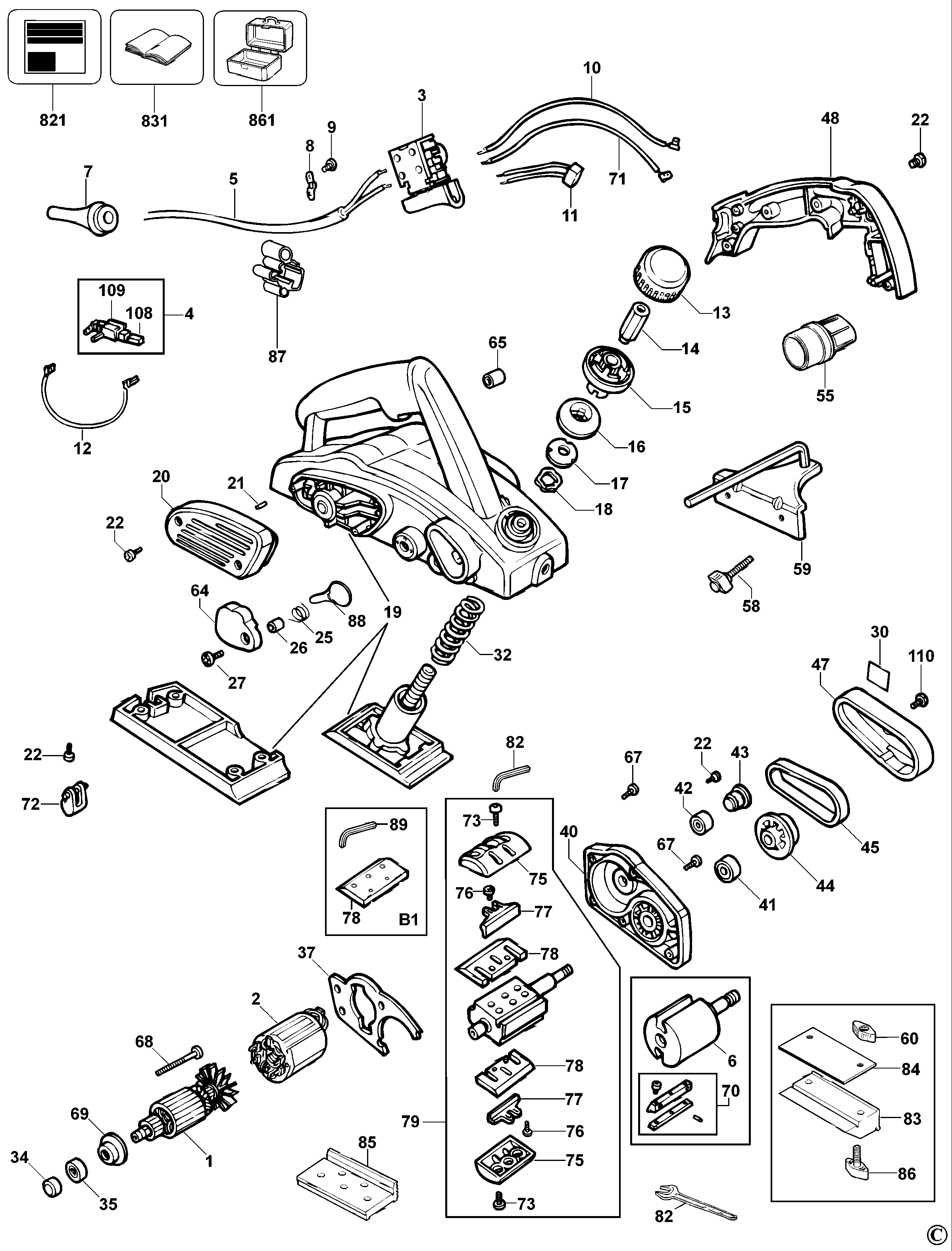

DW677L PLANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 327403-02 | 1 | ARMATURE 230V | GB |  |
||
| 2 | 373874-08 | 1 | FIELD 230V | GB | |
||
| 3 | 327383-03 | 1 | SWITCH SA | GB | |
||
| 4 | 575963-01 | 2 | BRUSH PAIR 230V | GB | |
||
| 5 | 330060-90 | 1 | CORDSET (M/PLUG) GB | GB | |
||
| 6 | 477758-00 | 1 | BLADEDRUM SA | GB | |
||
| 7 | 320785 | 1 | CORD PROTECTOR | GB | |
||
| 8 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 9 | 330065-06 | 2 | SCREW | GB | |
||
| 10 | 878277 | 1 | LEAD 280MM | GB | |
||
| 11 | 321384 | 1 | CAPACITOR | GB | |
||
| 12 | 323768-13 | 2 | LEAD SA | GB | |
||
| 13 | 326592-00 | 1 | CAP | GB | |
||
| 14 | 328772-01 | 1 | NUT | GB | |
||
| 15 | 326590-01 | 1 | BASE | GB | |
||
| 16 | 326589-03 | 1 | SCALE | GB | |
||
| 17 | 326381-01 | 1 | RATCHET | GB | |
||
| 18 | 327344-00 | 1 | WASHER SPRING | GB | |
||
| 19 | 328509-01 | 1 | MOTOR HOUSING SA | GB | |
||
| 20 | 326388-00 | 1 | COVER BRUSH | GB | |
||
| 21 | 326636-00 | 2 | POST | GB | |
||
| 22 | 330065-08 | 16 | SCREW | M4x18 T20 | GB | |
|
| 25 | 323722-00 | 1 | SPRING | GB | |
||
| 26 | 573822-00 | 1 | SLEEVE SA | GB | |
||
| 27 | 573822-00 | 1 | SLEEVE SA | GB | |
||
| 30 | 578758-00 | 1 | BRAND LABEL | GB | |
||
| 32 | 572255-00 | 1 | SPRING | GB | |
||
| 34 | 870052 | 1 | SLEEVE | GB | |
||
| 35 | 330003-31 | 1 | BEARING | GB | |
||
| 37 | 326389-00 | 1 | BAFFLE | GB | |
||
| 40 | 327420-00 | 1 | BEARING HOUSING | GB | |
||
| 41 | 330003-21 | 1 | BEARING | GB | |
||
| 42 | 605040-05 | 1 | BEARING | GB | |
||
| 43 | 329142-00 | 1 | PULLEY | GB | |
||
| 44 | 329141-00 | 1 | PULLEY | GB | |
||
| 45 | 329140-00 | 1 | BELT | GB | |
||
| 47 | 329273-00 | 1 | COVER BELT | GB | |
||
| 48 | 326385-01 | 1 | COVER | GB | |
||
| 55 | 248629-00 | 1 | ADAPTOR | GB | |
||
| 58 | 326573-01 | 1 | SCREW WING | GB | |
||
| 59 | 326398-01 | 1 | FENCE | GB | |
||
| 64 | 327052-00 | 1 | GUARD | GB | |
||
| 65 | 330004-25 | 1 | BEARING NEEDLE | GB | |
||
| 67 | 330065-04 | 2 | SCREW | GB | |
||
| 68 | 330065-02 | 2 | SCREW | GB | |
||
| 69 | 327417-00 | 1 | INSULATOR | GB | |
||
| 70 | N542564 | 2 | CLAMP SA | GB | |
||
| 70 | N542564 | 2 | CLAMP SA | GB | |
||
| 71 | 878846 | 1 | LEAD 360MM | GB | |
||
| 72 | N381124 | 1 | STAND | GB | |
||
| 82 | 868148-00 | 1 | SPANNER | GB | |
||
| 108 | 575963-02 | 1 | BRUSH PAIR 115V | 115 / 120V | GB | |
|
| 108 | 575963-01 | 1 | BRUSH PAIR 230V | 230V | GB | |
|
| 109 | 329775-49 | 1 | BRUSH HOLDER PAIR | GB |  |
