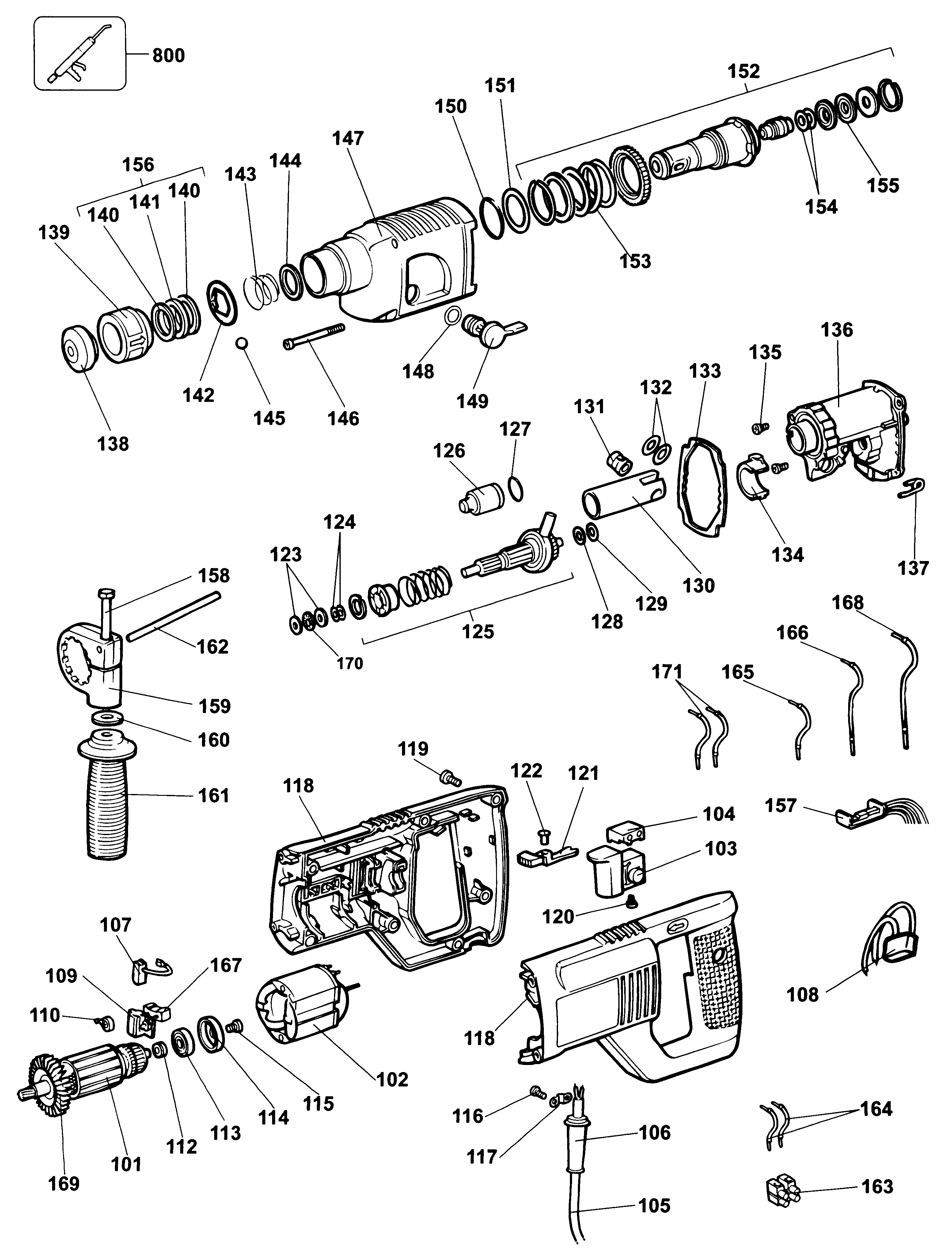

DW550K HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 879424-01 | 1 | ARMATURE | 220/240 V | GB |  |
|
| 102 | 320032 | 1 | FIELD | 220/240 V | GB | |
|
| 103 | 324556-49 | 1 | SWITCH | GB | |
||
| 104 | 324400-00 | 1 | SWITCH REVERSE | GB | |
||
| 105 | 324438-73 | 1 | CORDSET | GB | |
||
| 106 | 320785 | 1 | CORD PROTECTOR | GB |  |
||
| 107 | 323660-01 | 2 | BRUSH 230V | BK14 | GB | |
|
| 107 | 323660-01 | 2 | BRUSH 230V | GB | |
||
| 108 | 320842-02 | 1 | CAPACITOR | GB | |
||
| 109 | 323496-01 | 2 | BRUSH HOLDER | GB | |
||
| 110 | 872843 | 2 | SPRING | GB | |
||
| 112 | 918687 | 1 | SPACER | GB | |||
| 113 | 330003-19 | 1 | BEARING | GB | |
||
| 114 | 870052 | 1 | SLEEVE | GB | |
||
| 115 | 911276 | 1 | SCREW | GB | |
||
| 116 | D911324 | 4 | SCREW | GB | |
||
| 117 | 821070 | 1 | CORD CLAMP | GB | |
||
| 118 | 323503-02 | 1 | HOUSING PAIR | GB | |
||
| 119 | 911325 | 7 | SCREW | GB | |
||
| 120 | 911026 | 3 | SCREW | GB | |
||
| 121 | 323490-08 | 1 | LEVER | GB | |
||
| 122 | 324165-03 | 1 | INSERT | 220/240 V | GB | |
|
| 123 | 324431-02 | 2 | WASHER | GB | |
||
| 124 | 323794-00 | 2 | SPRING | GB | |
||
| 125 | 874592 | 1 | SHAFT | GB | |
||
| 126 | 870621 | 1 | RAM | GB | |
||
| 127 | 577168-00 | 1 | O RING | GB | |
||
| 128 | 324431-03 | 1 | WASHER 7 | GB | |
||
| 129 | 324430-03 | 1 | BEARING AXIAL | GB | |
||
| 130 | 875345 | 1 | PISTON | GB | |
||
| 131 | 487143-00 | 1 | AXLE | GB | |
||
| 132 | 870875 | 2 | WASHER | GB | |
||
| 133 | 870882 | 1 | GASKET | GB | |
||
| 134 | 871987 | 1 | SEAL | GB | |
||
| 135 | 872745 | 2 | SCREW | GB | |
||
| 136 | 324937-00 | 1 | HOUSING SA | GB | |
||
| 137 | 870471 | 1 | SPRING | GB | |
||
| 138 | 871469 | 1 | SEAL | GB | |
||
| 139 | 870954 | 1 | SLEEVE | GB | |
||
| 140 | 323492-00 | 2 | WASHER | GB | |
||
| 141 | 323480-00 | 1 | SPACER | GB | |
||
| 142 | 578387-00 | 1 | WASHER | GB | |
||
| 143 | 871690 | 1 | SPRING | GB | |
||
| 144 | 871670 | 1 | WASHER | GB | |
||
| 145 | 583890-00 | 1 | BALL | GB | |
||
| 146 | 911517 | 4 | SCREW | GB | |
||
| 147 | 325745-49 | 1 | GEARCASE SA | GB | |
||
| 148 | 870907 | 1 | SEAL | GB | |
||
| 149 | 321948 | 1 | LEVER | GB | |
||
| 150 | 870881 | 1 | WASHER | GB | |
||
| 151 | 870880 | 1 | WASHER | GB | |
||
| 152 | 870950-01 | 1 | SPINDLE | GB | |
||
| 153 | 918782 | 1 | SPRING | GB | |
||
| 154 | 873012 | 1 | SEAL | GB | |
||
| 155 | N451068 | 1 | RETAINER | GB | |
||
| 156 | 327354-00 | 1 | WASHER SA | GB | |
||
| 157 | 324552-00 | 1 | ELECTRONIC 230V | 220/240 V | GB | |
|
| 158 | 813918 | 1 | SCREW | GB | |
||
| 159 | 870911 | 1 | CLAMP | GB | |
||
| 160 | 916861 | 1 | WASHER | GB | |
||
| 161 | 872712 | 1 | HANDLE | GB | |
||
| 162 | 580787-00 | 1 | DEPTH STOP | GB | |
||
| 163 | 323534-00 | 1 | CONNECTOR | GB | |
||
| 164 | 323635-10 | 2 | LEAD 70MM | GB | |
||
| 165 | 877357 | 2 | LEAD 160MM BLACK | GB | |
||
| 166 | 879870 | 1 | LEAD 220MM RED | GB | |
||
| 168 | 874012 | 1 | LEAD 320MM | GB | |
||
| 169 | 324401-00 | 1 | FAN | GB | |
||
| 170 | 324430-02 | 1 | BEARING AXIAL | GB | |
||
| 171 | 877357 | 2 | LEAD 160MM BLACK | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 801 | 870889-02 | 1 | GREASE | GB | |
