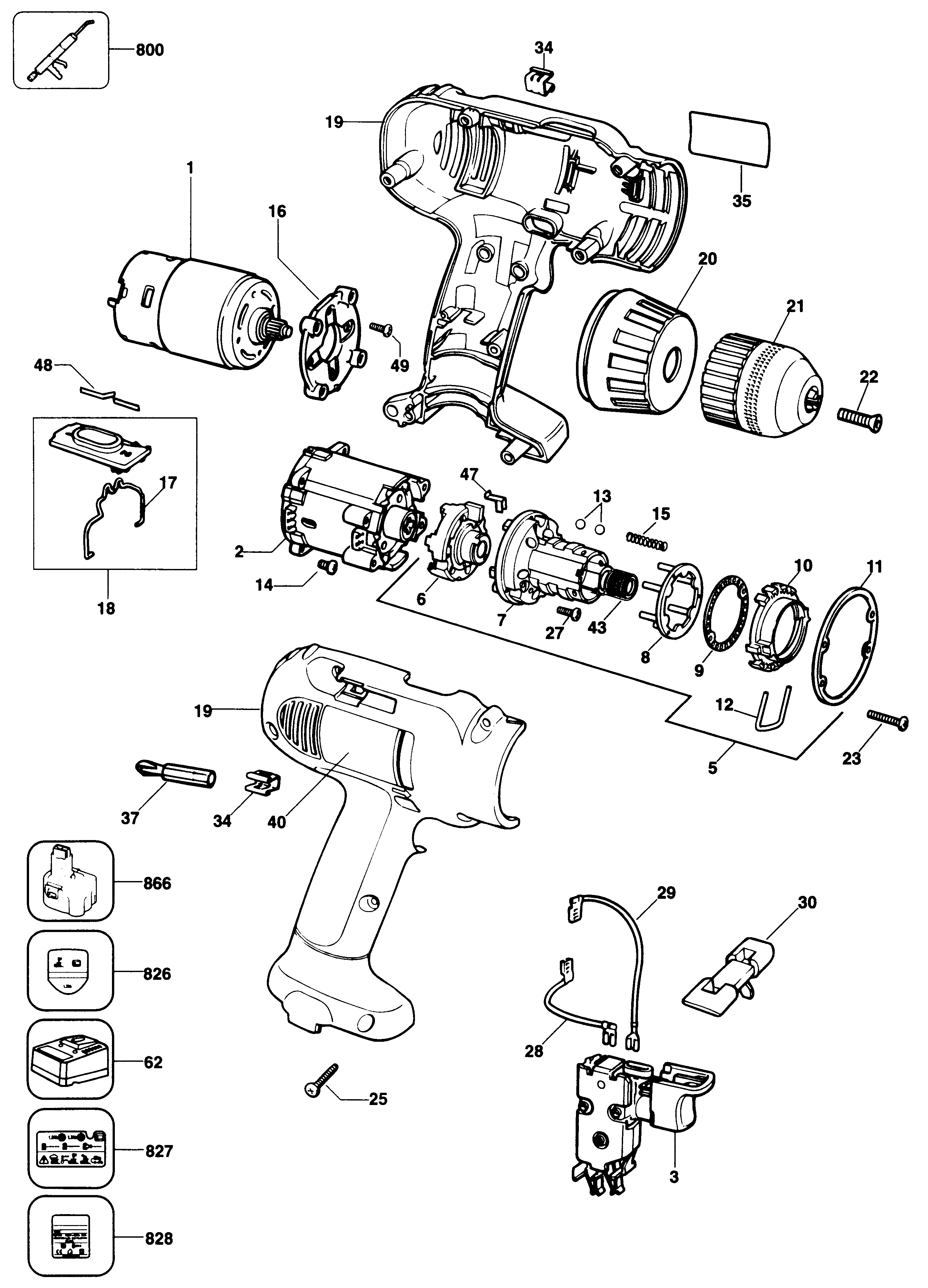

DW905K CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 809130-00 | 1 | MOTOR SA | GB |  |
||
| 2 | 805080-46 | 1 | GEARBOX SA | GB | |
||
| 3 | 368832-06 | 1 | SWITCH SA | GB | |
||
| 5 | 373702-02 | 1 | CLUTCH MODULE | GB | |
||
| 6 | 373704-02 | 1 | END CAP SA | GB | |
||
| 7 | 798966-00 | 1 | HOUSING SA | GB | |
||
| 8 | 798963-01 | 1 | SUPPORT | GB | |
||
| 9 | 798708 | 1 | PLATE | GB | |
||
| 10 | 798709-00 | 1 | NUT | GB | |
||
| 11 | 805004-00 | 1 | WASHER | GB | |
||
| 12 | 798959-00 | 1 | CLIP | GB |  |
||
| 13 | 386690-00 | 13 | BALL | STEEL, 5MM | GB | |
|
| 14 | 798486 | 4 | SCREW | GB | |
||
| 15 | 798707 | 6 | SPRING | GB | |
||
| 16 | 151336-00 | 1 | ADAPTOR | GB | |
||
| 17 | 799024 | 1 | SPRING | GB | |
||
| 18 | 153281-03 | 1 | SLIDER SA | GB | |
||
| 19 | 392654-00 | 1 | CLAMSHELL SA | GB | |
||
| 20 | 387068-00 | 1 | COLLAR | GB | |
||
| 21 | 330075-46 | 1 | CHUCK KEYLESS | GB | |
||
| 22 | 805434 | 1 | SCREW.SPECIAL | TYPE 1A-2 | GB | |
|
| 22 | 373793 | 1 | SCREW LEFT 5X21 | TYPE 1 | GB | ||
| 23 | 733886 | 4 | SCREW | GB | |
||
| 25 | 747329 | 7 | SCREW | GB | |
||
| 27 | 808821 | 2 | SCREW | GB | |
||
| 28 | 369554 | 1 | LEAD RED | GB | |
||
| 29 | 369555 | 1 | LEAD BLACK | GB | |
||
| 30 | 151296-00 | 1 | SLIDER | GB | |
||
| 34 | 148354-03 | 2 | HOLDER | GB | |
||
| 35 | 149490-00 | 1 | BRAND LABEL | GB | |
||
| 37 | 297757-02 | 1 | BIT PHILLIPS | GB | |
||
| 40 | 569037-00 | 1 | RATING PLATE | TYPE 2 | GB | |
|
| 40 | 569037-00 | 1 | RATING PLATE | TYPE 1 | GB | |
|
| 43 | 573147-00 | 1 | SPINDLE SA | GB | |
||
| 47 | 807501 | 1 | CLIP | GB | |
||
| 48 | 144658-00 | 1 | SPRING | GB | |
||
| 49 | 369534 | 2 | SCREW | GB | |
||
| 62 | 572576-00 | 1 | CHARGER 7.2V - 18V | GB | |
||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | GB | ||
| 826 | 578763-01 | 1 | IDENTITY LABEL | GB | |
||
| 827 | 643500-00 | 1 | WARNING LABEL | GB | |
||
| 828 | 583471-05 | 1 | NAMEPLATE | GB | |
||
| 866 | 582803-00 | 1 | BATTERY 9.6V - 2.0AH | Ni-Cad - DE9061 | GB | |
