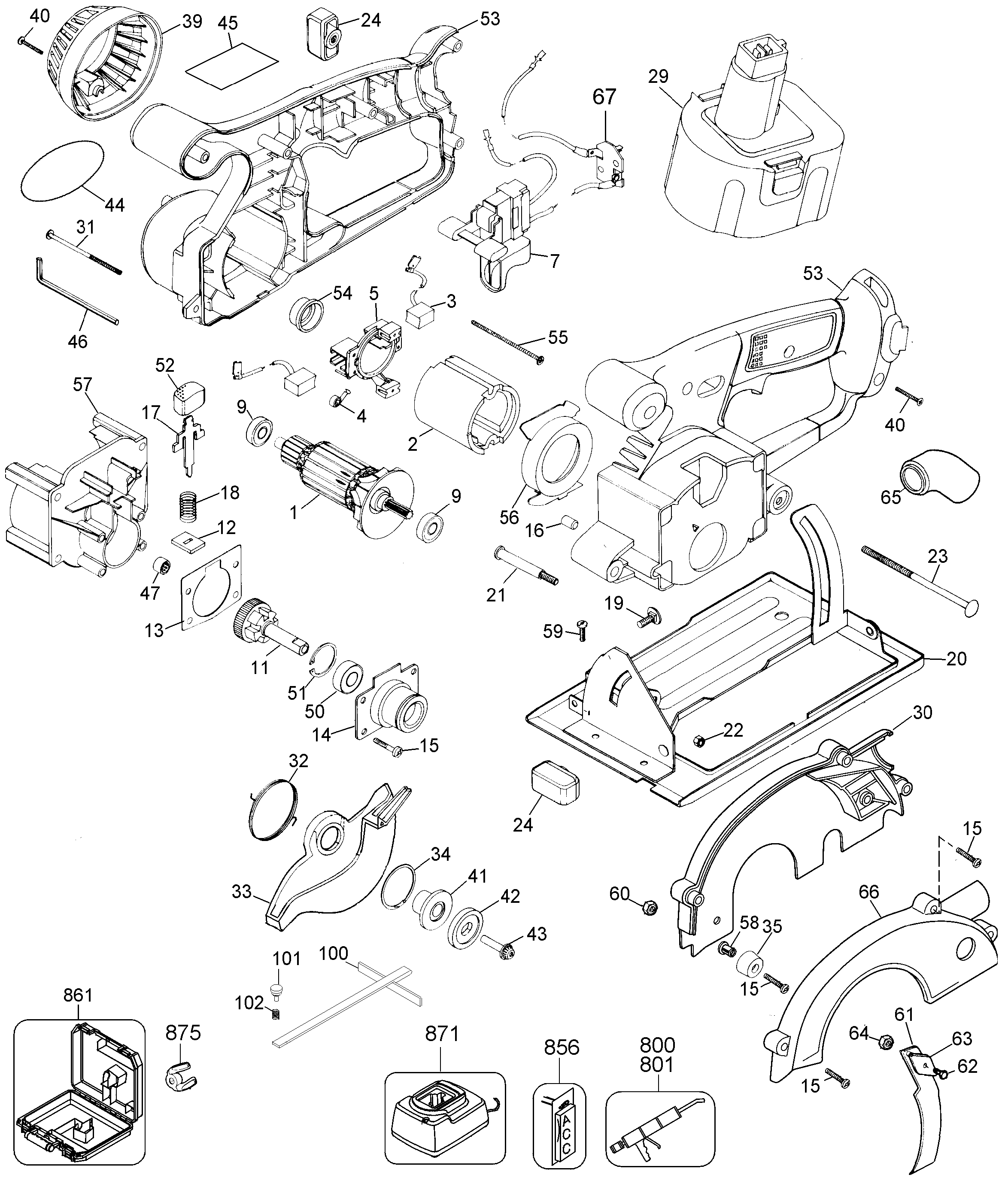

DW936 TRIM SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 429906-01 | 1 | MOTOR SA | XJ |  |
||
| 2 | 388232-01SV | 1 | MAGNET | XJ | |
||
| 3 | 387558-01 | 2 | BRUSH & LEAD | XJ | |||
| 4 | 445860-00 | 2 | BRUSH SPRING | XJ |  |
||
| 5 | 382178-01 | 1 | BRUSH FRAME | XJ | |
||
| 7 | N062230 | 1 | SWITCH,TRIGGER | INCL. 60 | XJ | ||
| 9 | 330003-04 | 2 | BEARING | XJ | |||
| 11 | 384936-00SV | 1 | GEARSHAFT SA | XJ | |
||
| 12 | 393004-00 | 1 | WIPER | XJ | |
||
| 13 | 150181-00 | 1 | GASKET | XJ | |
||
| 14 | 150392-01 | 1 | GEARCASE COVER | XJ | |
||
| 15 | 330045-06 | 8 | SCREW | XJ | |
||
| 16 | 032731-00 | 1 | PLUG | XJ | |||
| 17 | 150389-00 | 1 | SPINDLE LOCK | XJ | |
||
| 18 | 058698-00 | 1 | SPRING | XJ | |
||
| 19 | N091970 | 1 | CARRIAGE BOLT | M6x1.0x15mm NYLOK | XJ | |
|
| 20 | 380646-01 | 1 | SHOE SA | XJ | |
||
| 21 | 396631-00 | 1 | SCREW | XJ | |
||
| 22 | 148641-00 | 1 | LOCK-NUT | XJ | |
||
| 23 | 098128-97 | 1 | BOLT | XJ | |
||
| 24 | 395889-00 | 2 | KNOB | XJ | |
||
| 29 | DE9095 | 1 | BATTERY 18V - 2.0AH - 36WH | Ni-Cad | XJ | ||
| 30 | 380047-00 | 1 | GUARD UPPER | XJ | |
||
| 31 | 398987-00 | 4 | SCREW | XJ | |
||
| 32 | 605014-00 | 1 | SPRING | XJ | |||
| 33 | 381130-00 | 1 | GUARD LOWER | XJ | |
||
| 34 | 150383-00 | 1 | RETAINER | XJ | |
||
| 35 | 445625-01 | 1 | BUMPER | XJ | |
||
| 39 | 150386-00 | 1 | END CAP | XJ | |
||
| 40 | 330019-04 | 7 | SCREW | XJ | |
||
| 41 | 150369-02 | 1 | WASHER INNER CLAMP | XJ | |
||
| 42 | 150376-00 | 1 | WASHER OUTER CLAMP | XJ | |
||
| 43 | 150384-00 | 1 | BLADE BOLT | XJ | |
||
| 44 | 396062-00 | 1 | IDENTITY LABEL | XJ | |
||
| 46 | 497570-02 | 1 | KEY | 4mm | XJ | |
|
| 47 | 093128-00 | 1 | BEARING NEEDLE | XJ | |
||
| 48 | 381100-01 | 1 | RATING PLATE | XJ | |
||
| 50 | 605040-15 | 1 | BEARING,BALL | NPP | XJ | |
|
| 51 | 037464-00 | 1 | RETAINING RING | XJ | |||
| 52 | 145350-00 | 1 | BUTTON | XJ | |
||
| 53 | 380968-10 | 1 | CLAMSHELL | XJ | |
||
| 54 | 445217-02 | 1 | SLEEVE | XJ | |
||
| 55 | 448269-00 | 2 | SCREW | XJ | |
||
| 56 | 150370-00 | 1 | FAN | XJ | |
||
| 57 | 150374-00 | 1 | GEARCASE | XJ | |
||
| 58 | 091963-13 | 1 | EYELET | XJ | |||
| 59 | 098003-11 | 1 | SCREW | XJ | |||
| 61 | 380041-00 | 1 | RIVING KNIFE | XJ | |
||
| 62 | 098023-17 | 1 | T-20 SCREW | XJ | |||
| 63 | 380042-00 | 1 | PLATE | XJ | |
||
| 64 | 330021-01 | 2 | NUT | XJ | |
||
| 65 | 380043-00 | 1 | NOZZLE | XJ | |
||
| 66 | 380048-00SV | 1 | GUARD-CVR.UPPER | XJ | |||
| 67 | 285371-00 | 1 | TERMINAL BLOCK | XJ | |
||
| 100 | 381091-01 | 1 | GUIDE FENCE | metric | XJ | |
|
| 101 | 609301-00 | 1 | THUMBSCREW | M5x0.8 | XJ | |
|
| 102 | 381905-00 | 1 | SPRING | XJ | |
||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | CVJ GREASE | XJ | |
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | XJ | ||
| 856 | 340781-15 | 1 | BLADE | XJ | |||
| 861 | 624807-01 | 1 | BAG SA | 19Lx12Wx12H | XJ | |
|
| 871 | DE9108 | 1 | CHARGER | XR2T | XJ | ||
| 875 | 084317-00 | 1 | NUT,WING | XJ |
