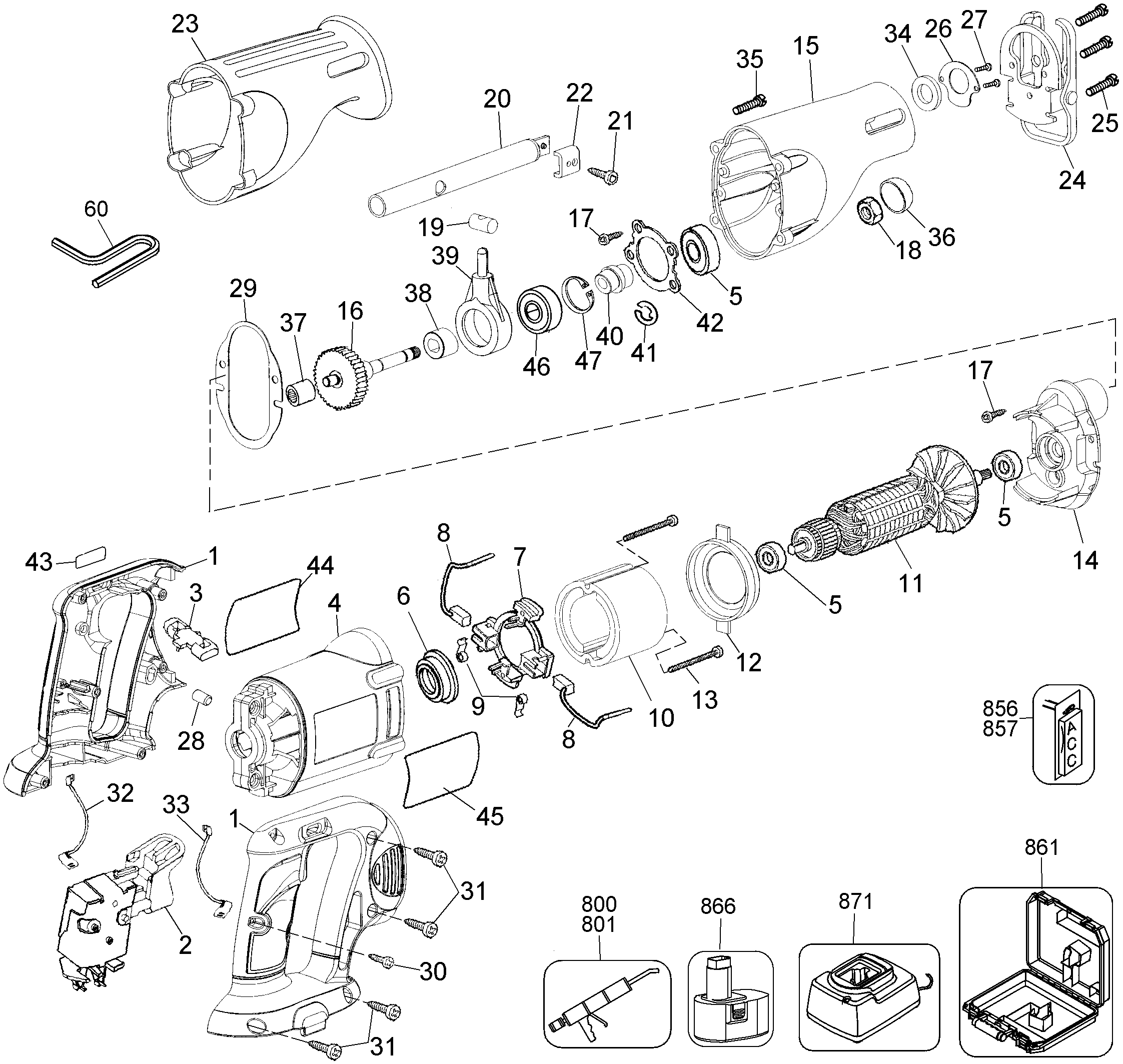

DW938K CUTSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 613840-00 | 1 | CLAMSHELL | HANDLE HOUSING SET | GB |  |
|
| 2 | 152274-19SV | 1 | SWITCH | GB | |
||
| 3 | 607100-00 | 1 | LEVER LOCK-OFF | GB |  |
||
| 4 | 382177-00 | 1 | FIELDCASE | GB | |||
| 5 | 330003-04 | 3 | BEARING | GB | |||
| 6 | 445217-02 | 1 | SLEEVE | GB | |
||
| 7 | 382178-01 | 1 | BRUSH FRAME | GB | |
||
| 8 | 387558-01 | 2 | BRUSH & LEAD | GB | |||
| 9 | 445860-00 | 2 | BRUSH SPRING | GB | |
||
| 10 | 388232-01SV | 1 | MAGNET | GB | |
||
| 11 | 429906-01 | 1 | MOTOR SA | GB | |
||
| 12 | 392415-00 | 1 | BAFFLE FAN | GB | |
||
| 13 | 448269-00 | 2 | SCREW | GB | |
||
| 14 | 382180-01 | 1 | GEARCASE COVER SA | INCL. 5,37 | GB | |
|
| 15 | 429739-00 | 1 | GEARCASE SA | INCL. 5,17,42 | GB | |
|
| 16 | 383883-00SV | 1 | GEAR & SHAFT | GB | |||
| 17 | 604609-00 | 6 | SCREW | GB | |
||
| 18 | 382195-00 | 1 | NUT LH | GB | |
||
| 19 | 382187-00 | 1 | AXLE | GB | |
||
| 20 | 429739-00 | 1 | GEARCASE SA | GB | |
||
| 21 | 383657-00 | 1 | SCREW | GB | |
||
| 22 | 382190-00 | 1 | BLADE CLAMP | GB | |
||
| 23 | 382194-00 | 1 | BOOT | GB | |
||
| 24 | 429739-00 | 1 | GEARCASE SA | GB | |
||
| 25 | 142940-00 | 3 | SCREW | GB | |
||
| 26 | 382189-00 | 1 | RETAINER | GB | |
||
| 27 | 330045-43 | 2 | SCREW | GB | |
||
| 28 | 383544-00 | 1 | PLUG | GB | |
||
| 29 | 382626-00 | 1 | GASKET | GB | |
||
| 30 | 330019-00 | 1 | SCREW | M3x16 T10 PLASTITE | GB | |
|
| 31 | 330019-04 | 6 | SCREW | GB | |
||
| 32 | 382629-00 | 1 | LEAD BLACK | GB | |
||
| 33 | 382630-00 | 1 | LEAD RED | GB | |||
| 34 | 5140006-30 | 1 | SEAL SA | GB | |
||
| 35 | 330019-15 | 4 | SCREW | GB | |
||
| 36 | 383227-00 | 1 | CAP | GB | |
||
| 37 | 093128-00 | 1 | BEARING NEEDLE | GB | |
||
| 38 | 647342-00 | 1 | SERVICE KIT | INC. DRIVER & BRG | GB | |
|
| 39 | 382196-00SV | 1 | WOBBLE ASSY | INCL. 46,47 | GB | ||
| 40 | 647342-00 | 1 | SERVICE KIT | INC. DRIVER & BRG | GB | |
|
| 41 | 058836-00 | 1 | RETAINER | GB | |
||
| 42 | 383668-01 | 1 | RETAINING PLATE | GB | |
||
| 43 | 382816-00 | 1 | WARNING LABEL | GB | |
||
| 44 | 614878-00 | 1 | IDENTITY LABEL | GB | |
||
| 45 | 385249-00 | 1 | RATING PLATE | GB | |
||
| 46 | 605040-25 | 1 | BEARING,BALL | GB | |
||
| 47 | 099022-02 | 1 | RET RING | GB | |||
| 60 | 099056-06 | 1 | HEX KEY 4 MM | GB | |
||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | CVJ GREASE | GB | |
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | GB | ||
| 856 | DW4811 | 1 | BLADE | GB | |||
| 857 | DW4876 | 1 | 6TPI CORDLESS TAPER BLADE | GB | |||
| 866 | DE9095 | 1 | BATTERY 18V - 2.0AH - 36WH | Ni-Cad | GB | ||
| 871 | DE9108 | 1 | CHARGER | XR2T | GB |
