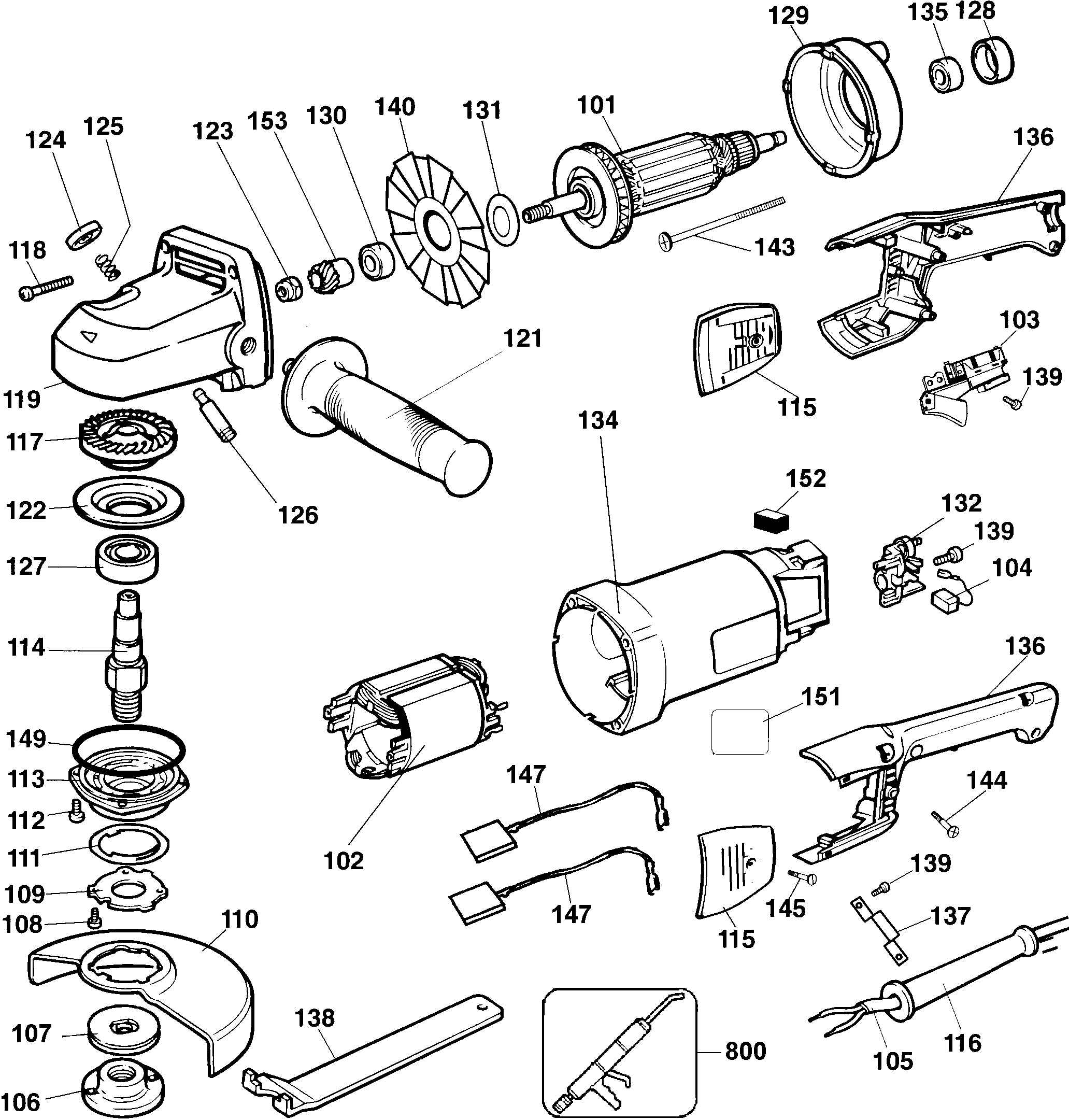

DW831 ANGLE GRINDER Type A1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 402875-09 | 1 | ARMATURE 115/120V | XW | |||
| 102 | 569588-02 | 1 | FIELD 115V | XW |  |
||
| 103 | 402868-03 | 1 | SWITCH LOCK-ON | XW | |
||
| 104 | 402874-03 | 2 | BRUSH CUT OFF | XW | |
||
| 105 | 330061-13 | 1 | CABLE 115V | XW | |
||
| 106 | 401678-05 | 1 | OUTER FLANGE | XW |  |
||
| 107 | 391969-00 | 1 | INNER FLANGE | XW | |
||
| 108 | 562160-00 | 3 | SCREW | XW | |
||
| 109 | 605415-00 | 1 | RETAINING PLATE | XW | |
||
| 110 | 944586-00 | 1 | GUARD | XW | |
||
| 111 | 393576-00 | 1 | RING | XW | |
||
| 112 | 330045-46 | 4 | SCREW | THREAD FORMING | XW | |
|
| 112 | 562160-05 | 4 | SCREW | XW | |
||
| 113 | 390521-00 | 1 | GEARCASE COVER | XW | |
||
| 114 | 391972-00 | 1 | SPINDLE | XW | |||
| 115 | 402849-00 | 2 | COVER BRUSH | XW | |
||
| 116 | 401088-00 | 1 | PROTECTOR | XW | |
||
| 117 | 390522-00 | 1 | GEAR | XW | |||
| 118 | 562097-10 | 4 | SCREW | XW | |
||
| 119 | 610704-03 | 1 | GEARCASE SA | XW | |
||
| 121 | 573115-00 | 1 | SIDE HANDLE | XW | |
||
| 122 | 403156-00 | 1 | FLANGE | XW | |
||
| 123 | 393568-00 | 1 | NUT | XW | |
||
| 124 | 390705-00 | 1 | LOCK BUTTON | XW | |
||
| 125 | 562210-00 | 1 | SPRING | XW | |
||
| 126 | 390704-00 | 1 | PIN | XW | |
||
| 127 | 605040-22 | 1 | BEARING | XW | |
||
| 128 | 930275-00 | 1 | SLEEVE | XW | |
||
| 129 | 402856-00 | 1 | BAFFLE | XW | |
||
| 130 | 605040-60 | 1 | BEARING 6200 | XW | |
||
| 131 | 930753-00 | 1 | WASHER | XW | |
||
| 132 | 402869-03 | 2 | BRUSH & HOLDER SA | INCL. 104 | XW | |
|
| 134 | 402871-08S | 1 | CASE-FIELD | INCL. 152 | XW | ||
| 135 | 605040-02 | 1 | BEARING | XW | |
||
| 136 | 402844-11 | 1 | HANDLE SA | XW | |
||
| 137 | 930103-00 | 1 | CORD CLAMP | XW | |
||
| 138 | 401680-00 | 1 | WRENCH | XW | |
||
| 139 | 562097-00 | 5 | SCREW | XW | |
||
| 140 | 403121-01 | 1 | FLANGE | XW | |
||
| 143 | 562097-11 | 2 | SCREW | XW | |
||
| 144 | 562097-03 | 4 | SCREW | XW | |
||
| 145 | 945280-00 | 2 | SCREW | XW | |
||
| 147 | 402878-01 | 2 | LEAD | XW | |
||
| 149 | 403123-00 | 1 | O RING | XW | |
||
| 151 | 398941-00 | 1 | IDENTITY LABEL | XW | |
||
| 152 | 402847-00 | 4 | SHOCK ABSORBER | XW | |
||
| 153 | 402863-00 | 1 | PINION | XW | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | XW | |
