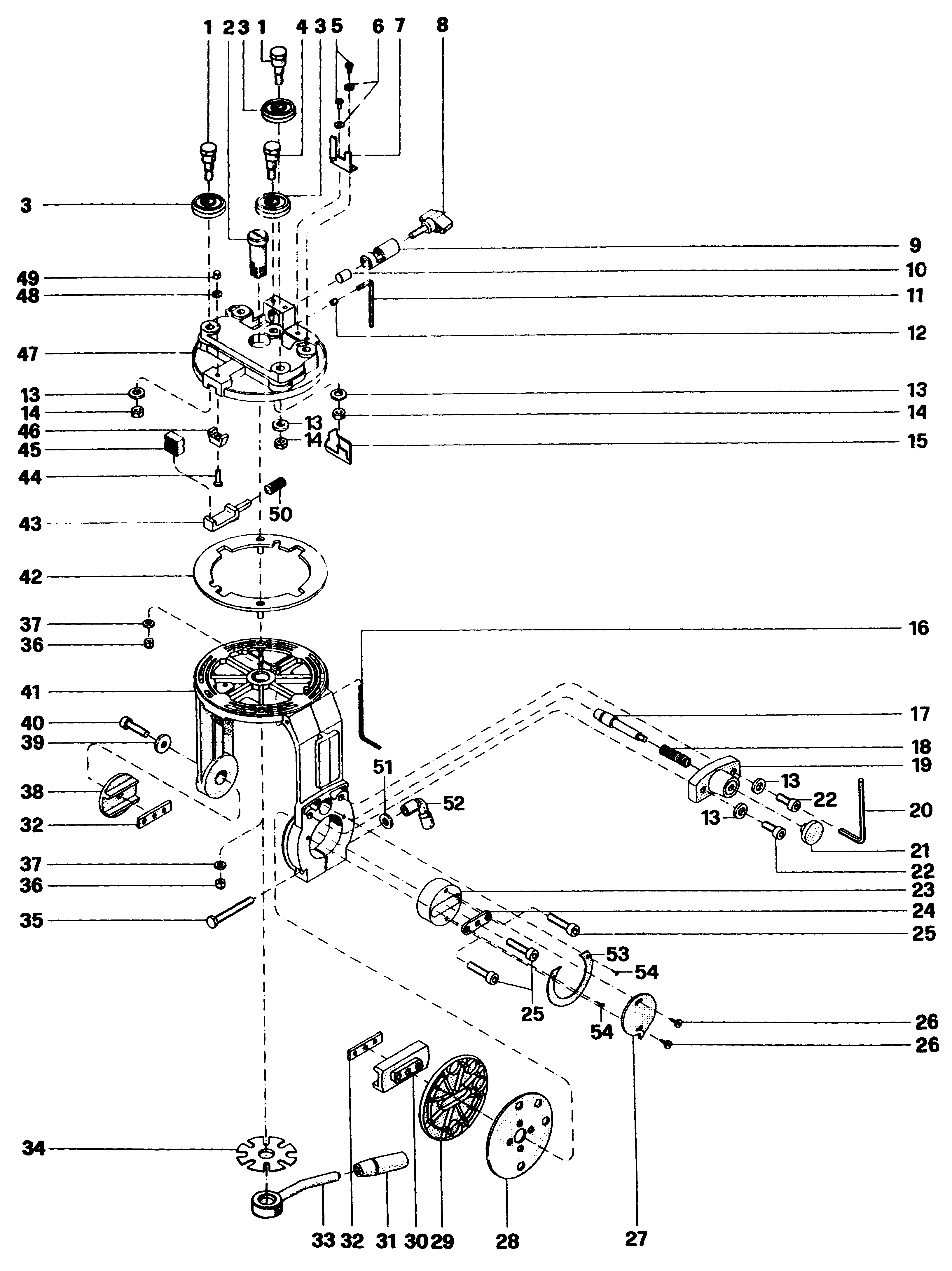

DW1751----F RADIAL ARM SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 760421-00 | 1 | SHAFT | XJ |  |
||
| 2 | 860123-00 | 1 | PIVOT SHAFT | XJ |  |
||
| 3 | 860154-00 | 1 | BEARING | XJ | |
||
| 4 | 760417-00 | 1 | SHAFT | XJ | |
||
| 5 | 860094-02 | 1 | SCREW | XJ | |
||
| 7 | 863727-00 | 1 | POINTER | XJ | |
||
| 8 | 862427-00 | 1 | KNOB | XJ | |
||
| 9 | 860121-00 | 1 | CLAMP | XJ | |
||
| 10 | 860122-00 | 1 | SPACER | XJ | |
||
| 11 | 938539-00 | 1 | KEY | XJ | |
||
| 12 | 860088-27 | 1 | SCREW | XJ | |
||
| 13 | 860074-03 | 1 | WASHER | XJ | |
||
| 14 | 860083-08 | 1 | NUT | XJ | |
||
| 15 | 860817-01 | 1 | COVER | XJ | |
||
| 16 | 949882-01 | 1 | WRENCH 4 MM | XJ | |
||
| 17 | 863977-00 | 1 | PIN | XJ | |
||
| 18 | 860112-11 | 1 | SPRING | XJ | |
||
| 19 | 860835-00 | 1 | SUPPORT | XJ | |
||
| 20 | 860098-04 | 1 | WRENCH 6 MM | XJ | |
||
| 21 | 946469-00 | 1 | KNOB | XJ | |
||
| 22 | 860093-07 | 1 | SCREW | XJ | |
||
| 23 | 860835-00 | 1 | SUPPORT | XJ | |
||
| 24 | 860120-00 | 1 | PLATE | XJ | |
||
| 25 | 860093-18 | 1 | SCREW | XJ | |
||
| 26 | 860094-03 | 1 | SCREW | XJ | |
||
| 27 | 860832-00 | 1 | POINTER | XJ | |
||
| 28 | 860830-00 | 1 | PLATE | XJ | |
||
| 29 | 860827-00 | 1 | SHIELD | XJ | |
||
| 30 | 860828-00 | 1 | PLATE | XJ | |
||
| 31 | 860796-01 | 1 | KNOB | XJ | |
||
| 32 | 860809-00 | 1 | PLATE | XJ | |
||
| 33 | 864057-01 | 1 | CLAMP | XJ | |
||
| 34 | 860113-00 | 1 | CLAMP | XJ | |
||
| 35 | 860086-11 | 1 | SCREW | XJ | |
||
| 36 | 860092-02 | 1 | NUT | XJ | |
||
| 37 | 720959-00 | 1 | WASHER | XJ | |
||
| 38 | 860822-00 | 1 | BACKPLATE | XJ | |
||
| 39 | 941602-00 | 1 | WASHER | XJ | |
||
| 40 | 860093-00 | 1 | SCREW | XJ | |
||
| 41 | 860823-02 | 1 | YOKE | XJ | |
||
| 42 | 860824-00 | 1 | RING SA | XJ | |
||
| 43 | 860818-01 | 1 | CATCH | XJ | |
||
| 44 | 860085-06 | 1 | SCREW | XJ | |
||
| 45 | 760427-00 | 1 | CAP | XJ | |
||
| 46 | 860816-00 | 1 | CATCH | XJ | |
||
| 47 | 860814-03 | 1 | ROLLER HEAD | XJ | |
||
| 48 | 860073-01 | 1 | WASHER | XJ | |
||
| 49 | 860092-03 | 1 | NUT M5 | XJ | |
||
| 50 | 32582 | 1 | SPRING | XJ | |
||
| 51 | 860074-03 | 1 | WASHER | XJ | |
||
| 52 | 860825-00 | 1 | CLAMP | XJ | |
||
| 53 | 860829-00 | 1 | POINTER | XJ | |
||
| 54 | 860205-06 | 1 | SCREW | XJ | |
