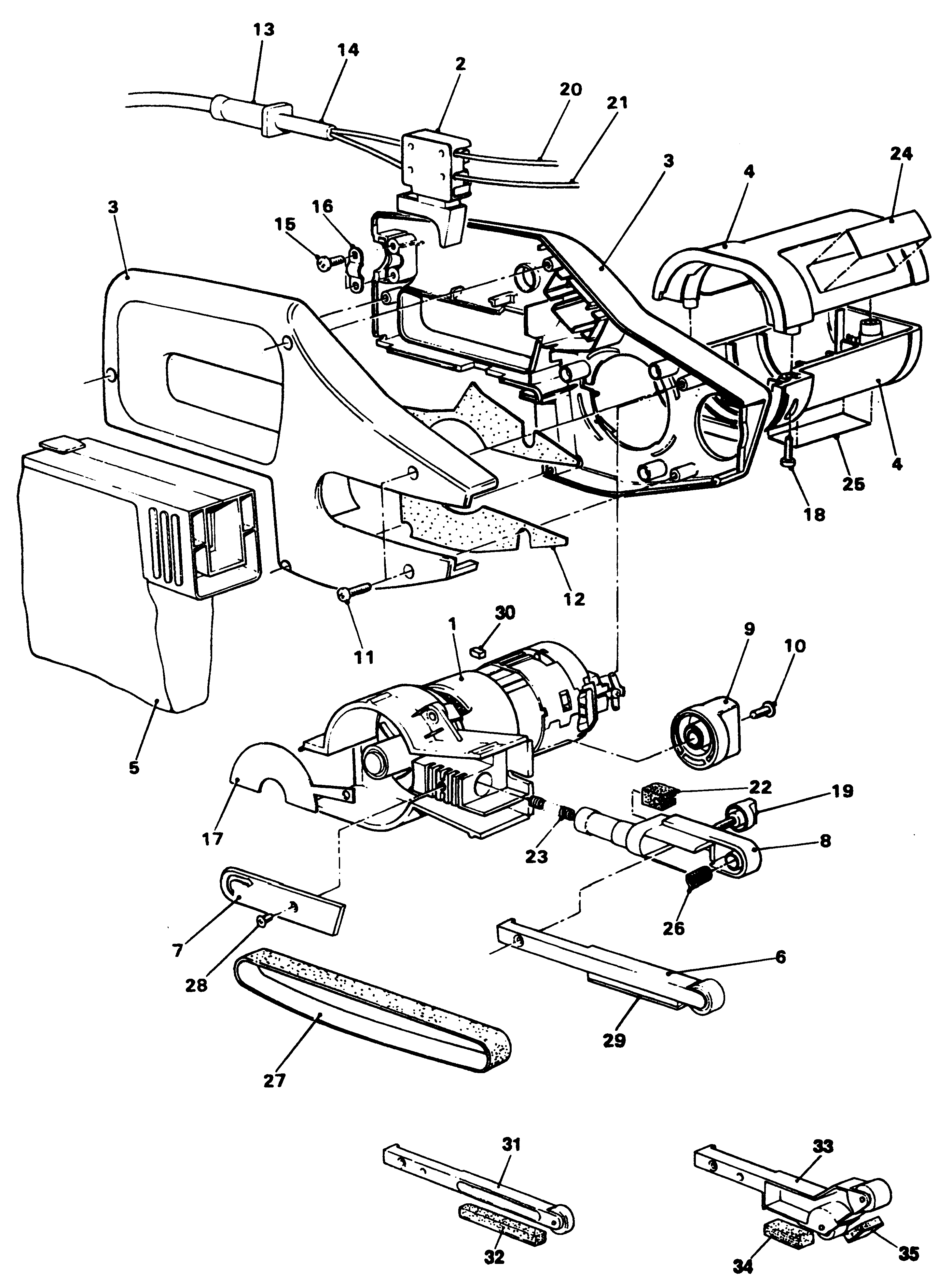

BD280 POWERFILE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 378891 | 1 | STATOR | B3 | GB |  |
|
| 1 | 378881 | 1 | ROTOR | GB | |
||
| 2 | 826249 | 1 | SWITCH | GB |  |
||
| 2 | 860077-01 | 2 | WASHER | GB | |
||
| 3 | 826236 | 1 | CLAMSHELL | GB | |
||
| 3 | 935840 | 2 | GEAR SA | GB | |
||
| 3 | 248338-00 | 2 | CAPACITOR | B3 | GB | |
|
| 4 | 826238 | 1 | CLAMSHELL | GB | |
||
| 4 | 279805-00 | 2 | SPINDLE | GB | |
||
| 5 | 809394 | 1 | DUSTBAG | GB | |
||
| 5 | 575506-01 | 1 | MOTOR SA | GB | |
||
| 6 | 371050 | 1 | WARNING LABEL | GB | |
||
| 6 | 371053-01 | 1 | WARNING LABEL | B3 | GB | |
|
| 7 | 831284 | 1 | GUARD | GB | |
||
| 7 | 373007-07 | 1 | FIELD 115V | GB | |||
| 8 | 809030-01 | 1 | CHARGER SA | GB | |
||
| 9 | 826239-01 | 1 | KNOB | GB | |
||
| 9 | 027351200 | 1 | SPANNER | GB | |
||
| 10 | 821032 | 1 | SCREW | GB | |
||
| 10 | 329866-02 | 1 | RATING PLATE | GB | |
||
| 11 | 821100 | 8 | SCREW | GB | |
||
| 12 | 828050 | 1 | GASKET | GB | |
||
| 13 | 770235 | 1 | PROTECTOR | GB | |
||
| 13 | 177162701 | 1 | CABLE CLAMP | GB | |
||
| 14 | 4688558 | 1 | CABLE PER METRE | GB | |
||
| 14 | 6010028-10 | 1 | FRAME | GB | |
||
| 15 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
|
| 15 | 644490-00 | 1 | KITBOX | KD455RE | GB | |
|
| 15 | 1005755-00 | 1 | CORDSET | RE TYPE 1-3 | GB | ||
| 15 | 586589-00L | 1 | CHUCK KEYLESS | CRE | GB | |
|
| 16 | 821070 | 1 | CORD CLAMP | GB | |
||
| 16 | N044664 | 1 | RATING PLATE | GB | |
||
| 17 | 821055 | 1 | PLATE | GB | |
||
| 17 | 494040-01 | 1 | BRUSH PAIR 115V | RE TYPE 1-3 | GB | |
|
| 18 | 849256 | 3 | SCREW | GB | |
||
| 18 | 1002441-00 | 1 | SUPPORT PLATE | GB | |||
| 19 | 826251 | 1 | KNOB | GB | |
||
| 19 | 90531369 | 11 | CHUCK KEYLESS | GB | |||
| 20 | 373007-50 | 1 | FIELD 230V | GB | |
||
| 21 | 590966-00 | 1 | SUPPORT SA | Wurth | GB | |
|
| 22 | 828026 | 1 | SEAL | GB | |
||
| 22 | 743855 | 1 | GUIDE | B3 | GB | |
|
| 22 | 055914605 | 1 | SCREW | GB | |
||
| 23 | 829954 | 1 | SPRING | GB | |
||
| 23 | 743923 | 1 | FENCE | B3 | GB | |
|
| 24 | 6010113-03 | 1 | ELEMENT SA | GB | |||
| 24 | 743636 | 1 | FOOT | KD350RE-KD351CRE TY2 | GB | |
|
| 26 | 821020 | 1 | SPRING | GB | |
||
| 26 | 373006-07 | 1 | FIELD | KD355RE | GB | |
|
| 26 | 373008-00 | 1 | FIELD 230V | KD350RE | GB | ||
| 26 | 373091-00 | 1 | BRUSH KIT | 374450 | GB | ||
| 26 | 373083 | 1 | CLIP | KD351CRE | GB | |
|
| 27 | 488213-00 | 1 | CLAMSHELL SET | GB | |
||
| 28 | 747330 | 1 | SCREW | GB | |
||
| 28 | 90626849 | 1 | SPRING | GB | |
||
| 29 | N542551 | 2 | PAD-STANDARD ARM | GB | |
||
| 29 | N542551 | 2 | PAD-STANDARD ARM | GB | |
||
| 29 | 1003297-00 | 1 | SWITCH | GB | |||
| 30 | 745678 | 2 | BRUSH | GB | |
||
| 32 | 90522370 | 1 | PAD-NARROW ARM | GB | |
||
| 32 | 559868-00 | 1 | MOTOR SA | GB | |
||
| 33 | 371073-03 | 1 | CHARGER | TYPE 1 | GB | |
|
| 34 | 829149 | 1 | PAD | GB | |
||
| 34 | 879741-01 | 1 | GUARD | TYPE 1 | GB | |
|
| 35 | 828531 | 1 | PAD | GB | |
||
| 35 | 6010029-19 | 1 | CABLE | INTERNAL | GB | ||
| 800 | 6010023-08 | 1 | BASE | CAST IRON | GB | |
