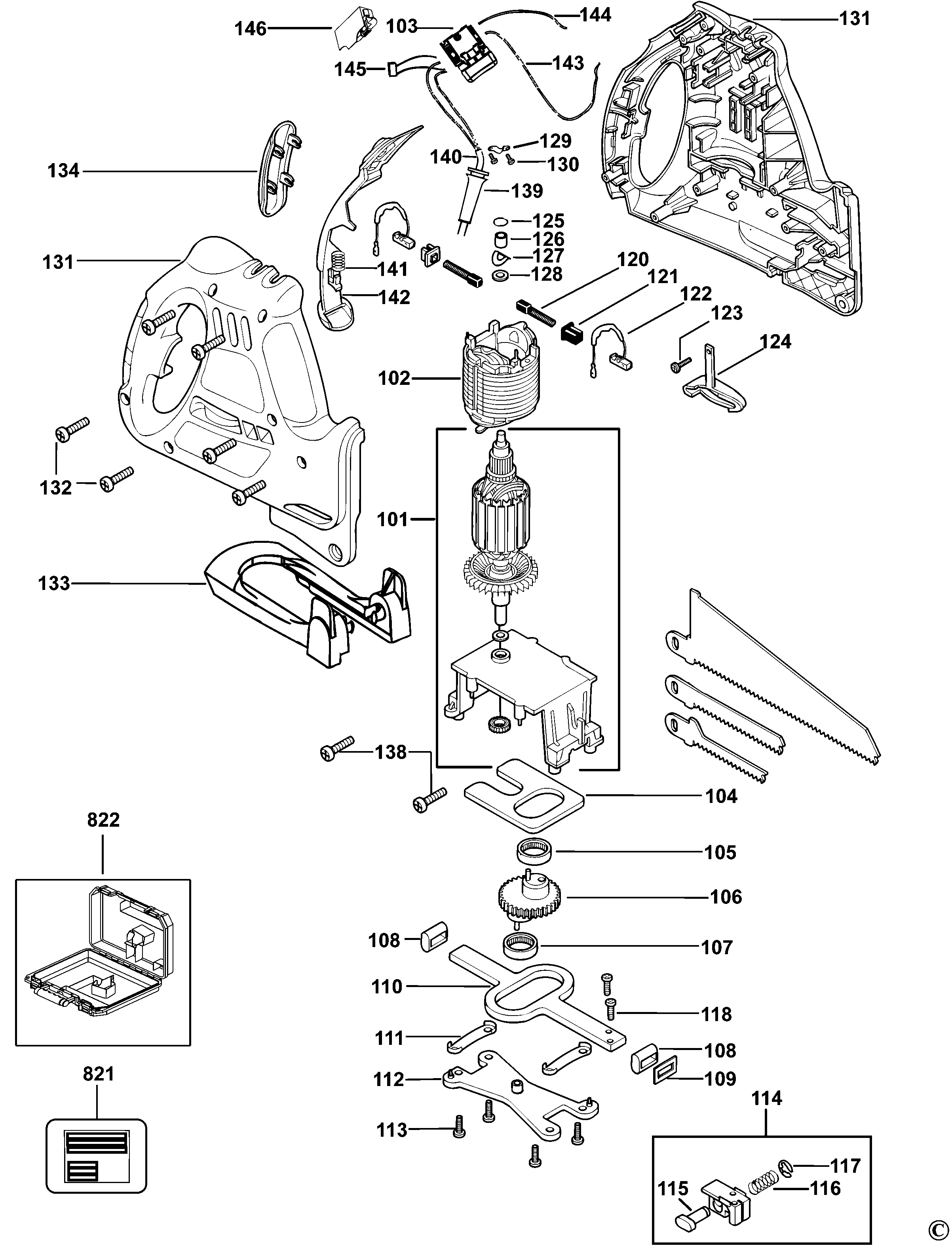

KS890E SAW Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 376446-16 | 1 | ARMATURE 230V | GB |  |
||
| 102 | 576374-34 | 1 | FIELD 230V | GB | |
||
| 103 | 580000-02 | 1 | SWITCH SA | GB | |||
| 104 | 377372 | 1 | BALANCE WEIGHT | GB | |
||
| 105 | 377454 | 1 | BEARING | GB | |
||
| 106 | 376450-04 | 1 | GEAR SA | GB | |
||
| 107 | 377454 | 1 | BEARING | GB | |
||
| 108 | 795680 | 2 | BEARING | GB | |
||
| 109 | 795694 | 1 | SEAL | GB | |
||
| 110 | 376449-00 | 1 | SHAFT SA | 109+110+114+118 | <= 2016 32 | GB | |
| 110 | 90631299 | 1 | RECIPROCATOR | > 2016 32 | GB | |
|
| 111 | 795647 | 2 | CLAMP | GB | |
||
| 112 | 377389 | 1 | GEARCASE COVER | GB | |
||
| 113 | 575946-00 | 4 | SCREW | GB | |
||
| 114 | 377375-00 | 1 | CLAMP SA | <= 2016 32 | GB | |
|
| 114 | 90631298 | 1 | CLAMP SA | > 2016 32 | GB | |
|
| 115 | 571265-00 | 1 | LOCK PIN | GB | |
||
| 116 | 368671 | 1 | SPRING | GB | |
||
| 117 | 571181-00 | 1 | CLIP | GB | |
||
| 118 | 330045-45 | 2 | SCREW | > 2016 32 | GB | |
|
| 118 | 577359-00 | 2 | SCREW | <= 2016 32 | GB | |
|
| 120 | 915068-01 | 2 | BRUSH & SPRING | SINGULAR | GB | |
|
| 121 | 875735 | 2 | INSERT | GB | |
||
| 122 | 914115 | 2 | BRUSH HOLDER | GB | |||
| 123 | 821057 | 1 | SCREW | No 6 x 12.7mm | GB | |
|
| 124 | 571182-01 | 1 | LOCK BUTTON | GB | |
||
| 125 | 583894-00 | 1 | O RING | GB | |
||
| 126 | 330004-02 | 1 | BEARING NEEDLE | GB | |
||
| 127 | 373296-00 | 1 | WASHER BOW | GB | |
||
| 128 | 373295-01 | 1 | WASHER FIBRE | GB | |
||
| 129 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 130 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
|
| 131 | 580063-02N | 1 | CLAMSHELL SET | ORANGE | GB | |
|
| 132 | 375669 | 6 | SCREW | GB |  |
||
| 133 | 90594113 | 1 | SHOE | GB | |
||
| 134 | 377452-01 | 1 | HANDLE | GB | |
||
| 138 | 747329 | 2 | SCREW | GB | |
||
| 139 | 770235 | 1 | PROTECTOR | GB | |
||
| 140 | 330060-53 | 1 | CORDSET | GB | |
||
| 141 | 575706-00 | 1 | SPRING | GB | |
||
| 142 | 577775-01 | 1 | SWITCH LOCK OFF | GB | |
||
| 143 | 580090-00 | 1 | LEADWIRE | GB | |
||
| 144 | 580091-00 | 1 | LEADWIRE | GB | |
||
| 145 | 807285-06 | 1 | CAPACITOR | GB | |
||
| 146 | 580001-00 | 1 | SWITCH COVER | GB | |
||
| 821 | 90556603 | 1 | RATING PLATE | GB | |
||
| 822 | 580449-01 | 1 | KITBOX | GB | |
