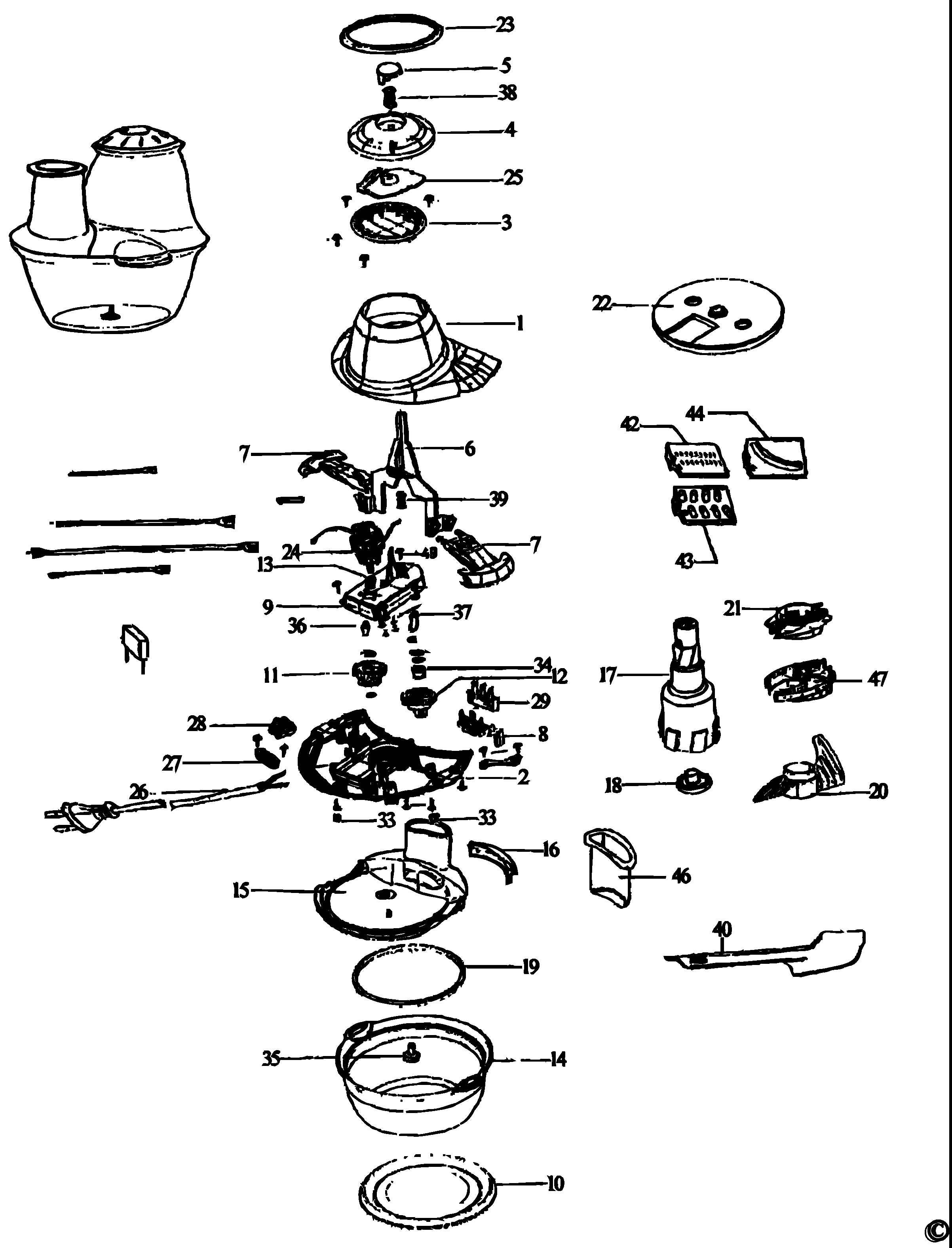

FX600 FOOD PROCESSOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010027-01 | 1 | BODY | MAIN | 151027001 | XJ |  |
| 2 | 6010027-02 | 1 | COVER | BOTTOM COVER | 151027002 | XJ | |
| 3 | 6010027-03 | 1 | TOP | UPPER PLASTIC PART | 151027003 | XJ | |
| 4 | 6010027-04 | 1 | BUTTON | SPEED CONTROL | 151027137 | XJ | |
| 5 | 6010027-05 | 1 | BUTTON | PULSE | 151027140 | XJ | |
| 6 | 6010027-06 | 1 | GUIDE | INSIDE MECHANISM PAR | 151027006 | XJ | |
| 7 | 6010027-07 | 1 | HANDLE | LOCKING HANDLE | 151027141 | XJ | |
| 8 | 6010027-08 | 1 | HOLDER | SWITCH HOLDER | 151027008 | XJ | |
| 9 | 6010027-09 | 1 | COVER | COVER OF GEAR HOUSIN | 151027009 | XJ | |
| 10 | 6010027-10 | 1 | RUBBER PAD | 151027138 | XJ | |
|
| 11 | 6010027-11 | 1 | GEAR | MOTOR PINION GEAR | 151024009 | XJ | |
| 12 | 6010027-12 | 1 | GEAR | OUTLET GEAR | 151027012 | XJ | |
| 13 | 6010027-13 | 1 | GEAR | TRANSFERRED GEAR | 151027011 | XJ | |
| 14 | 6010027-14 | 1 | BOWL | GLASS BOWL | 153027008 | XJ | |
| 15 | 6010027-15 | 1 | PLATE | TIGHT PLATE | 151027013 | XJ | |
| 16 | 6010027-16 | 1 | PLATE | FRONT PART OF TIGHT | 151027022 | XJ | |
| 17 | 6010027-17 | 1 | CARRIAGE | 151027015 | XJ | |
|
| 18 | 6010027-18 | 1 | BASE | BOTTOM PART OF ACC. | 151027016 | XJ | |
| 19 | 6010027-19 | 1 | PLATE | TIGHT PLATE RING | 151027139 | XJ | |
| 20 | 6010027-20 | 1 | ATTACHMENT | WHISKING ATTACHMENT | 151027018 | XJ | |
| 21 | 6010027-21 | 1 | BLADE SA | 151025003 | XJ | |
|
| 22 | 6010027-22 | 1 | HOLDER | DISC HOLDER | 151027019 | XJ | |
| 23 | 6010027-23 | 1 | BODY | UPPER | 151027021 | XJ | |
| 24 | 6010027-24 | 1 | MOTOR 115V | FX600-24 | XJ | |
|
| 24 | 6010027-30 | 1 | MOTOR 230V | 153027007 | XJ | |
|
| 25 | 6010027-28 | 1 | PCB 230V | 154027074 | XJ | |
|
| 25 | 6010027-25 | 1 | PCB 115V | FX600-25 | XJ | |
|
| 26 | 6010027-26 | 1 | CORDSET | 115V | FX600-26 | XJ | |
| 26 | 6010027-27 | 1 | CORDSET | 230V | 153024007 | XJ | |
| 27 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 28 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 29 | 6010027-29 | 1 | MICRO SWITCH | 153027013 | XJ | |
|
| 33 | 6010027-33 | 1 | PLUG | PLUG | 151024016 | XJ | |
| 34 | 6010027-34 | 1 | BEARING | 153024002 | XJ | |
|
| 35 | 6010027-35 | 1 | SHAFT | GLASS STAINLESS SHAF | 151124011 | XJ | |
| 36 | 6010027-36 | 1 | SHAFT | 151127001 | XJ | |
|
| 37 | 6010027-37 | 1 | SHAFT | SHAFT OF OUTLET GEAR | 151127002 | XJ | |
| 38 | 6010027-38 | 1 | SPRING | 153427001 | XJ | |
|
| 39 | 6010027-39 | 1 | SPRING | 153427002 | XJ | |
|
| 40 | 6010027-40 | 1 | SPATULA | 151015072 | XJ | ||
| 42 | 6010027-42 | 1 | DISC | SLICING DISC THIN | 153027004 | XJ | |
| 43 | 6010027-43 | 1 | DISC | SLICING DISC THICK | 153027003 | XJ | |
| 44 | 6010027-44 | 1 | DISC | SHREDDING DISC | 153027002 | XJ | |
| 46 | 6010027-46 | 1 | FOOD PUSHER | 151027014 | XJ | |
|
| 47 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ |
