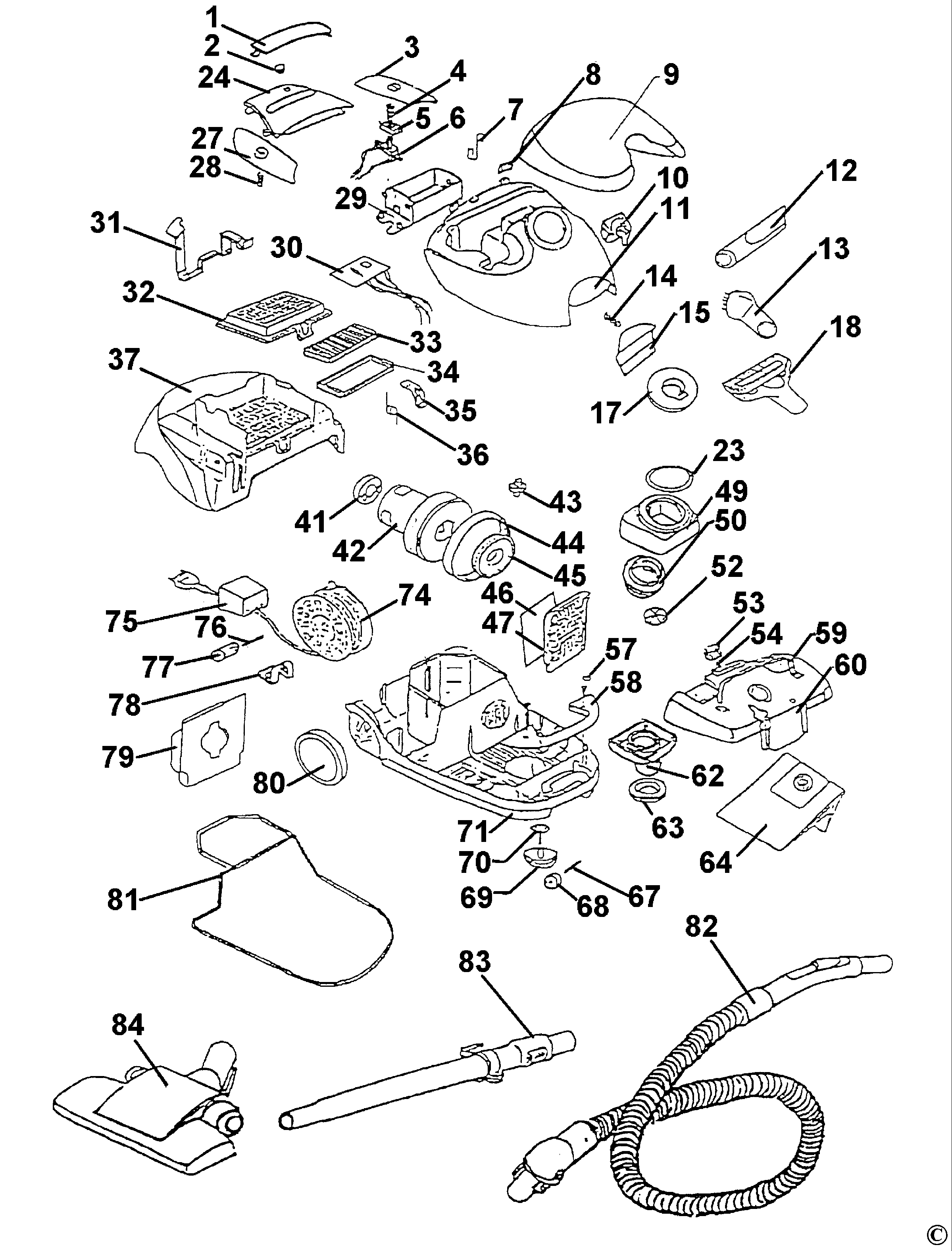

VM250 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010094-01 | 1 | COVER | VM250-1 | XJ | ||
| 2 | 6010094-02 | 1 | COVER | LIGHT COVER | VM250-2 | XJ | |
| 3 | 6010094-03 | 1 | SWITCH COVER | VM250-3 | XJ |  |
|
| 4 | 6010094-04 | 1 | SPRING | SWITCH COVER SPRING | VM250-4 | XJ | |
| 5 | 6010094-05 | 1 | SWITCHBOX | VM700-5 | XJ | ||
| 6 | 6010000-12 | 1 | SWITCH | VM2012 | XJ | |
|
| 7 | 6010094-07 | 1 | SPRING | ACCESSORY COVER SPRI | VM250-7 | XJ | |
| 8 | 6010094-08 | 1 | SHAFT | SHAFT-1 | VM700-8 | XJ | |
| 9 | 6010094-09 | 1 | COVER | VM250-9 | XJ | ||
| 10 | 6010094-10 | 1 | LOCK | VM250-10 | XJ | ||
| 11 | 6010094-11 | 1 | COVER | FRONT | VM250-11 | XJ | |
| 12 | 6010094-12 | 1 | NOZZLE | SERVICE NOZZLE | VM700-12 | XJ | |
| 13 | 6010094-13 | 1 | NOZZLE | VM700-13 | XJ | ||
| 14 | 6010094-14 | 1 | SPRING | FRONT COVER LOCK SPR | VM450-14 | XJ | |
| 15 | 6010094-15 | 1 | PLATE | FRONT COVER FIXING P | VM250-15 | XJ | |
| 17 | 6010094-17 | 1 | RING | SUCTION RING | VM250-17 | XJ | |
| 18 | 6010094-18 | 1 | NOZZLE | FURNITURE NOZZLE | VM700-18 | XJ | |
| 23 | 6010094-23 | 1 | PLATE | SUCTION PLATE SEAL R | VM250-23 | XJ | |
| 24 | 6010094-24 | 1 | CONTROL PANEL | VM250-24 | XJ | |
|
| 27 | 6010094-27 | 1 | PEDAL | CORD REWINDER PEDAL | VM250-27 | XJ | |
| 28 | 6010094-28 | 1 | SPRING | CORD REWINDER PEDAL | VM450-28 | XJ | |
| 29 | 6010094-29 | 1 | SUPPORT | VM250-29 | XJ | |
|
| 30 | 6010094-30 | 1 | PCB 220V | VM250-30A | XJ | ||
| 30 | 6010094-38 | 1 | PCB 115V | VM250-30B | XJ | ||
| 31 | 6010094-31 | 1 | PLATE | FRONT COVER FIXING P | VM250-31 | XJ | |
| 32 | 6010094-32 | 1 | FILTER SA | AIR OUTLET FILTER FR | VM250-32 | XJ | |
| 33 | 6010094-33 | 1 | FILTER | VM250-33 | XJ | |
|
| 34 | 6010094-34 | 1 | SEAL | AIR OUTLET FILTER SE | VM250-34 | XJ | |
| 35 | 6010094-35 | 1 | PLATE | SECURE PLATE | VM250-35 | XJ | |
| 36 | 6010094-36 | 1 | SPRING | SECURE PLATE SPRING | VM250-36 | XJ | |
| 37 | 6010094-37 | 1 | PLATE | VM250-37 | XJ | |
|
| 41 | 6010094-41 | 1 | SEAL | VM250-41 | XJ | |
|
| 42 | 6010094-42 | 1 | MOTOR 115V | VM250-42B | XJ | ||
| 42 | 6010094-39 | 1 | MOTOR 220V | VM250-42A | XJ | |
|
| 43 | 6010094-43 | 1 | SENSOR | VM450-43 | XJ | ||
| 44 | 6010094-44 | 1 | RING | VM250-44 | XJ | |
|
| 45 | 6010094-45 | 1 | RING | VM250-45 | XJ | |
|
| 46 | 6010094-46 | 1 | FILTER | VM450-46 | XJ | |
|
| 47 | 6010094-47 | 1 | INLET | VM450-47 | XJ | |
|
| 49 | 6010094-49 | 1 | PLATE | SUCTION PLATE | VM250-49 | XJ | |
| 50 | 6010094-50 | 1 | SUCTION GROUP | SUCTION HOLE | VM250-50 | XJ | |
| 52 | 6010094-52 | 1 | SUPPORT | VM250-52 | XJ | ||
| 53 | 6010094-53 | 1 | PLATE | DUST BAG STAND LOCK | VM700-53 | XJ | |
| 54 | 6010094-54 | 1 | SPRING | DUST BAG STAND LOCK | VM700-54 | XJ | |
| 57 | 6010094-57 | 1 | COVER | SCREW COVER | VM450-57 | XJ | |
| 58 | 6010094-58 | 1 | HANDLE COVER | VM250-58 | XJ | ||
| 59 | 6010094-59 | 1 | HANDLE | VM700-59 | XJ | |
|
| 60 | 6010094-60 | 1 | STAND | VM700-60 | XJ | |
|
| 62 | 6010094-62 | 1 | COVER | SUCTION PLATE LOWER | VM250-62 | XJ | |
| 63 | 6010094-63 | 1 | RING | DUST RING | VM250-63 | XJ | |
| 64 | 6010094-64 | 1 | DUST BAG SA | CLOTH DUST BAG | VM700-64 | XJ | |
| 64 | 6010094-85 | 1 | DUST BAG SA | VM250-64 | XJ | ||
| 67 | 6010094-67 | 1 | SHAFT | SHAFT-2 | VM450-67 | XJ | |
| 68 | 6010094-68 | 1 | WHEEL | SMALL WHEEL | VM250-68 | XJ | |
| 69 | 6010094-69 | 1 | WHEEL | VM250-69 | XJ | |
|
| 70 | 6010094-70 | 1 | WHEEL SUPPORT | UNIVERSAL WHEEL SUPP | VM250-70 | XJ | |
| 71 | 6010094-71 | 1 | BASE | VM250-71 | XJ | ||
| 74 | 6010094-74 | 1 | RETURN DEVICE ASSEMBLY | 115V | VM700-74B | XJ | |
| 74 | 6010094-73 | 1 | RETURN DEVICE ASSEMBLY | 220V | VM700-74A | XJ | |
| 75 | 6010094-75 | 1 | WINDOW | VM450-75 | XJ | |
|
| 76 | 6010094-76 | 1 | SHAFT | SHAFT-3 | VM700-76 | XJ | |
| 77 | 6010094-77 | 1 | WHEEL | CORD OUTLET WHEEL | VM250-77 | XJ | |
| 78 | 6010094-78 | 1 | OUTLET | CORD OUTLET FRAME | VM450-78 | XJ | |
| 79 | 6010094-79 | 1 | PLATE | VM250-79 | XJ | |
|
| 80 | 6010094-80 | 1 | WHEEL | BIG WHEEL | VM700-80 | XJ | |
| 81 | 6010094-81 | 1 | SEAL | SEAL BAR | VM250-81 | XJ | |
| 82 | 6010094-82 | 1 | HOSE SA | VM250-82 | XJ | |
|
| 83 | 6010094-83 | 1 | TUBE | VM250-83 | XJ | |
|
| 84 | 6010094-84 | 1 | BRUSH SA | FLOOR | VM400/21 | XJ | |
