CUA625BHA STICK-VAC Type H1 | Drawings
Documents

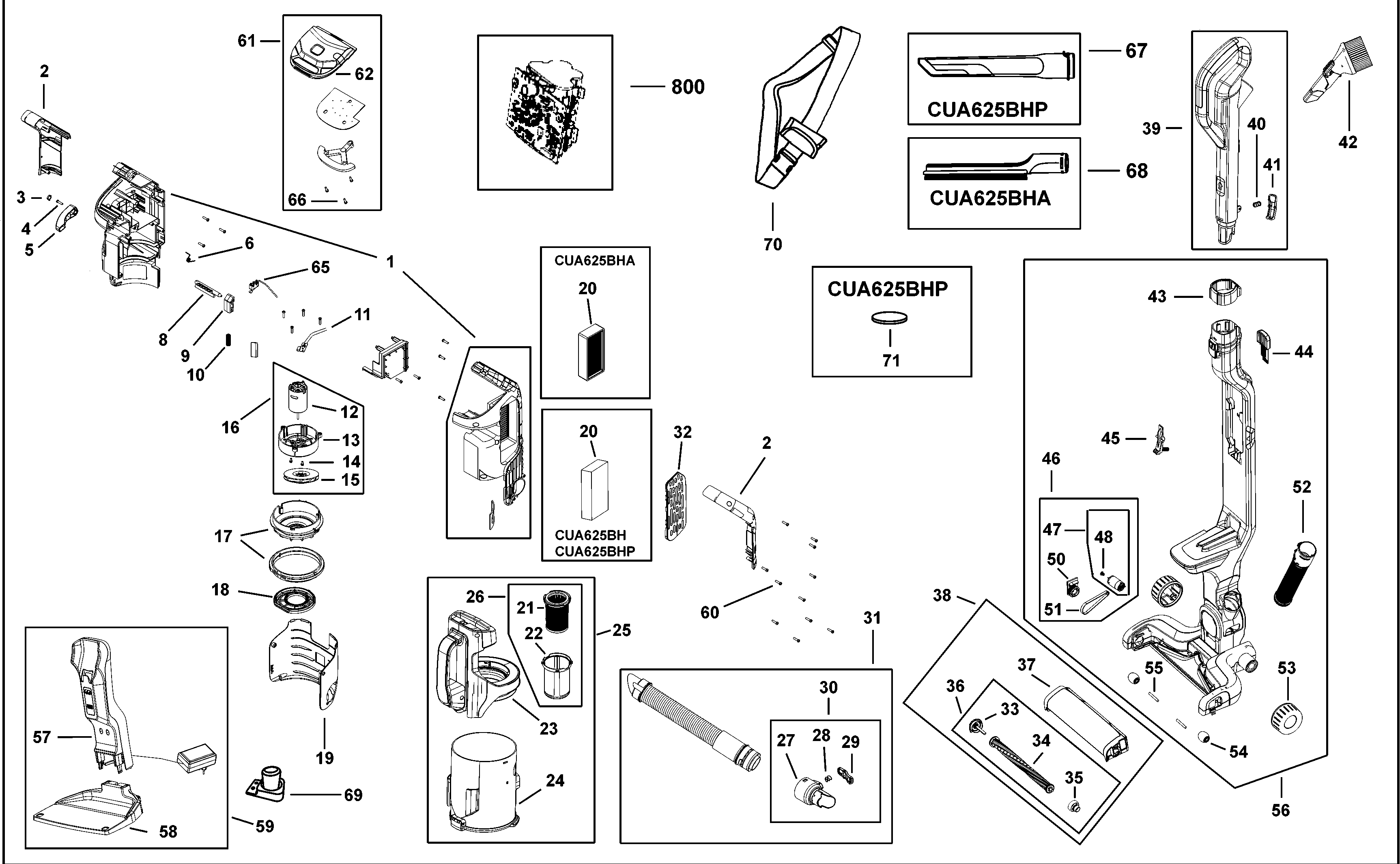

Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N591492 | 1 | HOUSING PAIR | GB |  |
||
| 2 | N559665 | 1 | COVER SA | GB | |||
| 3 | N524504 | 1 | COVERPLATE | CUA625BHA | GB | |
|
| 4 | 143062-02 | 11 | SCREW | GB | |
||
| 5 | N524501 | 1 | LEVER RELEASE | CUA625BHA | GB | |
|
| 6 | N492260 | 1 | SPRING TORSION | GB | |
||
| 8 | N492290 | 1 | RELEASE | GB | |
||
| 9 | N496409 | 1 | LATCH | GB | |
||
| 10 | N492257 | 1 | SPRING | GB | |
||
| 11 | 90642119 | 1 | SENSOR | FILTER | GB |  |
|
| 12 | N622585 | 1 | MOTOR | GB | |
||
| 13 | N492268 | 1 | MOUNT | MOTOR | GB | |
|
| 14 | 311940-01 | 2 | SCREW | GB | |
||
| 15 | N493443 | 1 | FAN | GB | |
||
| 16 | N630116 | 1 | MOTOR SA | GB | |||
| 17 | N545744 | 1 | DIFFUSER | GB | |
||
| 18 | N498170 | 1 | SEAL | GB | |
||
| 19 | N492291 | 1 | COVER | GB | |
||
| 20 | N492314 | 1 | FOAM | CUA625BHA | GB | |
|
| 21 | N508033 | 1 | FILTER | CUA625BHA | GB | |
|
| 22 | N524519 | 1 | PRE-FILTER | CUA625BHA | GB | |
|
| 23 | N549392 | 1 | LID | BOWL | CUA625BHA | GB | |
| 24 | N549395 | 1 | BOWL | CUA625BHA | GB | ||
| 25 | N524737 | 1 | BOWL | SA | CUA625BHA | GB | |
| 26 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 27 | N532185 | 1 | NOZZLE | GB | |
||
| 28 | 90529369 | 1 | SPRING | GB | |
||
| 29 | N524576 | 1 | BUTTON | CUA625BHA | GB | |
|
| 30 | N543401 | 1 | NOZZLE | SA | CUA625BHA | GB | |
| 31 | N545737 | 1 | HOSE SA | CUA625BHA | GB | ||
| 32 | N493446 | 1 | COVER | GB | |
||
| 33 | N498844 | 1 | DRIVE SHAFT | GB | |||
| 34 | N543538 | 1 | ROLLER | CUA625BHA | GB | |
|
| 35 | N545745 | 1 | END CAP SA | GB | |||
| 36 | N545738 | 1 | ROLLER SA | CUA625BHA | GB | ||
| 37 | N538146 | 1 | CASE | CUA625BHA | GB | |
|
| 38 | N524887 | 1 | HEAD SA | CUA625BHA | GB | ||
| 39 | N524730 | 1 | HANDLE UPPER | CUA625BHA | GB | ||
| 40 | 90529369 | 1 | SPRING | GB | |
||
| 41 | N493502 | 1 | BUTTON | GB | |
||
| 42 | N497962 | 1 | ATTACHMENT | GB | |
||
| 43 | N494803 | 1 | COLLAR | GB | |
||
| 44 | N554609 | 1 | LATCH BUTTON | + SPRING | CUA625BHA | GB | |
| 45 | N554611 | 1 | LATCH | + SPRING | CUA625BHA | GB | |
| 46 | N545750 | 1 | MOTOR SA | GB | |||
| 47 | N545749 | 1 | MOTOR & PINION | GB | |||
| 48 | N548025 | 1 | GEAR | GB | |
||
| 50 | N545743 | 1 | GEAR | DRIVE | GB | ||
| 51 | N492253 | 1 | BELT | GB | |
||
| 52 | N524720 | 1 | HOSE | CUA625BHA | GB | |
|
| 53 | N493467 | 1 | WHEEL | GB | |
||
| 54 | N493468 | 1 | WHEEL | GB | |
||
| 55 | N499545 | 1 | ROLL PIN | GB | |
||
| 56 | N545748 | 1 | CHASSIS | CUA625BHA | GB | ||
| 57 | N638190 | 1 | CHARGER | GB | |||
| 58 | N545740 | 1 | BASEPLATE | GB | |
||
| 59 | N492792 | 1 | CHARGER & BASE | GB | |||
| 60 | 499903-00 | 14 | SCREW | GB | |
||
| 61 | N608452 | 1 | DISPLAY | SA | GB | |
|
| 62 | N538843 | 1 | DISPLAY | GB | |
||
| 65 | N615781 | 1 | SWITCH | GB | |
||
| 66 | 90571477 | 3 | SCREW | GB | |
||
| 68 | 90614786 | 1 | BRUSH | CUA625BHA | GB | |
|
| 69 | N548026 | 2 | HOLDER | GB | |
||
| 70 | 90542167 | 1 | STRAP | GB | |
||
| 800 | 000000-02 | 1 | EXCHANGE UNIT | GB |
