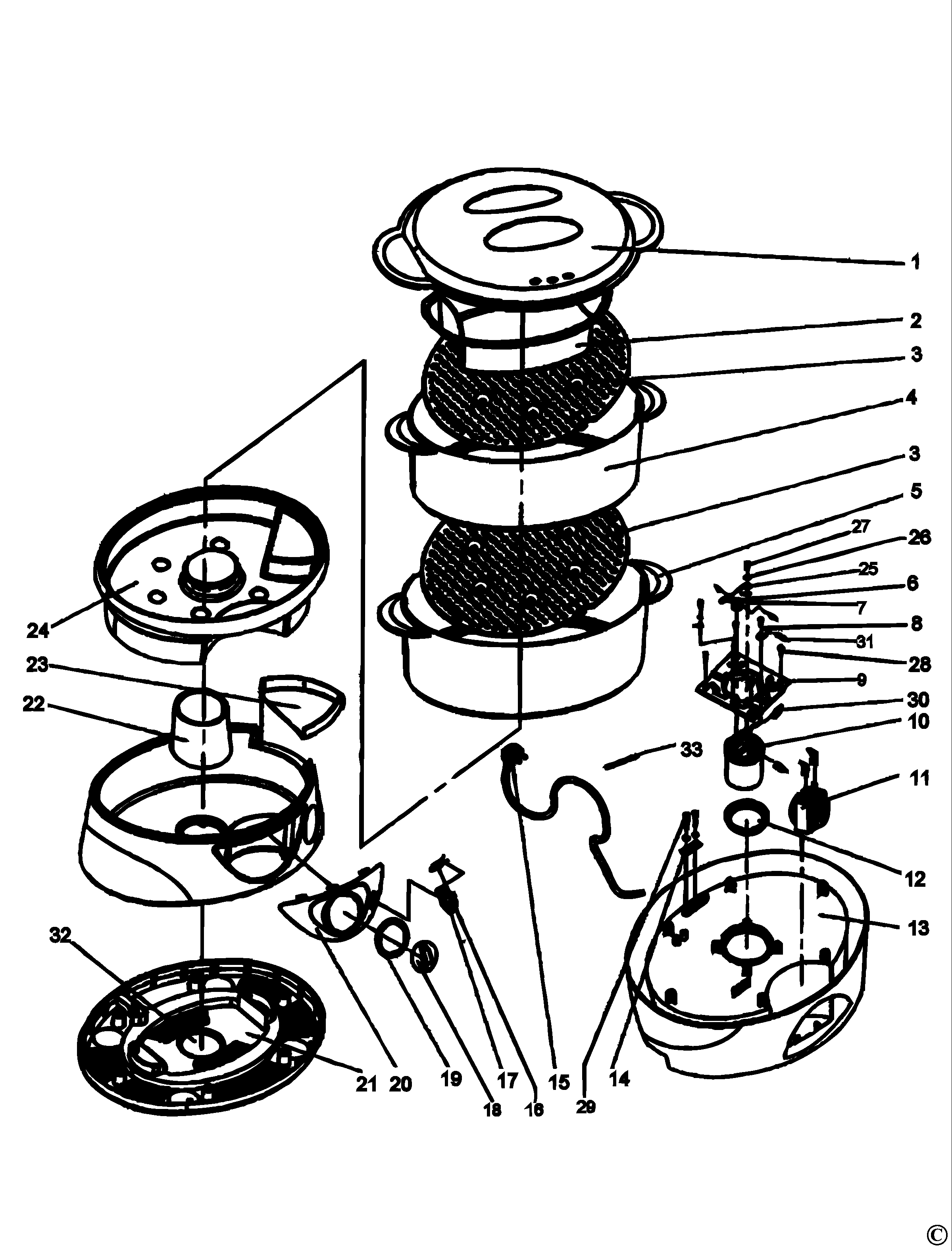

HS3000 STEAMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010030-01 | 1 | LID | HS3000-1 | XJ |  |
|
| 2 | 6010030-02 | 1 | BOWL | RICE | HS3000-2 | XJ | |
| 3 | 6010030-03 | 1 | FILTER | REMOVABLE GRID | HS3000-3 | XJ | |
| 4 | 6010030-04 | 1 | BOWL | LARGE STEAM W/O GRID | HS3000-4 | XJ | |
| 5 | 6010030-05 | 1 | BOWL | HS3000-5 | XJ | |
|
| 6 | 6010030-06 | 1 | THERMOSTAT | HS3000-6 | XJ | ||
| 7 | 6010030-07 | 1 | TUBE | HS3000-7 | XJ | ||
| 8 | 6010030-08 | 1 | BRACKET | FUSE | HS3000-8 | XJ | |
| 9 | 6010030-09 | 1 | BRACKET | METAL | HS3000-9 | XJ | |
| 10 | 6010030-34 | 1 | HEATER SA | HEATER ASS'Y 115V | HS3000-10A | XJ | |
| 10 | 6010030-10 | 1 | HEATER SA | HS3000-10 | XJ | |
|
| 11 | 6010030-11 | 1 | TIMER | MECHANICAL TIMER | HS3000-11 | XJ | |
| 12 | 6010030-12 | 1 | SEAL | SEAL RING | HS3000-12 | XJ | |
| 13 | 6010030-13 | 1 | BASE | HS3000-13 | XJ | ||
| 14 | 6010030-14 | 1 | CORD CLAMP | HS3000-14 | XJ | ||
| 15 | 6010030-15 | 1 | CORDSET | 230V | HS3000-15 | XJ | |
| 15 | 6010030-35 | 1 | CORDSET | 115V | HS3000-15A | XJ | |
| 16 | 6010030-16 | 1 | LENS | LENS ASSEMBLY | HS3000-16 | XJ | |
| 17 | 6010030-17 | 1 | COVER | LAMP COVER | HS3000-17 | XJ | |
| 18 | 6010030-18 | 1 | KNOB | HS3000-18 | XJ | |
|
| 19 | 6010030-19 | 1 | RING | DECO RING | HS3000-19 | XJ | |
| 20 | 6010030-20 | 1 | COVER | TIMER COVER | HS3000-20 | XJ | |
| 21 | 6010030-21 | 1 | COVER | BASE COVER | HS3000-21 | XJ | |
| 22 | 6010030-22 | 1 | RING | REMOVABLE RING | HS3000-22 | XJ | |
| 23 | 6010030-23 | 1 | SPOUT | WATER FILLING | HS3000-23 | XJ | |
| 24 | 6010030-24 | 1 | TRAY | JUICE TRAY | HS3000-24 | XJ | |
| 25 | 6010030-25 | 1 | CLAMP | THERMOSTAT CLAMP | HS3000-25 | XJ | |
| 26 | 6010030-26 | 1 | WASHER | EXT. TOOTH WASHER | HS3000-26 | XJ | |
| 27 | 6010030-27 | 1 | SCREW | HS3000-27 | XJ | ||
| 28 | 6010030-28 | 1 | SCREW | HS3000-28 | XJ | ||
| 29 | 6010030-29 | 1 | SCREW | HS3000-29 | XJ | ||
| 30 | 6010030-30 | 1 | RECEPTACLE | HS3000-30 | XJ | ||
| 31 | 6010030-31 | 1 | FUSE | 230V | HS3000-31 | XJ | |
| 31 | 6010030-36 | 1 | FUSE | 115V | HS3000-31A | XJ | |
| 32 | 6010030-32 | 1 | HEATSHIELD | INSULATION SHEET | HS3000-32 | XJ | |
| 33 | 6010030-33 | 1 | SLEEVE | FIBRE GLASS SLEEVING | HS3000-33 | XJ |
