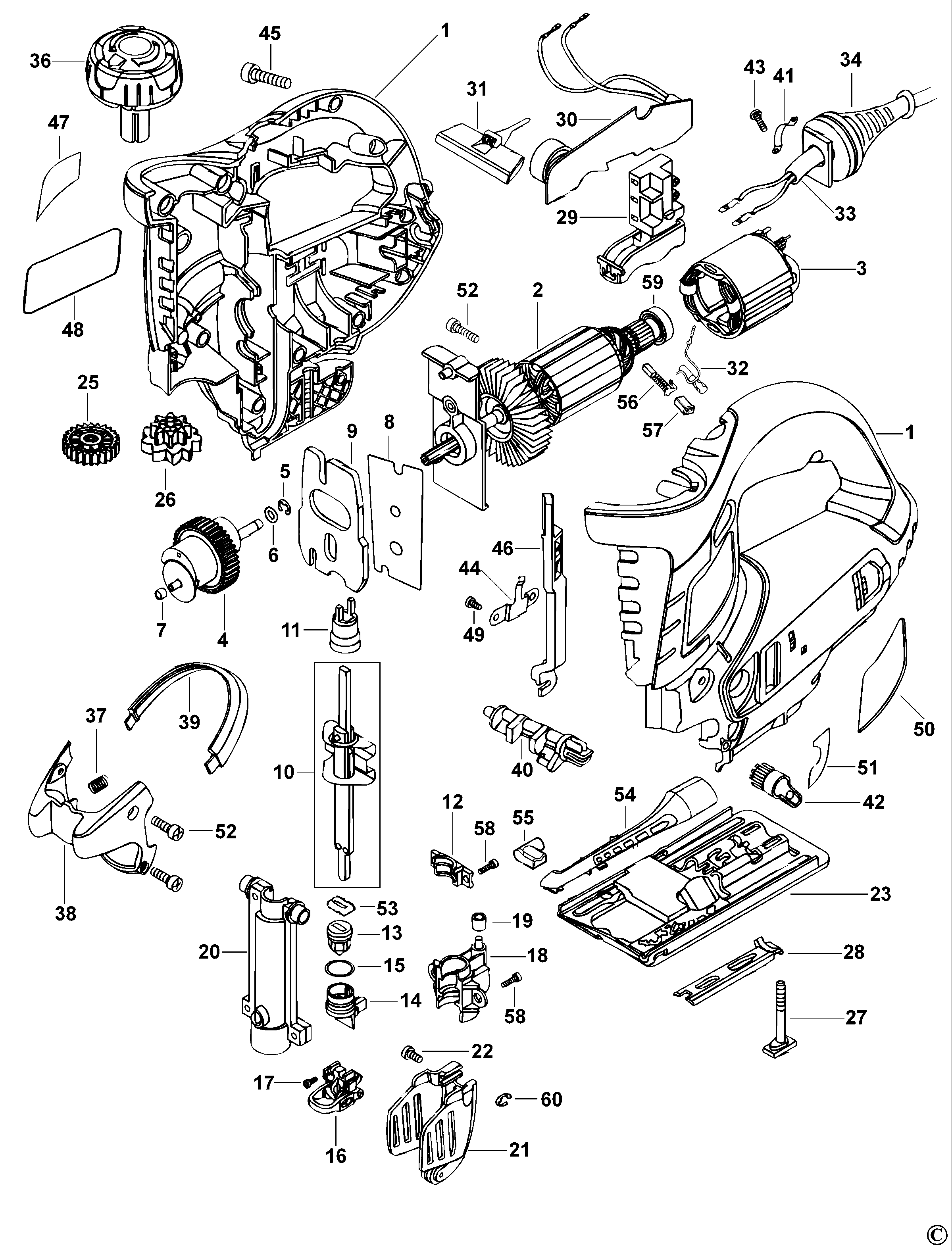

KS2005EK JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 583413-02 | 1 | CLAMSHELL SET | GB |  |
||
| 2 | 585803-00 | 1 | ARMATURE SA | 230V | GB | |
|
| 3 | 583820-06 | 1 | FIELD SA | 230V | GB | |
|
| 4 | 585805-00 | 1 | GEAR SA | GB | |
||
| 5 | 588592-00 | 1 | LOCKING RING | GB |  |
||
| 6 | 588593-00 | 1 | WASHER | GB | |
||
| 7 | 583464-01 | 1 | DRIVE ROLLER | from 16-08-2004 | GB | |
|
| 7 | 583464-00 | 1 | DRIVE ROLLER | up to 16-08-2004 | GB | |
|
| 8 | 585809-00 | 1 | THRUST PLATE | GB | |
||
| 9 | 583419-00 | 1 | BALANCE WEIGHT | GB | |
||
| 10 | 583427-00 | 1 | SHAFT SA | up to 16-08-2004 | GB | |
|
| 10 | 583427-01 | 1 | SHAFT SA | from 16-08-2004 | GB | |
|
| 11 | 583422-00 | 1 | BEARING | GB | |
||
| 12 | 583567-00 | 1 | CLAMP | GB | |
||
| 13 | 583677-00 | 1 | BEARING | GB | |
||
| 14 | 583425-00 | 1 | BEARING | GB | |
||
| 15 | 585388-00 | 1 | O RING | GB | |
||
| 16 | 582593-00 | 1 | BLADE CLAMP | GB | |
||
| 17 | 583173-00 | 2 | SCREW | GB | |
||
| 18 | 583430-00 | 1 | CLAMP SA | GB | |
||
| 19 | 583423-00 | 1 | FOLLOWER | GB | |
||
| 20 | 583421-00 | 1 | CARRIER | GB | |
||
| 21 | 583432-00 | 1 | BLADE SUPPORT SA | GB | |
||
| 22 | 590341-00 | 1 | SCREW | GB | |
||
| 23 | 585391-00 | 1 | SHOE SA | GB | |
||
| 25 | 582768-00 | 1 | GEAR SA | GB | |
||
| 26 | 582601-00 | 1 | ACTUATOR | GB | |
||
| 27 | 586927-00 | 1 | LOCKING SCREW | GB | |
||
| 28 | 583657-00 | 1 | SUPPORT BRACKET | GB | |
||
| 29 | 585385-00 | 1 | SWITCH SA | GB | |
||
| 30 | 583508-00 | 1 | PCB SA | GB | |
||
| 31 | 585386-00 | 1 | ACTUATOR | GB | |
||
| 32 | 582762-00 | 2 | CHOKE LEAD SA | GB | |
||
| 33 | 330060-53 | 1 | CORDSET | GB | |
||
| 34 | 582722-00 | 1 | CORD PROTECTOR | GB | |
||
| 36 | 583434-00 | 1 | KNOB SA | GB | |
||
| 37 | 590096-00 | 1 | SPRING | GB | |
||
| 38 | 583455-00 | 1 | CASTING | GB | |
||
| 39 | 583454-00 | 1 | CASTING | GB | |
||
| 40 | 583452-00 | 1 | CAM | GB | |
||
| 41 | 380414-00 | 1 | CORD CLAMP | GB | |
||
| 42 | 583451-00 | 1 | SELECTOR | GB | |
||
| 43 | 370748 | 2 | SCREW | GB | |
||
| 44 | 583450-00 | 1 | RETAINER | GB | |
||
| 45 | 809961 | 10 | SCREW | GB | |
||
| 46 | 583449-00 | 1 | LOCK | GB | |
||
| 47 | 586220-01 | 1 | LABEL | RHS TURN 360 | GB | |
|
| 48 | 90556680 | 1 | RATING PLATE | GB | |
||
| 49 | 330019-48 | 2 | SCREW | GB | |
||
| 50 | 586219-01 | 1 | LABEL | LHS TURNS 360 | GB | |
|
| 51 | 585383-01 | 1 | LABEL | GB | |
||
| 52 | 330013-11 | 6 | SCREW | GB | |
||
| 53 | 583678-00 | 1 | FELT SEAL | GB | |
||
| 54 | 586068-00 | 1 | VACUUM ADAPTOR | GB | |
||
| 55 | 582732-00 | 1 | ELBOW TUBE | GB | |
||
| 56 | 582761-00 | 2 | BRUSH & SPRING 230V | GB | |
||
| 57 | 582696-00 | 2 | BRUSHBOX | GB | |
||
| 58 | 812171 | 4 | SCREW | GB | |
||
| 59 | 574853-08 | 1 | BEARING | GB | |
||
| 60 | 587375-00 | 1 | LOCKING RING | GB | |
