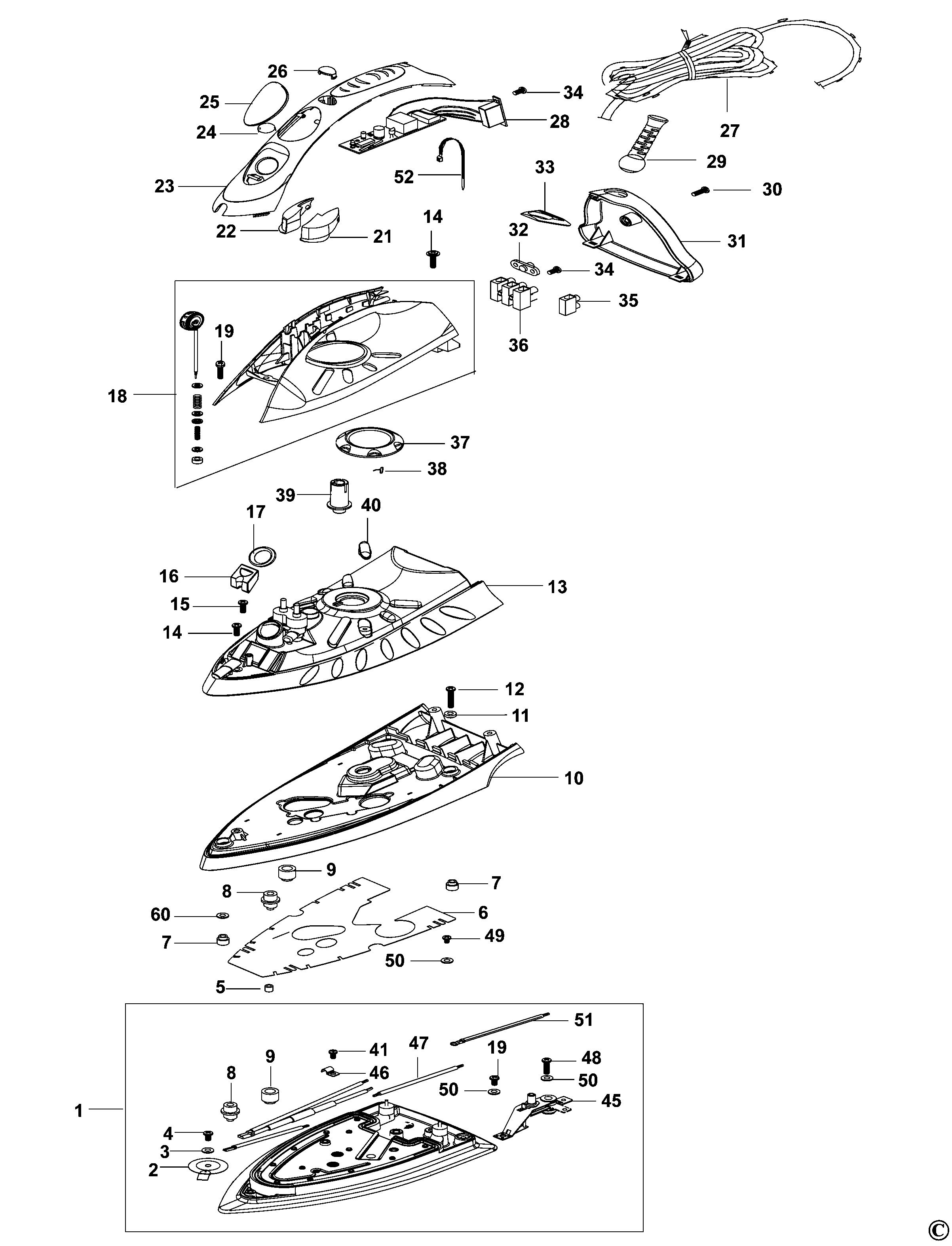

X1050 STEAM IRON Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010216-00 | 1 | SOLE PLATE SA | XJ |  |
||
| 1 | 6010352-19 | 12 | BUTTON | XJ | |
||
| 2 | 6010149-02 | 1 | PLATE | XJ | |||
| 3 | 6010149-03 | 1 | WASHER | XJ | |||
| 4 | 6010149-04 | 1 | SCREW | XJ | |||
| 5 | 6010148-05 | 2 | SLEEVE | XJ | |||
| 6 | 6010148-06 | 1 | HEATSHIELD | XJ | |||
| 7 | 6010148-07 | 3 | SLEEVE | XJ | |||
| 8 | 6010148-08 | 1 | GASKET | XJ | |
||
| 9 | 6010148-09 | 2 | GASKET | XJ | |||
| 10 | 6010148-10 | 1 | BASE PLATE | XJ | |
||
| 11 | 6010148-11 | 3 | SLEEVE | XJ | |||
| 12 | 6010148-12 | 3 | SCREW | XJ | |
||
| 13 | 6010148-13 | 1 | TANK | XJ | |
||
| 14 | 6010148-14 | 3 | SCREW | XJ | |
||
| 15 | 6010148-15 | 1 | SCREW | XJ | |||
| 16 | 6010148-16 | 1 | RUBBER SEAL | XJ | |||
| 17 | 6010148-17 | 1 | GASKET | XJ | |
||
| 18 | 6010148-18 | 1 | HANDLE SA | XJ | |
||
| 19 | 6010148-19 | 2 | SCREW | XJ | |||
| 21 | 6010352-19 | 1 | BUTTON | Purple | XJ | |
|
| 22 | 6010352-22 | 1 | BUTTON | Purple | XJ | |
|
| 23 | 6010150-23 | 1 | HANDLE COVER | XJ | |||
| 24 | 6010148-24 | 1 | RUBBER | XJ | |||
| 25 | 6010148-25 | 1 | LID | XJ | |||
| 26 | 6010148-26 | 1 | COVER | XJ | |
||
| 27 | 6010148-27 | 1 | CORDSET | XJ | |
||
| 28 | 6010150-28 | 1 | PCB SA | XJ | |
||
| 29 | 6010148-29 | 1 | CORD PROTECTOR | XJ | |
||
| 30 | 6010148-30 | 1 | SCREW | XJ | |||
| 31 | 6010148-31 | 1 | COVER REAR | XJ | |||
| 31 | 6010352-09 | 1 | COVER REAR | Purple | Purple | XJ | |
| 32 | 6010148-32 | 1 | CORD CLAMP | XJ | |||
| 33 | 6010148-33 | 1 | CLAMP | XJ | |||
| 34 | 6010148-34 | 2 | SCREW | XJ | |||
| 35 | 6010148-35 | 1 | TERMINAL BLOCK | XJ | |||
| 36 | 6010148-36 | 1 | TERMINAL BLOCK | XJ | |||
| 37 | 6010148-37 | 1 | TEMPERATURE DIAL | XJ | |||
| 37 | 6010352-12 | 1 | TEMPERATURE DIAL | Purple | XJ | |
|
| 38 | 6010148-38 | 1 | SPRING | XJ | |||
| 39 | 6010148-39 | 1 | KNOB | XJ | |
||
| 40 | 6010148-40 | 1 | BUTTON | XJ | |||
| 41 | 6010148-41 | 1 | SCREW | XJ | |||
| 45 | 6010148-45 | 1 | THERMOSTAT SA | XJ | |
||
| 46 | 6010148-46 | 1 | CLAMP | XJ | |||
| 47 | 6010148-47 | 1 | WIRE | XJ | |
||
| 48 | 6010148-48 | 1 | SCREW | XJ | |||
| 49 | 6010148-49 | 1 | SCREW | XJ | |||
| 50 | 6010148-50 | 3 | WASHER | XJ | |
||
| 51 | 6010148-51 | 1 | WIRE | XJ | |||
| 52 | 6010150-52 | 1 | CLAMP | XJ | |||
| 60 | 6010148-60 | 1 | WASHER | XJ |
