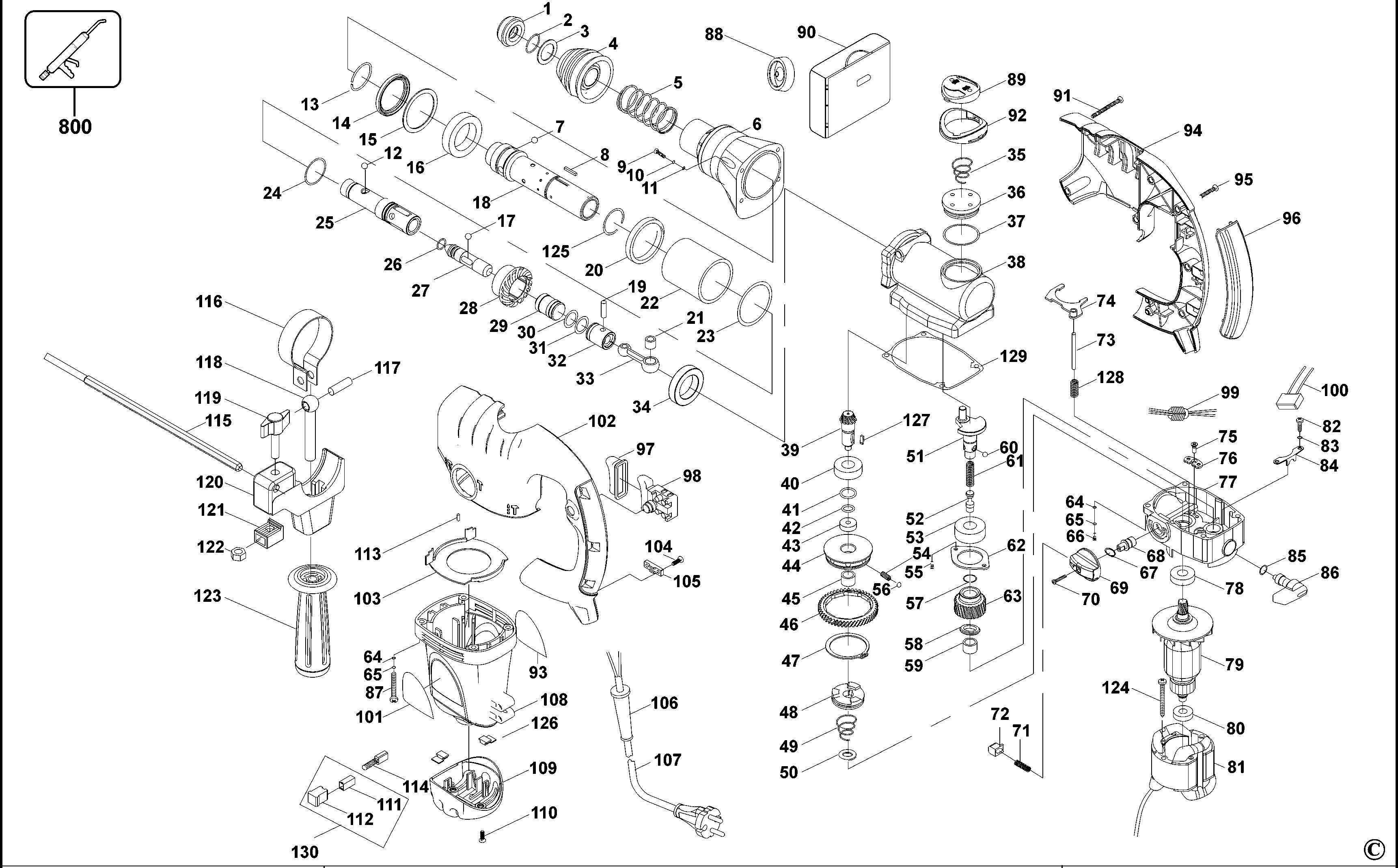

KD1001K ROTARY HAMMER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 597393-00 | 1 | LIP SEAL | GB |  |
||
| 2 | 1003524-00 | 1 | CIRCLIP | GB |  |
||
| 3 | 1004509-00 | 1 | O RING | GB | |
||
| 4 | 597396-00 | 1 | SLEEVE SA | GB | |
||
| 5 | 597397-00 | 1 | SPRING | GB | |
||
| 6 | 1003525-00 | 1 | HOUSING FRONT | GB | |
||
| 7 | 597399-00 | 1 | BALL STEEL | 7.94mm | GB | |
|
| 8 | 597400-00 | 1 | INSERT | 3 x 16mm | GB | |
|
| 9 | 597401-00 | 4 | SCREW | M4 x 16 | GB | |
|
| 10 | 597402-00 | 4 | WASHER SPRING | 4mm | GB | |
|
| 11 | 597403-00 | 4 | WASHER | 4mm | GB | |
|
| 12 | 597404-00 | 1 | BALL STEEL | 7.14mm | GB | |
|
| 13 | 1003530-00 | 1 | CIRCLIP | GB | |
||
| 14 | 1003526-00 | 1 | SEAL | GB | |
||
| 15 | 597407-00 | 1 | O RING | GB | |
||
| 16 | 597409-00 | 1 | BEARING | GB | |
||
| 17 | 597408-00 | 1 | BALL STEEL | GB | |
||
| 18 | 1003527-00 | 1 | CYLINDER | GB | |
||
| 19 | 597411-00 | 1 | PIN | GB | |
||
| 20 | 597412-00 | 1 | RING | GB | |
||
| 21 | 597413-00 | 1 | BEARING NEEDLE | GB | |
||
| 22 | 597414-00 | 1 | BUSH | GB | |
||
| 23 | 597415-00 | 1 | O RING | GB | |
||
| 24 | 597416-00 | 1 | O RING | 24 x 2mm | GB | |
|
| 25 | 1004509-01 | 1 | SPINDLE | GB | |
||
| 26 | 597418-00 | 1 | O RING | 15 x 2mm | GB | |
|
| 27 | 597419-00 | 1 | BEAT PIECE | GB | |
||
| 28 | 597420-00 | 1 | GEAR | GB | |
||
| 29 | 597421-00 | 1 | RAM | GB | |
||
| 30 | 597422-00 | 1 | O RING | GB | |
||
| 31 | 597423-00 | 1 | O RING | GB | |
||
| 32 | 597424-00 | 1 | PISTON | GB | |
||
| 33 | 597425-00 | 1 | CON ROD | GB | |
||
| 34 | 597426-00 | 1 | BEARING | GB | |
||
| 35 | 597427-00 | 1 | SPRING | GB | |
||
| 36 | 597428-00 | 1 | COVER | GB | |
||
| 37 | 597429-00 | 1 | O RING | GB | |
||
| 38 | 597430-00 | 1 | CRANKCASE | GB | |
||
| 39 | 597431-00 | 1 | PINION GEAR | GB | |
||
| 40 | 597432-00 | 1 | BEARING | 6002 | GB | |
|
| 41 | 597433-00 | 1 | WASHER | GB | |
||
| 42 | 597434-00 | 1 | RING | GB | |
||
| 43 | 597435-00 | 1 | BEARING | 627 | GB | |
|
| 44 | 597436-00 | 1 | WHEEL | GB | |
||
| 45 | 597437-00 | 1 | BEARING NEEDLE | HK1210 | GB | |
|
| 46 | 597438-00 | 1 | GEAR | GB | |
||
| 47 | 597439-00 | 1 | CIRCLIP | GB | |
||
| 48 | 597440-00 | 1 | CLUTCH SA | GB | |
||
| 49 | 597441-00 | 1 | SPRING | GB | |
||
| 50 | 597443-00 | 1 | WASHER | GB | |
||
| 51 | 597444-00 | 1 | CRANK | GB | |
||
| 52 | 597445-00 | 1 | SPINDLE | GB | |
||
| 53 | 597446-00 | 1 | BEARING | 6202 | GB | |
|
| 54 | 597447-00 | 1 | SPRING | GB | |
||
| 55 | 597448-00 | 2 | SCREW | M4 x 16mm | GB | |
|
| 56 | 597449-00 | 1 | BALL STEEL | 5mm | GB | |
|
| 57 | 597450-00 | 1 | RING | GB | |
||
| 58 | 597451-00 | 1 | SEAL | GB | |
||
| 59 | 597452-00 | 1 | BEARING | GB | |
||
| 60 | 597453-00 | 1 | BALL | GB | |
||
| 61 | 597454-00 | 1 | SPRING | GB | |
||
| 62 | 597455-00 | 1 | COVER BEARING | GB | |
||
| 63 | 597456-00 | 1 | GEAR | GB | |
||
| 64 | 597457-00 | 4 | WASHER | 5mm | GB | |
|
| 65 | 597458-00 | 4 | WASHER SPRING | 5mm | GB | |
|
| 66 | 597459-00 | 4 | SCREW | M5 x 20 | GB | |
|
| 67 | 597460-00 | 1 | RING | 11mm | GB | |
|
| 68 | 597461-00 | 1 | SHAFT | GB | |
||
| 69 | 597462-00 | 1 | KNOB | GB | |
||
| 70 | 597463-00 | 1 | SCREW | M3 x 20 | GB | |
|
| 71 | 597464-00 | 1 | SPRING | GB | |
||
| 72 | 597465-00 | 1 | COVER | GB | |
||
| 73 | 597466-00 | 1 | BOLT | M4 x 40mm | GB | |
|
| 74 | 597468-00 | 1 | FORK | GB | |
||
| 75 | 597469-00 | 1 | SCREW | M4 x 8mm | GB | |
|
| 76 | 597470-00 | 1 | STOP | GB | |
||
| 77 | 597471-00 | 1 | GEARBOX | GB | |
||
| 78 | 597472-00 | 1 | BEARING | 6001 | GB | |
|
| 79 | 597473-00 | 1 | ARMATURE 230V | GB | |
||
| 80 | 597474-00 | 1 | BEARING | 608 | GB | |
|
| 81 | 597475-00 | 1 | FIELD 230V | GB | |
||
| 82 | 597476-00 | 2 | SCREW | GB | |
||
| 83 | 597477-00 | 2 | WASHER SPRING | GB | |
||
| 84 | 597478-00 | 1 | LOCKING DEVICE | GB | |
||
| 85 | 597479-00 | 1 | O RING | GB | |
||
| 86 | 597480-00 | 1 | KNOB | GB | |
||
| 87 | 597481-00 | 2 | SCREW | M5 x 35 | GB | |
|
| 88 | 597482-00 | 1 | DUST GUARD | GB | |
||
| 89 | 597483-00 | 1 | COVER | GB | |
||
| 90 | 597484-00 | 1 | CASE | GB | |
||
| 91 | 597485-00 | 1 | SCREW | 4.2 x 52mm | GB | |
|
| 92 | 597486-00 | 1 | INSERT | GB | |
||
| 93 | 1004509-02 | 1 | NAMEPLATE | GB | |
||
| 94 | 597488-00 | 1 | HOUSING RH | GB | |
||
| 95 | 597489-00 | 7 | SCREW | 4.2 x 25mm | GB | |
|
| 96 | 597490-00 | 1 | HANDLE COVER | GB | |
||
| 97 | 597491-00 | 1 | SWITCH COVER | GB | |
||
| 98 | 597492-00 | 1 | SWITCH | GB | |
||
| 99 | 597493-00 | 1 | CHOKE | GB | |
||
| 100 | 1004531-00 | 1 | CAPACITOR | GB | |
||
| 101 | 597495-00 | 1 | BRAND LABEL | GB | |
||
| 102 | 597496-00 | 1 | HOUSING LH | GB | |
||
| 103 | 1003601-00 | 1 | BAFFLE | GB | |
||
| 104 | 597498-00 | 2 | SCREW | 4 x 16mm | GB | |
|
| 105 | 597499-00 | 1 | CORD CLAMP | GB | |
||
| 106 | 597500-00 | 1 | CORD PROTECTOR | GB | |
||
| 107 | 1003709-00 | 1 | CORDSET (M/PLUG) | GB | |
||
| 108 | 597502-00 | 1 | HOUSING MOTOR | GB | |
||
| 109 | 1004509-03 | 1 | END CAP | GB | |
||
| 110 | 597504-00 | 2 | SCREW | 4 x 12mm | GB | |
|
| 111 | 1004075-00 | 2 | BRUSHBOX SA | GB | |||
| 112 | 1004075-00 | 2 | BRUSHBOX SA | GB | |||
| 113 | 597507-00 | 1 | DAMPER | GB | |
||
| 114 | 597508-00 | 2 | BRUSH 230V | GB | |
||
| 115 | 597509-00 | 1 | DEPTH STOP | GB | |
||
| 116 | 597510-00 | 1 | CLAMP | GB | |
||
| 117 | 597511-00 | 1 | BOLT | GB | |
||
| 118 | 597512-00 | 1 | NUT | GB | |
||
| 119 | 597513-00 | 1 | SCREW WING | GB | |
||
| 120 | 597514-00 | 1 | HOLDER | GB | |
||
| 121 | 597515-00 | 1 | CLAMP | GB | |
||
| 122 | 597516-00 | 1 | NUT | M6 | GB | |
|
| 123 | 597517-00 | 1 | SIDE HANDLE | GB | |
||
| 124 | 597518-00 | 2 | SCREW | 4.8 x 60mm | GB | |
|
| 125 | 597519-00 | 1 | RING | 30 x 2 mm | GB | |
|
| 126 | 597520-00 | 2 | RUBBER PAD | GB | |
||
| 127 | 597442-00 | 1 | INSERT | 4 x 12mm | GB | |
|
| 128 | 597467-00 | 1 | SPRING | GB | |
||
| 129 | 1003529-00 | 1 | GASKET | GB | |
||
| 130 | 1004075-01 | 2 | BRUSHBOX SA | GB | |
||
| 800 | 870889-02 | 1 | GREASE | 20 GMs | GB | |
