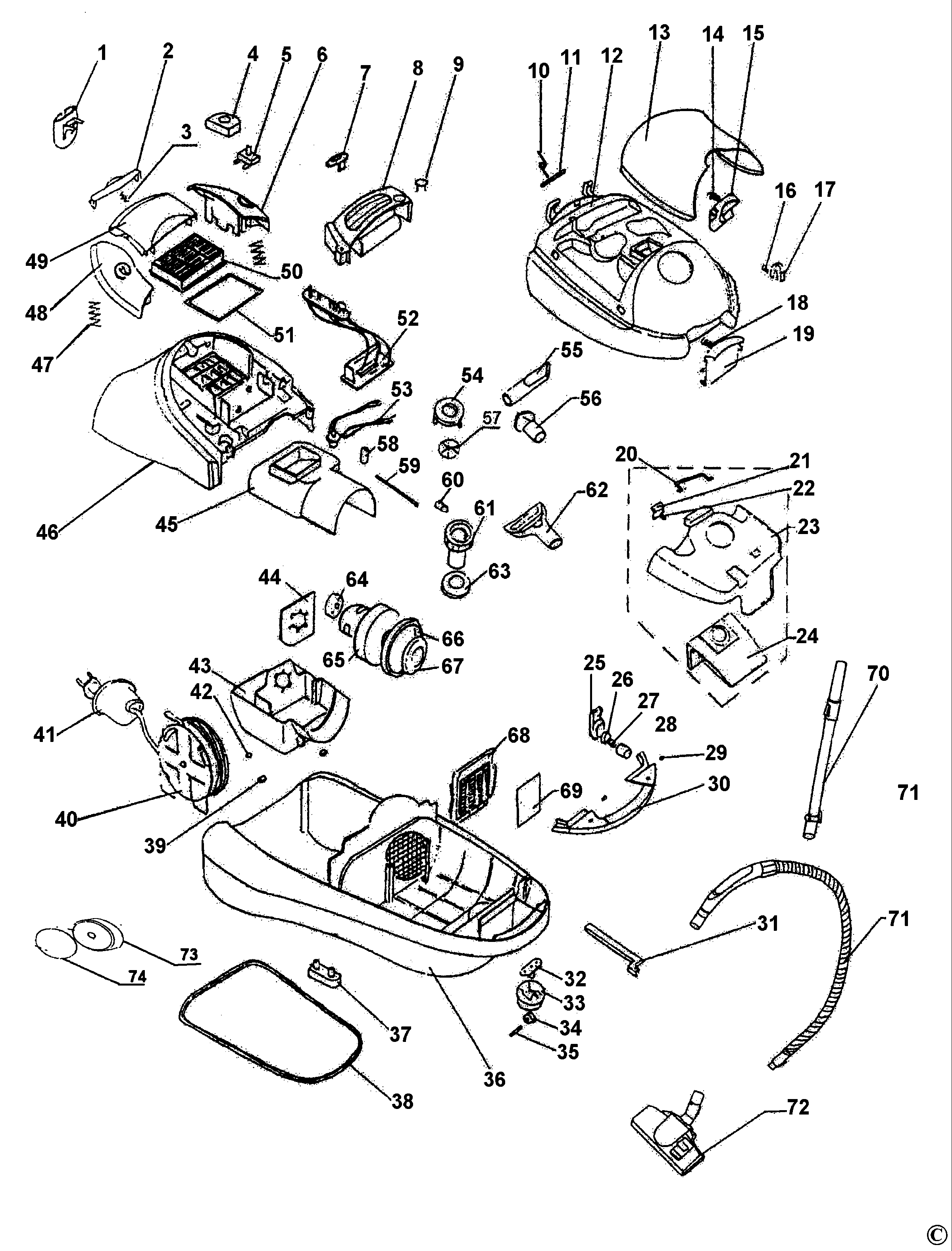

VM650 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010097-01 | 1 | HOLDER | HOOK HOLDER | VM650-1 | XJ | |
| 2 | 6010097-02 | 1 | PLATE | VM650-2 | XJ | ||
| 3 | 6010097-03 | 1 | SPRING | VM650-3 | XJ | ||
| 4 | 6010097-04 | 1 | SWITCHBOX | VM650-4 | XJ | ||
| 5 | 6010000-12 | 1 | SWITCH | VM2012 | XJ |  |
|
| 6 | 6010097-06 | 1 | SWITCH COVER | VM650-6 | XJ | ||
| 7 | 6010097-07 | 1 | KNOB | REGULATOR KNOB | VM650-7 | XJ | |
| 8 | 6010097-08 | 1 | PANEL | VM650-8 | XJ | ||
| 9 | 6010097-09 | 1 | COVER | LIGHT COVER | VM800-2 | XJ | |
| 10 | 6010097-10 | 1 | SPRING | ACCESSORY COVER SPRI | VM650-10 | XJ | |
| 11 | 6010097-11 | 1 | COVER | ACCESSORY COVER SHAF | VM650-11 | XJ | |
| 12 | 6010097-12 | 1 | COVER | FRONT | VM650-12 | XJ | |
| 13 | 6010097-13 | 1 | COVER | VM650-13 | XJ | ||
| 14 | 6010097-14 | 1 | SPRING | ACCESSORY COVER LOCK | VM650-14 | XJ | |
| 15 | 6010097-15 | 1 | LOCK | VM650-15 | XJ | ||
| 16 | 6010097-16 | 1 | SPRING | SECURE SPRING | VM650-16 | XJ | |
| 17 | 6010097-17 | 1 | PLATE | SECURE PLATE | VM650-17 | XJ | |
| 18 | 6010097-18 | 1 | SPRING | VM650-18 | XJ | ||
| 19 | 6010097-19 | 1 | PLATE | VM650-19 | XJ | ||
| 20 | 6010097-20 | 1 | HANDLE | VM650-20 | XJ | ||
| 21 | 6010097-21 | 1 | PLATE | FRONT COVER LOCK PLA | VM650-21 | XJ | |
| 22 | 6010097-22 | 1 | SPRING | DUST BAG STAND LOCK | VM650-22 | XJ | |
| 23 | 6010097-23 | 1 | STAND | VM650-23 | XJ | ||
| 24 | 6010094-64 | 1 | DUST BAG SA | CLOTH DUST BAG | VM700-64 | XJ | |
| 25 | 6010097-25 | 1 | COVER | SAFETY VALVE COVER | VM650-25 | XJ | |
| 26 | 6010097-26 | 1 | HOLDER | SAFETY VALVE CORE | VM650-26 | XJ | |
| 27 | 6010097-27 | 1 | SPRING | SAFETY VALVE SPRING | VM650-27 | XJ | |
| 28 | 6010097-28 | 1 | PIN | SAFETY VALVE BAR | VM650-28 | XJ | |
| 29 | 6010097-29 | 1 | COVER | SCREW COVER | VM650-29 | XJ | |
| 30 | 6010097-30 | 1 | COVER | HANDEL COVER | VM650-30 | XJ | |
| 31 | 6010097-31 | 1 | PLATE | BOTTOM FIXING PLATE | VM650-31 | XJ | |
| 32 | 6010097-32 | 1 | WHEEL SUPPORT | UNIVERAL WHEEL SUPPO | VM800-44 | XJ | |
| 33 | 6010097-33 | 1 | WHEEL | UNIVERAL WHEEL | VM800-45 | XJ | |
| 34 | 6010097-34 | 1 | WHEEL | SMALL WHEEL | VM800-46 | XJ | |
| 35 | 6010097-35 | 1 | SHAFT | SMALL WHEEL SHAFT | VM800-47 | XJ | |
| 36 | 6010097-36 | 1 | BASE | VM650-36 | XJ | ||
| 37 | 6010097-37 | 1 | HOLDER | VM800-49 | XJ | ||
| 38 | 6010097-38 | 1 | SEAL | SEAL BAR | VM650-38 | XJ | |
| 39 | 6010097-39 | 1 | DAMPER | SQUARE CUSHION | VM650-39 | XJ | |
| 40 | 6010097-40 | 1 | RETURN DEVICE ASSEMBLY | 230V | VM650-40 | XJ | |
| 41 | 6010097-41 | 1 | WINDOW | CORD OUTLET WINDOW | VM650-41 | XJ | |
| 42 | 6010097-42 | 1 | DAMPER | ROUND CUSHION | VM650-42 | XJ | |
| 43 | 6010097-43 | 1 | COVER | VM650-43 | XJ | ||
| 44 | 6010097-44 | 1 | MOUNT | MOTOR INSERT BOARD | VM650-44 | XJ | |
| 45 | 6010097-45 | 1 | COVER | ); | VM650-45 | XJ | |
| 46 | 6010097-46 | 1 | COVER REAR | VM650-46 | XJ | ||
| 47 | 6010097-47 | 1 | SPRING | CORD REWINDER PLATE | VM650-47 | XJ | |
| 48 | 6010097-48 | 1 | PLATE | VM650-48 | XJ | ||
| 49 | 6010097-49 | 1 | COVER | VM650-49 | XJ | ||
| 50 | 6010097-50 | 1 | FILTER | HEPA | VM650-50 | XJ | |
| 51 | 6010097-51 | 1 | SEAL | VM650-51 | XJ | ||
| 52 | 6010097-52 | 1 | PCB 230V | VM650-52 | XJ | |
|
| 53 | 6010097-53 | 1 | SENSOR | VM650-53 | XJ | ||
| 54 | 6010097-54 | 1 | RING | SUCTION RING | VM650-54 | XJ | |
| 55 | 6010000-33 | 1 | NOZZLE | CREVICE | VM2033 | XJ | |
| 56 | 6010094-13 | 1 | NOZZLE | VM700-13 | XJ | ||
| 57 | 6010097-57 | 1 | SUPPORT | SUCTION SUPPORT | VM650-57 | XJ | |
| 58 | 6010097-58 | 1 | SLEEVE | RUBBER JACKET 1 | VM650-58 | XJ | |
| 59 | 6010097-59 | 1 | TUBE | CAPILLARY | VM650-59 | XJ | |
| 60 | 6010097-60 | 1 | SLEEVE | RUBBER JACKET 2 | VM650-60 | XJ | |
| 61 | 6010097-61 | 1 | SOCKET | SUCTION SOCKET | VM650-61 | XJ | |
| 62 | 6010095-20 | 1 | BRUSH | SMALL | VM400/20 | XJ | |
| 63 | 6010097-63 | 1 | SEAL | RUBBER DUST RETAINER | VM800-30 | XJ | |
| 64 | 6010097-64 | 1 | SOCKET | VM650-64 | XJ | ||
| 65 | 6010097-65 | 1 | MOTOR 230V | VM800-70 | XJ | |
|
| 66 | 6010097-66 | 1 | SEAL | MOTOR SEAL RING | VM800-71 | XJ | |
| 67 | 6010097-67 | 1 | SEAL | VM800-72 | XJ | ||
| 68 | 6010097-68 | 1 | STAND | AIR INLET STAND | VM650-68 | XJ | |
| 69 | 6010097-69 | 1 | FILTER | VM650-69 | XJ | ||
| 70 | 6010095-25 | 1 | TUBE SA | VM400/25 | XJ | ||
| 71 | 6010097-71 | 1 | HOSE SA | VM650-71 | XJ | ||
| 72 | 6010097-72 | 1 | BRUSH | VM650-72 | XJ | ||
| 73 | 6010097-73 | 1 | WHEEL | BIG WHEEL | VM650-73 | XJ | |
| 74 | 6010097-74 | 1 | PLATE | WHEEL PLATE | VM650-74 | XJ |
