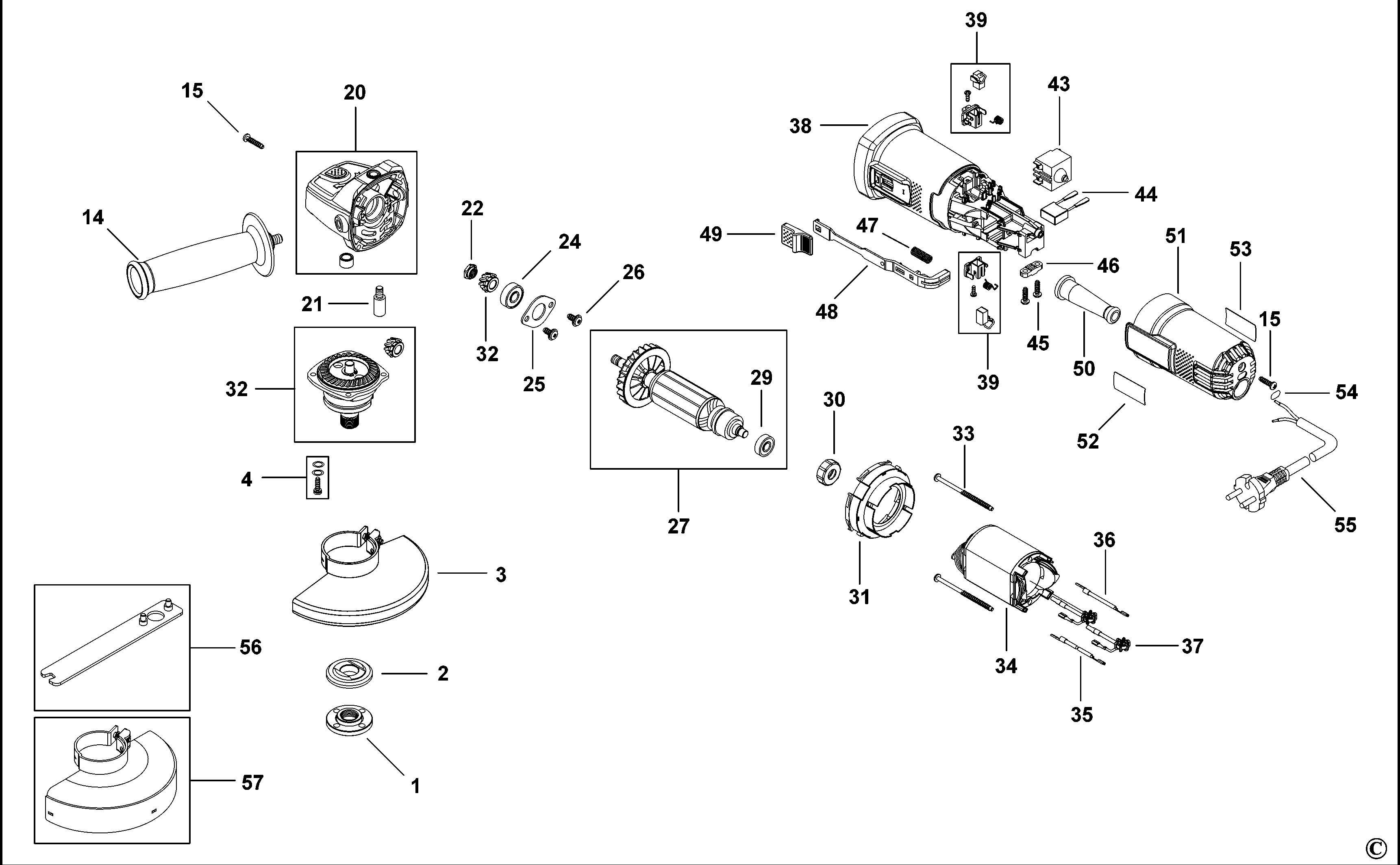

KG752 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 569198-00 | 1 | OUTER FLANGE | GB |  |
||
| 1 | N620480 | 1 | WASHER | GB | |
||
| 2 | 569200-00 | 1 | INNER FLANGE | GB | |
||
| 3 | 1004702-18 | 1 | GUARD | Type 27 | GB | |
|
| 3 | E60450003079 | 1 | SCREW | M5x6 | GB |  |
|
| 4 | 1004525-06 | 4 | SCREW | GB | |
||
| 4 | 153621-00 | 1 | HANDLE | GB | |
||
| 5 | AGS450-39 | 1 | O RING | GB | |||
| 6 | E604600010-B23 | 1 | CABLE | Brake | GB | |
|
| 7 | E604500050-124 | 1 | PIN | GB | |
||
| 8 | 1004717-92 | 1 | SLEEVE | GB | |
||
| 9 | 4341310 | 1 | PIPE SA | GB | |
||
| 10 | 1004743-75 | 1 | COVER-TOP | GB | |
||
| 11 | AW435-20 | 1 | BEARING,BALL | GB | |
||
| 13 | 1004743-77 | 1 | SUPPORT | GB | |
||
| 14 | 1004525-17 | 1 | SIDE HANDLE | GB | |
||
| 15 | 569209-00 | 5 | SCREW | GB | |
||
| 15 | E60450003088 | 1 | WASHER SPRING | GB | |
||
| 16 | E604600010-A | 1 | MOTOR SA | GB | |
||
| 18 | ADG210-20 | 1 | BEARING,BALL | GB | |
||
| 19 | 4381230 | 1 | FOOT | GB | |
||
| 20 | 1004702-29 | 1 | GEARCASE SA | GB | |
||
| 20 | E604600030-E6 | 1 | Muffler | GB | |
||
| 21 | 1004525-23 | 1 | SCREW | GB | |
||
| 21 | E604600010-D37 | 1 | MOUNTING BRACKET | GB | |
||
| 22 | 569175-00 | 1 | NUT | GB | |
||
| 23 | 1004718-10 | 1 | JOINT | GB | |
||
| 24 | 569167-00 | 1 | BEARING | GB | |
||
| 24 | E60450003057 | 1 | BOLT | M8x16 | GB | |
|
| 25 | 569168-00 | 1 | COVERPLATE | GB | |
||
| 25 | E60450003091 | 1 | WASHER | 8; | GB | |
|
| 26 | 569170-00 | 2 | SCREW | GB | |
||
| 27 | 1004525-26 | 1 | ARMATURE SA | GB | |
||
| 27 | E604600030-B8 | 1 | COVER | Handle Cover | GB | |
|
| 29 | 1004525-27 | 1 | BEARING | 607 | GB | |
|
| 29 | E60450003094 | 1 | BOLT | M8x35 | GB | |
|
| 30 | 1004525-28 | 1 | BEARING HOLDER | GB | |
||
| 30 | E604600030-D39 | 1 | COVER | GB | |
||
| 31 | 1004525-29 | 1 | BAFFLE FAN | GB | |
||
| 31 | E60450003096 | 1 | BOLT | M8x20 | GB | |
|
| 32 | 1004702-30 | 1 | SPINDLE SA | GB | |
||
| 32 | E604600030-D14 | 1 | PLATE | GB | |
||
| 33 | 1004525-32 | 2 | SCREW | GB | |
||
| 34 | 1004525-33 | 1 | FIELD | GB | |
||
| 34 | N493856 | 1 | WASHER FELT | GB | |
||
| 35 | 1004525-34 | 1 | LEADWIRE | GB | |
||
| 35 | E604600030-D21 | 1 | AXLE | GB | |
||
| 36 | 1004525-35 | 1 | LEADWIRE | GB | |
||
| 36 | E60450003098 | 1 | SPRING | GB | |
||
| 37 | 1004525-36 | 2 | CHOKE | GB | |
||
| 38 | 1004519-16 | 1 | HOUSING | GB | |
||
| 38 | E604500030103 | 1 | PIN | A6x35 | GB | |
|
| 39 | 1004702-31 | 1 | BRUSH & HOLDER SA | PAIR | GB | |
|
| 39 | 4381110 | 1 | GUARD | GB | |
||
| 41 | 4381110 | 1 | GUARD | GB | |
||
| 42 | E604600030-B27 | 1 | LEVER | GB | |
||
| 43 | 1004734-89 | 1 | SWITCH | GB | |
||
| 44 | 1004525-43 | 1 | CAPACITOR | GB | |
||
| 45 | 596430-00 | 2 | SCREW | GB | |
||
| 45 | E604600010-B22 | 1 | HOOK | GB | |
||
| 46 | 569195-00 | 1 | CABLE CLAMP | GB | |
||
| 47 | 1004525-45 | 1 | SPRING | GB | |
||
| 48 | 1004525-46 | 1 | LINKAGE SA | GB | |
||
| 49 | 1004519-21 | 1 | ACTUATOR | GB | |
||
| 50 | 1004525-48 | 1 | CORD PROTECTOR | GB | |
||
| 51 | 1004525-49 | 1 | COVER | GB | |
||
| 52 | 1004702-32 | 1 | BRAND LABEL | GB | |
||
| 53 | 1004702-33 | 1 | RATING LABEL | GB | |
||
| 54 | 1004519-30 | 1 | LABEL | GB | |
||
| 55 | 1004702-34 | 1 | CORDSET | GB | |
||
| 56 | 569197-00 | 1 | SPANNER | GB | |
||
| 57 | 1004702-28 | 1 | GUARD | Type1 | GB | |
