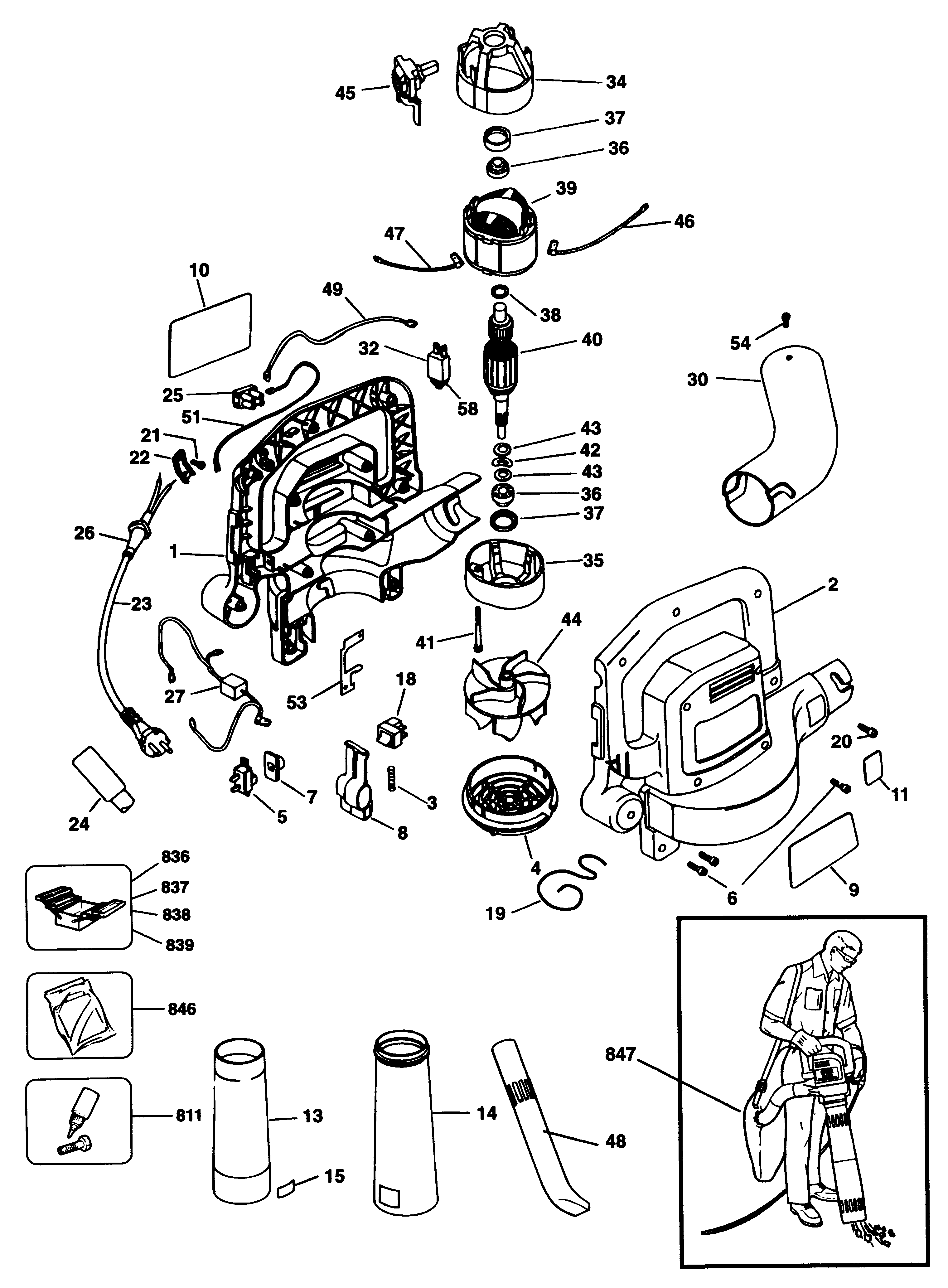

GW150 BLOWER VAC Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 287949-00 | 1 | KIT SA | GB |  |
||
| 2 | 287949-00 | 1 | KIT SA | GB | |
||
| 3 | 152297-00 | 1 | SPRING | GB | |
||
| 4 | 150723-02 | 1 | INLET CAP | GB | |
||
| 5 | 150244-01 | 1 | SWITCH | GB | |
||
| 6 | 330019-13 | 11 | SCREW | M4X19 T20 | GB |  |
|
| 7 | 144575-01 | 1 | ACTUATOR | GB | |
||
| 8 | 152299-00 | 1 | ACTUATOR | GB | |
||
| 10 | 798602-00 | 1 | IDENTITY LABEL | GB | |
||
| 11 | 798583-00 | 1 | LABEL | GB | |
||
| 13 | 381993-00 | 1 | TUBE | GB | |
||
| 15 | 798582-00 | 1 | WARNING LABEL | GB | |
||
| 18 | 152471-00 | 1 | SWITCH | GB | |
||
| 19 | 151616-01 | 1 | CORD | GB | |
||
| 20 | 330019-01 | 2 | SCREW.TEMP | M3.63 x 9.5mm T15 | GB | |
|
| 21 | 330019-02 | 2 | SCREW | GB | |
||
| 22 | 450877-00 | 1 | CORD CLAMP | GB | |
||
| 23 | 330048-52 | 1 | CORDSET (SPLASH) | GB | |
||
| 24 | 844840-00 | 1 | SOCKET SA | GB | |||
| 25 | 320078-00 | 1 | TERMINAL BLOCK | GB | |
||
| 27 | 152855-00 | 1 | LEAD | GB | |
||
| 30 | 149609-00 | 1 | ADAPTOR TUBE | GB | |
||
| 34 | 147651-01 | 1 | SUPPORT BEARING | GB | |
||
| 35 | 147652-00 | 1 | SUPPORT BEARING | GB | |
||
| 36 | 147188-01 | 2 | BEARING | GB | |
||
| 37 | 147088-00 | 2 | SLEEVE | GB | |
||
| 38 | 87212-00 | 1 | WASHER FIBRE | GB | |
||
| 39 | 144795-03 | 1 | FIELD | GB | |
||
| 40 | 152893-00 | 1 | ARMATURE | GB | |
||
| 41 | 330019-19 | 2 | SCREW | GB | |
||
| 42 | 54831-00 | 1 | WASHER | GB | |
||
| 43 | 144758-00 | 2 | WASHER | GB | |
||
| 44 | 464273-02 | 1 | FAN. BALANCED | GB | |
||
| 45 | 145377-07 | 2 | BRUSH HOLDER SA | GB | |
||
| 47 | 148952-00 | 1 | LEAD BLACK | GB | |
||
| 48 | 149125-00 | 1 | TUBE.EXHAUST | GB | |
||
| 49 | 150292-00 | 1 | LEAD SA WHITE | GB | |
||
| 51 | 150655-00 | 1 | LEAD SA BLACK | GB | |
||
| 53 | 152280-00 | 1 | GASKET | GB | |
||
| 54 | 330019-01 | 2 | SCREW.TEMP | M3.63 x 9.5mm T15 | GB | |
|
| 811 | 284405-00 | 1 | LOCTITE 5145 | GB | |
||
| 836 | 559576-99 | 1 | S.T.SUPPORT JIG | GB | |
||
| 837 | 559577-99 | 1 | SERVICE TOOL | GB | |
||
| 838 | 559578-99 | 1 | S.T.GAP GAUGE | GB | |
||
| 839 | 559579-99 | 1 | SERVICE TOOL | GB | |
||
| 847 | 610004-01 | 1 | BAG SA | GB | |
