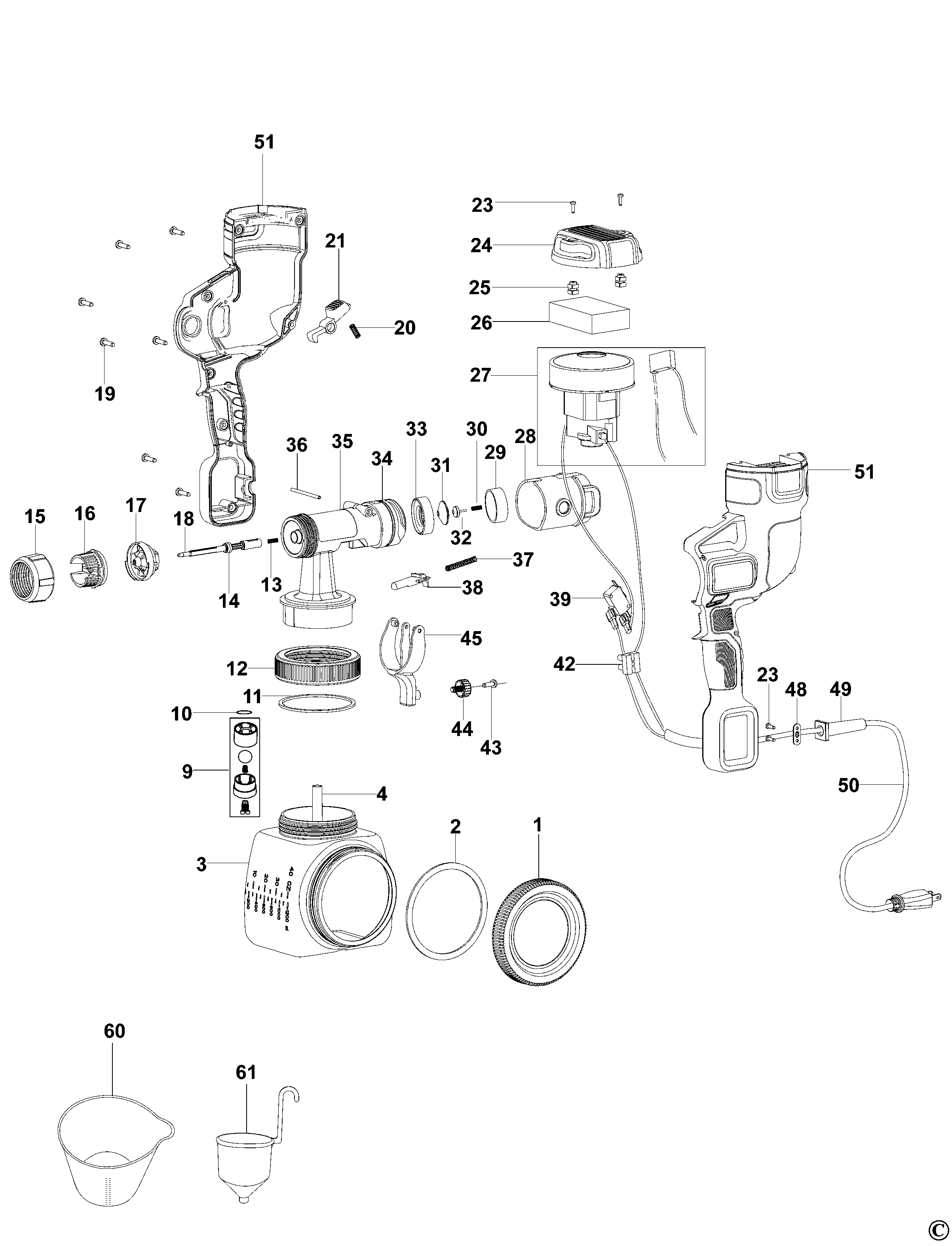

HVLP200 SPRAY GUN Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004570-02 | 1 | COVER | GB |  |
||
| 2 | 1004570-01 | 1 | SEAL | GB | |
||
| 3 | 1004570-00 | 1 | CANISTER | GB | |
||
| 4 | 1004570-61 | 1 | TUBE | GB | |
||
| 9 | 1004571-27 | 1 | VALVE | GB | |
||
| 10 | 1004570-67 | 1 | O RING | GB |  |
||
| 11 | 1004570-25 | 1 | O RING | GB | |
||
| 12 | 1004570-24 | 1 | LID | GB | |
||
| 13 | 1004570-68 | 1 | SPRING | GB | |
||
| 14 | 1004570-69 | 2 | O RING | GB | |
||
| 15 | 1004570-70 | 1 | LOCK SCREW | GB | |
||
| 16 | 1004570-71 | 1 | TIP | GB | |
||
| 17 | 1004570-72 | 1 | NOZZLE | GB | |
||
| 18 | 1004696-75 | 1 | NEEDLE | GB | |
||
| 19 | 1004570-17 | 7 | SCREW | 4x16 | GB | |
|
| 20 | 1004570-73 | 1 | SPRING | GB | |
||
| 21 | 1004570-74 | 1 | BUTTON | GB | |
||
| 23 | 1004570-33 | 4 | SCREW | 3x14 | GB | |
|
| 24 | 1004570-75 | 1 | COVER | GB | |
||
| 25 | 1004570-76 | 2 | SCREW | GB | |
||
| 26 | 1004570-77 | 1 | FILTER | GB | |
||
| 27 | 1004571-28 | 1 | MOTOR SA | GB | |
||
| 28 | 1004570-79 | 1 | COUPLER (SPLASH) | GB | |
||
| 29 | 1004570-80 | 1 | BASE | GB | |
||
| 30 | 1004570-81 | 1 | SPRING | GB | |
||
| 31 | 1004570-83 | 1 | RUBBER | GB | |
||
| 32 | 1004570-82 | 1 | TIP | GB | |
||
| 33 | 1004570-84 | 1 | CAP | GB | |
||
| 34 | 1004570-85 | 1 | O RING | GB | |
||
| 35 | 1004570-86 | 1 | HOUSING | GB | |
||
| 36 | 1004570-87 | 1 | PIN | ø3 | GB | |
|
| 37 | 1004570-88 | 1 | SPRING | GB | |
||
| 38 | 1004570-89 | 1 | SHAFT | GB | |
||
| 39 | 1004570-90 | 1 | SWITCH | GB | |
||
| 42 | 1004570-91 | 1 | TERMINAL BLOCK | GB | |
||
| 43 | 1004570-92 | 1 | SCREW | 3x12 | GB | |
|
| 44 | 1004570-93 | 1 | KNOB | GB | |
||
| 45 | 1004570-94 | 1 | TRIGGER | GB | |
||
| 48 | 1004570-96 | 1 | CLAMP | GB | |
||
| 49 | 1004570-03 | 1 | SLEEVE | GB | |
||
| 50 | 1004594-46 | 1 | CORDSET | GB | |
||
| 51 | 1004570-98 | 1 | CLAMSHELL | GB | |
||
| 60 | 1004571-21 | 1 | CONTAINER | GB | |
||
| 61 | 1004571-22 | 1 | CUP | GB | |
