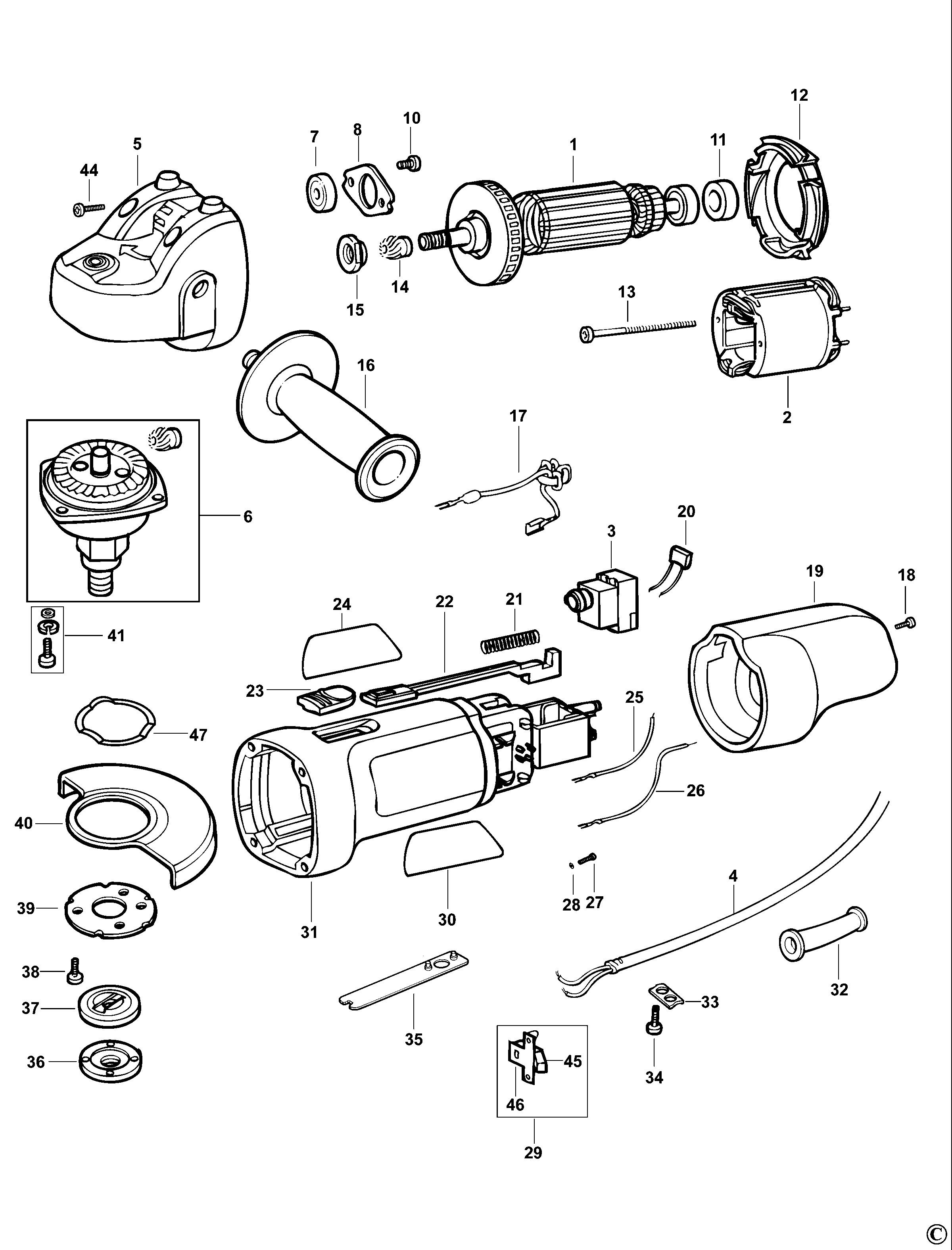

AST6 SMALL ANGLE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 569157-00 | 1 | ARMATURE SA | GB |  |
||
| 2 | 569158-00 | 1 | FIELD SA | GB | |
||
| 3 | 569159-00 | 1 | SWITCH SA | GB |  |
||
| 4 | 569160-00 | 1 | CORDSET | GB | |
||
| 5 | 569164-00 | 1 | GEARCASE SA | GB | |
||
| 6 | 569165-00 | 1 | SPINDLE SA | GB | |
||
| 7 | 569167-00 | 1 | BEARING | GB | |
||
| 8 | 569168-00 | 1 | COVERPLATE | GB | |
||
| 10 | 569170-00 | 2 | SCREW | GB | |
||
| 11 | 569171-00 | 1 | COVER BEARING | GB | |
||
| 12 | 569172-00 | 1 | BAFFLE | GB | |
||
| 13 | 569173-00 | 2 | SCREW | GB | |
||
| 14 | 569174-00 | 1 | PINION | GB | |
||
| 15 | 569175-00 | 1 | NUT | GB | |
||
| 16 | 569176-00 | 1 | HANDLE SA | GB | |
||
| 17 | 569177-00 | 2 | LEAD SA | GB | |
||
| 18 | 569178-00 | 1 | SCREW | GB | |
||
| 19 | 569179-00 | 1 | COVER | GB | |
||
| 20 | 569180-00 | 1 | CAPACITOR | GB | |
||
| 21 | 569181-00 | 1 | SPRING | GB | |
||
| 22 | 569182-00 | 1 | ROD | GB | |
||
| 23 | 569183-00 | 1 | KNOB | GB | |
||
| 24 | 569184-00 | 1 | LABEL | GB | |
||
| 25 | 569186-00 | 1 | LEAD 90MM | GB | |
||
| 26 | 569187-00 | 1 | LEAD 120MM BLACK | GB | |
||
| 27 | 569188-00 | 4 | SCREW | GB | |
||
| 28 | 569189-00 | 4 | WASHER | GB | |
||
| 29 | 569190-00 | 2 | BRUSHBOX SA | GB | |
||
| 30 | 569191-00 | 1 | LABEL | GB | |
||
| 31 | 569193-00 | 1 | FIELDCASE | GB | |
||
| 32 | 569194-00 | 1 | PROTECTOR | GB | |
||
| 33 | 569195-00 | 1 | CABLE CLAMP | GB | |
||
| 34 | 569196-00 | 2 | SCREW | GB | |
||
| 35 | 569197-00 | 1 | SPANNER | GB | |
||
| 36 | 569198-00 | 1 | OUTER FLANGE | GB | |
||
| 37 | 569200-00 | 1 | INNER FLANGE | GB | |
||
| 38 | 569202-00 | 3 | SCREW | GB | |
||
| 39 | 569203-00 | 1 | FLANGE | GB | |
||
| 40 | 569204-00 | 1 | GUARD | GB | |
||
| 41 | 569206-00 | 4 | SCREW | GB | |
||
| 44 | 569209-00 | 4 | SCREW | GB | |
||
| 45 | 596071-00 | 2 | BRUSH 230V | GB | |
||
| 46 | 596072-00 | 2 | BRUSHBOX | GB | |
||
