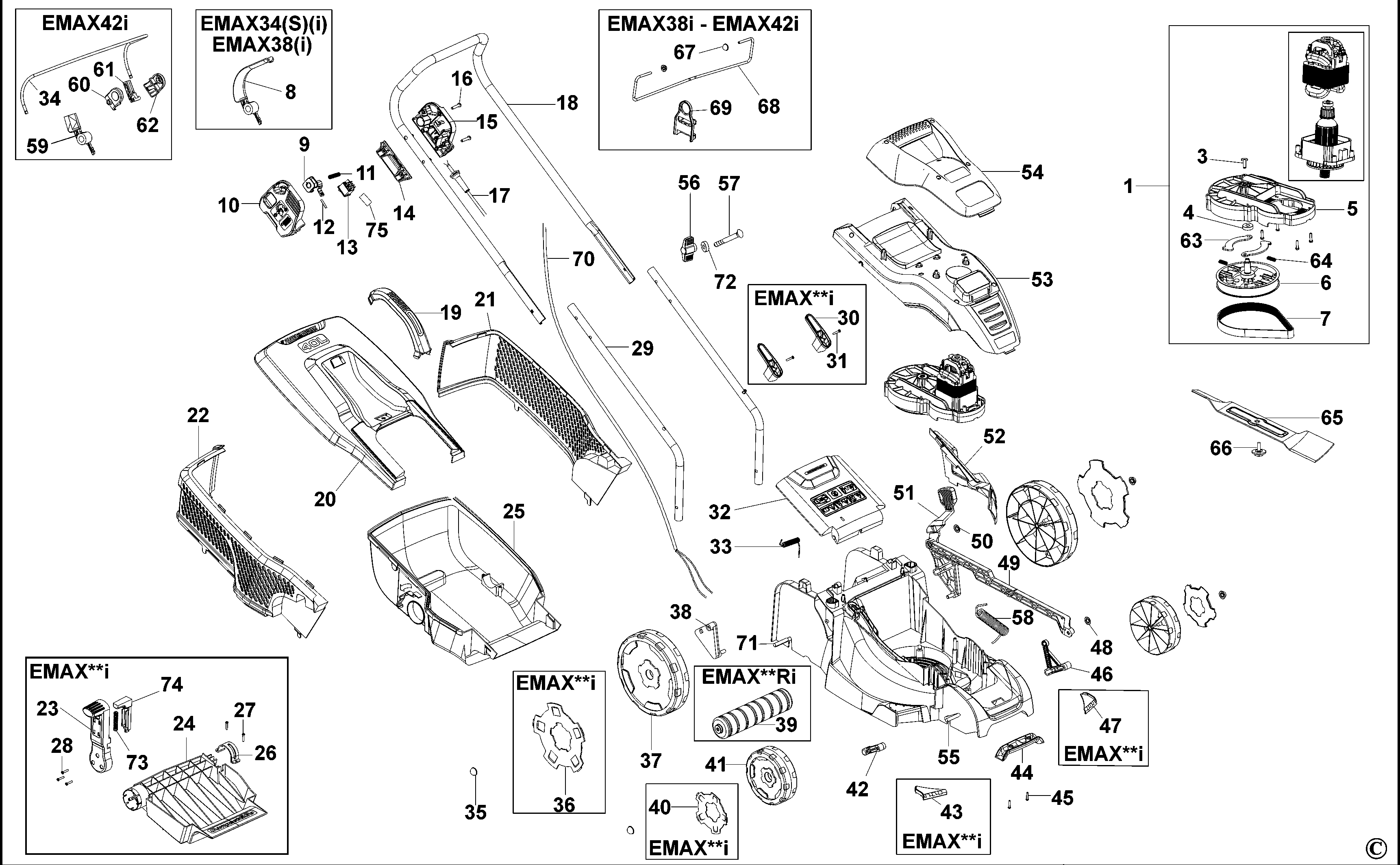

EMAX38 ROTARY MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90635929 | 1 | TRANSMISSION SA | GB |  |
||
| 3 | 90579523 | 1 | BOLT | GB |  |
||
| 4 | 330003-58 | 1 | BEARING | GB | |
||
| 5 | 90560309 | 1 | BRACKET | GB | |
||
| 6 | 90560305 | 1 | PULLEY | GB | |||
| 7 | 90560308 | 1 | BELT | GB | |
||
| 8 | N510979 | 1 | SWITCHBOX & CABLE | GB | |
||
| 9 | N510979 | 1 | SWITCHBOX & CABLE | GB | |
||
| 10 | N510979 | 1 | SWITCHBOX & CABLE | GB | |
||
| 11 | 90570092 | 1 | SPRING | GB | |
||
| 12 | 90565052-01 | 1 | SPRING | GB | |
||
| 13 | 90562582 | 1 | SWITCH | GB | |
||
| 14 | 90563921-01 | 1 | BRACKET | GB | |
||
| 15 | N510979 | 1 | SWITCHBOX & CABLE | GB | |
||
| 17 | 90580223-02 | 1 | CORDSET | GB | |
||
| 18 | 90569080 | 1 | HANDLE UPPER | GB | |
||
| 19 | 90567333 | 1 | HANDLE | GB | |
||
| 20 | 90562894-01 | 1 | COVER | GB | |
||
| 21 | 90566705 | 1 | GRASSBOX LEFT | GB | |
||
| 22 | 90566706 | 1 | GRASSBOX RIGHT | GB | |
||
| 23 | 90566450 | 1 | PEDAL | GB | |
||
| 24 | 90569043 | 1 | TRAY | GB | |
||
| 25 | 90568884-01 | 1 | GRASSBOX | GB | |
||
| 26 | 90567440 | 1 | CLAMP | GB | |
||
| 27 | 747329 | 2 | SCREW | GB | |
||
| 28 | 747329 | 3 | SCREW | GB | |
||
| 29 | 90568475-01 | 2 | HANDLE | GB | |
||
| 30 | 90571019 | 2 | CLIP CABLE | GB | |
||
| 31 | 90580712 | 2 | SCREW | GB | |
||
| 32 | 90566704 | 1 | GRASSFLAP | GB | |
||
| 33 | 90571059 | 1 | SPRING | GB | |
||
| 35 | 90574276 | 4 | WASHER LOCK | GB | |
||
| 36 | 90567334 | 1 | COVER | GB | |
||
| 37 | 90560300 | 2 | WHEEL | GB | |
||
| 38 | 90561676 | 1 | BRACKET | GB | |
||
| 39 | 90565682 | 1 | ROLLER | Emax38Ri | GB | |
|
| 40 | 90567335 | 2 | COVER | GB | |
||
| 41 | 90560001 | 2 | WHEEL | GB | |
||
| 42 | 90561653 | 1 | BRACKET | GB | |
||
| 43 | 90569292 | 1 | CAP | GB | |
||
| 44 | 90567331 | 1 | HANDLE | GB | |
||
| 45 | 747329 | 2 | SCREW | GB | |
||
| 46 | 90561677 | 1 | BRACKET | GB | |
||
| 47 | 90569293 | 1 | CAP | GB | |
||
| 48 | 90579431 | 1 | WASHER LOCK | GB | |
||
| 49 | 90562575 | 1 | LEVER | GB | |
||
| 50 | 90579432 | 1 | WASHER LOCK | GB | |
||
| 51 | 90567592-02 | 1 | LEVER | GB | |
||
| 52 | 90566707 | 1 | COVER | GB | |
||
| 53 | 90563023 | 1 | COVER HOUSING | GB | |
||
| 54 | 90563022 | 1 | HOUSING UPPER | GB | |
||
| 55 | 90561651 | 1 | AXLE FRONT | GB | |
||
| 56 | 90570279-01 | 2 | WING NUT | GB | |
||
| 57 | 90570805 | 2 | BOLT | GB | |
||
| 58 | 90569681 | 1 | SPRING | GB | |
||
| 63 | 90561984 | 2 | PAD | GB | |
||
| 64 | 90571573 | 2 | SPRING | GB | |
||
| 65 | 90560645-01 | 1 | BLADE | 38cm | GB | |
|
| 66 | 90516533 | 1 | BOLT | GB | |
||
| 67 | 90574274 | 2 | WASHER LOCK | GB | |
||
| 68 | 90580512 | 1 | GUIDE | GB | |
||
| 69 | 90568882 | 1 | CLIP CABLE | GB | |
||
| 70 | 90573705 | 1 | CABLE | GB | |
||
| 71 | 90561605 | 1 | AXLE REAR | GB | |
||
| 72 | 490624-00 | 2 | WASHER | GB | |
||
| 73 | 90570095 | 1 | SPRING | GB | |
||
| 74 | 90567408 | 1 | LEVER | GB | |
||
| 75 | 90585848 | 1 | PAD | GB | |
