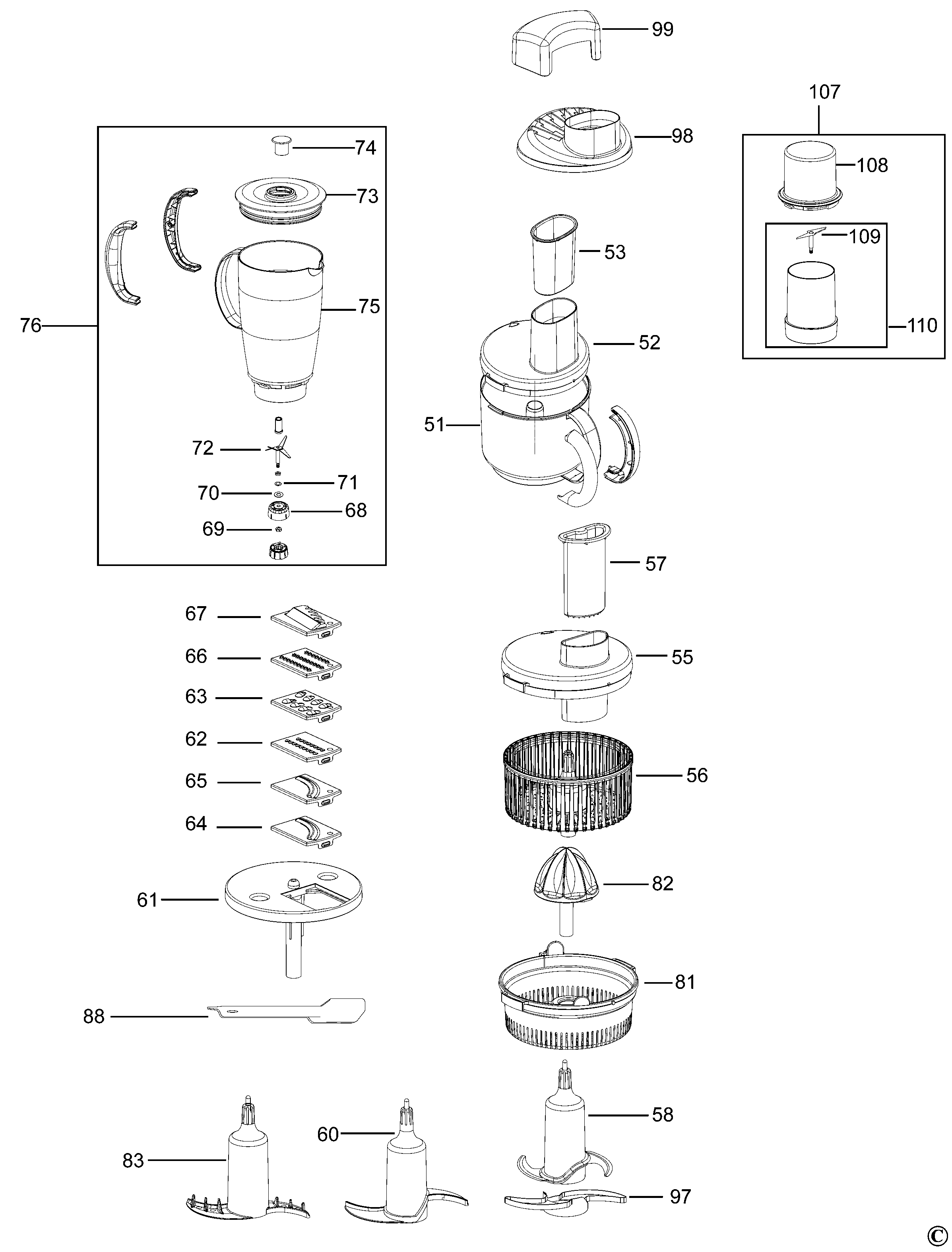

FX1000 FOOD PROCESSOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010251-00 | 1 | BODY | XJ |  |
||
| 2 | 6010251-01 | 1 | PANEL | XJ | |
||
| 3 | 6010029-03 | 2 | SCREW | XJ | |
||
| 4 | 6010029-04 | 1 | BUTTON | OPENING SAFETY LID | XJ | |
|
| 5 | 6010251-02 | 1 | KNOB SA | XJ | |
||
| 8 | 6010251-03 | 1 | PCB | XJ | |
||
| 9 | 6010029-09 | 1 | COVER | BOTTOMCOVER | XJ | |
|
| 12 | 6010029-12 | 1 | SPRING | XJ | |
||
| 13 | 6010029-13 | 1 | ACTUATOR | SWITCH | XJ | |
|
| 14 | 6010029-14 | 1 | SHAFT | XJ | |
||
| 15 | 6010029-15 | 1 | SCREW | XJ | |
||
| 16 | 6010251-04 | 1 | MICRO SWITCH | XJ | |
||
| 17 | 6010251-05 | 1 | HOLDER | XJ | |
||
| 18 | 6010251-06 | 1 | SCREW | XJ | |
||
| 20 | 6010251-07 | 1 | MOTOR SA | XJ | |
||
| 21 | 6010029-21 | 1 | ADAPTOR | OUTLET | XJ | |
|
| 22 | 6010029-22 | 1 | ADAPTOR | LOCKINGPART | XJ | |
|
| 23 | 6010029-23 | 1 | ADAPTOR | PROTECTOR PART | XJ | |
|
| 25 | 6010029-25 | 1 | WASHER | XJ | |
||
| 29 | 6010029-29 | 1 | PULLEY | BIGPULLEY | XJ | |
|
| 30 | 6010029-30 | 1 | WASHER | XJ | |
||
| 31 | 6010028-18 | 1 | SCREW | XJ | |
||
| 32 | 6010029-32 | 1 | SCREW.SPECIAL | SPECIAL SAFETY | XJ | |
|
| 33 | 6010028-88 | 1 | WASHER | XJ | |
||
| 34 | 6010028-92 | 1 | WASHER | XJ | |
||
| 35 | 6010251-08 | 1 | BELT | XJ | |
||
| 44 | 6010251-09 | 1 | CORDSET | XJ | |
||
| 46 | 6010029-46 | 1 | ADAPTOR | MOTOR MALE | XJ | |
|
| 47 | 6010251-10 | 1 | LID | XJ | |
||
| 48 | 6010028-78 | 1 | ACTUATOR | XJ | |
||
| 51 | 6010251-11 | 1 | BOWL | XJ | |
||
| 52 | 6010251-12 | 1 | LID | XJ | |
||
| 53 | 6010028-44 | 1 | FOOD PUSHER | XJ | |
||
| 55 | 6010251-13 | 1 | LID | XJ | |
||
| 56 | 6010029-56 | 1 | FILTER | JUICEEXTRACTOR | XJ | |
|
| 57 | 6010028-41 | 1 | FOOD PUSHER | XJ | |
||
| 58 | 6010029-58 | 1 | HOLDER | CHOPPINGBLADEHOLDER | XJ | |
|
| 60 | 6010029-60 | 1 | BLADE SA | DOUGHBLADE | XJ | |
|
| 61 | 6010029-61 | 1 | HOLDER | BLADEHOLDER | XJ | |
|
| 62 | 6010027-42 | 1 | DISC | SLICING DISC THIN | XJ | |
|
| 63 | 6010027-43 | 1 | DISC | SLICING DISC THICK | XJ | |
|
| 64 | 6010027-44 | 1 | DISC | SHREDDING DISC | XJ | |
|
| 65 | 6010029-65 | 1 | BLADE | SLICINGBLADETHIN | XJ | |
|
| 66 | 6010029-66 | 1 | BLADE | PARMESANBLADE | XJ | |
|
| 67 | 6010029-67 | 1 | BLADE | FRENCHFRIESBLADE | XJ | |
|
| 68 | 6010029-68 | 1 | ADAPTOR | BLENDER FEMALE | XJ | |
|
| 69 | 6010028-59 | 1 | NUT | XJ | |
||
| 70 | 6010029-70 | 1 | WASHER | XJ | |
||
| 71 | 6010028-25 | 1 | WASHER | XJ | |
||
| 72 | 6010251-14 | 1 | BLADE SA | XJ | |
||
| 73 | 6010029-73 | 1 | LID | BLENDER LID | XJ | |
|
| 74 | 6010251-15 | 1 | LID | XJ | |
||
| 75 | 6010251-16 | 1 | BOWL | XJ | |
||
| 76 | 6010251-17 | 1 | BOWL | XJ | |
||
| 79 | 6010029-79 | 1 | TUBE | HOISEDRAINAGE | XJ | |
|
| 81 | 6010029-81 | 1 | FILTER | CITRUS FILTER | XJ | |
|
| 82 | 6010029-82 | 1 | CONE | CITRUSREAMER | XJ | |
|
| 83 | 6010029-83 | 1 | ATTACHMENT | WHISKINGATTACHMENT | XJ | |
|
| 88 | 6010188-91 | 1 | SPATULA | XJ | |
||
| 89 | 6010029-89 | 1 | CABLE | INTERNAL | XJ | |
|
| 92 | 6010028-12 | 1 | HOOK | XJ | |
||
| 97 | 6010029-97 | 1 | PROTECTOR | BLADEPROTECTOR | XJ | |
|
| 98 | 6010029-98 | 1 | STAND | BLADESTAND | XJ | |
|
| 99 | 6010251-18 | 1 | LID | XJ | |
||
| 100 | 6010251-19 | 1 | SCREW | XJ | |
||
| 107 | 6010251-20 | 1 | ATTACHMENT | XJ | |
||
| 108 | 6010251-21 | 1 | COVER | XJ | |
||
| 109 | 6010029-39 | 1 | BLADE SA | COFFEEGRINDERBLADE | XJ | |
|
| 110 | 6010251-22 | 1 | ATTACHMENT | XJ | |
