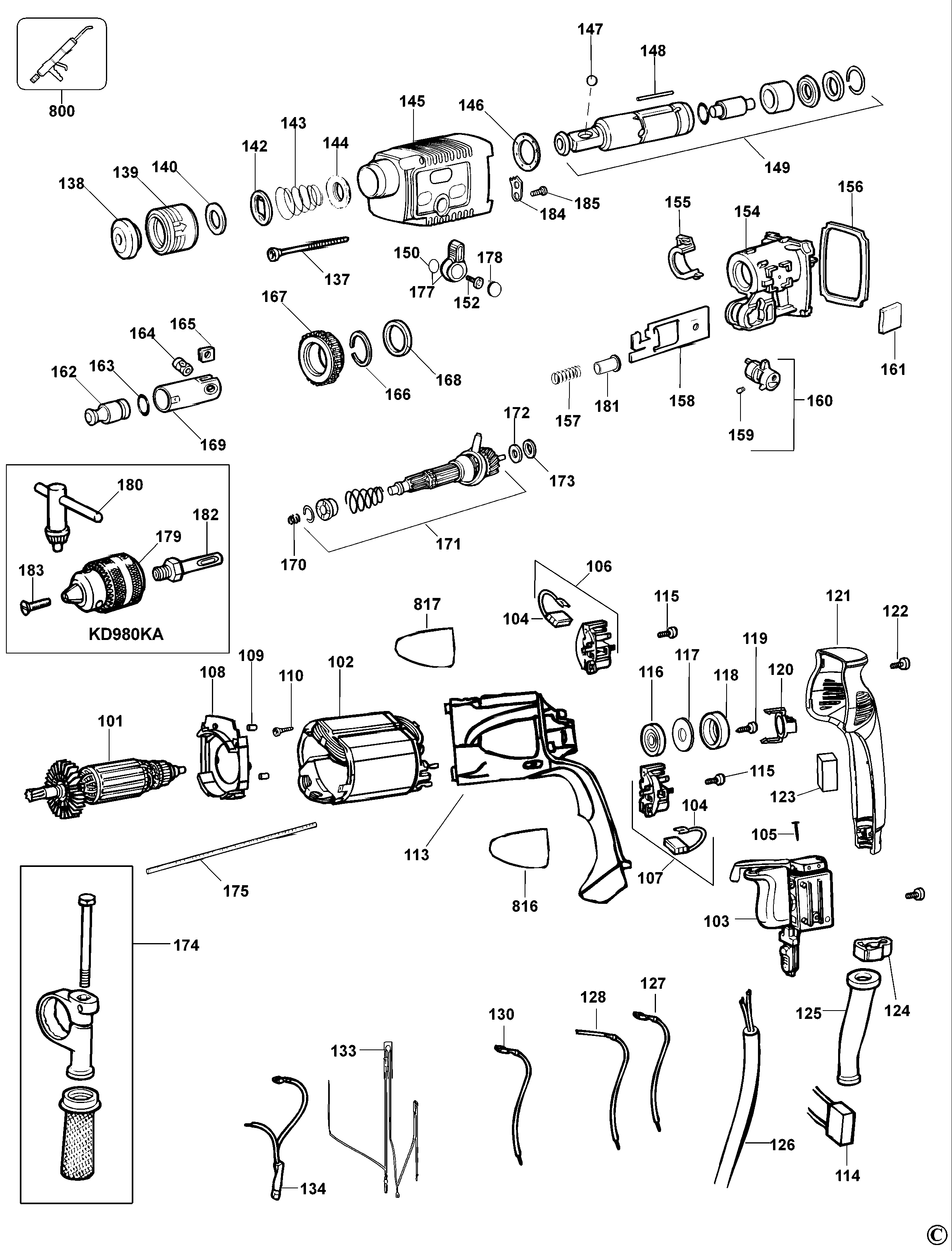

KD980K DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 590478-00 | 1 | ARMATURE SA | GB |  |
||
| 102 | 590479-00 | 1 | FIELD SA | GB | |
||
| 103 | 176830-15 | 1 | SWITCH | Tyco | GB | |
|
| 104 | 401853-01 | 2 | BRUSH 230V | GB |  |
||
| 105 | 402760-01 | 1 | PIN | GB | |
||
| 106 | 401845-00 | 1 | BRUSH HOLDER SA | GB | |
||
| 107 | 401845-04 | 1 | BRUSH HOLDER 240V | GB | |
||
| 108 | 327293-00 | 1 | BAFFLE FAN | GB | |
||
| 109 | 949638-01 | 2 | BUFFER | GB | |
||
| 110 | 747329 | 2 | SCREW | GB | |
||
| 113 | 588976-00 | 1 | HOUSING SA | GB | |
||
| 114 | 949877-01 | 1 | CAPACITOR | GB | |
||
| 115 | 330065-06 | 2 | SCREW | GB | |
||
| 116 | 330003-19 | 1 | BEARING | GB | |
||
| 117 | 949876-25 | 1 | WASHER | GB | |
||
| 118 | 870052 | 1 | SLEEVE | GB | |
||
| 119 | 329794-00 | 1 | SCREW | GB | |
||
| 120 | 327296-00 | 1 | CAP | GB | |
||
| 121 | 588977-00 | 1 | SWITCH COVER | GB | |
||
| 122 | 590440-00 | 3 | SCREW | GB | |
||
| 123 | 930026-01 | 1 | BUMPER | GB | |
||
| 124 | 402649-00 | 1 | CORD CLAMP | GB | |
||
| 125 | 588979-00 | 1 | CORD PROTECTOR | GB | |
||
| 126 | 589164-09 | 1 | CORDSET | GB | |
||
| 127 | 949801-86 | 1 | LEAD BLACK 90MM | GB | |
||
| 128 | 949801-85 | 1 | LEAD BLACK 90MM | GB | |
||
| 130 | 578984-00 | 1 | LEAD SA | GB | |
||
| 133 | 578985-00 | 1 | CHOKE SA | GB | |
||
| 134 | 945402-19 | 1 | CHOKE SA | GB | |
||
| 137 | 324044-02 | 4 | SCREW | GB | |
||
| 138 | 323489-00 | 1 | CAP | GB | |
||
| 139 | 576756-00 | 1 | COLLAR | GB | |
||
| 140 | 323480-00 | 1 | SPACER | GB | |
||
| 142 | 578387-00 | 1 | WASHER | GB | |
||
| 143 | 871690 | 1 | SPRING | GB | |
||
| 144 | 324432-00 | 1 | SEAL SA | GB | |
||
| 145 | 329968-01 | 1 | GEARCASE SA | GB | |
||
| 146 | 329907-00 | 1 | WASHER | GB | |
||
| 147 | 583890-00 | 1 | BALL | GB | |
||
| 148 | 325880-05 | 1 | PIN | GB | |
||
| 149 | 577080-01 | 1 | SPINDLE SA | GB | |
||
| 150 | 916323 | 1 | O RING | GB | |
||
| 152 | 323924-08 | 1 | SCREW | GB | |
||
| 154 | 327100-00 | 1 | CASTING SA | GB | |
||
| 155 | 328507-00 | 1 | SHIELD | GB | |
||
| 156 | 323572-00 | 1 | SEAL | GB | |
||
| 157 | 323395-17 | 1 | SPRING | GB | |
||
| 158 | 327081-01 | 1 | PLATE | GB | |
||
| 159 | N403227 | 1 | DETENT | GB | |
||
| 160 | 327094-01 | 1 | CAM | GB | |
||
| 161 | 327093-00 | 1 | FILTER | GB | |
||
| 162 | N032136 | 1 | RAM SA | GB | |
||
| 163 | 577168-00 | 1 | O RING | GB | |
||
| 164 | 487143-00 | 1 | AXLE | GB | |
||
| 165 | 327072-00 | 1 | SHIM | GB | |
||
| 166 | 323762-02 | 1 | CIRCLIP | GB | |
||
| 167 | 487401-00 | 1 | CLUTCH SA | GB | |
||
| 168 | 327074-00 | 1 | RING | GB | |
||
| 169 | 487067-00 | 1 | PISTON | GB | |
||
| 170 | 323395-33 | 1 | SPRING | GB | |
||
| 171 | 327101-01 | 1 | INTERSHAFT SA | GB | |
||
| 172 | 324430-03 | 1 | BEARING AXIAL | GB | |
||
| 173 | 324431-03 | 1 | WASHER 7 | GB | |
||
| 174 | 614670-01 | 1 | HANDLE SA | GB | |
||
| 175 | 372814-00 | 1 | DEPTH STOP | GB | |
||
| 177 | 327119-00 | 1 | LEVER | GB | |
||
| 178 | 328809-00 | 1 | COVER | GB | |
||
| 179 | 621050-00 | 1 | CHUCK 13MM | GB | |
||
| 180 | 621400-00 | 1 | CHUCK KEY 13MM | GB | |
||
| 181 | 329211-00 | 1 | SLEEVE | GB | |
||
| 182 | 352065 | 1 | ADAPTOR | GB | |
||
| 183 | 1005216-00 | 1 | SCREW | GB | |
||
| 184 | 577058-00 | 1 | PLATE | GB | |
||
| 185 | 930553 | 2 | SCREW | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 816 | 590189-00 | 1 | BRAND LABEL | GB | |
||
| 817 | 590188-01 | 1 | RATING PLATE | GB | |
