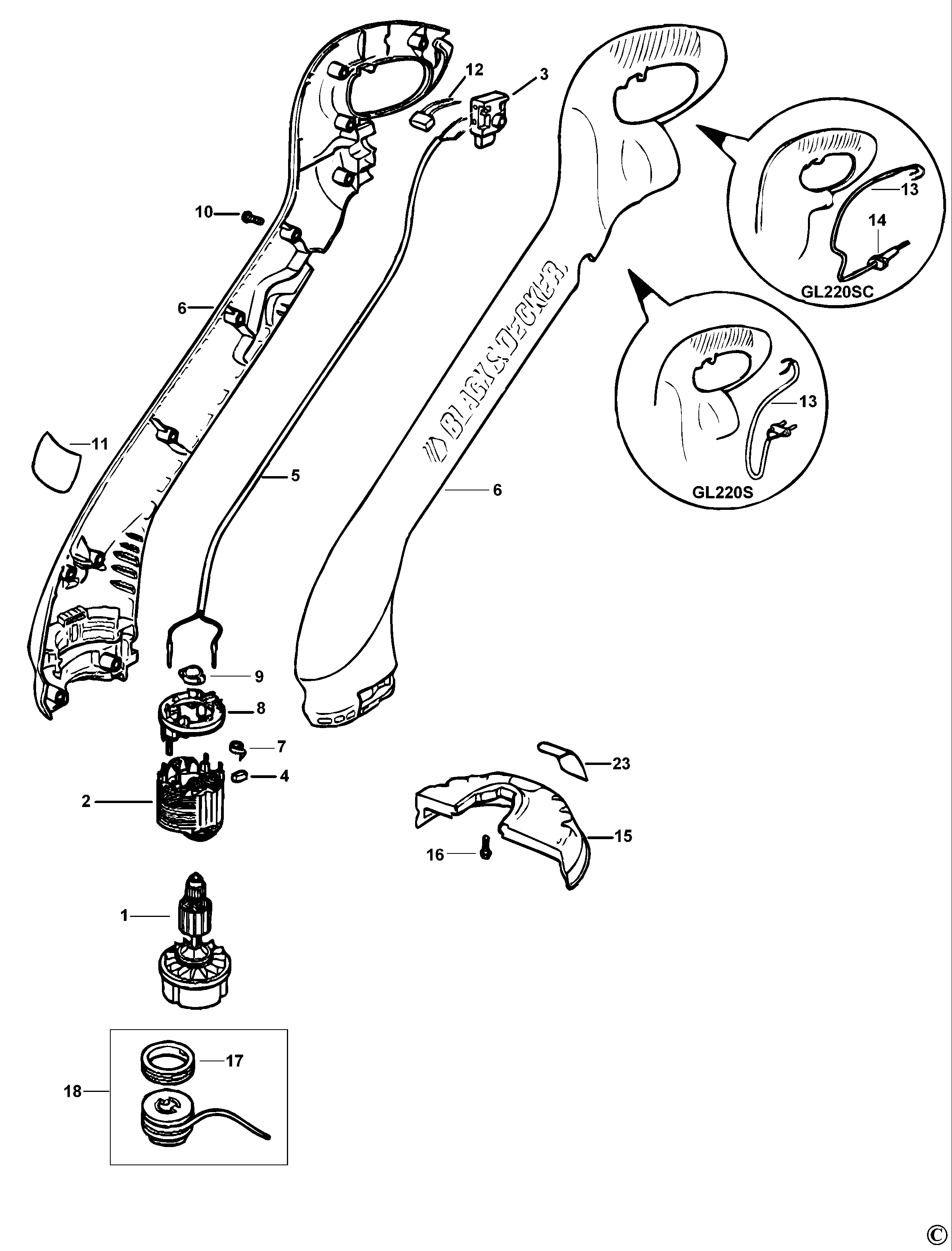

GL220SC STRING TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 578087-01 | 1 | ARMATURE SA | GB |  |
||
| 2 | 572640-29 | 1 | FIELD SA | GB | |
||
| 3 | 575415-00 | 1 | SWITCH | GB | |
||
| 4 | 832998-08 | 2 | BRUSH | GB | |
||
| 5 | 576137-00 | 1 | CABLE | GB | |
||
| 6 | 575266-00 | 1 | CLAMSHELL | GB | |
||
| 7 | 747634 | 2 | SPRING BRUSH | GB | |
||
| 8 | 574793-01 | 1 | BRUSH FRAME | GB | |
||
| 9 | 732460 | 1 | BEARING REAR | GB |  |
||
| 10 | 747329 | 10 | SCREW | GB | |
||
| 11 | 569036-00 | 1 | RATING PLATE | B&D Blank | GB | |
|
| 12 | 577552-00 | 1 | CAPACITOR | GB | |
||
| 13 | 808240-22 | 1 | CORDSET | GB | |
||
| 14 | 806603 | 1 | CORD PROTECTOR | GL220SC | GB | |
|
| 15 | 575529-00 | 1 | GUARD | GB | |
||
| 16 | 371803 | 1 | SCREW | GB | |
||
| 17 | 795506 | 1 | RETAINER | GB | |
||
| 18 | 576576-01 | 1 | SPOOL SA | GB | |
||
| 23 | 579965-01 | 1 | WARNING LABEL | GB | |
||
| 101 | 582064-10 | 1 | LEAD VIOLET | GB | |
||
| 102 | 569389-00 | 1 | BRAKE | GB | |||
| 104 | 1004434-06 | 1 | TOOL CREVICE | GB | |||
| 106 | 374841 | 1 | BUTTON | GB | |
||
| 107 | 6010027-36 | 1 | SHAFT | GB | |
||
| 108 | 374750 | 1 | GUARD SA | GB | |
||
| 109 | 374018 | 1 | ACTUATOR | GB | |
||
| 110 | 569351-00 | 1 | ARMATURE | GB | |
||
| 112 | 374355-00 | 1 | KNOB SA | GB | |
||
| 115 | 6010028-64 | 1 | DISC | GB | |
||
| 116 | 569235-00 | 1 | BLADE SA | GB | |
||
| 117 | 371983 | 1 | LOCKING RING | GB | |
||
| 118 | N047646 | 1 | ELECTRONIC | GB | |||
| 120 | N080644 | 1 | SPINDLE | Heavy Duty | GB | |
|
| 121 | 570925-02 | 1 | GEARBOX SA | GB | |
||
| 122 | 6010111-02 | 1 | BLADE SA | GB | |||
| 123 | 374746-01 | 1 | COVER SPOOL | GB | |
||
| 124 | 570925-02 | 1 | GEARBOX SA | GB | |
||
| 125 | 374597 | 1 | HANDLE | GB | |
||
| 126 | 590443-00 | 1 | CLAMSHELL SET | GB | |||
| 127 | 6010119-16 | 17 | RING | GB | |
||
| 128 | 569153-00 | 1 | GRINDER | SUB ASSEMBLY | GB | |
|
| 129 | 90511824 | 1 | SUPPORT. REAR | GB | |
||
| 130 | 887464 | 1 | GEARCASE SA | GB | |
||
| 131 | 327100-00 | 1 | CASTING SA | GB | |
||
| 132 | 374216-00 | 1 | GEARCASE SA | GB | |
||
| 132 | 596705-00 | 1 | FILTER | GB | |
||
| 133 | 374830 | 1 | GEAR & SPINDLE | GB | |
||
| 135 | 6010113-06 | 1 | COVER | COVER REAR | GB |
