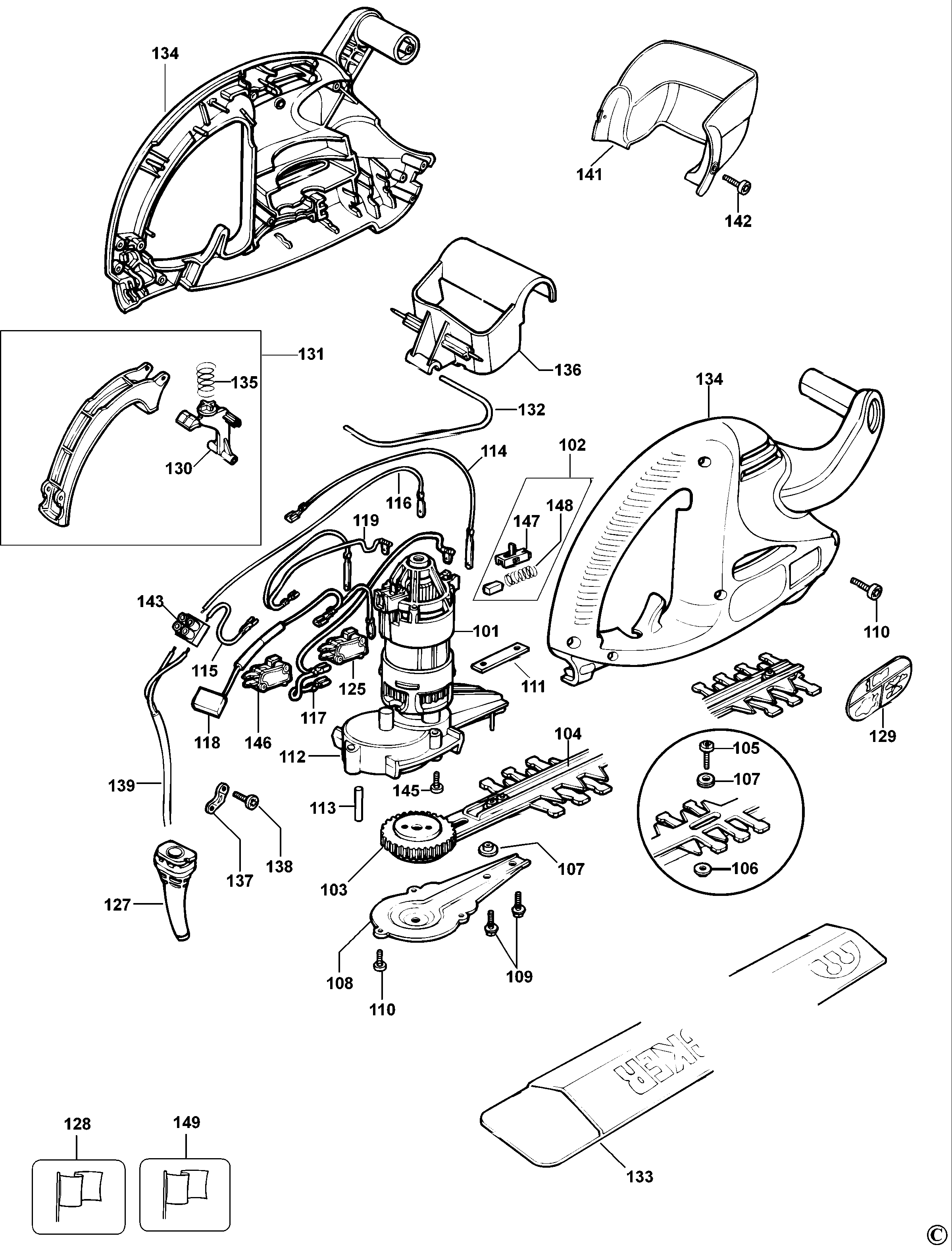

GT262SXC HEDGETRIMMER Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 571299-22 | 1 | MOTOR SA | GB |  |
||
| 102 | 573162-00 | 1 | BRUSHBOX SA | GB | |
||
| 103 | 370906-08 | 1 | BLADE SA 20" | GB | |
||
| 104 | 377459-02 | 1 | SUPPORT | GB | |
||
| 105 | 371954-01 | 7 | BOLT | GB |  |
||
| 106 | 798755 | 7 | NUT M5 | GB | |||
| 107 | 376614-01 | 7 | SPACER | GB | |
||
| 108 | 370908 | 1 | GEARCASE COVER | GB | |
||
| 109 | 798754-01 | 2 | BOLT | GB | |
||
| 110 | 747329 | 7 | SCREW | GB | |
||
| 111 | 370927 | 1 | PLATE | GB | |
||
| 112 | 370930 | 1 | GEARBOX SA | GB | |
||
| 113 | 370902 | 1 | AXLE | GB | |
||
| 114 | 370932-01 | 1 | LEAD GREY | GB | |
||
| 115 | 370932-09 | 1 | LEAD 55MM | GB | |
||
| 116 | 811594 | 1 | LEAD SA | GB | |
||
| 117 | 370932-04 | 1 | LEAD RED | GB | |
||
| 118 | 370932-05 | 1 | LEAD 90MM BLACK | GB | |
||
| 119 | 370932-06 | 1 | LEAD 130MM BLUE | GB | |
||
| 125 | 373246 | 1 | SWITCH | GB | |
||
| 127 | 806603 | 1 | CORD PROTECTOR | GB | |
||
| 128 | 369148-16 | 1 | BRAND LABEL | GB | |
||
| 129 | 579955-00 | 1 | WARNING LABEL | GB | |
||
| 130 | 369147 | 1 | LEVER | GB | |
||
| 131 | 576969-00 | 1 | TRIGGER | GB | |
||
| 132 | 370917 | 1 | LINK | GB | |
||
| 133 | 370936-08 | 1 | SHEATH | 51cm - Black | GB | |
|
| 134 | 370953-04 | 1 | CLAMSHELL | GB | |
||
| 135 | 806128 | 1 | SPRING | GB | |
||
| 136 | 370923-00 | 1 | ACTUATOR | GB | |
||
| 137 | 821070 | 1 | CORD CLAMP | GB | |
||
| 138 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
|
| 139 | 808240-22 | 1 | CORDSET | GB | |
||
| 141 | 370925-03 | 1 | GUARD | GB | |
||
| 142 | 748636 | 2 | SCREW | GB | |
||
| 143 | 373883 | 1 | TERMINAL BLOCK | GB | |
||
| 145 | 812171 | 2 | SCREW | GB | |
||
| 146 | 370915 | 1 | SWITCH | GB | |
||
| 147 | 846076 | 2 | BRUSHBOX | GB | |
||
| 148 | 847709 | 1 | SPRING | GB | |
