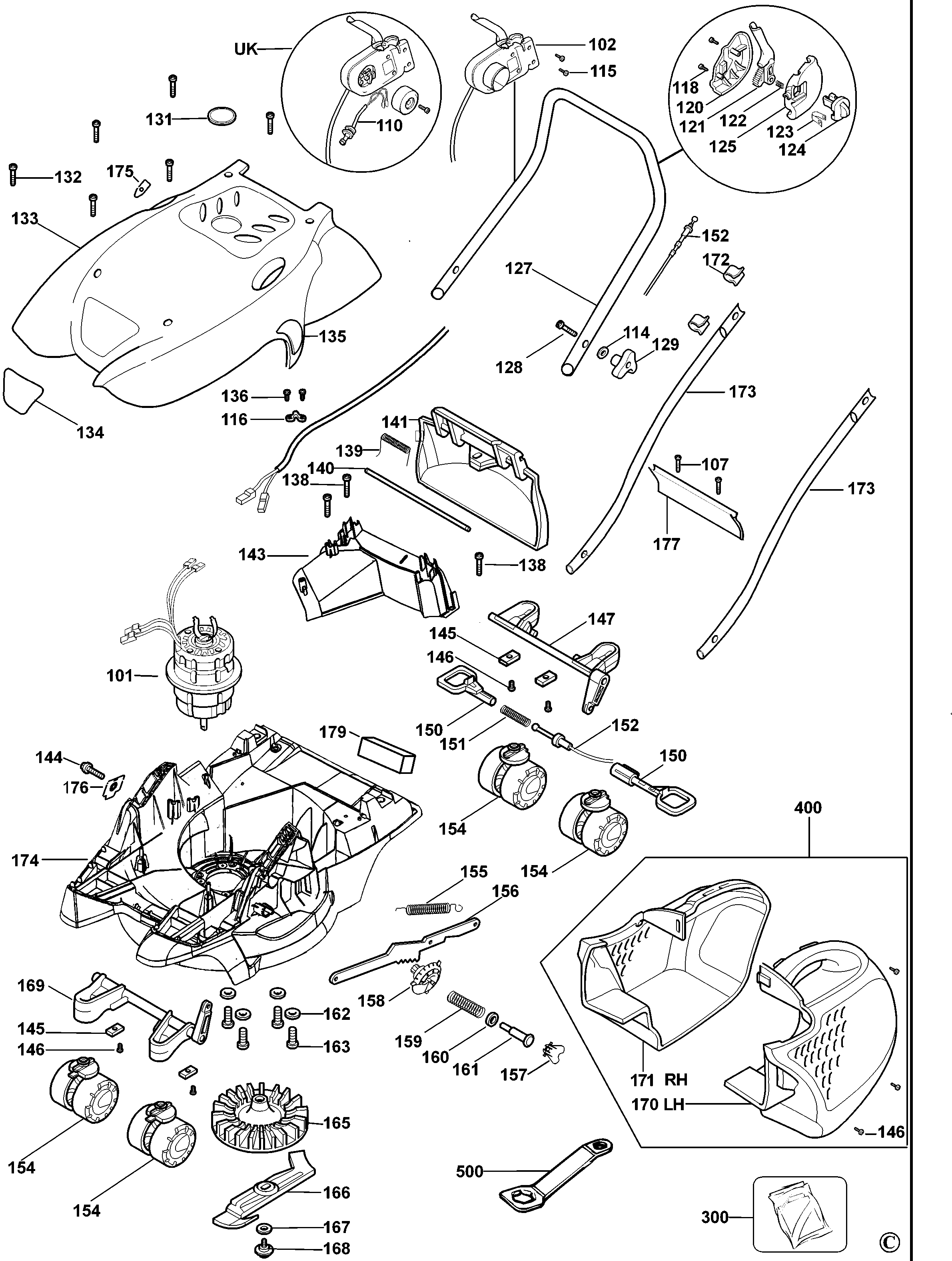

GF934 MOWER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 375413-11 | 1 | MOTOR SA | GB |  |
||
| 102 | 577432-00 | 1 | SWITCHBOX SA | GB | |
||
| 107 | 574537-00 | 2 | SCREW | GB | |
||
| 110 | 799370-16 | 1 | CORDSET | GB | |
||
| 114 | 830832 | 1 | WASHER M6 | GB | |
||
| 115 | 574021-00 | 1 | SCREW | GB | |
||
| 116 | 821070 | 1 | CORD CLAMP | GB |  |
||
| 118 | 747329 | 1 | SCREW | GB | |
||
| 120 | 571189-00 | 1 | CLAMSHELL RH | GB | |
||
| 121 | 571191-00 | 1 | LEVER | GB | |
||
| 122 | 572689-00 | 1 | SPRING | GB | |
||
| 123 | 570617 | 1 | SPRING | GB | |
||
| 124 | 571192-00 | 1 | ACTUATOR | GB | |
||
| 125 | 571190-00 | 1 | CLAMSHELL LH | GB | |
||
| 127 | 577393-00 | 1 | HANDLE UPPER | GB | |
||
| 128 | 830664 | 2 | BOLT | GB | |
||
| 129 | 830657 | 2 | NUT WING | GB | |
||
| 131 | 577429-00 | 1 | LABEL | GB | |
||
| 132 | 747329 | 1 | SCREW | GB | |
||
| 133 | 577016-01 | 1 | COVER | GB | |
||
| 134 | 577427-00 | 1 | BRAND LABEL | GB | |
||
| 135 | 577430-00 | 1 | LABEL | GB | |
||
| 136 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
|
| 138 | 747329 | 1 | SCREW | GB | |
||
| 139 | 570631 | 1 | SPRING | GB | |
||
| 140 | 375453 | 1 | ROD | GB | |
||
| 141 | 375427-01 | 1 | GRASSFLAP | GB | |
||
| 143 | 577013-00 | 1 | SHROUD | GB | |
||
| 144 | 577444-01 | 2 | BOLT | GB | |
||
| 145 | 570613 | 4 | PLATE | GB | |
||
| 146 | 747329 | 4 | SCREW | GB | |
||
| 147 | 577015-00 | 1 | AXLE REAR | GB | |
||
| 150 | 574827-00 | 1 | YOKE SA | GB | |
||
| 151 | 571640-00 | 1 | SPRING | GB | |
||
| 152 | 577356-00 | 1 | CABLE SA | GB | |
||
| 154 | 577326-00 | 4 | WHEEL SA | GB | |
||
| 155 | 570632 | 1 | SPRING | GB | |
||
| 156 | 576697-00 | 1 | RACK | GB | |
||
| 157 | 576696-00 | 1 | LEVER | GB | |
||
| 158 | 576694-00 | 1 | KNOB | GB | |
||
| 159 | 577053-00 | 1 | SPRING | GB | |
||
| 160 | 572912-00 | 1 | WASHER | GB | |
||
| 161 | 747329 | 1 | SCREW | GB | |
||
| 162 | 369732 | 4 | WASHER | GB | |
||
| 163 | 824606 | 4 | SCREW | GB | |
||
| 165 | 571661-01 | 1 | IMPELLOR | GB | |
||
| 166 | 375431 | 1 | BLADE | GB | |
||
| 167 | 375416 | 1 | WASHER | GB | |
||
| 168 | 574858-00 | 1 | BOLT | GB | |
||
| 169 | 577014-00 | 1 | AXLE FRONT | GB | |
||
| 170 | 577534-00 | 1 | GRASSBOX LEFT | GB | |
||
| 171 | 577535-00 | 1 | GRASSBOX RIGHT | GB | |
||
| 172 | 915859 | 1 | CLIP CABLE | GB | |||
| 173 | 577086-00 | 2 | LOWER HANDLE | GB | |
||
| 174 | 578851-00 | 1 | CUTTER DECK | 34CM | GB | |
|
| 175 | 577083-00 | 2 | WASHER | GB | |
||
| 176 | 577084-00 | 2 | NUT | GB | |
||
| 177 | 375438-01 | 1 | FLAP | GB | |
||
| 179 | 576668-00 | 1 | FILTER | GB | |
||
| 300 | 577473-03 | 1 | PARTS PACK | GB | |
||
| 400 | 579087-00 | 1 | GRASSBOX SA | 32 LITRE | GB | |
|
| 400 | 579088-00 | 1 | GRASSBOX SA | 40 LITRE | GB | |
|
| 500 | 577498-00 | 1 | SPANNER | GB | |
