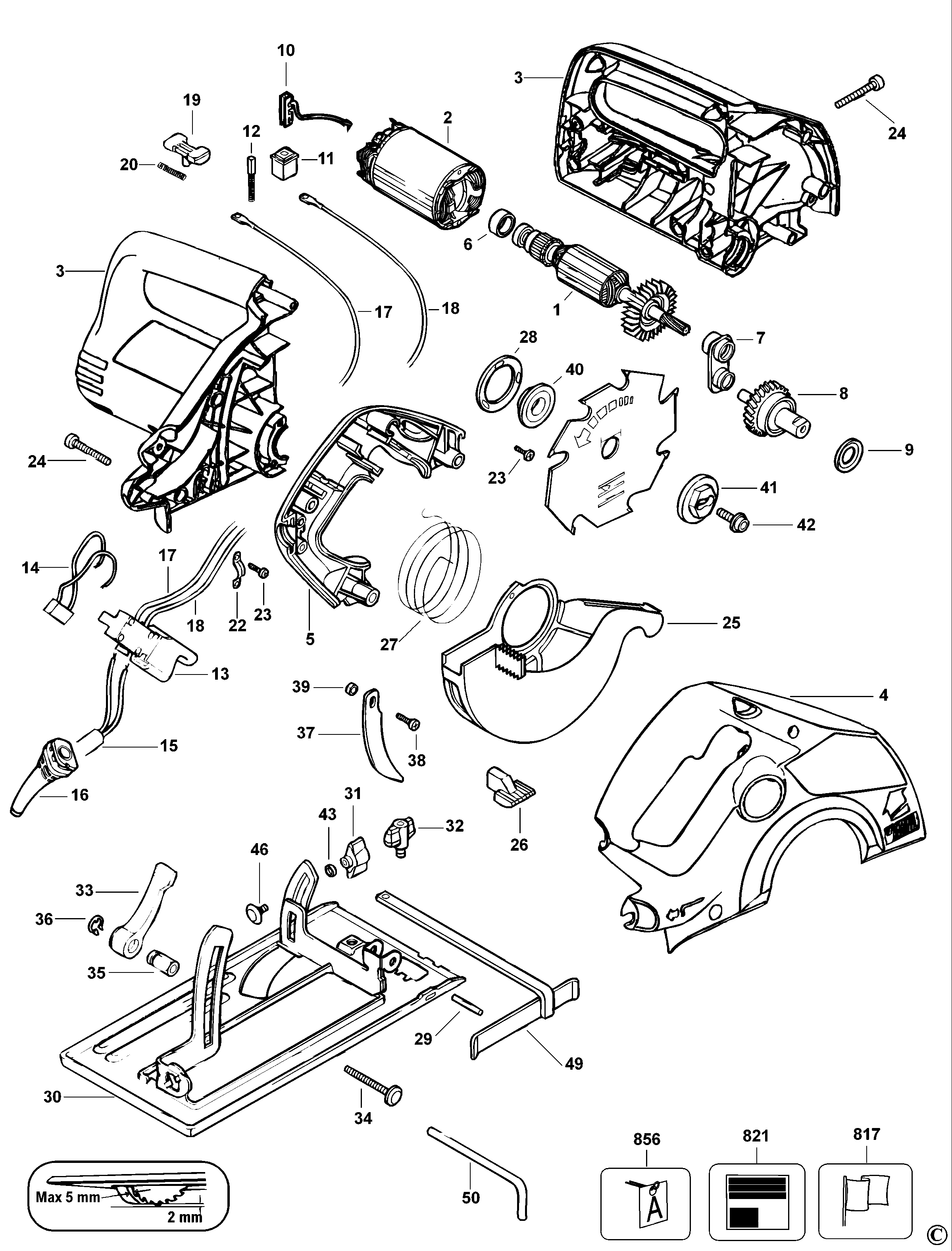

KS40 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1005275-00 | 1 | MOTOR SA | INC FIELD | GB |  |
|
| 2 | 576374-18 | 1 | FIELD SA | GB | |
||
| 3 | 580322-00 | 1 | CLAMSHELL SET | GB | |
||
| 4 | 580322-00 | 1 | CLAMSHELL SET | GB | |
||
| 5 | 580322-00 | 1 | CLAMSHELL SET | GB | |
||
| 6 | 930275-00 | 1 | SLEEVE | GB |  |
||
| 7 | 576710-00 | 1 | BEARING SA | GB | |
||
| 8 | 575333-00 | 1 | SPINDLE SA | GB | |
||
| 9 | 577627-00 | 1 | WASHER THRUST | GB | |
||
| 10 | 579463-00 | 2 | BRUSHBOX SA | GB | |
||
| 11 | 875735 | 2 | INSERT | GB | |
||
| 12 | 915068-01 | 2 | BRUSH & SPRING | SINGULAR | GB | |
|
| 13 | 574289-01 | 1 | SWITCH | GB | |
||
| 14 | 807285-08 | 1 | CAPACITOR | GB | |
||
| 15 | 589164-08 | 1 | CORDSET | GB | |
||
| 16 | 770235 | 1 | PROTECTOR | GB | |
||
| 17 | 577667-00 | 1 | LEAD SA | SHORT | GB | |
|
| 18 | 577668-00 | 1 | LEAD SA | LONG | GB | |
|
| 19 | 575783-00 | 1 | ACTUATOR | GB | |
||
| 20 | 576713-00 | 1 | SPRING | GB | |
||
| 22 | 821070 | 1 | CORD CLAMP | GB | |
||
| 23 | 574060-00 | 5 | SCREW | GB | |
||
| 24 | 809961 | 15 | SCREW | GB | |
||
| 25 | 574041-00 | 1 | GUARD SA | GB | |
||
| 26 | 576780-00 | 1 | LEVER | GB | |
||
| 27 | 914816 | 1 | SPRING | GB | |
||
| 28 | 574078-00 | 1 | PLATE | GB | |
||
| 29 | 577628-00 | 1 | PIN | GB | |
||
| 30 | 578750-00 | 1 | SHOE SA | GB | |
||
| 31 | 577638-00 | 1 | WING NUT | GB | |
||
| 32 | 577637-00 | 1 | SCREW WING | GB | |
||
| 33 | 576707-00 | 1 | LEVER LOCK | GB | |
||
| 34 | 581053-00 | 1 | PARTS PACK(KIT) | GB | |
||
| 35 | 581053-00 | 1 | PARTS PACK(KIT) | GB | |
||
| 36 | 576711-00 | 1 | CLIP | GB | |
||
| 37 | 574076-00 | 1 | RIVING KNIFE | GB | |
||
| 38 | 576709-00 | 1 | SCREW | GB | |
||
| 39 | 330015-01 | 1 | NUT | GB | |
||
| 40 | 575330-00 | 1 | INNER FLANGE | GB | |
||
| 41 | 575331-00 | 1 | OUTER FLANGE | GB | |
||
| 42 | 575332-00 | 1 | BLADE BOLT | GB | |
||
| 43 | 330016-07 | 1 | WASHER | GB | |
||
| 46 | 577612-00 | 1 | BOLT | GB | |
||
| 49 | 578879-00 | 1 | FENCE | GB | |
||
| 50 | 098000-11 | 1 | HEX KEY | GB | |
||
| 821 | 90555555 | 1 | RATING PLATE | GB | |
||
| 856 | 579791-00 | 1 | VACUUM ADAPTOR | GB | |
