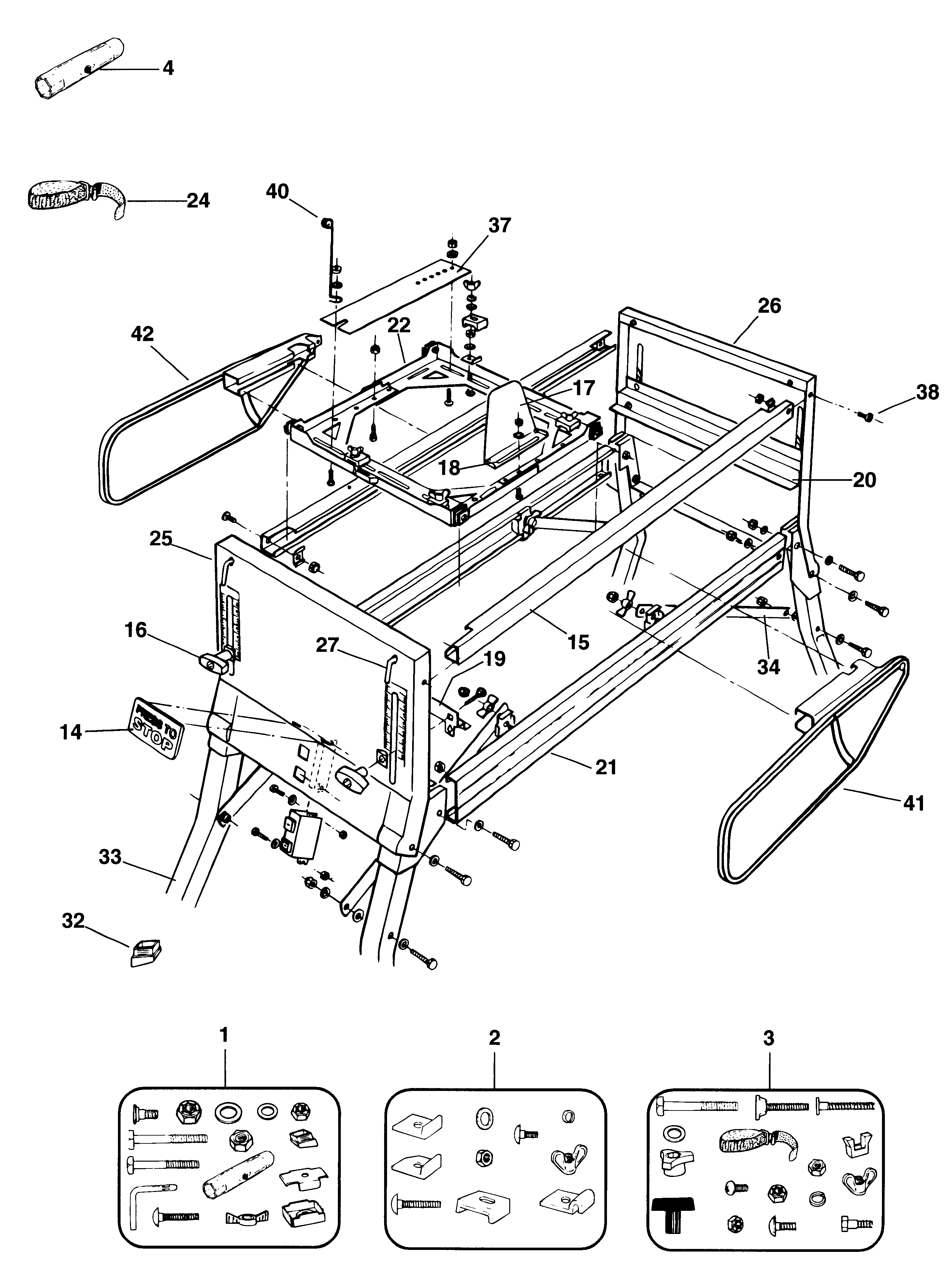

EWC1000 WORKCENTRE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 560252-00 | 1 | FASTENER BAG 1 | XJ | |||
| 2 | 560253-00 | 1 | FASTENER BAG 2 | XJ | |||
| 3 | 560254-00 | 1 | FASTENER BAG 3 | XJ | |||
| 4 | 279122-00 | 1 | SPANNER | XJ | |||
| 5 | 279123-00 | 1 | TABLE | XJ | |||
| 6 | 560255-00 | 1 | RIP FENCE | XJ | |||
| 7 | 560256-00 | 1 | GUARD SA | XJ | |||
| 8 | 560257-00 | 1 | SUPPORT | XJ | |||
| 9 | 560258-00 | 1 | CAP | XJ | |||
| 10 | 560259-00 | 1 | PROTRACTOR | XJ | |||
| 11 | 560260-00 | 1 | STOP | XJ | |||
| 12 | 560261-00 | 1 | STOP | XJ | |||
| 14 | 279132-00 | 1 | STOP PLATE | XJ | |||
| 15 | 560262-00 | 1 | BEARING CHANNEL | XJ | |||
| 16 | 279393-00 | 6 | T KNOB | XJ | |||
| 17 | 560264-00 | 1 | SIDE GUARD SA | XJ | |||
| 18 | 560265-00 | 1 | BRACKET | XJ | |||
| 19 | 279137-00 | 1 | SUPPORT. FRONT | XJ | |||
| 20 | 560266-00 | 1 | SUPPORT. REAR | XJ |  |
||
| 22 | 560268-00 | 1 | CHASSIS SA | XJ | |
||
| 24 | 279103-00 | 1 | TRIGGER STRAP | XJ | |||
| 25 | 560270-00 | 1 | END PANEL. FRONT | XJ | |
||
| 26 | 560271-00 | 1 | END PANEL. REAR | XJ | |
||
| 27 | 279142-00 | 1 | LOCKING KEY (QTY 2) | XJ | |||
| 28 | 560273-00 | 1 | PUSHROD | XJ | |
||
| 29 | 560274-00 | 1 | NOZZLE | XJ | |||
| 30 | 560275-00 | 1 | ADAPTOR | XJ | |||
| 31 | 560276-00 | 1 | HOSE | XJ | |||
| 32 | 560277-00 | 4 | END CAP | XJ | |
||
| 33 | 560278-00 | 4 | LEG | XJ | |
||
| 34 | 560279-00 | 1 | BRACE | XJ | |
||
| 35 | 560280-00 | 1 | STRIP | XJ | |||
| 36 | 560281-00 | 1 | STRIP | XJ | |||
| 37 | 279106-00 | 1 | GUARD | XJ | |||
| 38 | 560282-00 | 4 | BOLT | XJ | |
||
| 40 | 560284-00 | 1 | CORD CLAMP | XJ | |||
| 41 | 560285-00 | 1 | GUARD SA | XJ | |
||
| 42 | 560286-00 | 1 | GUARD LH | XJ | |
||
| 43 | 279101-00 | 1 | KNOB. SHORT | XJ | |||
| 44 | 279102-00 | 1 | KNOB. LONG | XJ |
