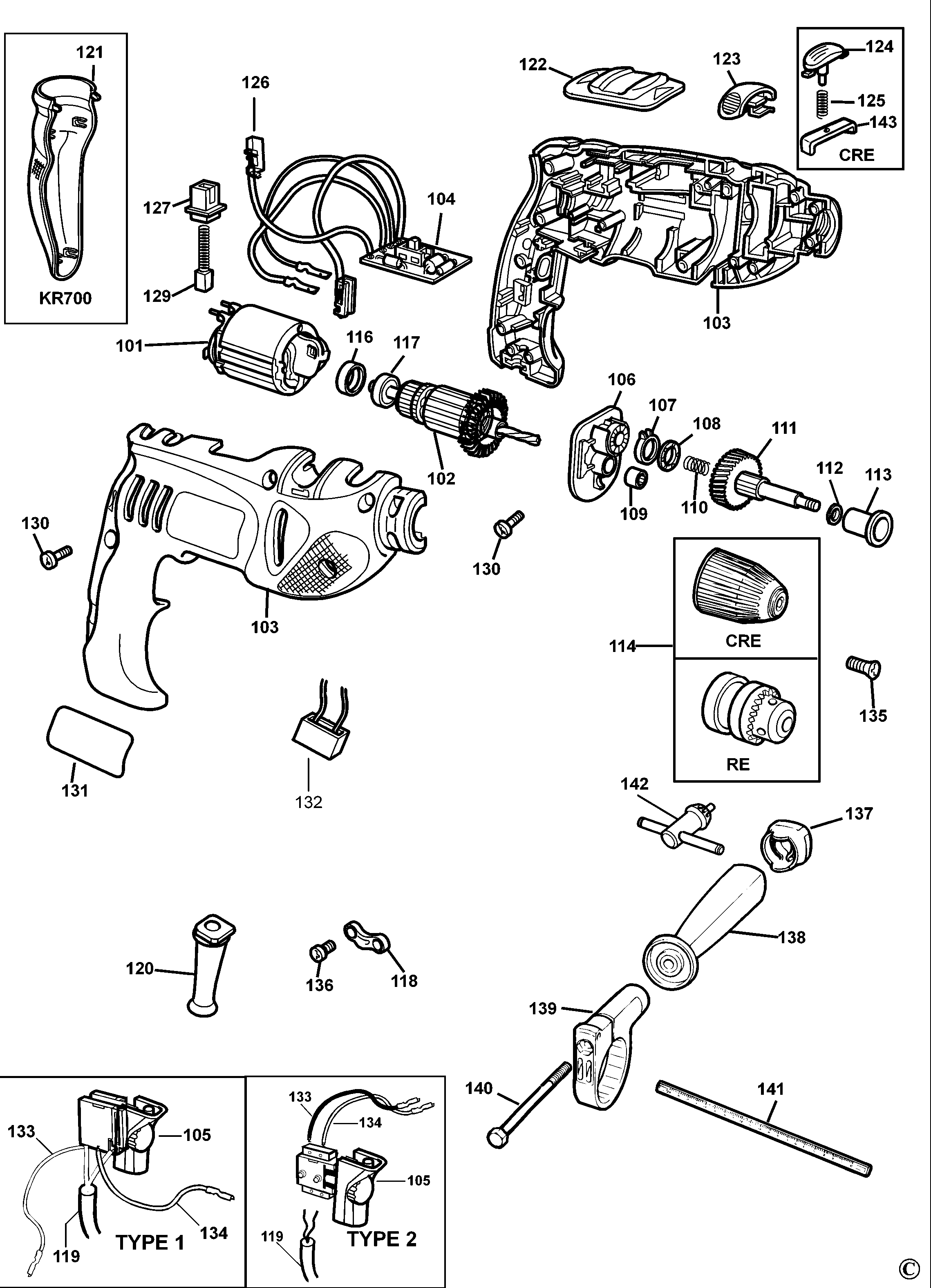

KR580CRE DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 391452-02 | 1 | LEVER | GB |  |
||
| 2 | 145074-00 | 1 | CHOKE | GB | |
||
| 3 | 149085-00 | 1 | LABEL,ID | GB | |||
| 4 | 082481-00 | 1 | WASHER | GB | |||
| 7 | 382180-01 | 2 | GEARCASE COVER SA | GB | |
||
| 8 | 393759-00 | 1 | PLATE | RETAINER | GB | |
|
| 10 | 605040-72 | 1 | BEARING | GB |  |
||
| 11 | 007027-00 | 1 | KEY | INCL 100 | GB | |
|
| 13 | 51402-00 | 1 | PINION | GB | |||
| 15 | 616831-00 | 1 | ANVIL ASSY. | 5/8 - 16 THD | GB | ||
| 16 | 146636-00 | 1 | NUT, FIELD | GB | |||
| 17 | 626393-00 | 1 | TABLE | GB | |
||
| 18 | A23284 | 1 | CORDSET | Incl. Capacitor | GB | ||
| 19 | 152576-00 | 1 | TRANSMISSION SA | GB | |||
| 20 | 616857-00 | 2 | BRUSH HOLDER | GB | |
||
| 21 | 050056-00 | 2 | O RING | GB | |
||
| 22 | N077817 | 1 | GEARCASE SA | w/ brgs and pins | GB | |
|
| 24 | 582831-00 | 1 | BAFFLE | GB | |
||
| 25 | N029518 | 1 | SWITCH SA | GB | |
||
| 26 | N011328 | 4 | LOCKING DEVICE | GB | |||
| 27 | N411027 | 8 | LEAD ASSY. | WHITE (125MM) | GB | ||
| 28 | 496429-00 | 2 | FAN | GB | |||
| 34 | 330045-06 | 2 | SCREW | GB | |
||
| 36 | 641598-00 | 1 | RATING PLATE | GB | |
||
| 69 | 5103553-00 | 2 | BATTERY 18V - 1.5AH - 27WH | GB | |
||
| 70 | 663029-00 | 1 | HANDLE SIDE SA | GB | |
||
| 71 | 617223-00 | 1 | KITBOX | GB | |||
| 74 | 390096-00 | 1 | DEFLECTOR | GB | |
||
| 76 | 146957-00 | 1 | LEAD RED | GB | |
||
| 77 | 146957-01 | 1 | LEAD BLACK | GB | |
||
| 80 | 150921-00 | 1 | RETAINER,BRG. | GB | |||
| 81 | N083671 | 1 | SHIFT KNOB | GB | |||
| 100 | 21246-00 | 3 | BEARING NEEDLE | GB | |||
| 101 | 376912-40 | 1 | FIELD SA | GB | |
||
| 102 | 580813-02 | 1 | ARMATURE SA | GB | |
||
| 102 | 700964-00 | 1 | BEARING | GB | |
||
| 103 | 374250-09 | 1 | CLAMSHELL SET | GB | |
||
| 104 | 374217-01 | 1 | PCB SA | GB | |
||
| 104 | 146736-02 | 1 | GEAR & SPINDLE SA | GB | |
||
| 105 | 375127-06 | 1 | SWITCH VARIABLE | GB | |
||
| 105 | N522017 | 1 | LEVER | GB | |
||
| 106 | 374216-00 | 1 | GEARCASE SA | GB | |
||
| 106 | 330003-11 | 1 | BEARING | GB | |
||
| 107 | 374189-00 | 1 | SELECTOR | GB | |
||
| 108 | 892261 | 1 | BEARING | GB | |
||
| 108 | N772471 | 1 | BASE SA | GB | |
||
| 109 | 330004-18 | 1 | BEARING | GB | |
||
| 109 | 402140-00 | 1 | ANTI SPLINTER DEVICE | GB | |
||
| 110 | 821986 | 1 | SPRING | GB | |
||
| 110 | 021635-00 | 1 | NEEDLE BEARING | GB | |||
| 111 | 377646-02 | 1 | SPINDLE & GEAR SA | GB | |
||
| 111 | 389658-00 | 1 | HANDLE | GB | |
||
| 112 | 374194-00 | 1 | WASHER THRUST | GB | |
||
| 112 | 624281-00 | 1 | CAP | NON VS | GB | ||
| 113 | 374193-00 | 1 | BEARING | GB | |
||
| 114 | 583096-00 | 1 | CHUCK SA | GB | |
||
| 116 | 812970 | 1 | HOLDER,RUBBER | GB | |
||
| 117 | 330003-02 | 1 | BEARING | GB | |
||
| 118 | 821070 | 1 | CORD CLAMP | GB | |
||
| 119 | 330060-53 | 1 | CORDSET | GB | |
||
| 120 | 770236 | 1 | PROTECTOR | GB | |
||
| 122 | 374218-02 | 1 | ACTUATOR | GB | |
||
| 123 | 374226-00 | 1 | ACTUATOR | GB | |
||
| 124 | 374270-00 | 1 | BUTTON SA | GB | |
||
| 125 | 748158 | 1 | SPRING | GB | |
||
| 127 | 875735 | 2 | INSERT | GB | |
||
| 129 | 570544-00 | 2 | BRUSH & SPRING | GB | |
||
| 130 | 809961 | 11 | SCREW | GB | |
||
| 131 | 374186-10 | 1 | BRAND LABEL | GB | |
||
| 132 | 807745 | 1 | CAPACITOR | GB | |
||
| 133 | 573030-00 | 1 | LEAD RED | GB | |
||
| 134 | 573030-01 | 1 | LEAD BLACK | GB | |
||
| 135 | 805434 | 1 | SCREW.SPECIAL | CRE | GB | |
|
| 135 | 373793 | 1 | SCREW LEFT 5X21 | RE | GB | ||
| 136 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
|
| 137 | 376554-04 | 1 | CAP (ORANGE) | GB | |||
| 138 | 376555-05 | 1 | HANDLE & CAP SA | GB | |
||
| 139 | 376552-03 | 1 | CLAMP | GB | |
||
| 140 | 813918 | 1 | SCREW | GB | |
||
| 141 | 372814-00 | 1 | DEPTH STOP | GB | |
||
| 143 | 570593-00 | 1 | SUPPORT | GB | |
