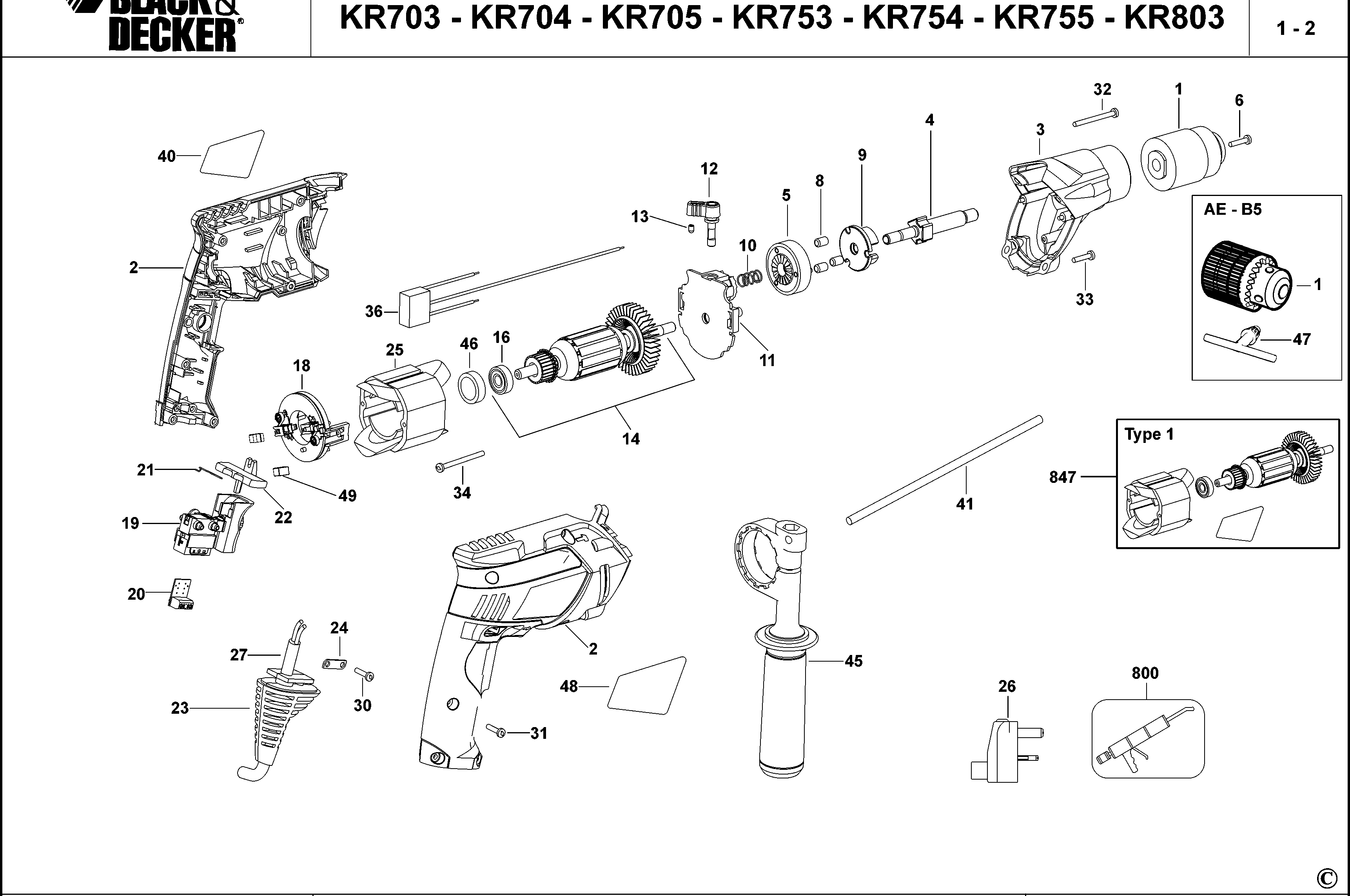

KR703 HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 629530-01L | 1 | CHUCK KEYLESS | GB |  |
||
| 2 | 490560-00 | 1 | CLAMSHELL | GB |  |
||
| 3 | 490559-00 | 1 | GEARCASE SA | GB | |
||
| 4 | 488643-00 | 1 | SPINDLE SA | GB | |
||
| 5 | 488642-00 | 1 | GEAR | GB | |
||
| 6 | 805434 | 1 | SCREW.SPECIAL | GB | |
||
| 8 | 478752-00 | 3 | ROLLER | GB | |
||
| 9 | 478748-00 | 1 | CARRIER | OUTPUT GEAR | GB | |
|
| 10 | 491055-00 | 1 | SPRING | GB | |
||
| 11 | 488624-00 | 1 | BEARING HOUSING | GB | |
||
| 12 | 490715-00 | 1 | SELECTOR SA | GB | |
||
| 13 | N403227 | 1 | DETENT | GB | |
||
| 14 | 000000-06 | 1 | NO LONGER AVAILABLE - REF ITEM 847 | GB | |||
| 16 | 606290-01 | 1 | BEARING | GB | |
||
| 18 | 90525184 | 1 | BRUSH HOLDER SA | GB | |
||
| 19 | 492290-00 | 1 | SWITCH SA | GB | |
||
| 20 | 615538-01 | 1 | PCB SA | GB | |
||
| 21 | 629167-00 | 1 | SPRING | GB | |
||
| 22 | 629168-00 | 1 | LEVER | GB | |
||
| 23 | 635395-00 | 1 | CORD PROTECTOR | GB | |
||
| 24 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 25 | 000000-06 | 1 | NO LONGER AVAILABLE - REF ITEM 847 | GB | |||
| 26 | 588384-00 | 1 | ADAPTOR SA | GB | |
||
| 27 | 589164-00 | 1 | CORDSET | 5A | INCL 26 | GB | |
| 30 | 330019-38 | 2 | SCREW | GB | |
||
| 31 | 90611830 | 8 | SCREW | GB | |
||
| 32 | 330019-50 | 2 | SCREW | M4.55x50 PLASTIC THD FMG | GB | |
|
| 33 | 330019-32 | 2 | SCREW | GB | |
||
| 34 | 330019-63 | 2 | SCREW | GB | |
||
| 40 | 493395-00 | 1 | LABEL | GB | |
||
| 41 | 580787-00 | 1 | DEPTH STOP | GB | |
||
| 45 | 939794-02 | 1 | HANDLE SIDE SA | GB | |
||
| 46 | 635176-00 | 1 | SLEEVE | GB | |
||
| 48 | 493396-00 | 1 | RATING PLATE | GB | |
||
| 49 | 90587238 | 1 | BRUSH PAIR 230V | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 847 | 90569806 | 1 | SERVICE KIT | Type 1 ----> Type 2 | GB | |
