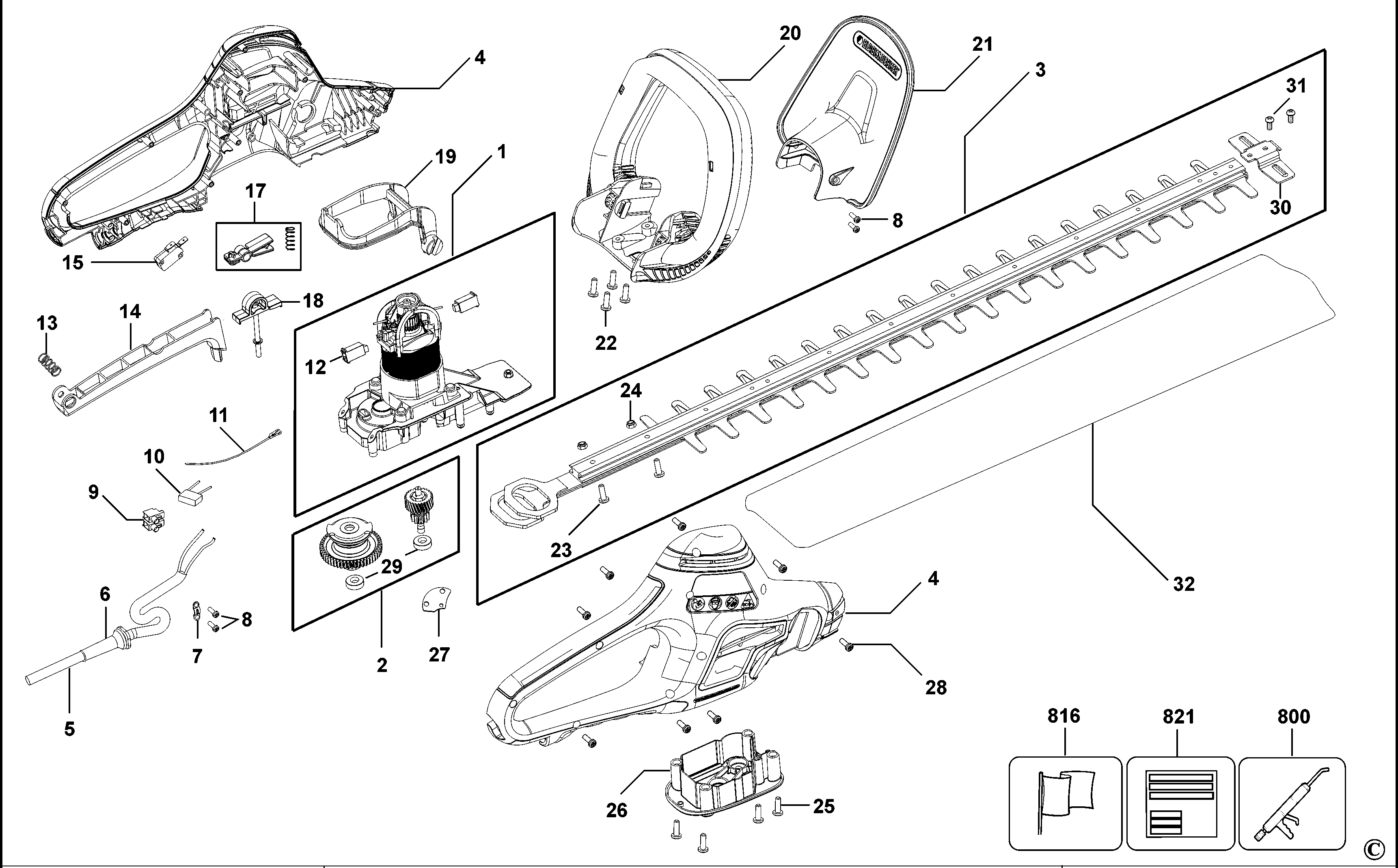

GT5026 HEDGETRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90531857-01 | 1 | MOTOR & GEARCASE | GB |  |
||
| 1 | 90531857-01 | 1 | MOTOR & GEARCASE | GB | |
||
| 2 | 90543630 | 1 | PINION & GEAR SA | GB |  |
||
| 3 | 90544207 | 1 | BLADE SA | 50CM | GB | |
|
| 4 | 90527815-01 | 1 | CLAMSHELL SA | GB | |
||
| 5 | 90540131 | 1 | CORDSET | 12m | GB | |
|
| 6 | 770235 | 1 | PROTECTOR | GB | |
||
| 7 | 821070 | 1 | CORD CLAMP | GB | |
||
| 8 | 821057 | 4 | SCREW | No 6 x 12.7mm | GB | |
|
| 9 | 373883 | 1 | TERMINAL BLOCK | GB | |
||
| 10 | 90537509 | 1 | CAPACITOR | GB | |
||
| 11 | 90532880 | 1 | LEADWIRE | GB | |
||
| 12 | 90545659 | 1 | BRUSH & HOLDER SA | GB | |
||
| 13 | 90532295 | 1 | SPRING | GB | |
||
| 14 | 90039466 | 1 | TRIGGER | GB | |
||
| 15 | 90533781 | 1 | SWITCH SA | GB | |
||
| 17 | 90543632 | 1 | ACTUATOR | GB | |
||
| 18 | 90556342 | 1 | ACTUATOR | GB | |
||
| 19 | 90039468 | 1 | PIVOT | GB | |
||
| 20 | 90532771 | 1 | HANDLE SA | GB | |
||
| 21 | 90528349-01 | 1 | LOWER GUARD SA | GB | |
||
| 22 | 90540971 | 4 | SCREW | GB | |
||
| 23 | 330045-16 | 2 | SCREW | GB | |
||
| 24 | 90533548 | 2 | NUT | GB | |
||
| 25 | 330024-36 | 4 | SCREW | GB | |
||
| 26 | 90040523 | 1 | BOTTOM PLATE | GB | |
||
| 27 | 90524440 | 1 | SUPPORT PLATE | GB | |
||
| 28 | 747329 | 9 | SCREW | GB | |
||
| 29 | 574853-06 | 2 | BEARING | GB | |
||
| 30 | 90527993 | 1 | GUARD | GB | |
||
| 31 | 330024-34 | 2 | SCREW | GB | |
||
| 32 | 90535282 | 1 | SHEATH | GB | |||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | GB | |
|
| 816 | 90536337 | 1 | BRAND LABEL | GB | |
||
| 821 | 90557038 | 1 | RATING PLATE | GB | |
