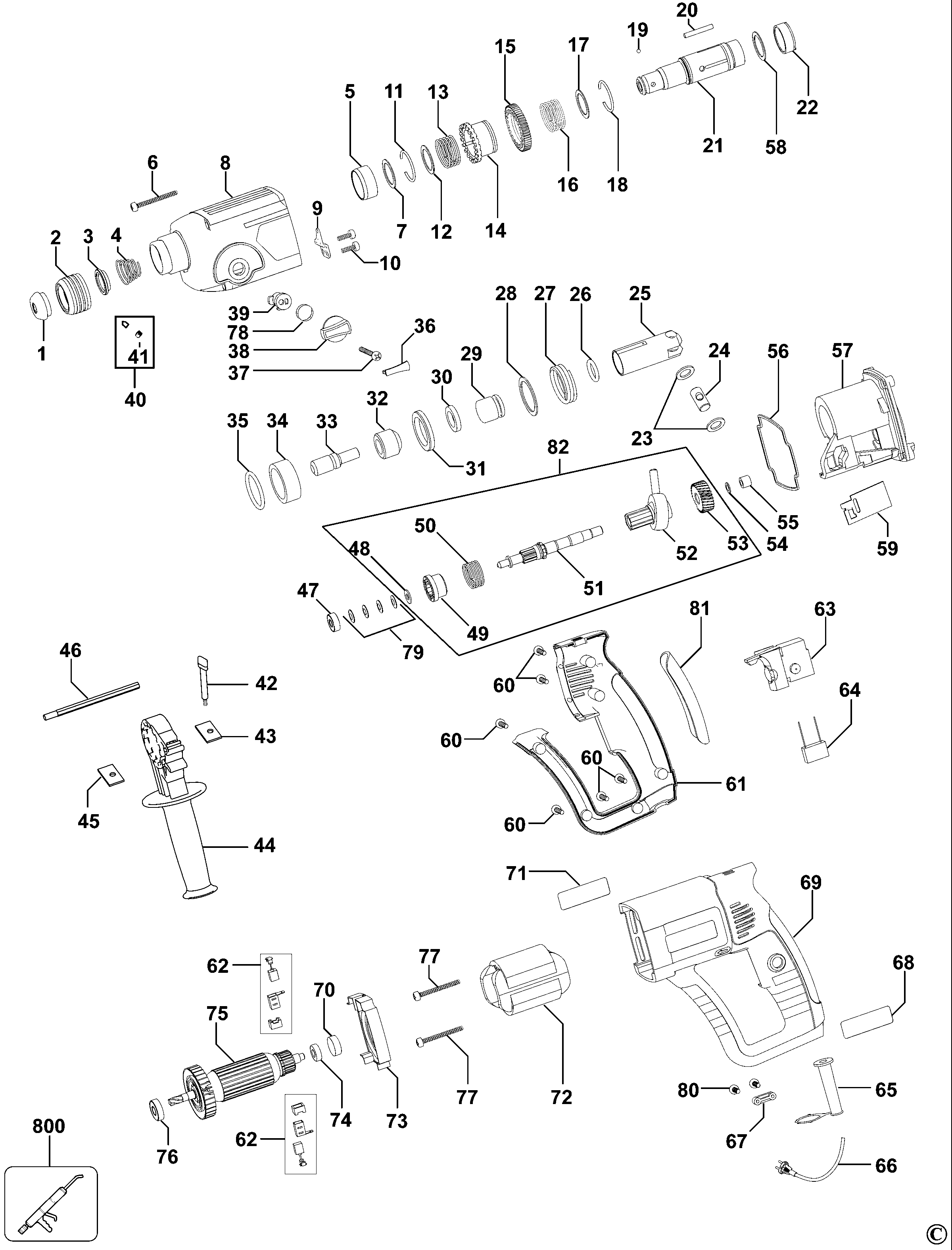

KD70KC ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 569381-00 | 1 | COVER | GB |  |
||
| 2 | 569382-00 | 1 | COVER | GB | |
||
| 3 | 569383-00 | 1 | RETAINER | GB | |
||
| 4 | 569384-00 | 1 | SPRING | GB | |
||
| 5 | 90553475 | 1 | BEARING | GB |  |
||
| 6 | 569386-00 | 4 | SCREW | ST4.2 X 65 | GB | |
|
| 7 | 90553476 | 1 | WASHER | GB | |
||
| 8 | 569388-00 | 1 | HOUSING FRONT | GB | |
||
| 9 | 90553471 | 1 | BRAKE | GB | |
||
| 10 | 90553472 | 2 | SCREW | ST4.2 X 8 | GB | |
|
| 11 | 90553477 | 1 | RING | DIA 31 | GB | |
|
| 12 | 90553478 | 1 | RING | GB | |
||
| 13 | 90553479 | 1 | SPRING | GB | |
||
| 14 | 90553480 | 1 | SLEEVE | GB | |
||
| 15 | 90553481 | 1 | GEAR | GB | |
||
| 16 | 90553482 | 1 | SPRING | GB | |
||
| 17 | 90553483 | 1 | RING | GB | |
||
| 18 | 90553484 | 1 | RING | STEEL WIRE DIA 37 | GB | |
|
| 19 | 90550363 | 1 | BALL STEEL | GB | |
||
| 20 | 90553487 | 1 | PIN | P3 X 23.8 | GB | |
|
| 21 | 569401-00 | 1 | SHAFT | GB | |
||
| 22 | 569402-00 | 1 | SEAL | GB | |
||
| 23 | 90549884 | 2 | WASHER | GB | |
||
| 24 | 90553557 | 1 | PIN | GB | |
||
| 25 | 90553506 | 1 | CYLINDER | GB | |
||
| 26 | 569406-00 | 1 | O RING | 16 | GB | |
|
| 27 | 569409-00 | 1 | SLEEVE | GB | |
||
| 28 | 569408-00 | 1 | RING | GB | |
||
| 29 | 569407-00 | 1 | BEAT PIECE | GB | |
||
| 30 | 569410-00 | 1 | O RING | 11 X 3.55 | GB | |
|
| 31 | 569411-00 | 1 | O RING | GB | |
||
| 32 | 569412-00 | 1 | SLEEVE | GB | |
||
| 33 | 569413-00 | 1 | HAMMER | GB | |
||
| 34 | 569414-00 | 1 | BLOCK | GB | |
||
| 35 | 569415-00 | 1 | WASHER | GB | |
||
| 36 | 569416-00 | 1 | COVER | GB | |
||
| 37 | 569417-00 | 1 | SCREW | ST4.2 X 16 | GB | |
|
| 38 | 569418-00 | 1 | KNOB | GB | |
||
| 39 | 569419-00 | 1 | REVERSER | GB | |
||
| 40 | 1004427-00 | 1 | SERVICE KIT | GB | |
||
| 41 | 569421-00 | 1 | SPRING | GB | |
||
| 42 | 569422-00 | 1 | LOCKING KNOB | GB | |
||
| 43 | 569423-00 | 1 | WASHER CLAMP | GB | |
||
| 44 | 569424-00 | 1 | SIDE HANDLE | GB | |
||
| 45 | 569425-00 | 1 | NUT | GB | |
||
| 46 | 569426-00 | 1 | DEPTH ROD | GB | |
||
| 47 | 90553558 | 1 | BEARING | 606 | GB | |
|
| 48 | 90553508 | 1 | RING | GB | |
||
| 49 | 90553510 | 1 | CLUTCH | GB | |
||
| 50 | 90553511 | 1 | SPRING | GB | |
||
| 51 | 569431-00 | 1 | SHAFT | GB | |
||
| 52 | 569432-00 | 1 | BEARING | GB | |
||
| 53 | 569433-00 | 1 | GEAR | GB | |
||
| 54 | 569434-00 | 1 | SEAL | GB | |
||
| 55 | 569435-00 | 1 | SEAL | HK0608 | GB | |
|
| 56 | 569436-00 | 1 | GASKET | GB | |
||
| 57 | 569437-00 | 1 | HOLDER | GB | |
||
| 58 | 569438-00 | 1 | WASHER | GB | |
||
| 59 | 569439-00 | 1 | SLIDER | GB | |
||
| 60 | 1002080-00 | 6 | SCREW | GB | |
||
| 61 | 569440-00 | 1 | HANDLE COVER | GB | |
||
| 62 | 90592921-01 | 2 | BRUSH & HOLDER 230V | GB | |
||
| 63 | 569442-00 | 1 | SWITCH | Capax | GB | |
|
| 64 | 569443-00 | 1 | CAPACITOR | GB | |
||
| 65 | 569444-00 | 1 | CORD PROTECTOR | GB | |
||
| 66 | 569445-00 | 1 | CORDSET | GB | |
||
| 67 | 569447-00 | 1 | CABLE CLAMP | GB | |
||
| 68 | 569448-00 | 1 | BRAND LABEL | GB | |
||
| 69 | 569449-00 | 1 | HOUSING REAR | GB | |
||
| 70 | 569450-00 | 1 | SLEEVE BEARING | GB | |
||
| 71 | 1002079-00 | 1 | RATING PLATE | GB | |
||
| 72 | 569452-00 | 1 | FIELD | GB | |
||
| 73 | 569453-00 | 1 | BAFFLE | GB | |
||
| 74 | 569454-00 | 1 | BEARING | 607 | GB | |
|
| 75 | 569455-00 | 1 | ARMATURE | GB | |
||
| 76 | 569456-00 | 1 | BEARING | 608 | GB | |
|
| 77 | 569457-00 | 2 | SCREW | ST4.2 x 16 | GB | |
|
| 78 | 569458-00 | 1 | RING | STEEL 11 X 1.5 | GB | |
|
| 79 | 569459-00 | 1 | WASHER SPRING | GB | |
||
| 80 | 569460-00 | 2 | SCREW | ST4.2 X 16 | GB | |
|
| 81 | 1002081-00 | 1 | COVER REAR | GB | |
||
| 82 | 1002481-00 | 1 | INTERSHAFT SA | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
